Характеристики

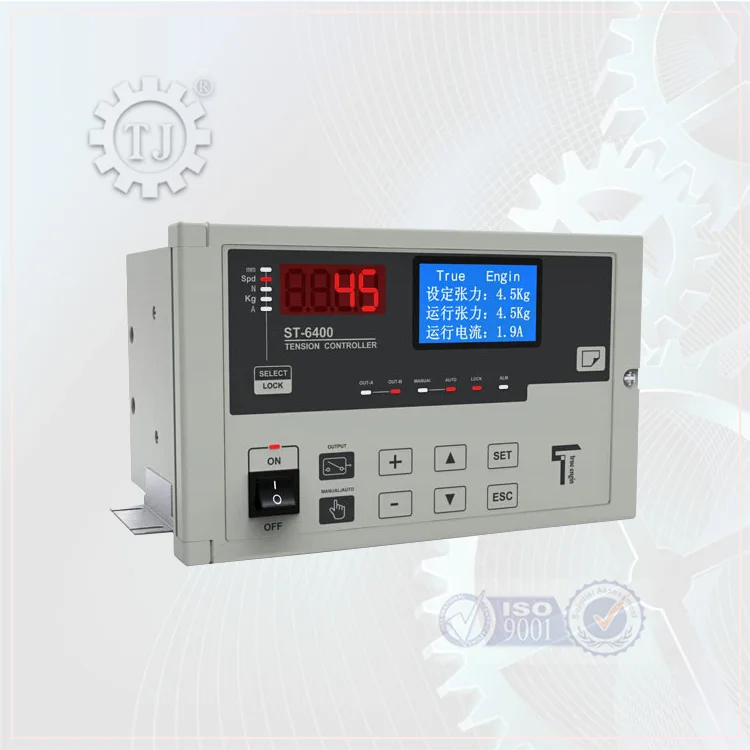

High precision auto tension controller for unwinding /winding system
Product Description
Auto tension controller :
1.Good control precision.
2.Controlling tension can be read directly.
3.Can amend the torque character of the executing machine.
4.To realize constant tension control.
Auto Tension Controller Parameter:
Work mains input | AC220V 100W |
Work power source output | DC10V,the tension examination power source |
Simulation input signal | Two group tension detector signal input |
Simulation output signal | Control output DC0-10V to use in serving controls and so on amplifier. |
Input signal | Each numeral quantities and so on coupling brake all to use the Photoelectrictiy isolation electric circuit to input, all digital quantity input only DIO DIA DIB. |
Use ambient temperature | -10~40degree |
Use environment humidity | 35~85% RH( No condensation) |
Use environment | Non-corrosiveness, not flammable gas,non-conductive dust, dust few |
| Earths | D kind of earth (It is prohibition of the strong electricity electric wire earths together) |
Auto Tension Controller Specialty:
Our automatic tension control technology uses interactional many vanguard technologies, adopts the microprocessor, high speed 18A/D switch, antijamming self-recovery tech-nology, and PID non-over modulation algorithm, thus achieve the permanent tension control. Widely applies in printing, the packing, the papermaking, the spinning and also also the weaving, the line cable and so on. According to the difference of signal, it divides into completely automatic and Semiau-tomatic.
The tension controller signal input may choose is comes from:
1,tension detector electric current either voltage output (mA or mV) completely automatic
2,encoder or close switch outputs signal(0-9V) ---Semisu-tomatic.
Auto Tension Controller Installation:
Tension Sensor (detector):

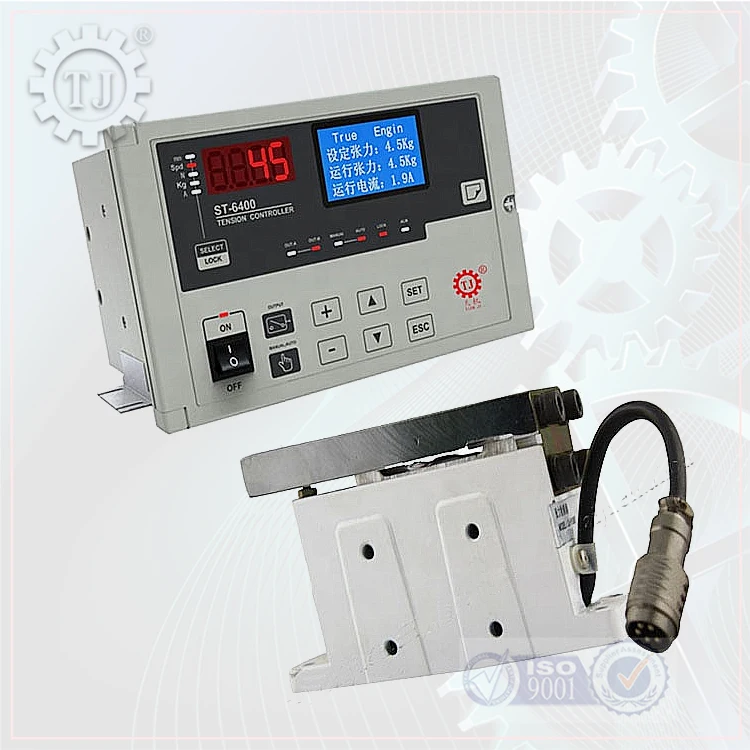

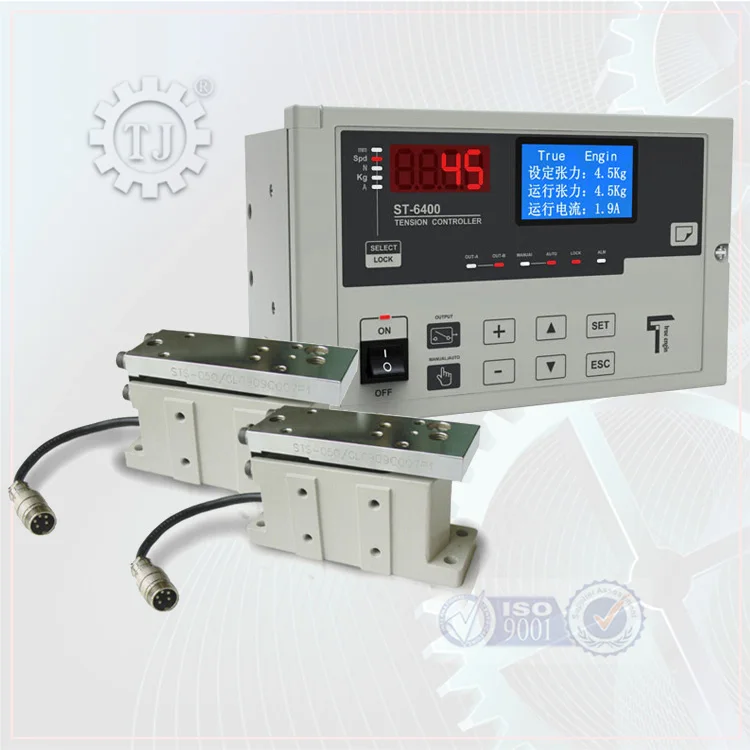

Auto Tension Controller & Tension Sensor Photos Showing:
Application Example:
If you don't want auto tension controller, and want to choose the simple and cheaper one,
We also have another option for you: Manual Tension Controller.

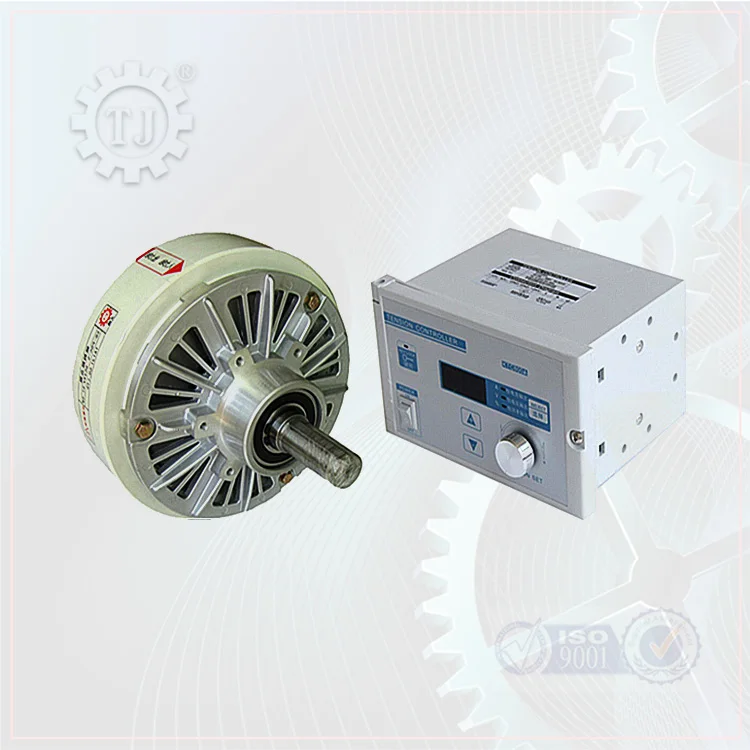

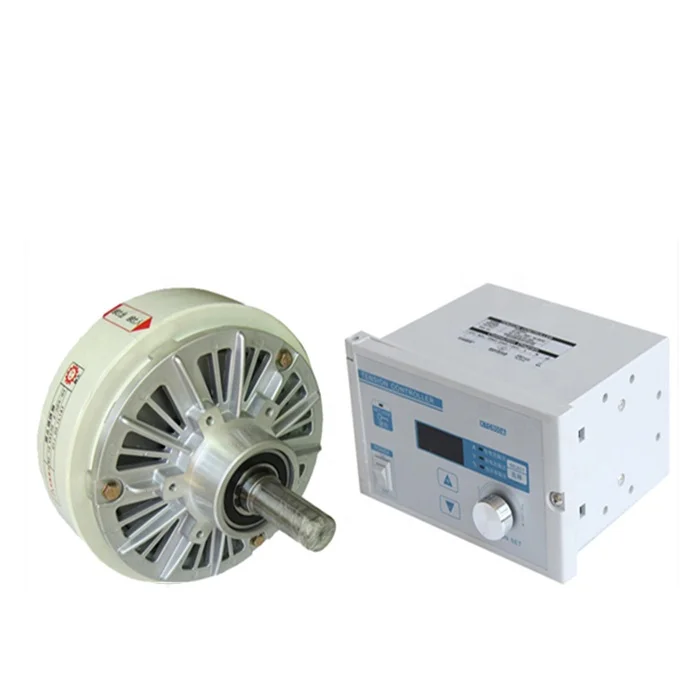

Manual Tension Controller Photo Showing:
Manual Tension Controller Specification:
| Conrol Manner | Pulse width concoct switch adjust system |
| Input Voltage | AC85~264V , 50/60HZ |
| Output | DC24V , 0~4A |
| Suitable for Machine | magnetc powder clutch ,magnetic powder brake |
| Assistant Function | Short circuit to protect input signal and can be controlled by outside signal.(panel signal or 0~10v) |
| Working Environment | Use temperature around:-5°C~+40°C ,use temperature around below 3.8%. Use environment:not allow causticity gas,dust and rain. |
| Installation | Ground installation. Hang up installation. Incrustation installation |
| Weight | 1KG |
