Цветовом оформлении 0 9-0.95kwh/км Диапазон CATL литий-железо-фосфатный 157.7kwh 165kw 2000Nm мощность двигателя Электрический туристический

Цветовом оформлении 0 9-0.95kwh/км Диапазон CATL литий-железо-фосфатный 157.7kwh 165kw 2000Nm мощность двигателя Электрический туристический

Категория: City Buses >>>
Поставщик: Dongfeng,Huashen,Special,Vehicle,Co.,Ltd.

Цена:90 000,00 $ - 130 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	107100.2 $*	112455.14 $*
Aug-20-2025	106200.60 $*	111510.1 $*
Jul-20-2025	89100.63 $*	93555.65 $*
Jun-20-2025	104400.9 $*	109620.14 $*
May-20-2025	90900.31 $*	95445.95 $*
Apr-20-2025	102600.24 $*	107730.63 $*
Mar-20-2025	101700.27 $*	106785.33 $*
Feb-20-2025	100800.96 $*	105840.31 $*
Jan-20-2025	99900.69 $*	104895.9 $*

Характеристики

PRODUCT OVERVIEW

Color Design 0.9--0.95kwh/km Drive Range CATL LFP 157.7kwh 165kw 2000Nm Motor Power Electric tourist Coach Bus Chassis

PRODUCT SPECIFICATIONS

Dimension	L×W(mm)	7830×2400
		wheelbase（mm）	4500
		Tread F/R（mm）	1953/1864
		F/R overhang（mm）	1610/1720
weight	chassis curb weight（kg）	5000
weight		G.V.W（kg）	12500
performance	Max. speed（km/h）	69（bus speed limit）
performance		Max. grade ability (%)	17%
Drive range(km)	0.9--0.95kwh/km (A/C ON) 0.75--0.8 kwh/km (A/C OFF) for your reference
Front axle	dongfeng dana, load capcity 4500kg with WABCO ABS
Rear axle	dongfeng dana load capacity 8000kg with WABCO ABS
Drive motor	Type & Manufacturer	TZ365XSD02/Jing-Jin Electric
		rated power/peak power（Kw）	103/165
		rated torque/ peak torque（N.m）	1100/2000
		protection level	IP67
Motor controller	rated voltage（Vdc）	576
Motor controller		rated/peak capacity（kVA）	576
power battery	battery brand and type	CATL195/410
		battery pack power capacity（Ah）	LiFePO
		battery pack rated voltage（Vdc)	302
		total battery power capacity（kwh）	157.7

MORE DETAILS

COMPANY PROFILE

Dongfeng Huashen Special Vehicle Co., Ltd. is mainly engaged in the research and development of engineering dump trucks, environmental protection muck trucks, various types of vans (composite panel vans, iron corrugated vans), refrigerated trucks, truck-mounted cranes, military off-road trailers and other series of special vehicles, Production and sales, with an annual production capacity of 15,000 vehicles. The company is located in Shiyan Industrial New Zone, Hubei Province, covering an area of 290 acres, with a construction area of 62,000 square meters, a total investment of 210 million yuan, and more than 200 employees . Committed to building a leader in the domestic dump and van special-purpose vehicle industry.

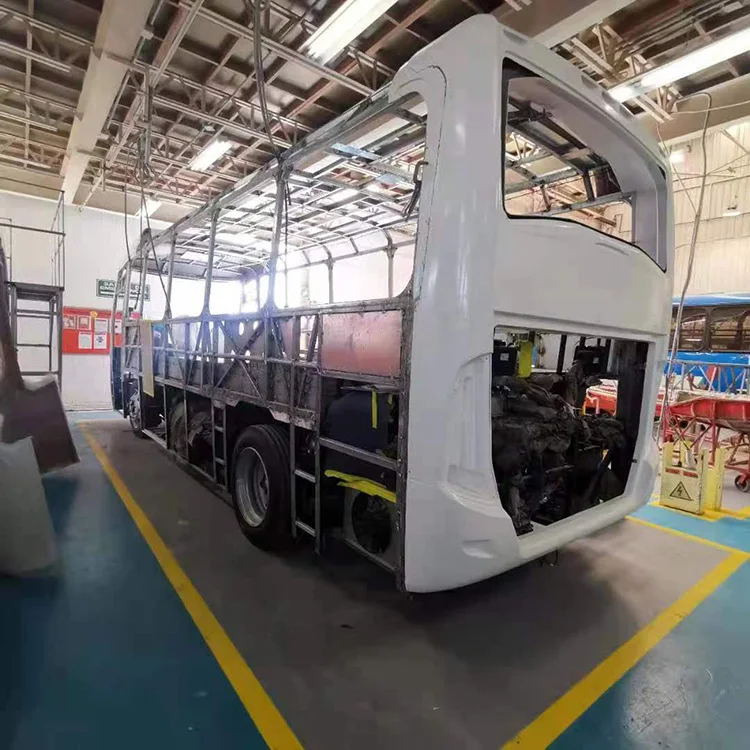

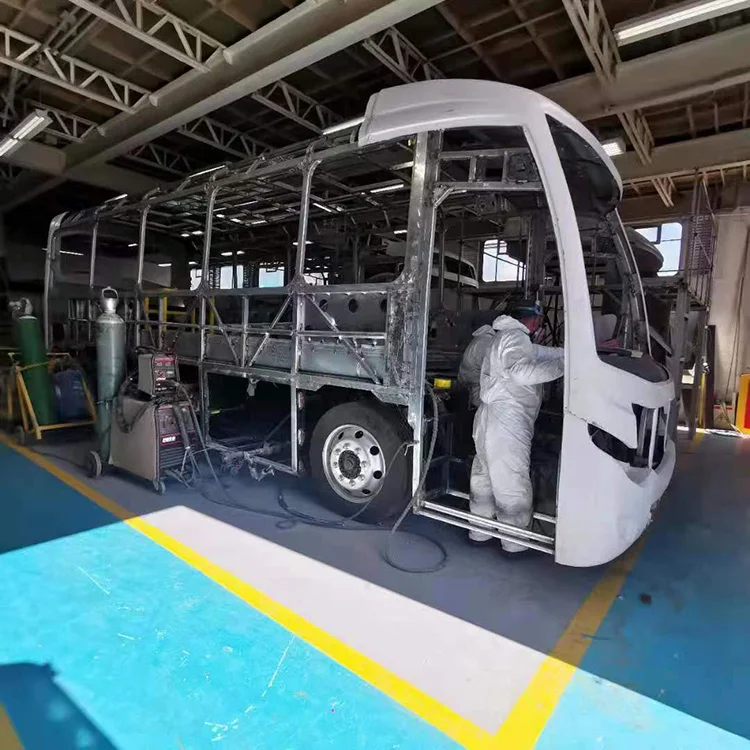

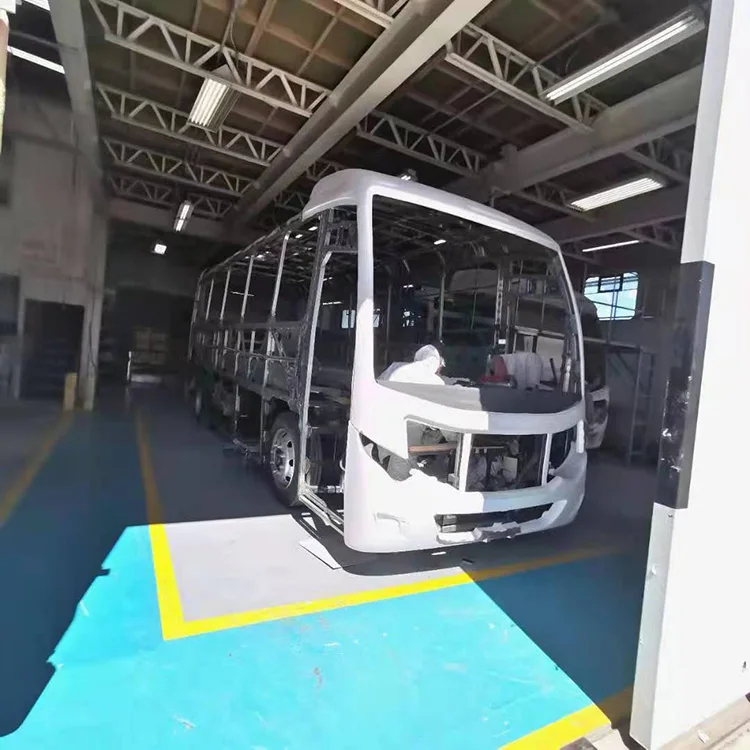

OUR FACTORY

PRODUCT PACKAGING

FAQ

Q1. How to purchase the truck from our company?

A1: You can choose the model from our website. Also, you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After you confirm the model and price, we can sign the contract.

Q2. How to ensure product quality?
A2: Firstly, we passed the international quality system certification. Secondly, Alibaba Group has conducted field certification for our factory. Finally, you can entrust third party individuals or organizations to inspect our products before delivery.

Q3. Can you offer customized service?
A3: Yes, we can produce according to your samples or technical datas. We can build the molds and fixtures.

Q4.What is the warranty term?
A4: We can supply you with original parts. And we can provide phone or email support. If necessary, our experienced engineers can go abroad to provide technical support to your company.

Q5. How to visit our factory?
A5: After you arrive in China, you can fly to Shiyan Wudangshan Airport located in Shiyan City, Hubei Province. Our driver will meet you at the airport and take you to our city by car.
