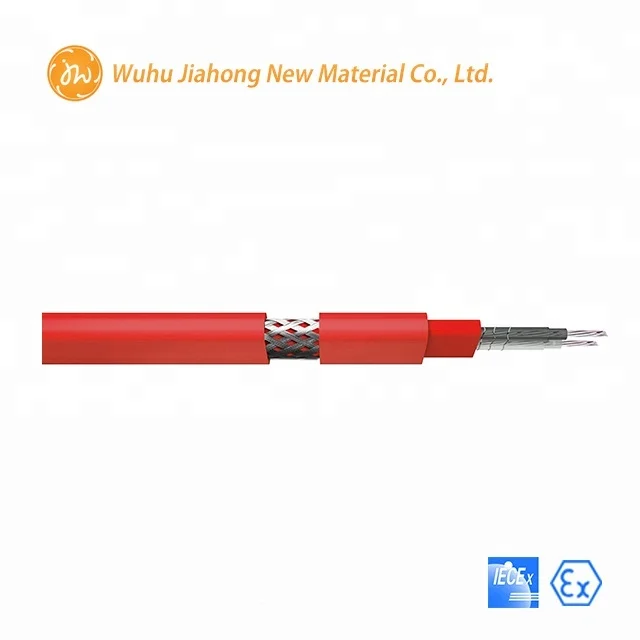

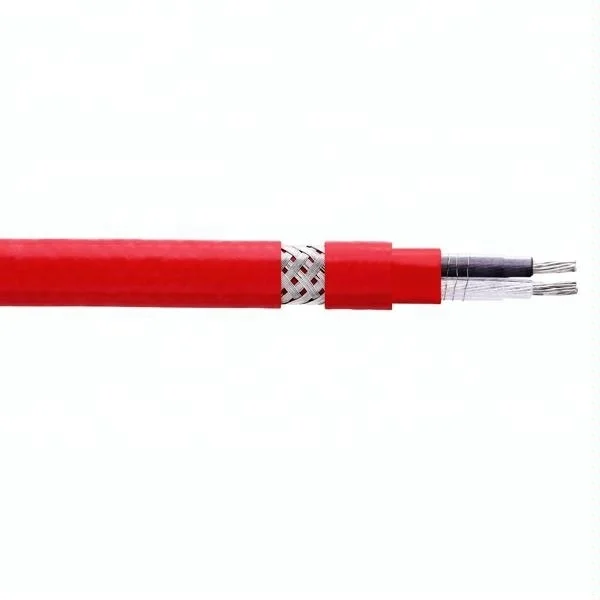

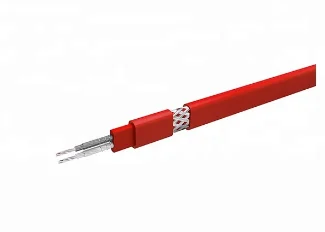

Product Description




Features

*Uniform thermal output
* Industrial/process and commercial/ construction applications.
* Fluoropolymer jacket.
* 10.20. 30and 40w/m
* Accurate,easy to control and monotor.

*No inrush at any ambient.

*Flexible to most any configuration.



Specifications


Area classification
 Hazardous, Zone 1, Zone 2(Gas), Zone 21,Zone 22(Dust)
Rated Voltage
230V
Chemical resistance
 Organics and corrosices
For aggressive organics and corrosive consult your jiahong representative
Supply voltage
230Vac(Contact your local jiahong representative for data on other voltage)
Minimum installation temperature
 -40℃
Minimum bend radius
 50mm
Approvals
IECEx,AFEx

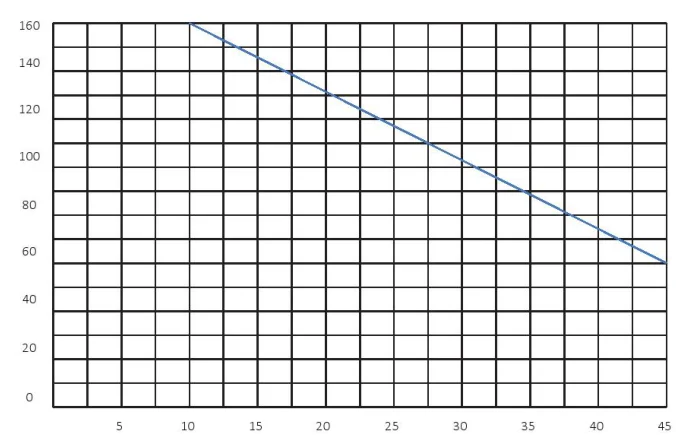

Performance and Rating Data.






Certification




Application




 Range Of Application
-The heating cable can be used  industrial pipe. The parallerl construction allows it to be cut-to-length and terminated in th field.
-The distance between conductor contact points forms the heating zone length.
-FCW heating cables can withstand routine steam purges and temperature exposure to 205℃ power off.



Flow Chart

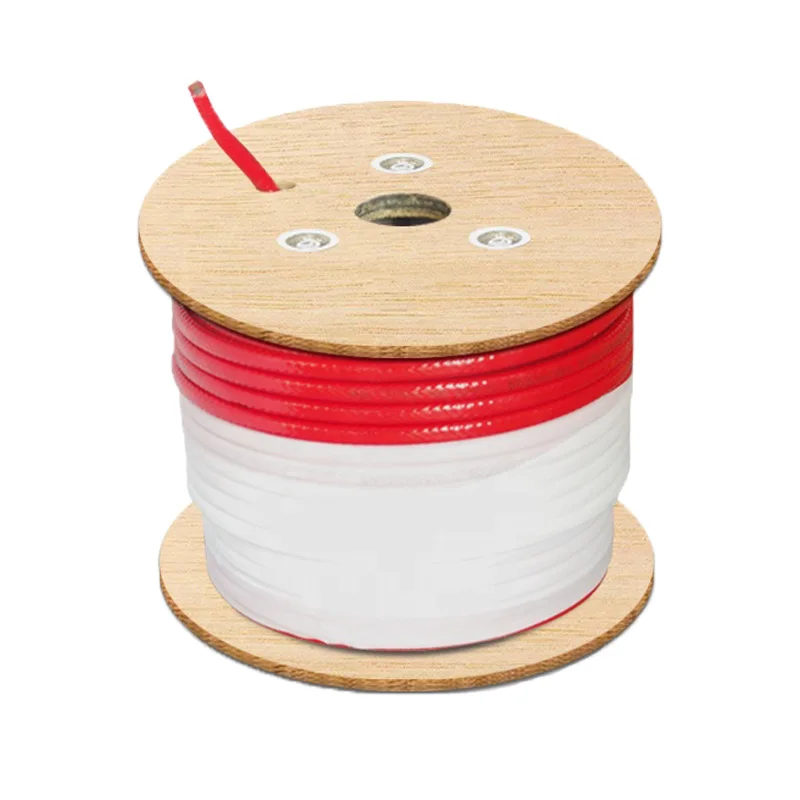

Packing way




We accept customer's specific packing and ODM service.


Jiahong Constant Wattage Series






About Us




WuHu Jiahong New Material Co., Ltd

Jiahong is the largest manufacturer in Asia-pacific. We are always dedicated to research, develop and produce both constant wattage and self-regulating heating cables since 2002. Jiahong has been obtained more than 30 national patents in heating cable industry. Our products are widely used in residential, commercial and industrial areas. The main applications are indoor floor heating, roof & gutter snow melting, residential pipe freeze protection, hazardous industrial oil & gas pipe heat tracing.

Most of WuHu Jiahong products passed UL, CSA, ETL, TUV, CE, ATEX etc. We export to many regions, especially North America, Europe, Australia and Asia. The most professional marketing and R&D team earn good reputation in worldwide.



Plant Capacity




- 3 sets of wire-grouping machines.
- 15 sets of high temp and low temp extruding machines.
- 21 sets of braiding machines which produce 40000M cables per day.


Testing Equipments


Power Testing Machine
High-Low Temperature Testing Machine
Flame Testing Machine


Mechanical Performance Detector
Water Proof Testing Machine
Aging Testing Machine


Exhibitions




ADIPEC Abu Dhabi International Petroleum Exhibition 2019
ADIPEC Abu Dhabi International Petroleum Exhibition 2019


AHR HVACR 2018
AHR HVACR 2018


Why Choose Us





FAQ


Q1: Are you manufactory or trading company?
A1: We are the professional manufacturer since 2002 and specialized in constant wattage heating cables, self-regulating heating cables and thermostat.

Q2: How much the transportation freight of sample?
A2: The sample freight depends on the weight, packing size and your area.

Q3: How can I get the samples?
A3: You should pay for the cost and freight of samples, while the sample cost can be refunded after you place the order.

Q4: If your heating cable is eco-friendly?
A4: Our heating cable is all in accordance with ROHS, do not contain Lead(Pb), Cadmium(Cd), Mercury(Hg), Chromium VI(Cr VI), PBBs&PBDEs.

Q5: If your heating cable are anti-flame and waterproof?
A5: Our raw material of heating cable is all anti-flame material and waterproof classification is IP67.

Q6: Can I cut the heating cable anywhere?
A6: If you can identify parallel type and constant wattage type, the parallel type can cut and connect two cables together. But constant wattage type it's not available to cut. If you are not able to identify the type, please contact us directly.

Q7: If the heating cable can use on industrial area and hazardous area?
A7: Yes, our braiding coverage rate is over 90% and in certify to IECEx and ATEX, it's applicable to the industrial area and hazardous area.
