Slocable IP66 Водонепроницаемая УФ-стойкость 6 в 1 струн 15A 500V DC сочетание солнечных батарей для
- Категория: Solar Applications >>>
- Поставщик: Dongguan,Slocable,Photovoltaic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 69.81 $* | 72.11 $* |
| Aug-19-2025 | 68.81 $* | 71.18 $* |
| Jul-19-2025 | 57.21 $* | 60.50 $* |
| Jun-19-2025 | 67.18 $* | 70.89 $* |
| May-19-2025 | 59.37 $* | 62.10 $* |
| Apr-19-2025 | 66.28 $* | 69.65 $* |
| Mar-19-2025 | 66.15 $* | 69.20 $* |
| Feb-19-2025 | 65.66 $* | 68.68 $* |
| Jan-19-2025 | 64.17 $* | 67.56 $* |
Характеристики

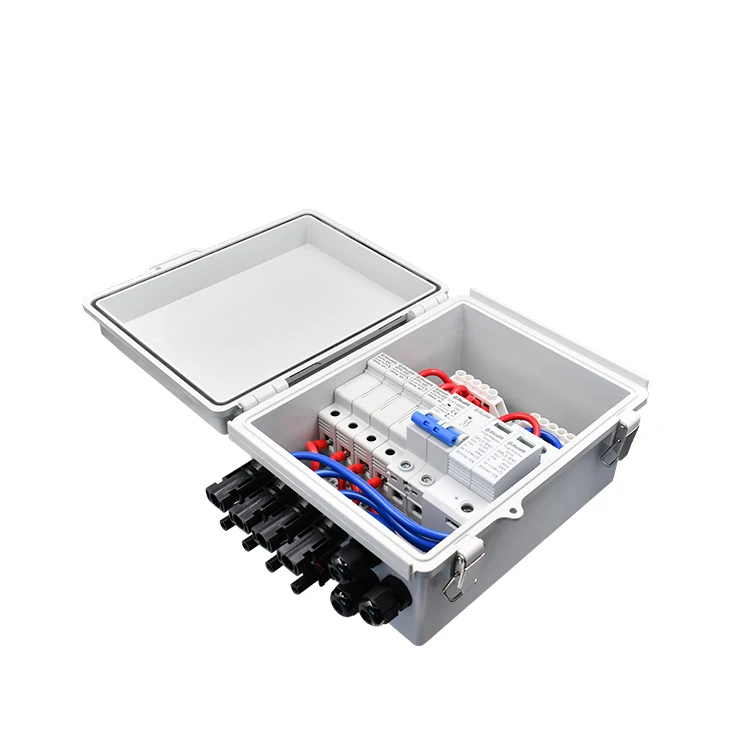

Slocable IP66 Waterproof UV Resistance 6 In 1 Out 6 Strings 15A 500V DC Solar PV Array Combiner Box for Solar System
Product Description
| System maximum dc voltage | 500/1000V |
| Maximum input strings | 6 |
| Maximum input current for each string | 15A |
| Maximum output switch current | 20A/32A |
| Number of inverter MPPT | 1 |
| Number of output strings | 1 |
| Nominal discharge current | 20KA |
| Maximum discharge current | 40KA |
| Voltage protection level | 2.8KV/3.8KV |
| Maximum continuous operating voltage Uc | 630V/1050V |
| SMC4 Connectors/dc fuse/dc surge protector | Standard |
| Monitoring module/Preventing diode | Optional |
| Box material | PC/ABS |
| Installation method | Wall mounting type |
| Operating Temperature | -25℃--+55℃ |
| Permissible relative humidity | 0-95%, no condensation |

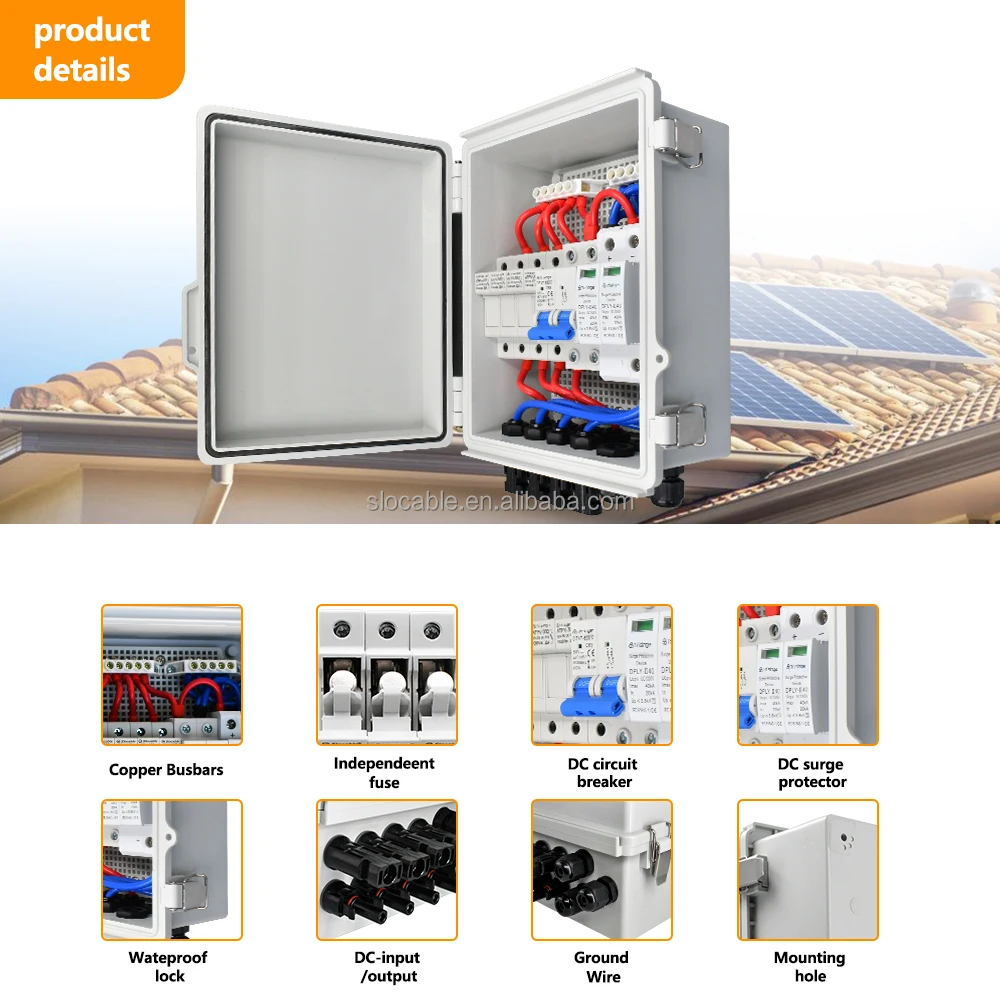

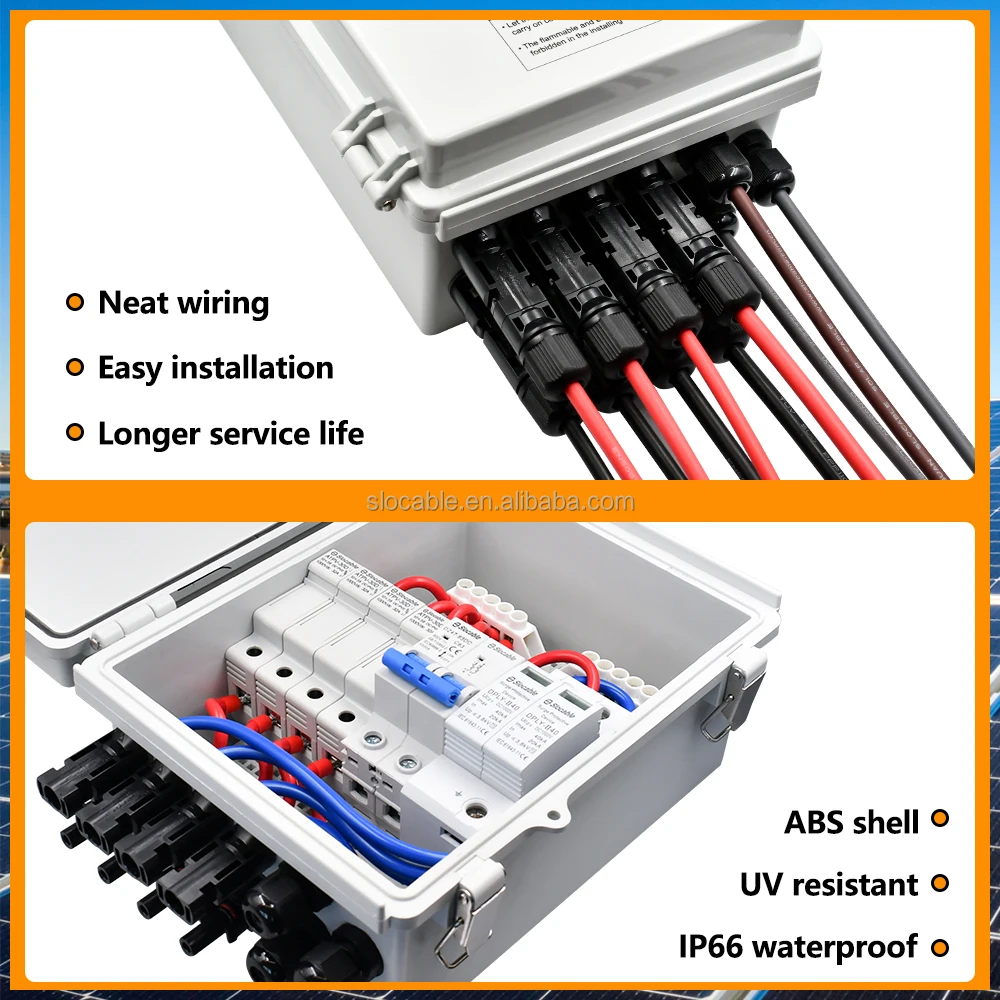

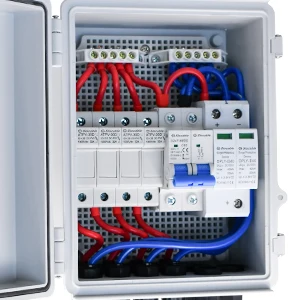

Detailed Images
We also manufacture PV Cables, PV Connectors, Solar Fuse Connetor, DC Fuse, Diode Connector, Solar Cable Extension, Cable Assembly and so on.
More Products
Company Information
Packaging & Shipping
Cooperation Case
FAQ
Frequently Asked Question
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
Solar Cables, Solar Connectors, PV Fuse Holder,Circuit breakers and other
solar relative products.We're the Manufacturer with more than 15 years experience.
Q2: How can I get the Quotation of the products ?
Send your Message to us by E-mail / TradeManager,We'll reply you within 1 hour in the Working Time.
Q3: How does your company do regarding Quality Control ?
1) All raw material we selected the high quality one.
2) Professional & Skilful workers care every details in handling the producing.
3) Quality Control Department specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service ?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.
Q5: How Could I get the Sample?
We are honored to offer you samples,Samples is free provided,but need pay the courier freight.
If you have a courier account, you can send your courier to collect samples.
Q6: How long is the Delivery Time ?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.
