Характеристики
Product Overview

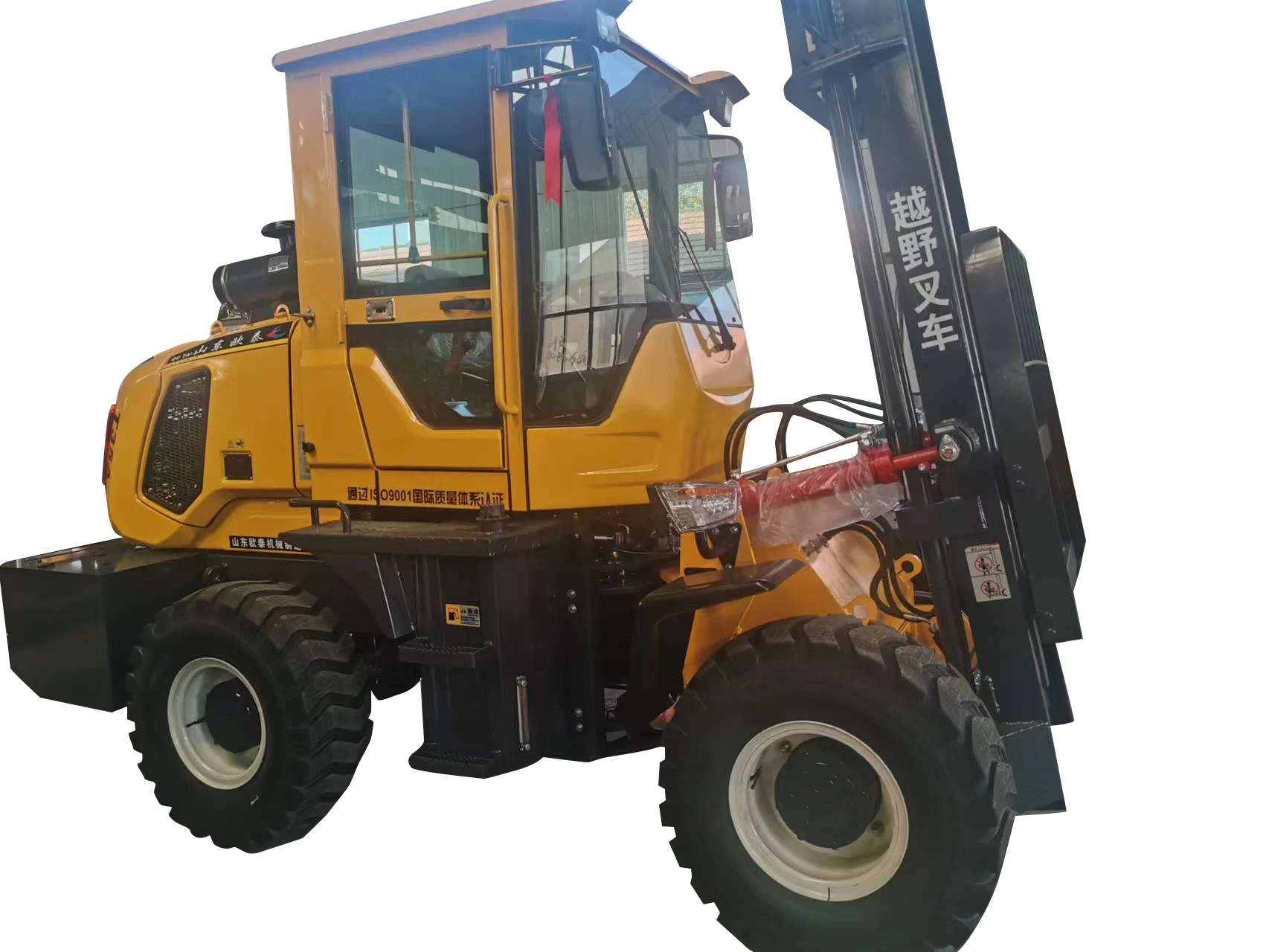

T35A 4X4 OFF-ROAD FORKLIFT
}Off-road forklifts are also called field forklifts, which have good mobility and off-road reliability. It is an engineering vehicle balance forklift that can safely load,unload, stack and carry goods on slopes and uneven ground. It can install forks or replace various attachments to improve work efficiency. Off-road forklifts are suitable for road construction, urban construction, environmental sanitation, stone yards,small and medium-sized civil engineering, stations, docks, freight yards, warehouses, etc., and are mainly used to transfer stones, equipment, goods, urban garbage bins, and containerized materials, etc
FEATURES AT A GLANCE
1. Yunnei diesel engine, which has strong power, high reliability and less failure.
2. Thickened articulated frame, small turning radius and flexible maneuverability.
3. The reinforced drive axle is adopted, and the wheel side planetary gear reduces speed, and the working life is long.
4. Wide wheelbase, long wheelbase, good stability; minimum ground clearance, large approach angle and departure angle, good
cross-country performance.
5. Herringbone tires for four-wheel drive, low-pressure and wide-base off-road engineering vehicles have good off-road
performance, passing performance and large traction.
2. Thickened articulated frame, small turning radius and flexible maneuverability.
3. The reinforced drive axle is adopted, and the wheel side planetary gear reduces speed, and the working life is long.
4. Wide wheelbase, long wheelbase, good stability; minimum ground clearance, large approach angle and departure angle, good
cross-country performance.
5. Herringbone tires for four-wheel drive, low-pressure and wide-base off-road engineering vehicles have good off-road
performance, passing performance and large traction.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Type | T35A 4X4 OFF-ROAD FORKLIFT |
2 | Rate capacity (kg) | 3500 |
3 | Lifting height(mm) | 3000(two stage mast) |
4 | Enginee model | YUNNEI 490 国III 36.8KW |
5 | Gear box model | 265 double hydraulic torqueconverter |
6 | Tire type | 20.5/70-16 TIRE |
7 | Fork length | 1520MM |
8 | Frame（hinge joint thickness） | 35MM |
9 | Mast width (steel) | 160MM |
10 | Axle model | wheel side weight cast steel bridge |
11 | The Max Gradeability | 38° |
12 | Drive type | 4-wheel drive |
13 | Steering type | Hinge joint |
14 | Min ground clearance（mm) | 350 |
15 | Handle control mode | Hydraulic valve control |
16 | Wheel base(mm) | 2050 |
17 | Min. Turning Radius（mm） | 3500 |
18 | Max speed(kmh) | 40 |
19 | OverallDimension（length*width*height) | 3800/1850/2300 |
20 | Overall weight(kg) | 3800 |
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK

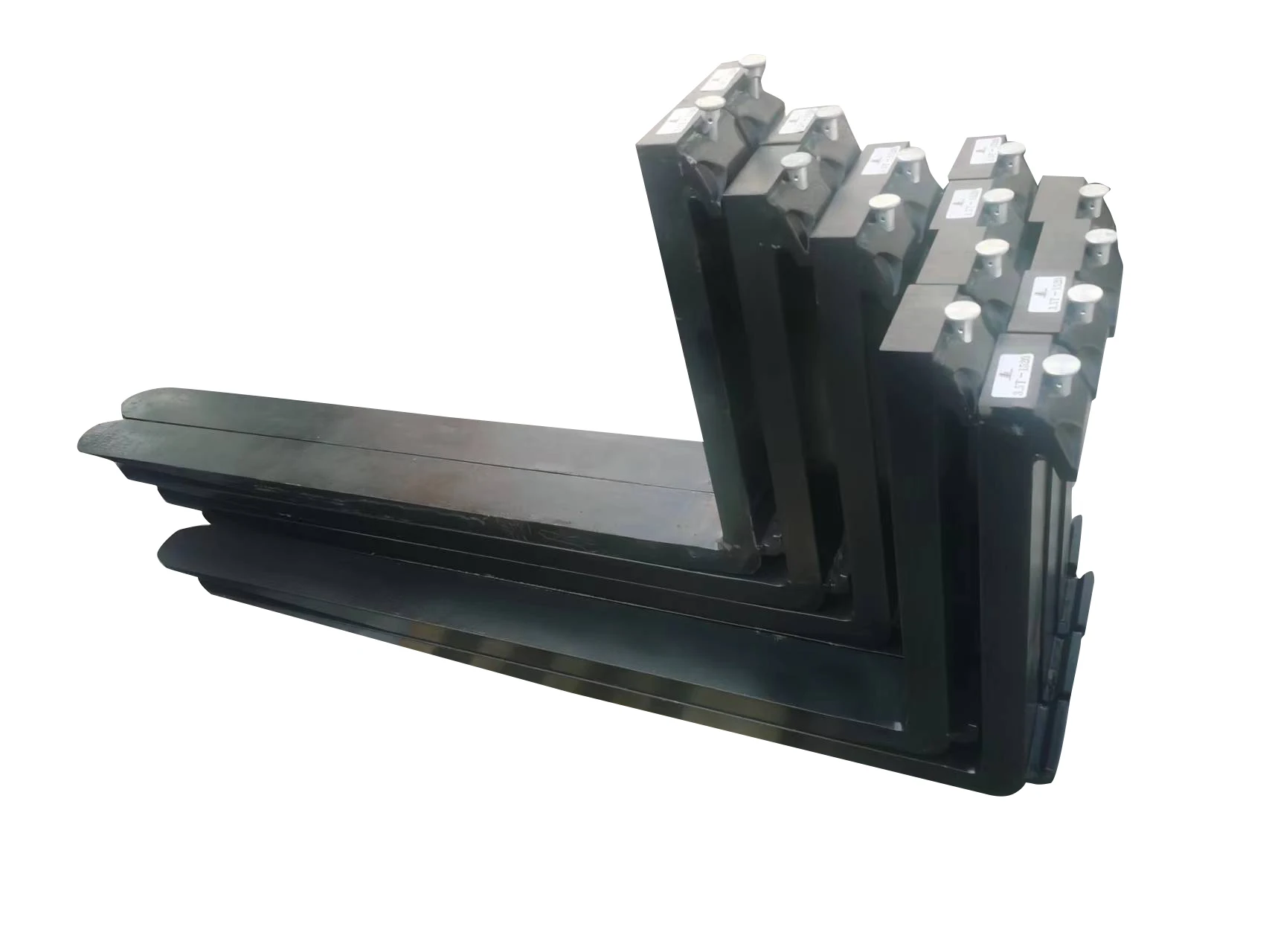

FORK
MAST
SIMILAR PRODUCTS
FAQ
Q1: How long is the warranty of forklift from Yantai JunTao ?
A1: Products provided by Yantai JunTao enjoy free technical support for life and a one-year or 1000-hour working warranty period
Q2:Can we print our logo/website/company name on products?
A2:Yes,
Q3:What's the lead time for regular order?
A3: Conventional products arrive at the port in 10 days, and non-standard customized products arrive at the port in 20-30
working days
Q4: What are the strengths of your company
A4: we are very familiar with various forklift brands, and have good resources to provide you with the most cost-effective products
Q5:Do you inspect the finished products?
A5:Yes, each step of production and finished products will be came out inspection by QC department before shipping.
A1: Products provided by Yantai JunTao enjoy free technical support for life and a one-year or 1000-hour working warranty period
Q2:Can we print our logo/website/company name on products?
A2:Yes,
Q3:What's the lead time for regular order?
A3: Conventional products arrive at the port in 10 days, and non-standard customized products arrive at the port in 20-30
working days
Q4: What are the strengths of your company
A4: we are very familiar with various forklift brands, and have good resources to provide you with the most cost-effective products
Q5:Do you inspect the finished products?
A5:Yes, each step of production and finished products will be came out inspection by QC department before shipping.
