N75 4G LTE Cat.4 модуль для M2M
- Категория: Modems >>>
- Поставщик: Shenzhen,Huasifei,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.45 $* | 0.2 $* |
| Aug-15-2025 | 0.31 $* | 0.85 $* |
| Jul-15-2025 | 0.21 $* | 0.11 $* |
| Jun-15-2025 | 0.22 $* | 0.13 $* |
| May-15-2025 | 0.5 $* | 0.31 $* |
| Apr-15-2025 | 0.98 $* | 0.94 $* |
| Mar-15-2025 | 0.94 $* | 0.65 $* |
| Feb-15-2025 | 0.98 $* | 0.95 $* |
| Jan-15-2025 | 0.64 $* | 0.29 $* |
Характеристики
Product Description
Overview
N75 is an LTE Cat.4 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel.11 LTE technology, it provides 150 Mbps downlink and 50 Mbps uplink data rates. N75 supports location technology Gen8C Lite (GPS, GLONASS, BDS, Galileo, and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more reliable positioning functions. With integration of network protocols, industry-standard interfaces, and abundant functions, N75 is an optimal option for energy metering, Internet of Vehicles, industrial router, video surveillance, environmental monitoring, and other industry applications.
N75 series include multiple variants. Table 1-1 lists the variants and frequency bands supported.
Table 1-1 Variant and frequency bands
Variant | Region | Category | Band | GNSS1 |
NA | North America | Cat 4 | FDD-LTE: B2, B4, B5, B7, B12, B13, B25, B26, | Support |
NF | North America | Cat 4 | FDD-LTE: B2, B4, B5, B7, B12, B13, B14, B25, | Not support |
A | North America | Cat 4 | FDD-LTE: B2, B4, B5, B12, B66 | Support |
EA | European Union | Cat 4 | FDD-LTE: B1, B3, B5, B7, B8, B20, B28 | Support |
LA* | Latin America | Cat 4 | FDD-LTE: B1, B2, B3, B4, B5, B7, B8, B10,B28, B66 | Support |
JP* | Japan | Cat 4 | FDD-LTE: B1, B3, B8, B18, B19, B26, B28 | Support |
| 1 GNSS optional for some variants |
| * in development |
Specification
Parameter | ||
Physical features | Dimensions: (30.0±0.1) mm × (28.0±0.1) mm × (2.8±0.15) mm | |
Temperature ranges | Operating: -35°C to +75°C | |
Operating voltage | VBAT: 3.3V to 4.3V, TYP: 3.8V | |
Current | Flight mode | 1.24 mA |
Sleep Mode | GSM DRX=6: 2.2 mA | |
Active | VBAT: 2A Max | |
MIPS processor | ARM Cortex-A7 microprocessor cores at 1.3 GHz | |
Memory | ROM+RAM: | |
Operating Bands | ||
Wireless rate | GPRS: Max 85.6 Kbps(DL) / Max 85.6 Kbps(UL) | |
Transmit power | GSM850: (33 dBm±2 dB) (Power Class 4) | |
Application Interfaces | 2G/3G/4G antenna interface, diversity antenna interface, GNSS antenna interface | |
AT command | Neoway extended commands | |
Data | PPP, RNDIS, ECM, RMNET | |
Protocol | TCP, UDP, MQTT, FTP/FTPS,HTTP/HTTP(S), SSL, TLS | |
Certification approval | FCC, PTCRB, AT&T, CE-R, GCF, RoHS, NCC*, RCM* | |

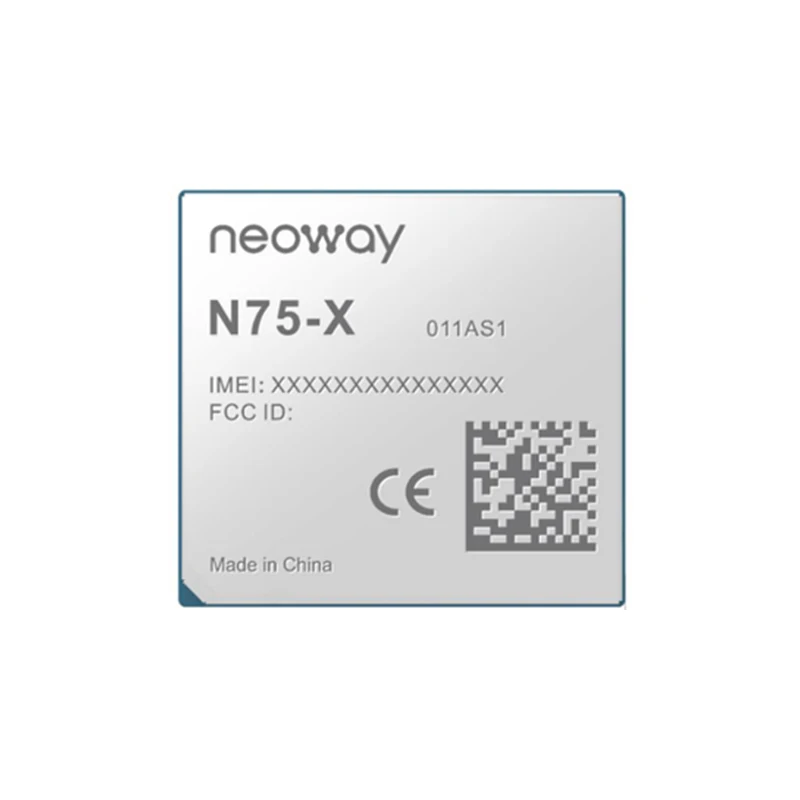

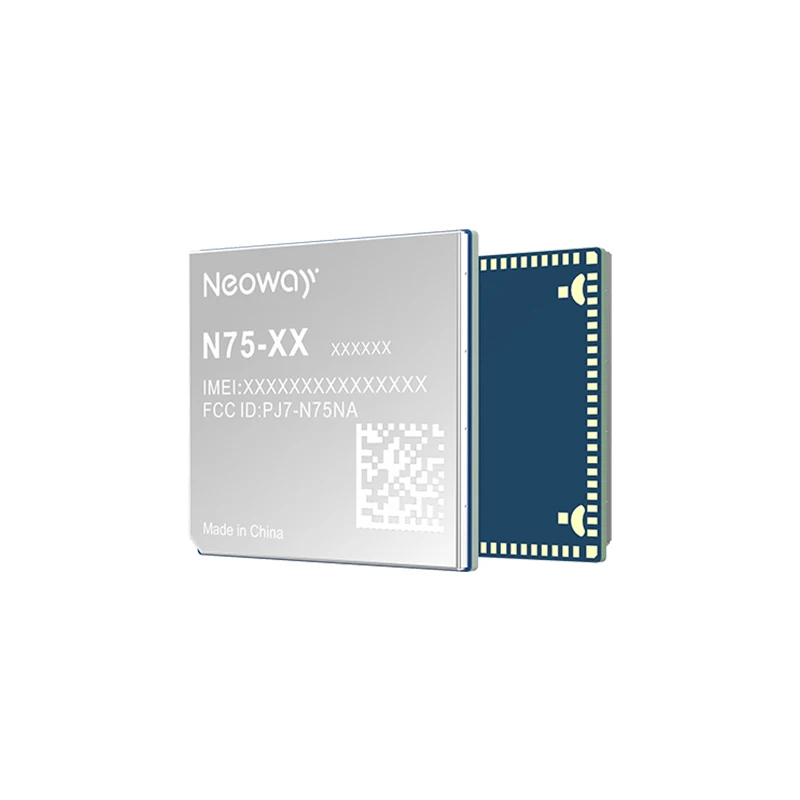

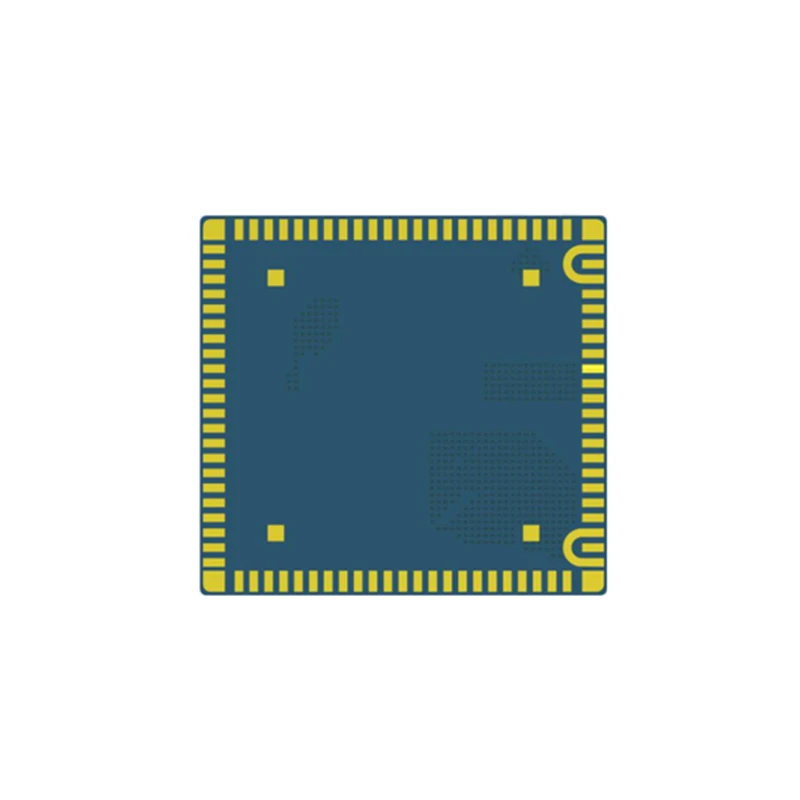

Products Pictures
Company Information
HUASIFEI is a manufacturer professional in R&D and producing network equipments, products are included OpenWRT 4G5G wifi router, Vehicle 5G router, outdoor CPE, indoor CPE,MESH Router ,WIFI-6 Router ,4G OTT 4G5G Modem.HUASIFEI .with 50 people R&D team and around 700 people in factory, 20,000 Square meters production scale, is very skilled at processing OEM/ODM design, also builds the long term cooperation with Mediatek, Broadcom,Qualcomm, capably offering good quality product and fast after-sale service.Till now, HUASIFEI's products have exported to over 30 countries.
