Промышленный вентилятор переменного размера настенный вытяжной для птицефабрики
- Категория: Ventilation Fans >>>
- Поставщик: Qingzhou,Gongle,Electric,Fan,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 138.22 $* | 145.9 $* |
| Aug-16-2025 | 137.50 $* | 144.86 $* |
| Jul-16-2025 | 115.84 $* | 121.3 $* |
| Jun-16-2025 | 135.62 $* | 142.55 $* |
| May-16-2025 | 117.12 $* | 123.51 $* |
| Apr-16-2025 | 132.19 $* | 139.83 $* |
| Mar-16-2025 | 131.59 $* | 138.73 $* |
| Feb-16-2025 | 130.40 $* | 137.96 $* |
| Jan-16-2025 | 129.36 $* | 135.67 $* |
Характеристики
Product Description
Wall mount outdoor industrial hammer exhaust fan suction fans for warehouse factory workshop
1) Blade is made of the stainless steel, molded, big air volume, no distortion, no broken.
2) Fan house adopt double-mesh design, light weight, elegant appearance, easy to install.
3) Round protection grill, heavy duty, protect fan blades, safety and steady.
4) Adopt the handle as new inset design from our engineer, easy for carry, transport and installation. Also it has no effect on the appearance.
Main Features of Wall mount outdoor industrial hammer exhaust fan suction fans for warehouse factory workshop:
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow

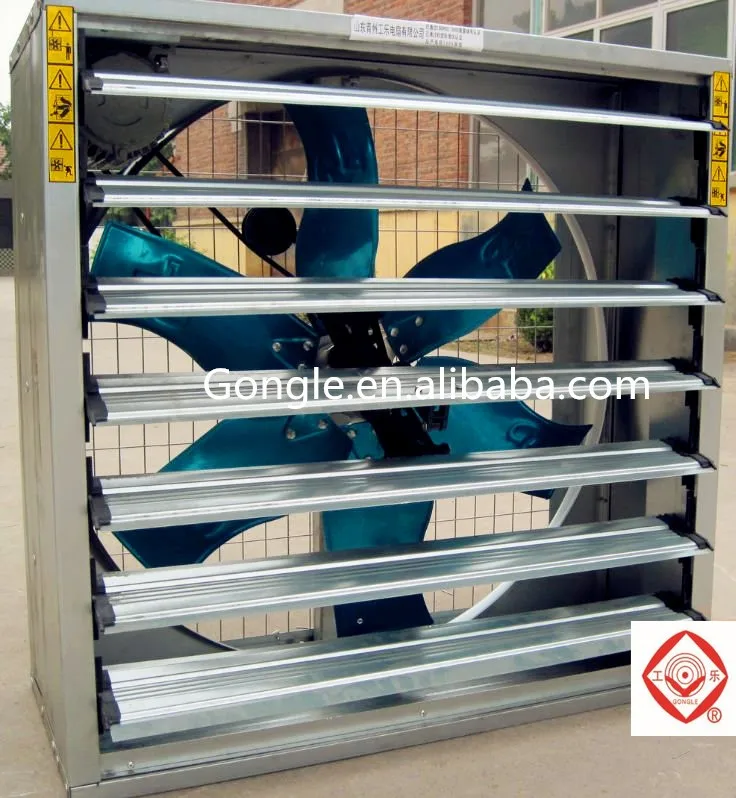

Heavy Hammer Fan
Size :1380*1380*400mm,
Thickness is 400mm, when motor works , the shutters open by hammer
Push-Pull Centrifugal Exhaust Fan
Size :1380*1380*450mm
Thickness is 450mm, when motor works , the shutters open by push-puller

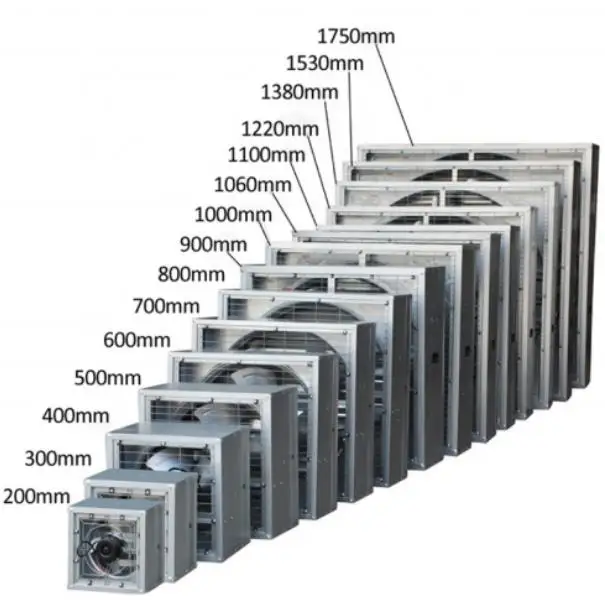

Specification
Model | Blade diameter (mm) | Blade speed (rpm) | Air flow (m3/h) | Total pressure (pa) | Noise (db) | Voltage (v) | Motor speed (rpm) | Size(mm) |
9FJ-710 | 710 | 700 | 23500 | 75 | ≤70 | 380 | 1400 | 800*800*450 |
9FJ-900 | 900 | 650 | 28000 | 70 | ≤70 | 380 | 1400 | 1000*1000*450 |
9FJ-1000 | 1000 | 600 | 35000 | 70 | ≤70 | 380 | 1400 | 1100*1100*450 |
9FJ-1100 | 1100 | 480 | 38000 | 73 | ≤70 | 380 | 1400 | 1220*1220*450 |
9FJ-1250 | 1250 | 440 | 44500 | 65 | ≤70 | 380 | 1400 | 1380*1380*450 |
9FJ-1400 | 1400 | 440 | 55800 | 60 | ≤70 | 380 | 1400 | 1530*1530*450 |
Frame with Plastic Handle
1. Frame: Hot Galvanized sheet with zinc thickness of 275g/m2, high anti-corrosion performance
2. Plastic Handle, easy to carry , Convenient to load
2. Plastic Handle, easy to carry , Convenient to load
Advantage:
GONGLE has the advanced complete CNC machine and laser cutting machine. Auto punching and bending, the accuracy of the hole is 100%,
easy to assemble.
GONGLE has the advanced complete CNC machine and laser cutting machine. Auto punching and bending, the accuracy of the hole is 100%,
easy to assemble.
Material: High quality Nylon PA66
Advantage:
It can keep the blinds completely closed to ensure the closed and safe greenhouse.
It can keep the blinds completely closed to ensure the closed and safe greenhouse.
Fan blades
1. Material : Krupp 430 stainless steel or 304 S.S, thickness 1.2mm
2. Diameter: 1250mm or 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:Blade material also have galvanized sheet, aluminum alloy for option
2. Diameter: 1250mm or 1270mm
3.the blades has two types
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:Blade material also have galvanized sheet, aluminum alloy for option
Motor
1. Brand: Chinese famous motor, XIZI /NOSCH motor,Siemens motor, ABB motor and WEG motor or Laoyite brand
2. Motor Protection Grade: IP55
3. Insulation Class: F grade
2. Motor Protection Grade: IP55
3. Insulation Class: F grade
4.100% copper wire
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when
shortage of electricity.
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when
shortage of electricity.
Motor Fixed Nuts and Washer
1. Hexagon Nuts
2. Stainless Steel Washer
2. Stainless Steel Washer
Advantage:
More firmly, never loosen. Not rust, Easy to change Motor.
More firmly, never loosen. Not rust, Easy to change Motor.
Belt pulley and angle
1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
Advantage:
Light weight, Low vibration ,attractive appearance.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
Advantage:
Light weight, Low vibration ,attractive appearance.
Bearing
Imported double-row bearing with special waterproof design.
Advantage:
High strength, low noise, free maintenance and long service life.
Advantage:
High strength, low noise, free maintenance and long service life.
Belts
Brand: Three powers belt (usa)
Type: B type, B88
Advantage:
B type belt is 3 times longer service life than A type belt, maintenance free.
Type: B type, B88
Advantage:
B type belt is 3 times longer service life than A type belt, maintenance free.

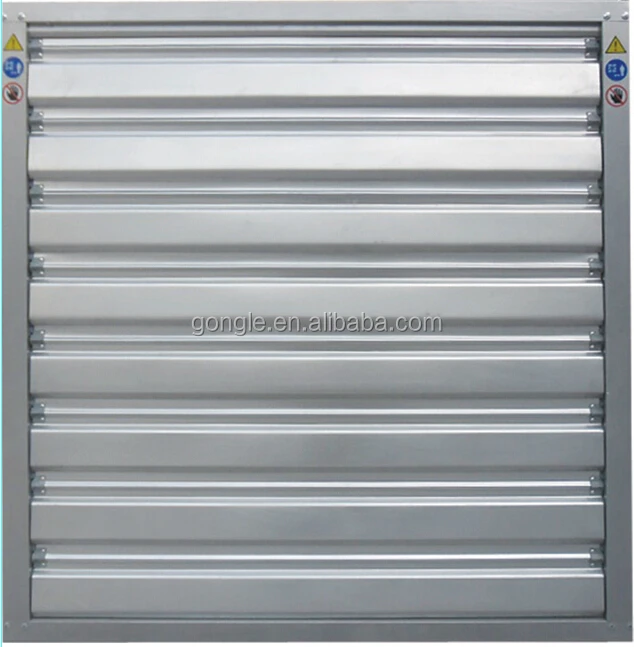

Shutters
1. Material: Hot Galvanized sheet with zinc thickness of 275g/m2
2. Shutter Fixed Parts: High quality nylon.
Advantage:
High anti-corrosion performance, open flexibly, long service life, no deformation ,no rust, running stable.
2. Shutter Fixed Parts: High quality nylon.
Advantage:
High anti-corrosion performance, open flexibly, long service life, no deformation ,no rust, running stable.
Safe nets
1.Material: Hot-dip galvanized wire is coated with Plastic
2.can also be two parts
Advantage:
Double Protection to ensure never rust.
Advantage:
Double Protection to ensure never rust.

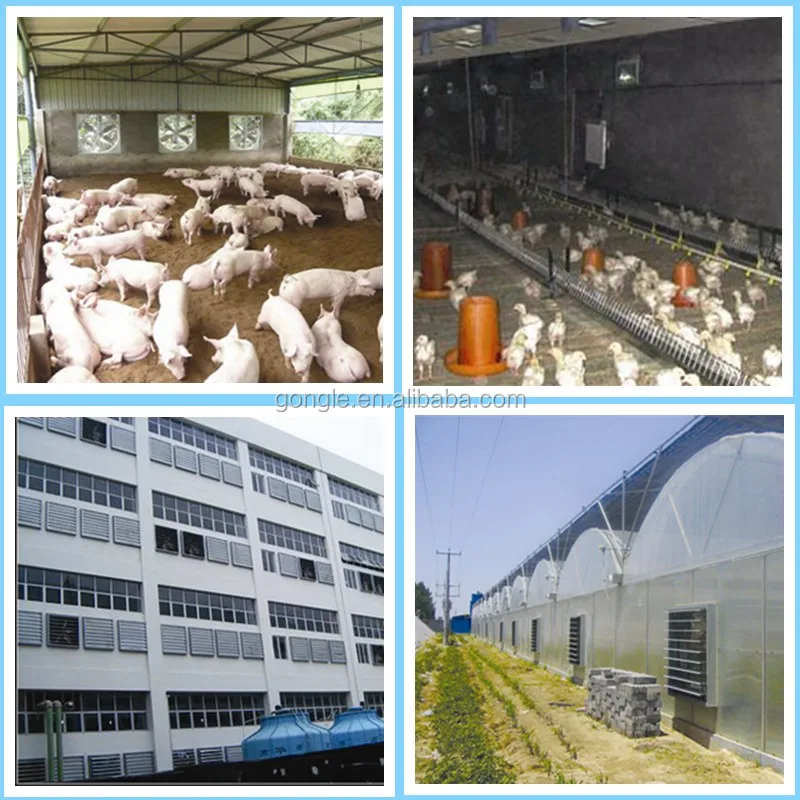

Application
1-Agriculture use: farm greenhouse, garden greenhouse, fruit/ vegetable greenhouse, agricultural greenhouse
2-Poultry use: chicken house, poultry house, bird house, cow house.
3-Industrial use: Industrial workshop, warhouse etc for clear and cooling air.
2-Poultry use: chicken house, poultry house, bird house, cow house.
3-Industrial use: Industrial workshop, warhouse etc for clear and cooling air.

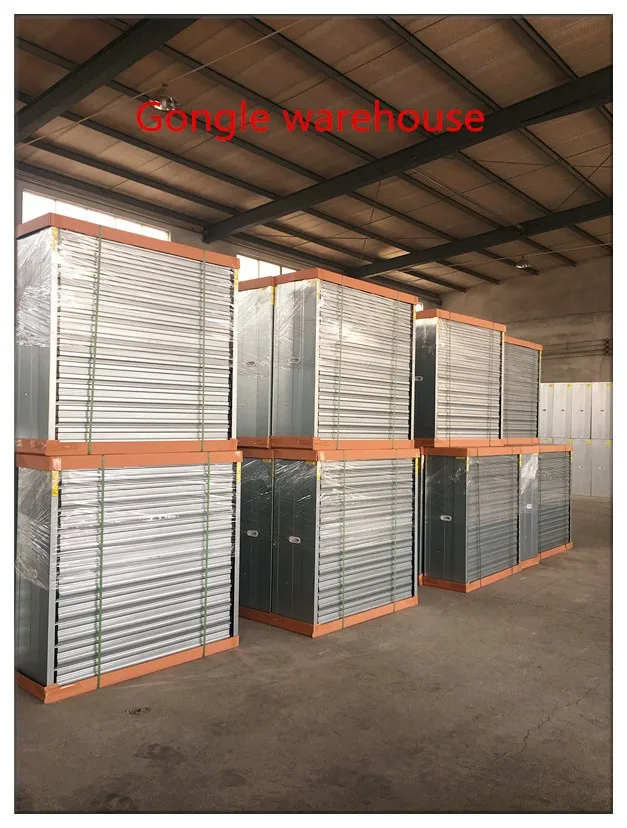

Packing & Delivery
Package by pallet for LCL delivery
for small cbm
Assembled Exhaust Fans by FCL
customers can install immediately.
Unassembled Exhaust Fan Parts by FCL,it will help to save shipping cost.

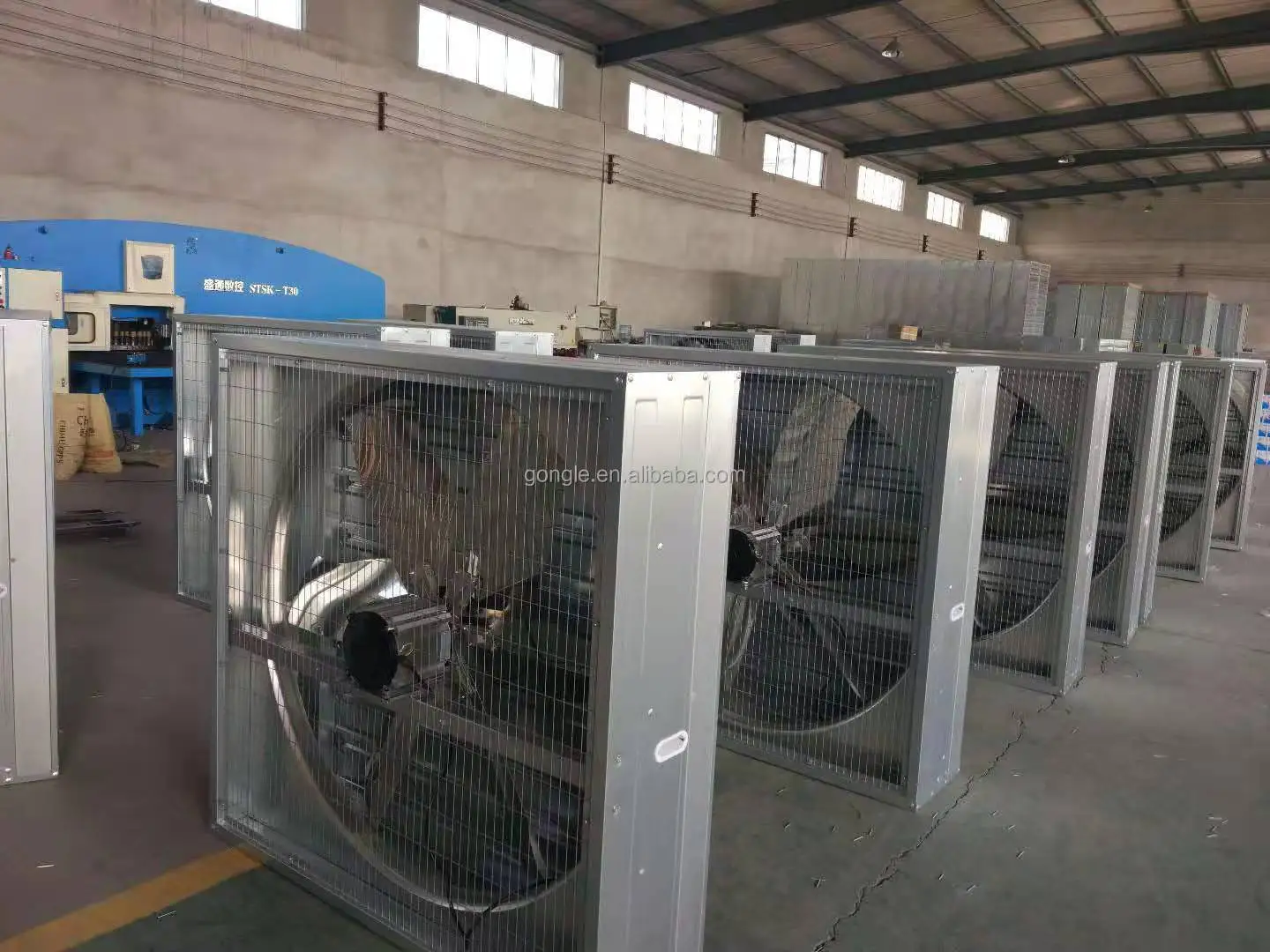

Company Profile
★ Qingzhou Gongle Electric Fan Co., Ltd. founded in 1978, is a private enterprise from primary Qingzhou City Electric Fan Company in No.1388 Industrial Road, Qingzhou City, Shandong Province, China.
★ Our company is a professional manufacturer that specializes in making ventilation fans, axial exhaust fans, industrial wall fans,standing fans,industrial air cooler, industrial ceiling fans ,air heater and so on.
★ They are widely used in many fields such as enterprise workshops, textile mills, garment production workshops, animal husbandry, closed poultry houses, and greenhouses, etc
★ The company possesses the strong technical power and the perfect test method. The quality of product always comes out top in previous assessments.
★ Our company is a professional manufacturer that specializes in making ventilation fans, axial exhaust fans, industrial wall fans,standing fans,industrial air cooler, industrial ceiling fans ,air heater and so on.
★ They are widely used in many fields such as enterprise workshops, textile mills, garment production workshops, animal husbandry, closed poultry houses, and greenhouses, etc
★ The company possesses the strong technical power and the perfect test method. The quality of product always comes out top in previous assessments.
Professional Trustworthy
The products of our company have been granted certificates such as CE,ISO and the company has been passed the approved mark and test reports. We have authoritative and well-known brands ”GONGLE (GL)''
Relevant products
FAQ
1. who are we?
We are based in Shandong, China, start from 2000,sell to Mid East(25.00%),Africa(25.00%),Southeast Asia(15.00%),South America(10.00%),Oceania(8.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),North America(5.00%),Western Europe(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
cooling pad,heater stove,9FJ-1250B exhaust fan,9FJ-1000B exhaust fan
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Shandong, China, start from 2000,sell to Mid East(25.00%),Africa(25.00%),Southeast Asia(15.00%),South America(10.00%),Oceania(8.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),North America(5.00%),Western Europe(2.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
cooling pad,heater stove,9FJ-1250B exhaust fan,9FJ-1000B exhaust fan
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact us
* Accept OEM & ODM, support custom products according to customer's requirement.
* partners both at home and abroad contact and visit our factory.
* give you professional suggestion, according to different market and products for new customers.
* partners both at home and abroad contact and visit our factory.
* give you professional suggestion, according to different market and products for new customers.
* All enquires will be valued and replied within 2 hours.
* Good package to protect the products.
* We return and exchange the products if the quality problems caused by manufacturing.
* Good package to protect the products.
* We return and exchange the products if the quality problems caused by manufacturing.
