Т-образный слот чугунная
- Категория: Other Measuring & Gauging Tools >>>
- Поставщик: Tianjin,HYRH,Machinery,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 95.85 $* | 97.73 $* |
| Jul-19-2025 | 77.27 $* | 79.46 $* |
| Jun-19-2025 | 94.25 $* | 96.91 $* |
| May-19-2025 | 93.41 $* | 95.89 $* |
| Apr-19-2025 | 74.14 $* | 75.4 $* |
| Mar-19-2025 | 92.20 $* | 94.69 $* |
| Feb-19-2025 | 91.80 $* | 93.83 $* |
| Jan-19-2025 | 90.48 $* | 92.3 $* |
Характеристики
Product Description
T-slot cast iron surface plate lapping
| Specification (mm) | Flatness tolerance (um) | |||
| Grade1 | Grade2 | Grade 3 | Finihs plane | |
| 400x400 | 12 | 24 | ||
| 600x400 | 14 | 28 | ||
| 800x500 | 16 | 32 | 80 | |
| 900x600 | 16 | 32 | 80 | |
| 1000x750 | 18 | 36 | 90 | |
| 1000x1000 | 20 | 39 | 96 | |
| 1500x1000 | 25 | 48 | 120 | |
| 2000x1000 | 26 | 52 | 129 | |
| 2000x1500 | 56 | 140 | ||
| 2000x2000 | 60 | 152 | 230 | |
| 2500x1500 | 68 | 168 | 248 | |
| 3000x1000 | 174 | 248 | ||
| 3000x2000 | 184 | 275 | ||
| 3000x3000 | 210 | 300 | ||
| 4000x1000 | 210 | 300 | ||
| 4000x2000 | 219 | 310 | ||
| 4000x3000 | 240 | 360 | ||
| 5000x2000 | 255 | 375 | ||
| 5000x3000 | 287 | 420 | ||
| 6000x2000 | 293 | 430 | ||
| 6000x3000 | 308 | 460 | ||
| 8000x2000 | 370 | 520 | ||
| 8000x3000 | 382 | 570 | ||

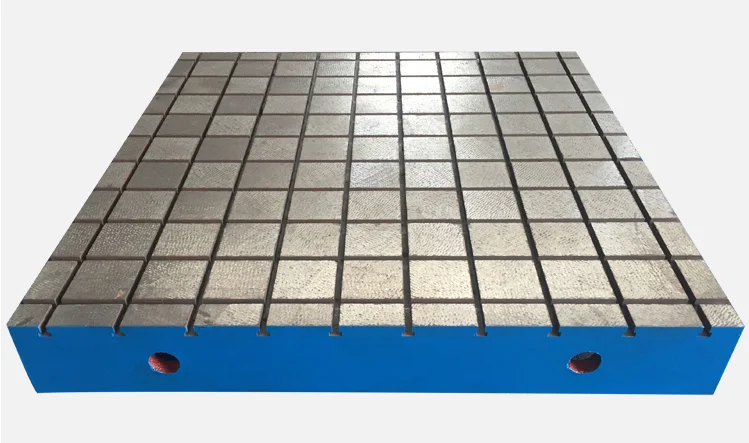

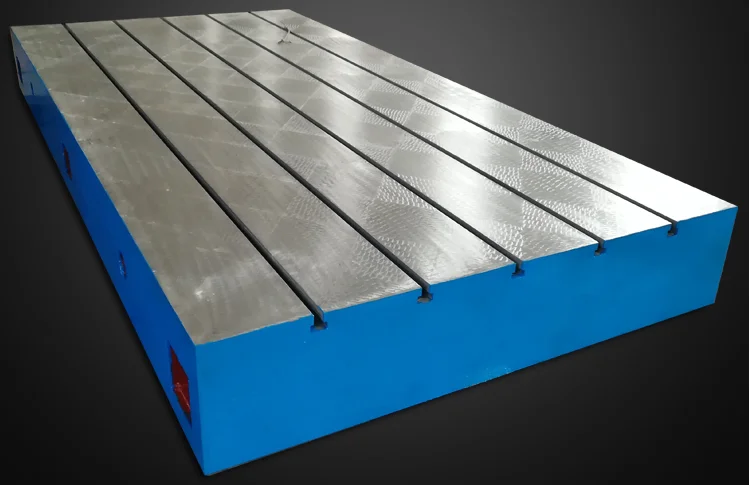

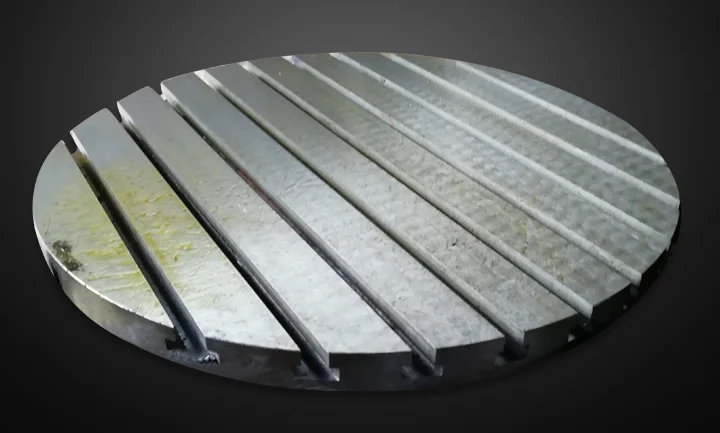

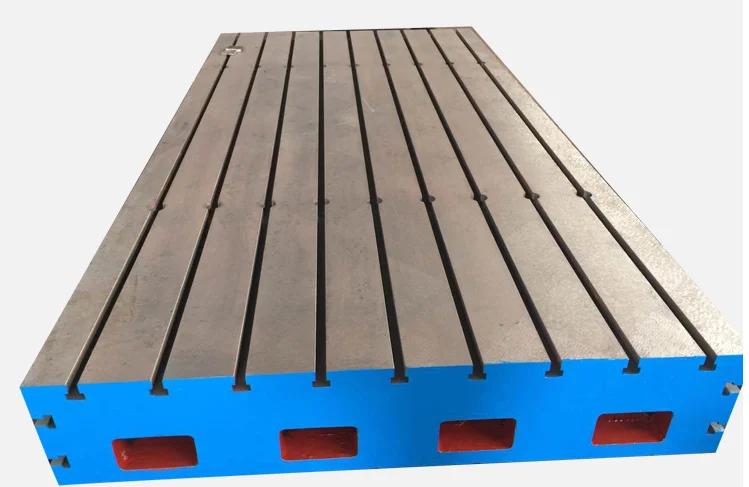

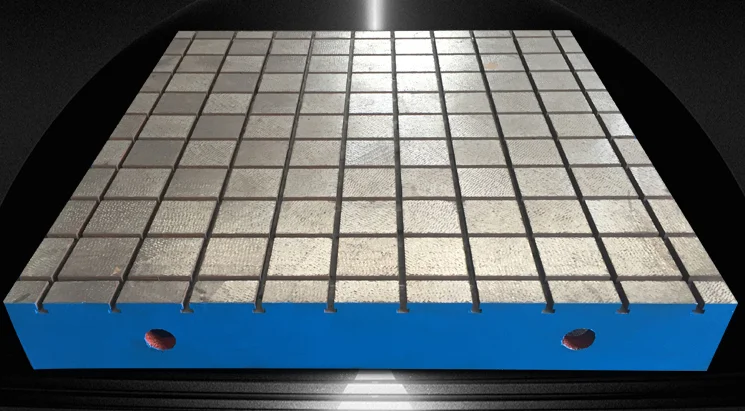

Product Photos
