Осевой вентилятор электродвигателя YWF4D-400 380V 50/60HZ для испаритель с 250 мм 350 400 500
- Категория: Fan Parts >>>
- Поставщик: Guangzhou,ZhiGao,Freeze,Equipment,Limited,Company
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.50 $* | 0.93 $* |
| Aug-19-2025 | 0.19 $* | 0.44 $* |
| Jul-19-2025 | 0.65 $* | 0.28 $* |
| Jun-19-2025 | 0.80 $* | 0.17 $* |
| May-19-2025 | 0.77 $* | 0.62 $* |
| Apr-19-2025 | 0.31 $* | 0.31 $* |
| Mar-19-2025 | 0.81 $* | 0.72 $* |
| Feb-19-2025 | 0.60 $* | 0.49 $* |
| Jan-19-2025 | 0.91 $* | 0.60 $* |
Характеристики

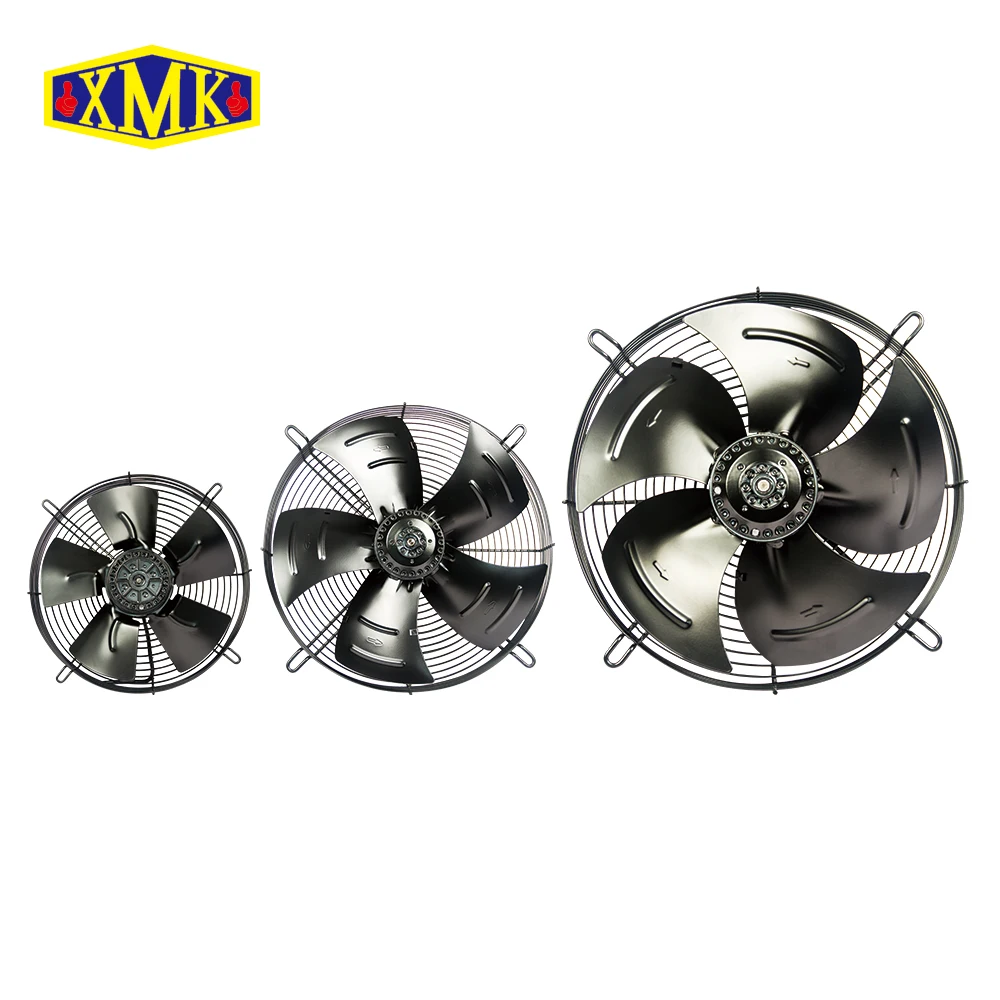

200mm/250mm/300mm/350mm/400mm/500mm/630mm/AC Cooler Axial Fan External Rotor Motor
Product Description
1）The fan rotor is directly welded by rotor and blade, it adopts double-sided dynamic balance, and the dynamic balance achieved G6.3.
2）The fan blade, rotor and grid are all powder sprayed, the surface is smooth, bright and corrosion-resistant.
2）The fan blade, rotor and grid are all powder sprayed, the surface is smooth, bright and corrosion-resistant.
3）The motor cover is also special handled, which helps the cover free from oxidized.Fan normal ambient temperature:-25°C~+60°C.
4）The current insulation grades supplied are B-class, F-class and H-class, and protection class is IP54.
4）The current insulation grades supplied are B-class, F-class and H-class, and protection class is IP54.
Model | Diameter(mm) | Voltage（Ｖ） | InputPower （W） | Air Volume Max(m³/h) | Speed(RPM) | Noise(dB) | N.W(Kg) | Quantiy / Pallet |
YWF4E-200-E5Z | 200mm | 380V | 35W | 385 | 1465 | 50 | 2KG | 96units |
YWF4D-200-E5Z | 200mm | 220V | 22W | 385 | 1400 | 50 | 2KG | 96 units |
YWF4E-250 -E5L | 250mm | 380V | 50W | 915 | 1450 | 55 | 2.7KG | 96 units |
YWF4D-250 -E5L | 250mm | 220V | 50W | 900 | 1430 | 55 | 2.7KG | 96 units |
YWF4E-300-E5L | 300mm | 380V | 100W | 1920 | 1325 | 60 | 3.2 KG | 54units |
YWF4D-300-E5L | 300mm | 220V | 100W | 1950 | 1360 | 60 | 3.2KG | 54units |
YWF4E-350 -E5L | 350mm | 380V | 150W | 2350 | 1380 | 65 | 4.6KG | 30units |
YWF4D-350 -E5L | 350mm | 220V | 150W | 2470 | 1380 | 65 | 4.6KG | 30units |
YWF4E-400 -E5L | 400mm | 380V | 230W | 4015 | 1350 | 68 | 5.2KG | 20units |
YWF4D-400 -E5L | 400mm | 220V | 240W | 3806 | 1370 | 68 | 5.2KG | 20units |
YWF4E-450 -E5L | 450mm | 380 | 280W | 4706 | 1365 | 70 | 6.8KG | 20units |
YWF4D-450 -E5L | 450mm | 220 | 270W | 4706 | 1360 | 70 | 6.8KG | 20units |
YWF4E-500 -E5L | 500mm | 380 | 460W | 6700 | 1330 | 70 | 9.8KG | 20units |
YWF4D-500 -E5L | 500mm | 220 | 480W | 6700 | 1340 | 70 | 9.8KG | 20units |
YWF4D-550-E5L | 550mm | 380V | 600W | 8730 | 1360 | 70 | 11.0KG | 20units |
YWF4E-550-E5L | 550mm | 220V | 650W | 8546 | 1340 | 70 | 11.0KG | 20units |
YWF4D-600-E5L | 600mm | 380V | 760W | 10700 | 1360 | 75 | 13.8KG | 10units |
YWF4E-600-E5L | 600mm | 220V | 830W | 10162 | 1385 | 75 | 13.8KG | 10units |
Use for
Certificate

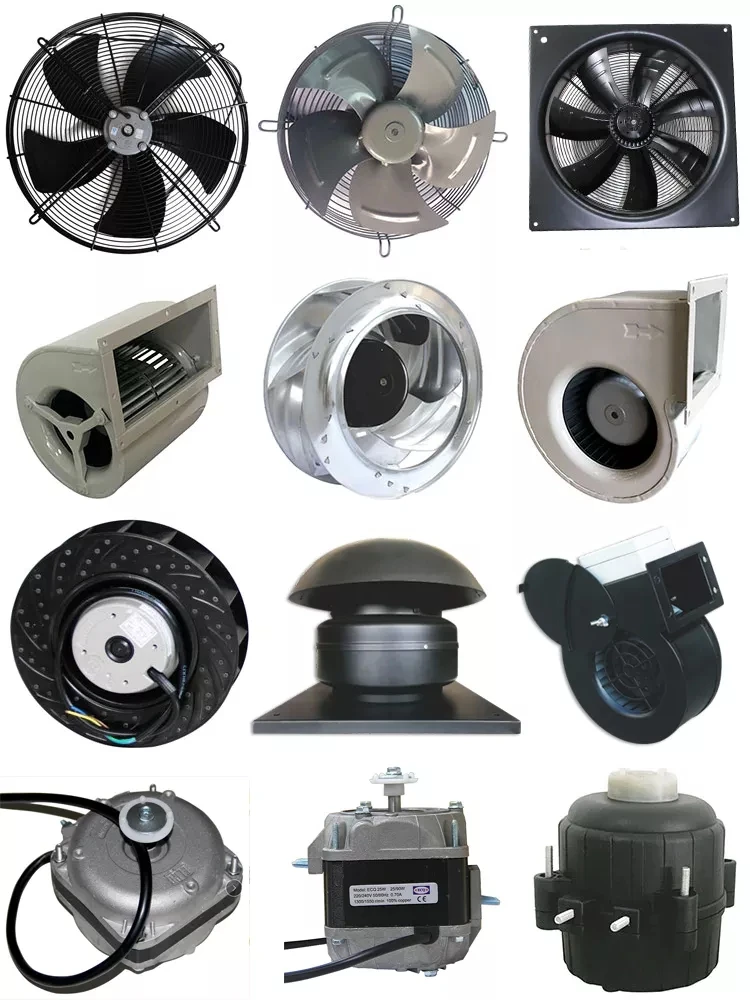

Series Products
