Hantek Digital HDG3000C Series для генератора сигналов Arb 3CH измеритель частоты
- Категория: Signal Generators >>>
- Поставщик: ZJI,Tech,Limited,Company
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.25 $* | 0.11 $* |
| Aug-16-2025 | 0.15 $* | 0.98 $* |
| Jul-16-2025 | 0.85 $* | 0.39 $* |
| Jun-16-2025 | 0.52 $* | 0.78 $* |
| May-16-2025 | 0.86 $* | 0.24 $* |
| Apr-16-2025 | 0.45 $* | 0.21 $* |
| Mar-16-2025 | 0.88 $* | 0.8 $* |
| Feb-16-2025 | 0.24 $* | 0.70 $* |
| Jan-16-2025 | 0.68 $* | 0.60 $* |
Характеристики
Feature
* Frequency range: CH1&CH2: 1μHz ~ 100MHz/80MHz/60MHz/40MHz/25MHz;CH3:1μHz ~ 20MHz.
* Up to 300MSa/s sampling rate, no distortion of analog waveforms.
* 16-bit vertical resolution ensures the accuracy of waveform amplitude.
* The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details.

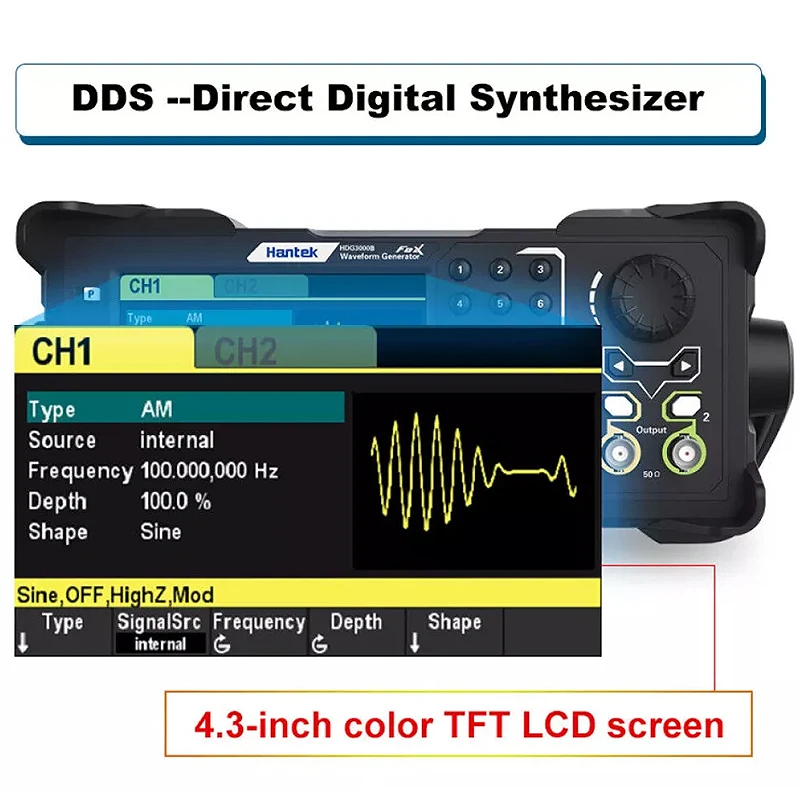

* A 4.3-inch color TFT LCD screen, a clear and intuitive user interface.
* Rich modulation function, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.
* 1μHz frequency resolution: When the impedance is high, the amplitude range is 2mV~20Vpp. When the impedance is 50Ω, the
amplitude range is 1mV~10Vpp.
* Built-in 80MHz high-resolution frequency meter.

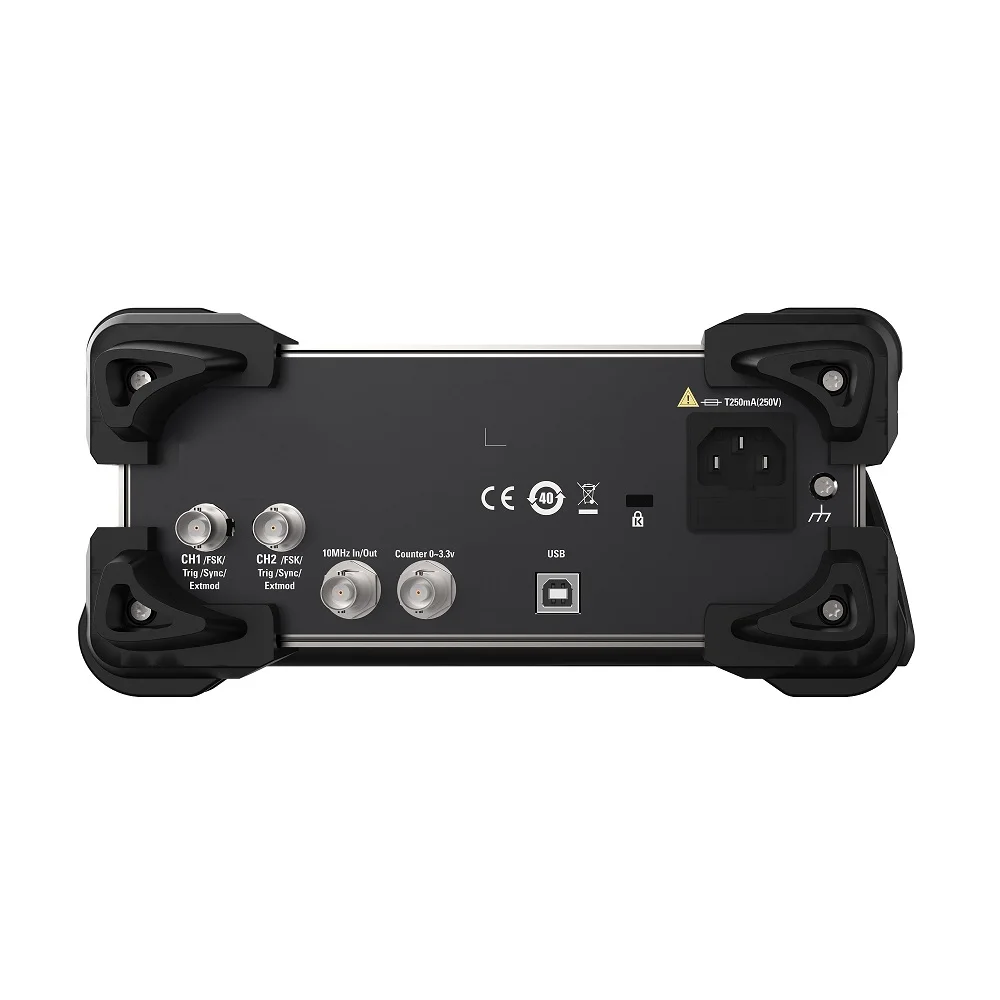

* Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device).
* More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive
vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.
* Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in
harmonic detection equipment or harmonic filter equipment test.
* Up to 300MSa/s sampling rate, no distortion of analog waveforms.
* 16-bit vertical resolution ensures the accuracy of waveform amplitude.
* The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details.
* A 4.3-inch color TFT LCD screen, a clear and intuitive user interface.
* Rich modulation function, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.
* 1μHz frequency resolution: When the impedance is high, the amplitude range is 2mV~20Vpp. When the impedance is 50Ω, the
amplitude range is 1mV~10Vpp.
* Built-in 80MHz high-resolution frequency meter.
* Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device).
* More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive
vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.
* Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in
harmonic detection equipment or harmonic filter equipment test.
Product Description
Equip with the sine wave with the maximum output bandwidth of 100MHz.
Frequency range: 1μHz~100MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°.
Frequency range: 1μHz~100MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°.
Equip with the square wave with the maximum output bandwidth of 15MHz.
Frequency range: 1μHz~15MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°.
Frequency range: 1μHz~15MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°.
Equip with the triangle wave with the maximum output bandwidth of 2MHz.
Frequency range: 1μHz~2MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°; Adjustable symmetry: 0%~100%..
Frequency range: 1μHz~2MHz; Adjustable offset: ±5V; Adjustable phase: 0° ~ 360°; Adjustable symmetry: 0%~100%..
Equip with more than 160 kinds of arbitrary waveform output.
Index rise, index fall, ECG signal, Gauss, half vector, Lorentz, dual tone multi-frequency, DC voltage and other more than 160
kinds of arbitrary signals.
Index rise, index fall, ECG signal, Gauss, half vector, Lorentz, dual tone multi-frequency, DC voltage and other more than 160
kinds of arbitrary signals.
Equip with dual channel output modulation waveform AM/FM.
Rich modulation functions, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.
Rich modulation functions, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.
Equip with dual channel output burst function.
Support control of burst output by internal, manual or external trigger sources. Three burst types are supported, including multi
cycle, infinite cycle, and gated.
Support control of burst output by internal, manual or external trigger sources. Three burst types are supported, including multi
cycle, infinite cycle, and gated.
Equip with an 80MHz frequency meter.
The instrument can measure the frequency, period, duty cycle, positive pulse width and negative pulse width and other parameters
of the external input signal
of the external input signal
Specification
item | value | ||||||||||
Model | HDG3102B HDG3082B HDG3062B HDG3102B HDG3082B HDG3062B HDG3042B | ||||||||||
Channel | 2 | ||||||||||
Waveform Length | 2M | ||||||||||
Frequency Range | 15-100MHz | ||||||||||
Sampling Rate | 300MSa/s | ||||||||||
Voltage Resolution | 16 Bit | ||||||||||
Temperature range | Operation: 10℃ ~ 40℃ Non-operation: -20℃ ~ 60℃ | ||||||||||
Humidity range | ≤+104℉(≤+40°C): Relative humidity ≤90% | ||||||||||
Dimension | 308mm x 232mm x 110mm | ||||||||||
Weight | 3.09 KG | ||||||||||
Temperature Range | Operation: 10 ° C to 40 ° C Non-operation: -20 ° C to 60 ° C | ||||||||||
