ATEX certificated Explosion-proof Telephone SIP/VOIP Industrial Anti-Explosion Telephone for Oil&Gas, Mining Project

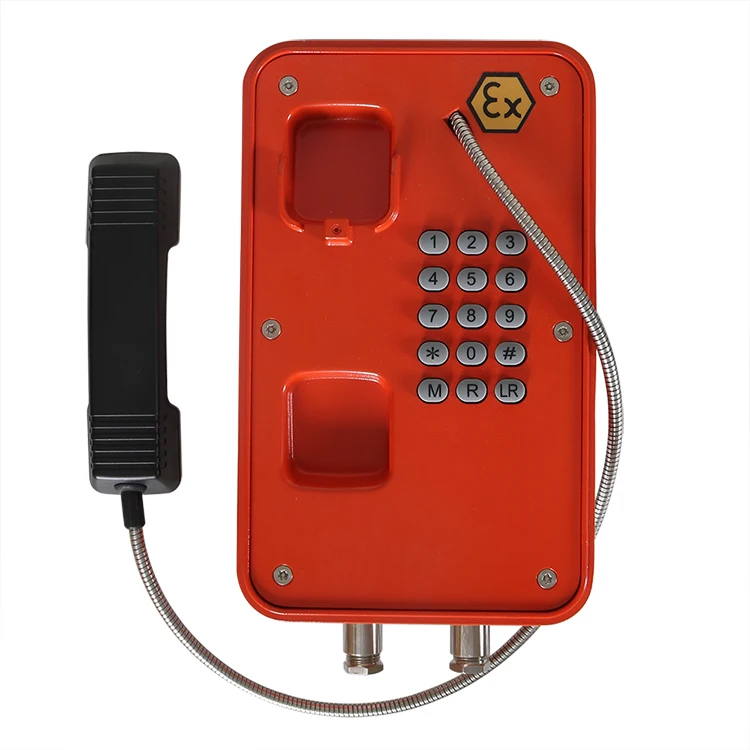

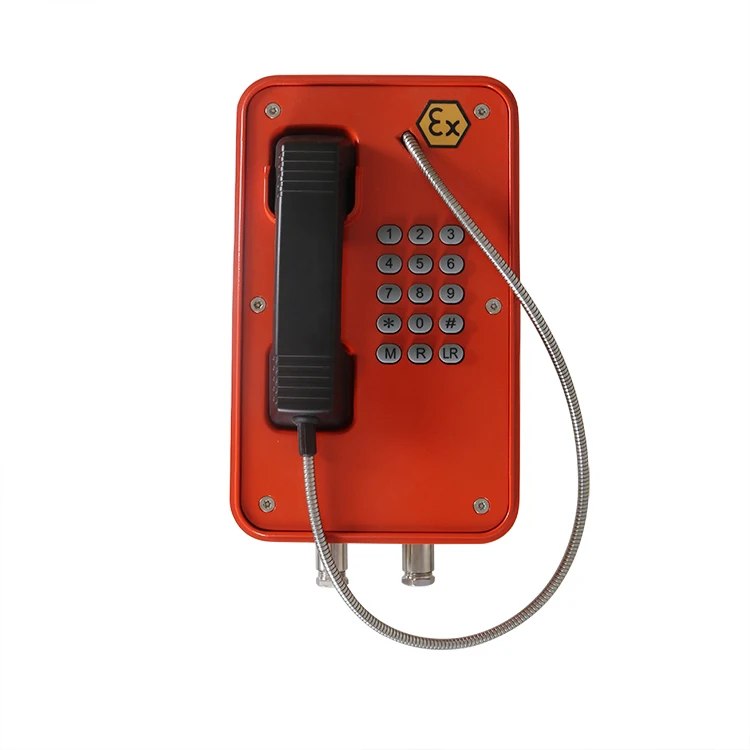

Model:  JREX103 Explosion-proof telephone
The VoIP Explosion Proof Telephone is designed for voice communication in the hostile environment where reliability,efficiency and safety are of prime importance. The telephone can handle the large temperature differences found outdoors, high humidity, exposure to sea water and dust,Corrosive atmosphere,Explosive gases & particles,as well as mechanical wear and tear, making it perfect for use as an emergency telephone.





This product has the following explosion protection:
II 2G Ex e ib [ib] mb IIC T4 Gb
III 2D Ex ib [ib] tb IIIC T135 °
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, 2, 22



Applicaiton of ATEX certificated Explosion-proof Telephone SIP/VOIP Industrial Anti-Explosion Telephone

Widely used in Marine, Mining, Oil&Gas, Tunnels, Steel Plant, Drilling platform, Chemical plant, Power plant and related industrial application, etc.



Key Features for ATEX certificated Explosion-proof Telephone SIP/VOIP Industrial Anti-Explosion Telephone

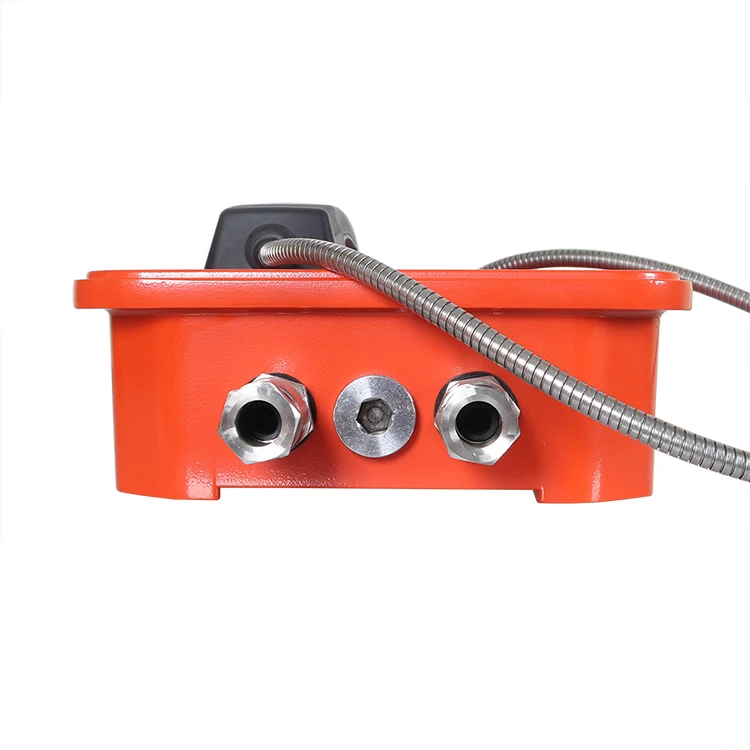

Corrosion resistant aluminum alloy die casting housing, available in four colors, with NPT conduit entries and Type 3 / IP67 environmental ratings

Certificated for use in Hazardous areas of Gas Group IIB/IIA

Zone classification: Zone 1& Zone 2

Ex ’d’ protected

Intrinsically safe Ex”ib” certified

Temperature classification:T6

SIP or H323 protocols(Compatible with all PBX’S)

Power supply: Power over Ethernet

Fully configurable through any internet browser or the on-board display

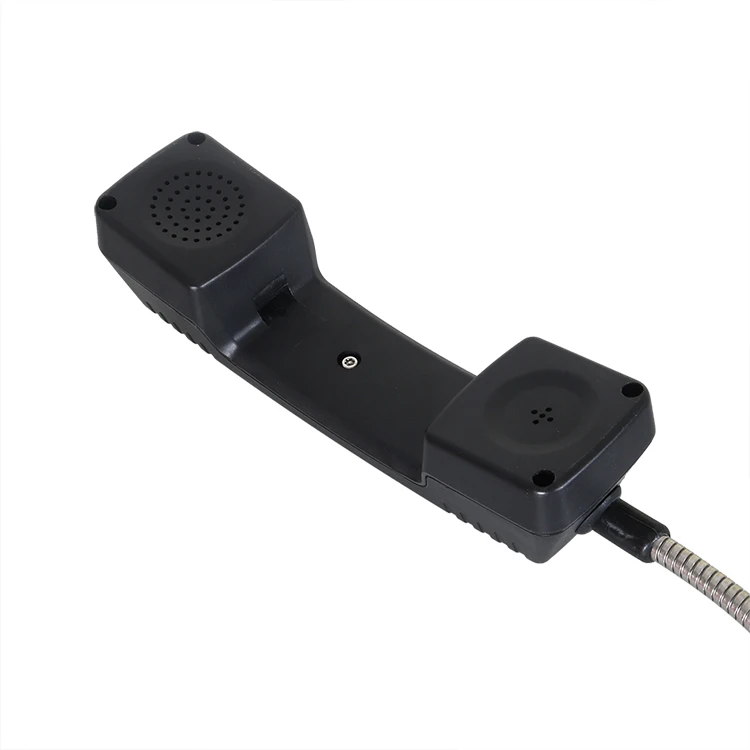

Handset with Noise canceling microphone,for effective communication from noisy areas(Armored SS cord stands up to rough treatment,optional for black curly cord )

Completely programmable weatherproof keypad designed to be used with gloves

No.of keys(TOTAL 15KEYS):0-9,*,#,Redial,Mute,Last Number Redial

Hermetically sealed non-contact hook sensing switch improves system reliability

Built-in External Ringer that provides penetrating calling signal(85dbA@ 1meter)

Mounting :Wall/column/structural

Captive cover screws prevent loss during installation





Technical Specification:

EXPLOSION PROOF /VoIP/SIP phone, Also support Analogue version

Robust construction, Vandal resistant
All weather protection IP66-67, IECEX certified.
Tamper resistant fixings
Simple installation
Fast-fit terminal connection
Programmed via web interface
Non-volatile memory
Magnetic reed hook switch to reduce parts subject to wear
Voice over Internet Protocol (also called VoIP, IP Telephony,
Internet Telephony, Broadband Telephony, Broadband Phone, and Voice over Broadband) is the routing of voice conversations over the Internet or through another IP-based network.
DC 5V powered or PoE(Power Over Ethernet)
No Additional Interface Required
Web Page Configuration
Real-time Alarm Reporting
SIP Compatible
RJ45 LAN or WAN Direct Connection
Automatic Call Divert (rollover), via Memory List
Auto Answer
Multicast Capable
Connection: RJ45 Ethernet socket through IP67 plug connector.
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
ISDN gateway compliance: connect any SIP compliant VoIP/ISDN gateway to call to-and receive-calls from ISDN
SIP (Session Initiation Protocol) RFC3261
Inbuilt redundancy: able to make diversion calls to 2nd PBX
TR069 (Technical Report 069): for advanced status monitoring and control

SNMP supported
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
Mass configuration available.
Compatible with standard SIP protocol VOIP phone systems. (Asterisk,Cisco,Mitel,Elastix,Freeswitch,MiniSipServer,Yeastar MyPBX etc.)



Dimension & Installation for ATEX certificated Explosion-proof Telephone SIP/VOIP Industrial Anti-Explosion Telephone





Package & Shippment for ATEX certificated Explosion-proof Telephone SIP/VOIP Industrial Anti-Explosion Telephone





Certifications for Explosion Proof Telephone SIP/VOIP Weatherproof & Anti-Explosion Telephone
