Product Description

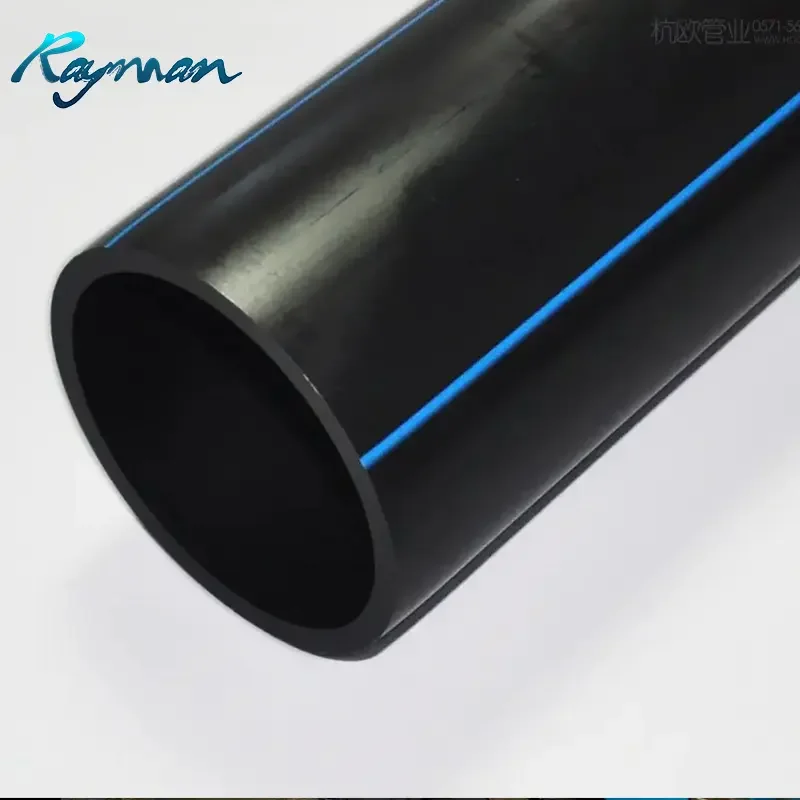

RAYMAN HDPE PIPE
is made of high density polyethylene resin.The product's physical properties make it applicable to open-trench, horizontal directional drilling,pipe-bursting and slip-lining installations.It can be manufactured with the color striping to identify application, such as blue stripe for potable water, yellow stripe for gas applications and red stripe for mining or cable protection applications.
Product name | Plastic PE Roll Water Pipe 20mm 25mm 32mm 40mm 50mm 63mm Poly PE100 Pipes Price HDPE Pipe for Irrigation Drainage Water Supply |
Working pressure | SDR26/SDR21/SDR17/SDR13.6/SDR11/SDR9/SDR7.5 0.6MPa/0.8MPa/1.0MPa/1.25MPa/1.6MPa/2.0MPa/2.5Mpa PN6/PN8/PN10/PN12.5/PN16/PN20/pn25 |
Size | DN16mm-DN2500mm |
Features | Convenient transportation easy to install |
Material | PE100 |
Certification | CE,ISO14001, ISO9001,ISO45001 |
Plastic PE Roll Water Pipe 20mm 25mm 32mm 40mm 50mm 63mm Poly PE100 Pipes Price HDPE Pipe for Irrigation Drainage Water Supply
Rayman Pipe Advantages
PE100 FOOD GRADE QUALITY RAW MATERIALS
PE100 is non-toxic and tasteless.
It belongs to green building materials and never scaling through the strict health test, which can effectively improve the water
quality.
It belongs to green building materials and never scaling through the strict health test, which can effectively improve the water
quality.
50+ YEARS SERVICE LIFE
Excellent corrosion and chemical resistance to attack from various types of chemicals.
Higher flow capacity
The smooth inner wall is easy for pipeline transportation. Under the same condition, delivery capacity can be increased by at least 30%.
HDPE Pipes have high flexibility properties, which can provide ease of use.
HDPE pipe could be convenient for installation, which is welded by hot-melt welding machine and electro-fusion welding machine.
Plastic PE Roll Water Pipe 20mm 25mm 32mm 40mm 50mm 63mm Poly PE100 Pipes Price HDPE Pipe for Irrigation Drainage Water Supply
Application
RAYMAN HDPE PIPE are used safely in many projects with their high strength and quality.
which is the most preferred in infrastructure systems, has a wide usage area.
RAYMAN HDPE PIPE APPLICATION

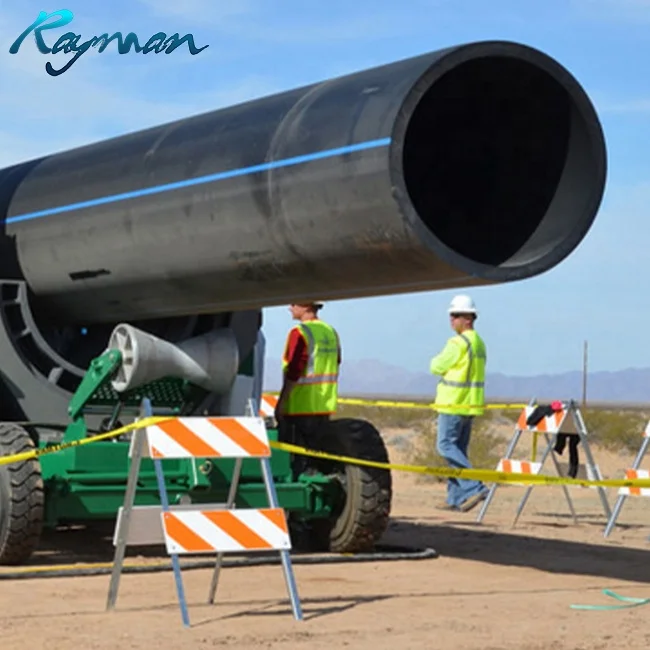

Drinking Water Pipelines, Pressure Irrigation Pipelines, Hydroelectric Power Plants, Gas Lines, Treatment Plant Pipeline, Water Treatment Plant, Swimming Pools Pipeline, Chilled Water Pipeline, Compressed Air Lines, Solid Material Handling Lines, Chemical Pipeline, Geothermal Coating Heating Pipes, Sewer Pipelines, Solid Waste Methane Gas Discharge Line, Solid Waste Drainage Line,Marine Discharge Pipe Line, Fish Farm Pipe line and so on.
Plastic PE Roll Water Pipe 20mm 25mm 32mm 40mm 50mm 63mm Poly PE100 Pipes Price HDPE Pipe for Irrigation Drainage Water Supply
Specification
Nominal diameter DN(mm) | Nominal Wall Thickness(mm) | ||||||||
PN0.6 | PN0.8 | PN1.0 | PN1.25 | PN1.6 | |||||
SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |||||
20 | - | - | - | - | 2.3 | ||||
25 | - | - | - | 2.3 | 2.3 | ||||
32 | - | - | 2.3 | 2.4 | 3.0 | ||||
40 | - | 2.3 | 2.4 | 3.0 | 3.7 | ||||
50 | 2.3 | 2.4 | 3.0 | 3.7 | 4.6 | ||||
63 | 2.4 | 3.0 | 3.8 | 4.7 | 5.8 | ||||
75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | ||||
90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | ||||
110 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 | ||||
125 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 | ||||
140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | ||||
160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | ||||
180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | ||||
200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | ||||
225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | ||||
250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | ||||
280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | ||||
315 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 | ||||
355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | ||||
400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | ||||
450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | ||||
500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | ||||
560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 | ||||
630 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 | ||||
710 | 27.2 | 33.9 | 42.1 | 52.2 | 63.6 | ||||
800 | 30.6 | 38.1 | 47.4 | 58.8 | 72.7 | ||||
900 | 34.4 | 42.9 | 53.3 | 66.2 | 81.8 | ||||
1000 | 38.2 | 47.7 | 59.3 | 73.5 | - | ||||
1200 | 46.2 | 57.1 | 70.6 | - | - | ||||
Plastic PE Roll Water Pipe 20mm 25mm 32mm 40mm 50mm 63mm Poly PE100 Pipes Price HDPE Pipe for Irrigation Drainage Water Supply
Packing & Delivery
RAYMAN HDPE PIPE can be loaded the pipes to pipes nesting so that can save shipping space and shipping cost.
Plastic PE Roll Water Pipe 20mm 25mm 32mm 40mm 50mm 63mm Poly PE100 Pipes Price HDPE Pipe for Irrigation Drainage Water Supply
Certifications
RAYMAN PIPE , as CE / ISO9001 / ISO 45001 / ISO14001 certification acquired manufacturer, which can provide professional support and guanrantee in each stages of the production and sales. And there're many advanced HDPE pipe production lines, which has production capacity of more than 80,000 MT per year.
Plastic PE Roll Water Pipe 20mm 25mm 32mm 40mm 50mm 63mm Poly PE100 Pipes Price HDPE Pipe for Irrigation Drainage Water Supply
Company Profile
RAYMAN PIPE is a leading and professional plastic pipes manufacturer in China, which has been specializing in the R&D, production and marketing of HDPE pipe and fittings, PVC pipe and fittings, PPR pipe and fittings for more than 20 years.
RAYMAN PIPE owns 60 production lines for HDPE pipe&fittings, 50 production lines for PVC pipe and fittings, 50 production lines for PPR pipe and fiitings, also has established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing. Not only is stringent internal quality control carried out at RAYMAN, but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States. The management system is certified by ISO9001 and RAYMAN's products have passed the CE certification.
RAYMAN PIPE products have been distributed to more than 120 countries around the world. RAYMAN PIPE is constantly developing and offering creative and excellent performance plastic pipes including HDPE pipes, PVC pipes, PPR pipes to our clients, and offering professional technical services and engineering consulting for reinforcement applications. We always warmly invite new business partners to be members of our worldwide distribution network.
RAYMAN PIPE owns 60 production lines for HDPE pipe&fittings, 50 production lines for PVC pipe and fittings, 50 production lines for PPR pipe and fiitings, also has established a national-standard laboratory for in-house quality control and built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing. Not only is stringent internal quality control carried out at RAYMAN, but regular testing and analyzing of our product performance is implemented by authoritative testing organizations in Europe and the United States. The management system is certified by ISO9001 and RAYMAN's products have passed the CE certification.
RAYMAN PIPE products have been distributed to more than 120 countries around the world. RAYMAN PIPE is constantly developing and offering creative and excellent performance plastic pipes including HDPE pipes, PVC pipes, PPR pipes to our clients, and offering professional technical services and engineering consulting for reinforcement applications. We always warmly invite new business partners to be members of our worldwide distribution network.
