Характеристики
Product Description

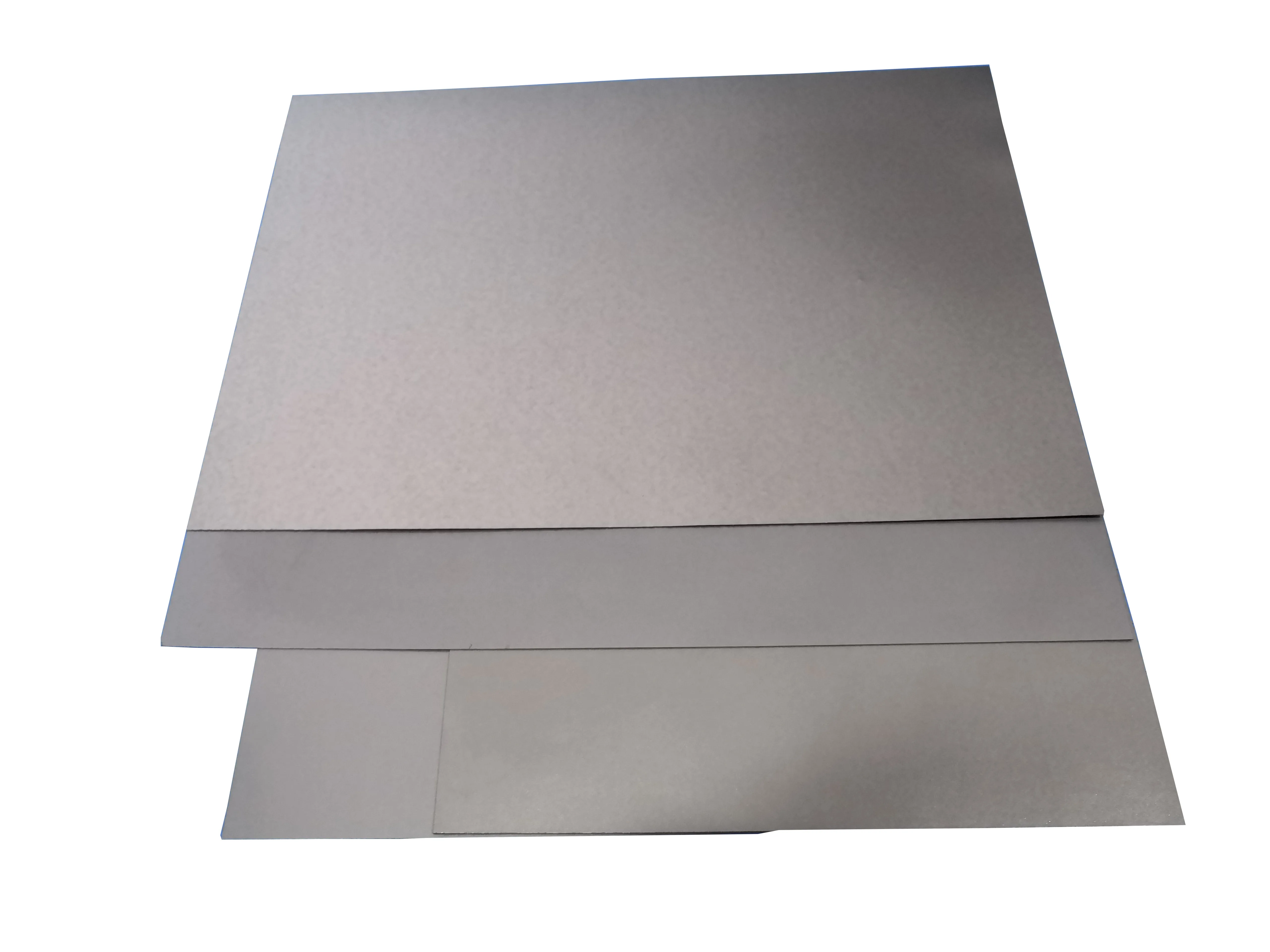

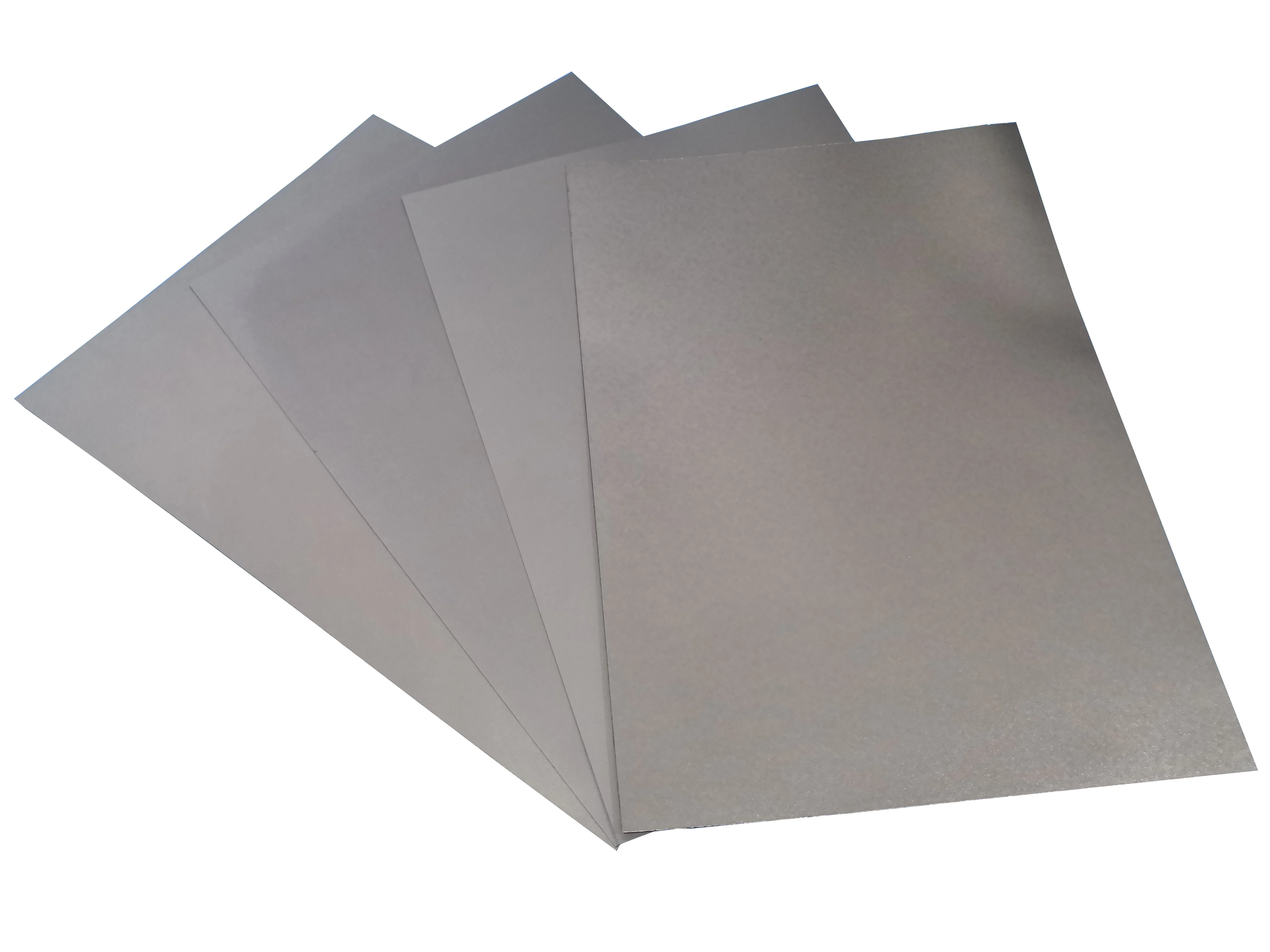

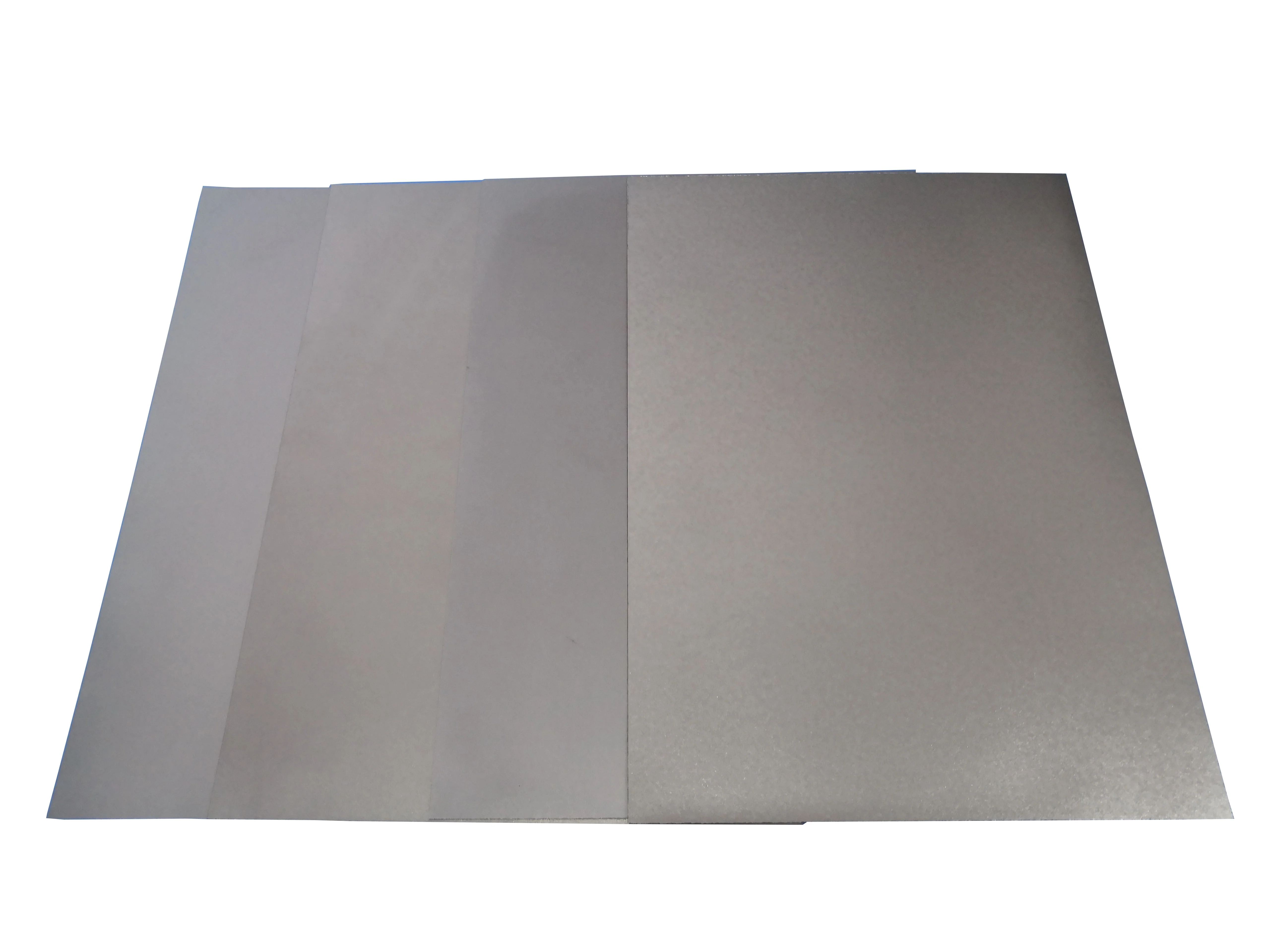

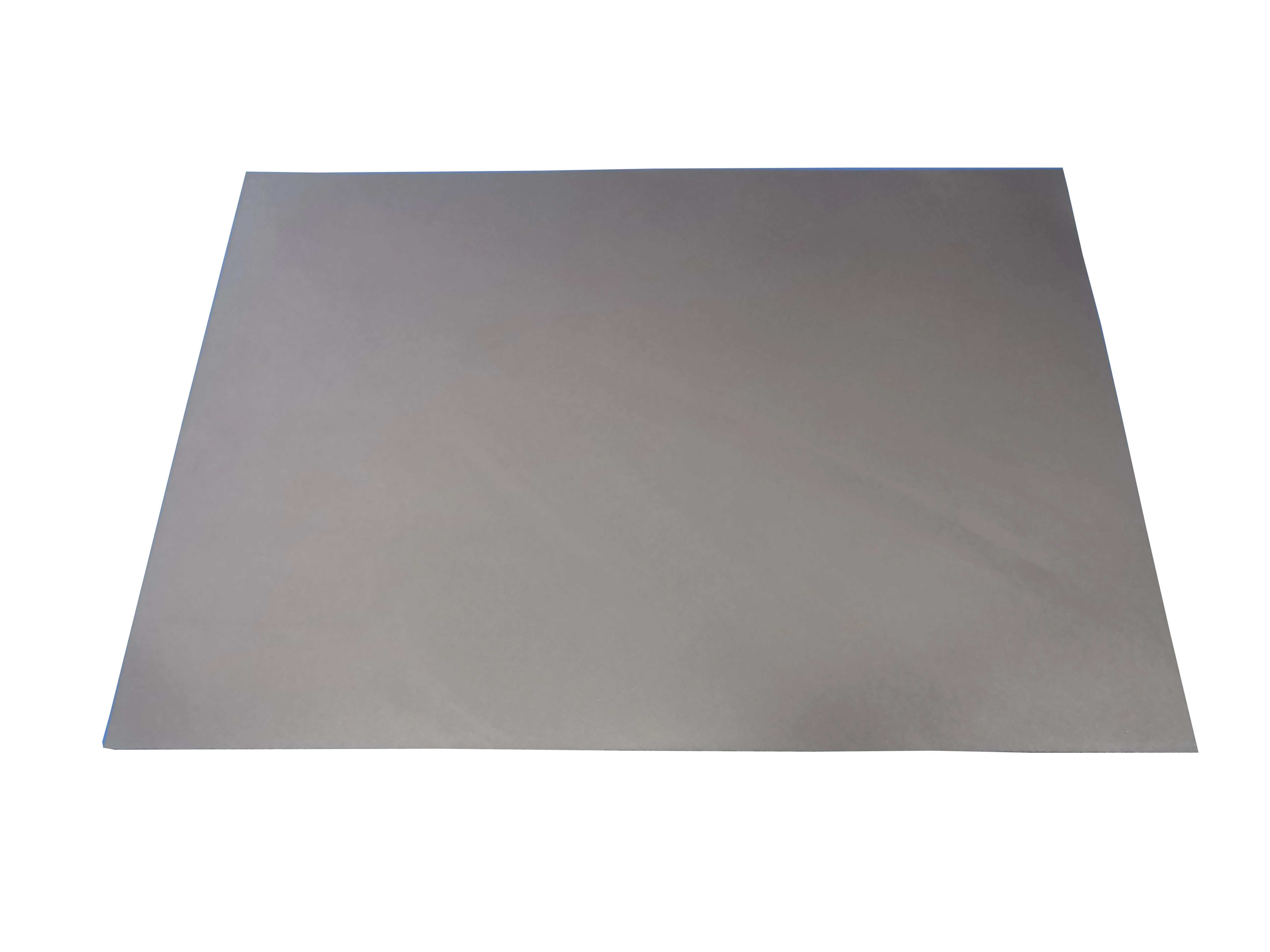

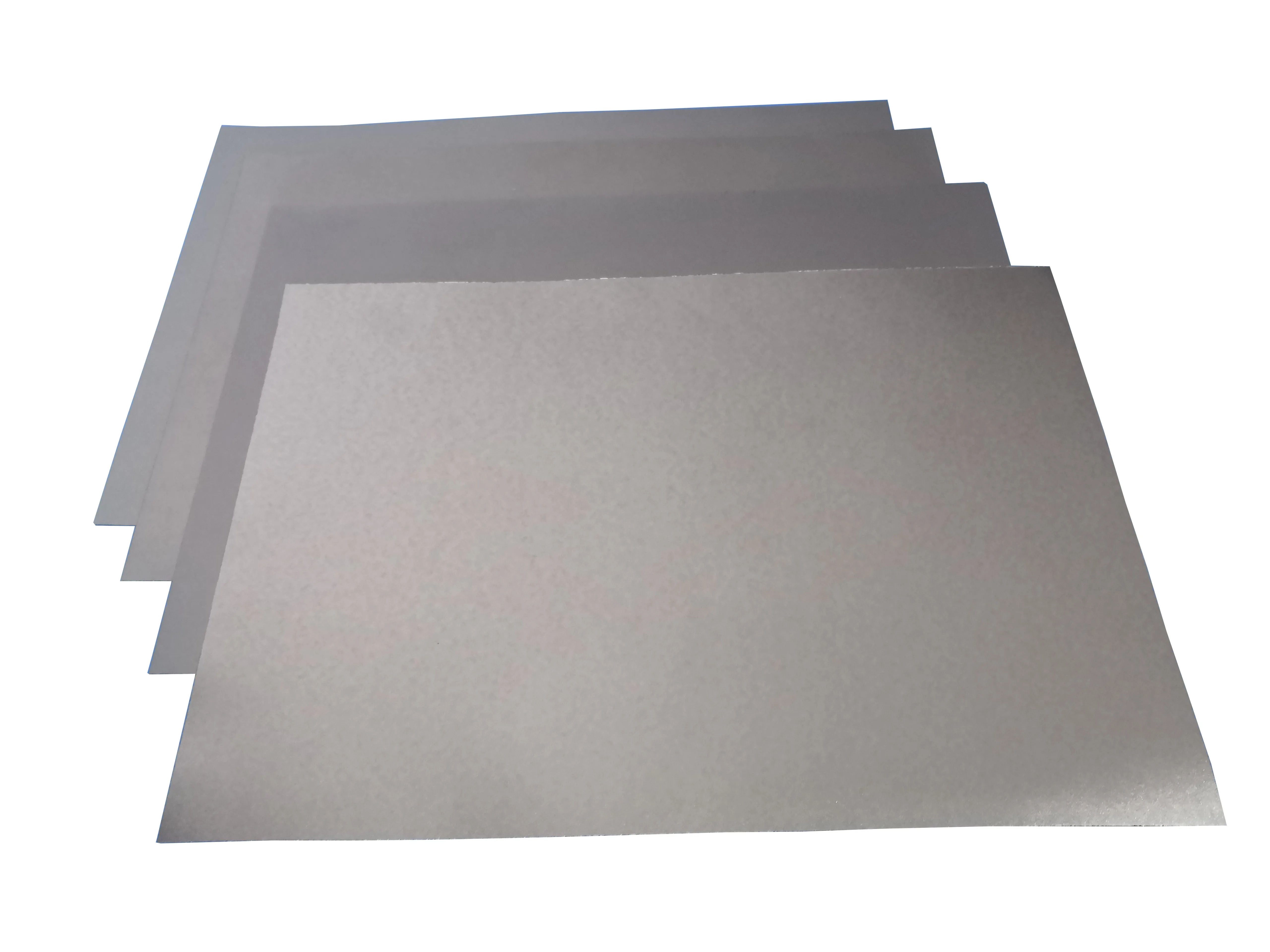

5G EMI Absorber
Absorber of absorbing type is made by adding soft magnetic alloy flake powder into polyurethane solution, coating and pressing. The soft magnetic alloy flake powder has good electromagnetic properties, and through horizontal arrangement, higher magnetic permeability characteristics can be obtained. The flake powder can form a better eddy current circuit and magnetic field orientation, and has a greater advantage in attracting and consuming electromagnetic waves.
Absorber Application & Selection
Product Selection Table
Type | ESM-3P series （High performance） | ESM-3P-R series （Normal type） |
Applicable frequency | 0~5GHz | 0~5GHz |
Temperature (℃) | -25~+85 | -25~+85 |
Permeability （μ‘@3MHz） | 200~300 | 50~200 |
Thickness (mm) | 0.025~0.300 | 0.025~0.500 |

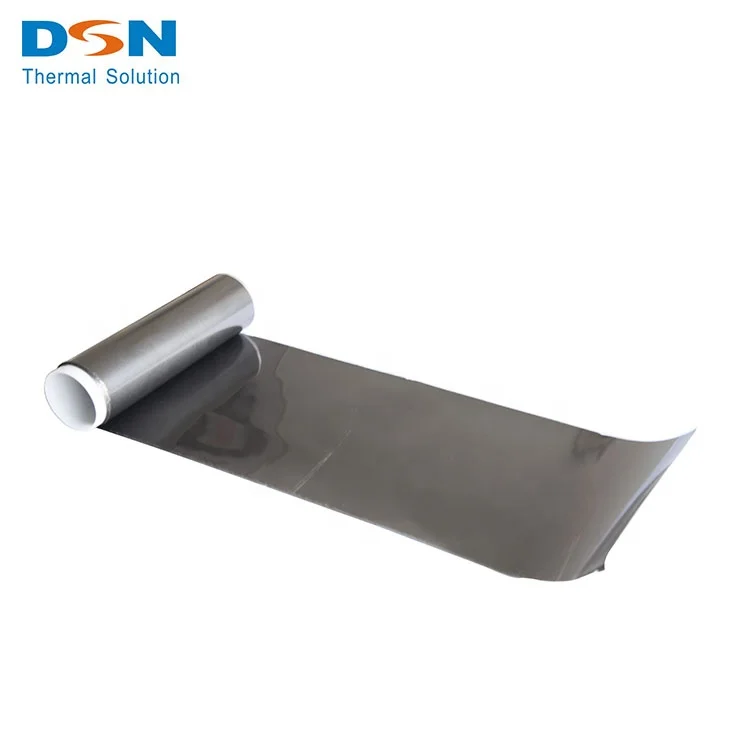

Standard Size | Sheet：250*400mm | Roll：300mm*20/50M |
Surface resistance（Ω） | ≥1×10^3 | ≥1×10^5 |
Main application | Mobile phone: full screen COF, motherboard shield, FPC soft cable near or interface, electromagnetic touch screen, NFC, etc. Other medical devices that require magnetic shielding, low-power wireless charging, RFID, etc. | Mobile phone: full screen COF, motherboard shield, FPC soft cable near or interface, electromagnetic touch screen, NFC, etc. Laptop: motherboard chip, near FPC soft cable or interface Other: low power wireless charging, RFID, etc. |
Type | ESM-H3P series （High frequency） | EAT/ECT series （shielding+absorbing） | WSR series （Rubber type） |
Applicable frequency | 0~10GHz | 0~5GHz | 10~30GHz |
Temperature (℃) | -25~+85 | -25~+85 | -40~+150 |
Permeability（μ‘@3MHz） | 40~140 | 100~180 | / |
Thickness (mm) | 0.100~0.500 | 0.050~0.100 | 1~3 |
Standard Size | Sheet：250*400mm | Roll：230/450mm*50M | Sheet：200*200mm |
Surface resistance（Ω） | ≥1×10^5 | Magnetic layer:≥1×10^6 Shielding layer：≤0.5 | 10^15 |
Main application | Laptop: WIFI/Bluetooth chip antenna accessory, PFC soft cable or excuse near the location. | Cable wire winding, display COF position attachment, chip electromagnetic shielding, special requirements for RFID use. | Optical module communication equipment. VR/drone/autopilot, etc. |
Project Process Infographic
Special equipment, Stirred, Mixed dispersant, Precise coating lines.
Professional staff, the director 20 years + experience;
2 managers 15-20 years +, PE 10+;
2 managers 15-20 years +, PE 10+;
3-5 years of relevant work experience, 35 skilled workers.
Typical Application
Recommended Products：ESM-3P9-05R
Absorber is used to reduce the COF interference to GSM/LTE antenna performance. Absorb electromagnetic interference signals
generated by various FPC cables on the screen.
generated by various FPC cables on the screen.
Recommended ESM-3P and ESM-3P-R0 Series
Frequency: 500~600kHz The metal part of the phone affects the flux communication of the digitizer, and the absorbing material
isolates the magnetic field and ensures proper use of the digital pen.
isolates the magnetic field and ensures proper use of the digital pen.
Recommended: ESM-3P Series
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Successful Cases
S-Company Project - Signal Interference
USB3.0 port is connected to the motherboard and USB small board through the flexible cable. Below is the SSD. The actual work will bring the noise of SSD and USB3.0 and affect the Wi-Fi signal. Through communication with R&D, the actual noise is 2.5. Around GHz, it affects the Wi-Fi 2.4G (2.4~2.4835G) signal. At present, a wave of absorbing material is attached to the soft wire corresponding to the NB D component, and this noise is absorbed to solve the problem.
Recommended products - ESM-3P4-50R
Recommended products - ESM-3P4-50R
L-company laptop project - high frequency radiation fail
Problem: Customer product EMI radiation 998MH in excess, over5.9dB
Solution: After the VSI ESM-3P7-30 absorber is attached to the key position of PCBA, the far- field radiation is greatly reduced, and the relevant tests are passed;
Solution: After the VSI ESM-3P7-30 absorber is attached to the key position of PCBA, the far- field radiation is greatly reduced, and the relevant tests are passed;
Recommended products - ESM-3P7-30R
Company Introduction
We specialized in manufacturing/sales of special bonding materials, 5G functional materials, electronic functional materials, It is a high-tech enterprises in the field of new materials. At present, the company’s products are widely used in electronic products, household appliances, automobiles, transportation, general industry and related Equipment. The company had set up joint venture with Japan company. Our company has been serving countries and regions such as Japan, South Korea, Europe and the United States.
Company Overview
* Plant size of 20000㎡.
* 183 employees and 28% employees with bachelor degree or above.
* 9 precision solvent and hot melt coating lines, large mixer, RTO system.
* Title of High-tech Enterprise of Jiangsu Province.
R&D Capabilities
SEM provides 20-134X optical magnification, electronic optical magnification 160-350KX, analysis of raw materials, powders, finished products and other microscopic features. With EDS, it can perform elemental analysis on products. This equipment greatly improves our R&D and development capabilities.
Key equipment display
Impedance analyzer: 1MHz~1GHz electromagnetic parameter test capability, suitable for the permeability and permittivity test of various thin films and sheet materials. This equipment is a general standard equipment in the industry at present, with simple test methods, quick operation, and test results Accurate and reliable, the company is currently equipped with two sets, one each for R&D and quality.
Network analyzer: 0.1~8.5GHz frequency band test range, often used for electromagnetic signal testing, through supporting fixtures, the device can measure electromagnetic parameters after 1GHz, often used to measure electromagnetic parameters, material loss, and shielding performance from 1 to 8.5GHz and many more. At the same time, it is also used to build an application environment for material application simulation.
Thermal conductivity tester: Fully automatic control, 6-point temperature gradient detection can improve the test accuracy, can detect thermal resistance curves under different pressures, measure the vertical thermal conductivity and thermal resistance of materials, and contact thermal resistance at the interface. The detection material is a solid sheet, and the powder state material and the paste material can be detected by the jig.
Manufacturing Platform
Sol stirred tank
1. Large scale - With 5t Sol capacity, can be used for mass production all kinds of adhesive dissolution, mixing.
2, medium size -With 2t Sol Capability, it can be used for dissolving and stirring various kinds of mass production adhesives.
3. Small size With a Sol capacity of 300kg, can be used for small batch production and research and development of various types of adhesives,
dissolve, stir.
dissolve, stir.
Mixing and dispersing machine
1. The dispenser
- Can be used for the mass production of various types of adhesive dispersion.
2,100 liters dispenser
Can Be used for mass production and R & D of various adhesives and functional materials.
3. Vacuum disperser
- Can be used for mass production and development of EMI materials and other functional materials.
- Can be used for the mass production of various types of adhesive dispersion.
2,100 liters dispenser
Can Be used for mass production and R & D of various adhesives and functional materials.
3. Vacuum disperser
- Can be used for mass production and development of EMI materials and other functional materials.
Precision coating line
1, (width > 1200mm) solvent coating production line;
(width 600mm) medium-test solvent coating line
- 2 ~ 150 um precision coating ability, can be used to produce all kinds of PET, cotton, foam tape and EMI material coating.
2, (width 1600/600mm) pilot hot melt adhesive coating line
-- 10-1000um precision coating capability. Used for hot melt adhesive tape production and research and development of coating.
(width 600mm) medium-test solvent coating line
- 2 ~ 150 um precision coating ability, can be used to produce all kinds of PET, cotton, foam tape and EMI material coating.
2, (width 1600/600mm) pilot hot melt adhesive coating line
-- 10-1000um precision coating capability. Used for hot melt adhesive tape production and research and development of coating.
Cutting machine
1. Slitter:
- used for cutting various kinds of adhesive tape and film
2. Cutting machine:
- used for cutting various kinds of adhesive tape and film
3. Rewinder:
- used for rewinding various kinds of tape and film
4. Dicing machine:
-- Used for all kinds of tape and film cutting.
- used for cutting various kinds of adhesive tape and film
2. Cutting machine:
- used for cutting various kinds of adhesive tape and film
3. Rewinder:
- used for rewinding various kinds of tape and film
4. Dicing machine:
-- Used for all kinds of tape and film cutting.
Certificates & patents
FAQ
1. Who are we?
We are based in Jiangxi, China, start from 2013, sell to Eastern Europe(50.00%), Southeast Asia(29.00%), South America(8.00%), Western Europe(3.00%), Domestic Market(1.00%), South Asia(1.00%), Southern Europe(1.00%), Northern Europe(1.00%), Central America(1.00%), North America(1.00%), Eastern Asia(1.00%), Mid East(1.00%), Oceania(1.00%), Africa(1.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. Why should you buy from us not from other suppliers?
Dasen has a R&D team with 2 pH. D. leading more than 20 high-end R&D technicians. Dasen also owns a sound management process and advanced development tools. We are the manufacturer of graphite sheet, vapor chamber, thermal pad. customer: Samsung, Airbus...
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Japanese,Korean
We are based in Jiangxi, China, start from 2013, sell to Eastern Europe(50.00%), Southeast Asia(29.00%), South America(8.00%), Western Europe(3.00%), Domestic Market(1.00%), South Asia(1.00%), Southern Europe(1.00%), Northern Europe(1.00%), Central America(1.00%), North America(1.00%), Eastern Asia(1.00%), Mid East(1.00%), Oceania(1.00%), Africa(1.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. Why should you buy from us not from other suppliers?
Dasen has a R&D team with 2 pH. D. leading more than 20 high-end R&D technicians. Dasen also owns a sound management process and advanced development tools. We are the manufacturer of graphite sheet, vapor chamber, thermal pad. customer: Samsung, Airbus...
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Japanese,Korean
