Ручная машина для изготовления сотовых брикетов
US $60.00-$300.00
Автоматическая машина для изготовления брикетов в рулоне овальной формы с
- Категория: Energy Saving Equipment >>>
- Поставщик: Zhengzhou,Tianyu,Heavy,Industry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2399.48 $* | 2519.23 $* |
| Aug-18-2025 | 2379.57 $* | 2498.21 $* |
| Jul-18-2025 | 1996.70 $* | 2096.41 $* |
| Jun-18-2025 | 2339.89 $* | 2456.16 $* |
| May-18-2025 | 2036.90 $* | 2138.78 $* |
| Apr-18-2025 | 2298.87 $* | 2413.77 $* |
| Mar-18-2025 | 2278.61 $* | 2392.11 $* |
| Feb-18-2025 | 2258.43 $* | 2371.66 $* |
| Jan-18-2025 | 2238.74 $* | 2350.0 $* |
Характеристики
Product Overview

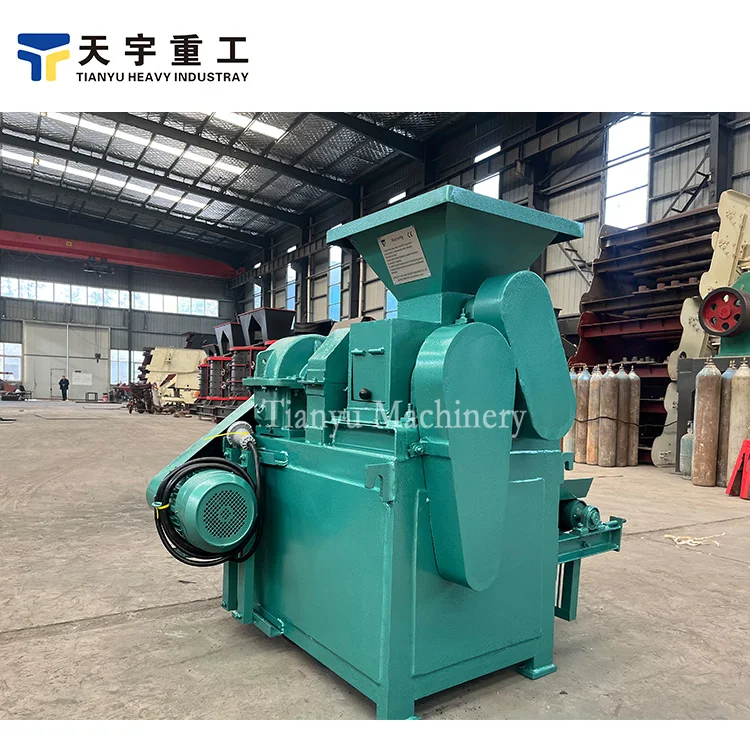

The charcoal ball briquette press machine is molding equipment that can press the powdered coal into balls.It has a wide range of applications and it’s widely used in the field of metallurgy, chemical, refractories, etc.
The final product(coal ball briquette) has the advantages of smokeless, non-toxic, no peculiar smell, and easy transportation&storage.
Compared to traditional charcoal, it’s energy-saving and environmental protection with more calorific value.

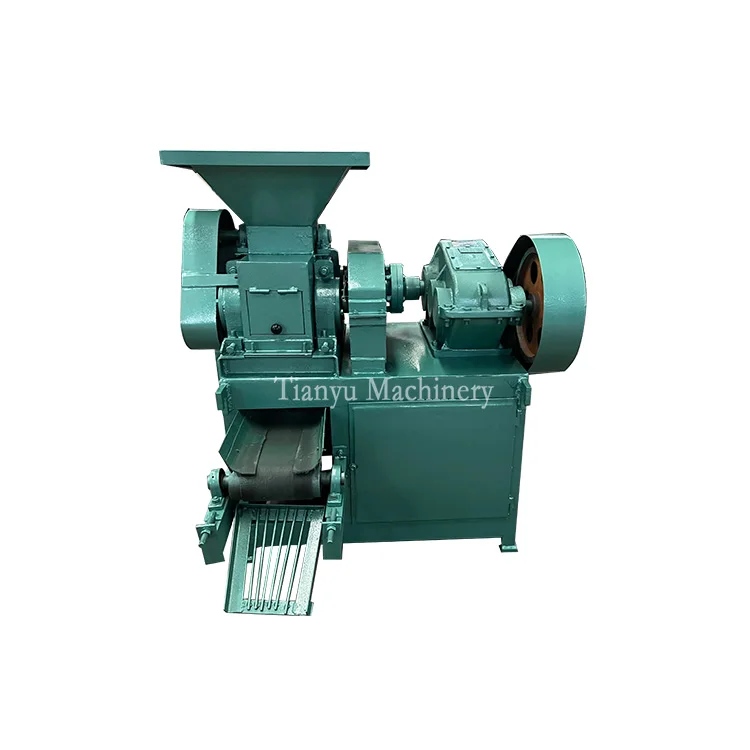

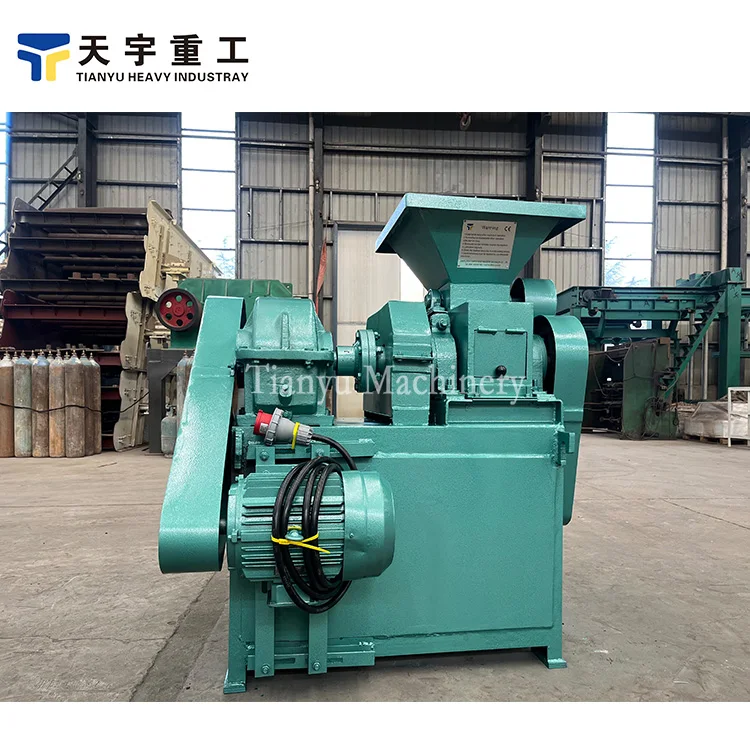

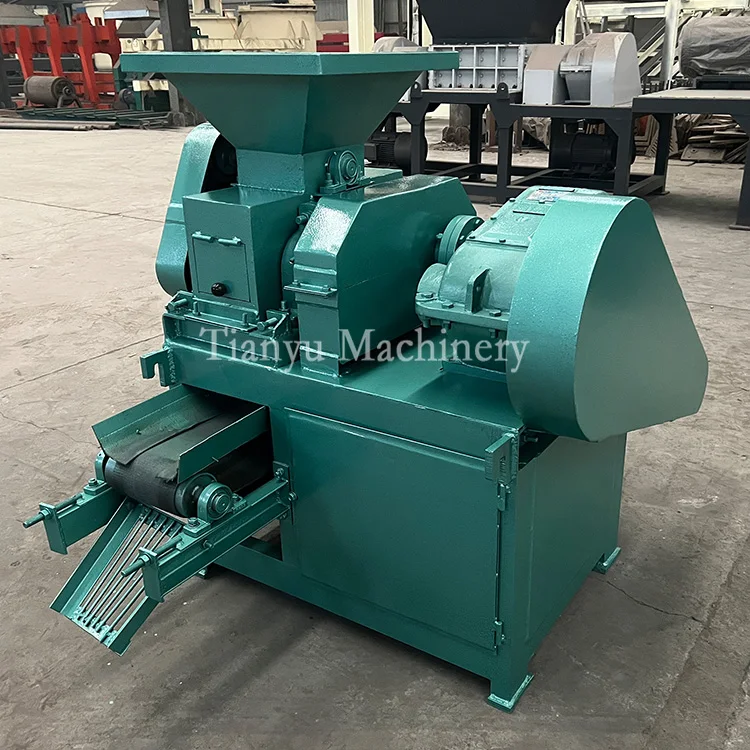

Structure
1. Feeding part: This part includes the screw feeding device and the hopper, which is mainly used to realize quantitative feeding to ensure that the material enters between the pair of rollers evenly.
2. Transmission part: The main transmission system is: motor → triangle belt → reducer → open gear → counter roll.
The main engine is powered by an electromagnetic speed-regulating motor, which is transmitted to the driving shaft through a pin coupling through a belt wheel and a cylindrical gear reducer.
3. Forming part: The core of the forming part is the pair of rolls. This is a pair of rotating shafts of the same size, with many hemispherical sockets of the same size and regularly arranged on the surface. There is a hydraulic protection device behind the rollers, which can protect the rollers from damage when there is too much feed or metal blocks between the two rollers.
3. Forming part: The core of the forming part is the pair of rolls. This is a pair of rotating shafts of the same size, with many hemispherical sockets of the same size and regularly arranged on the surface. There is a hydraulic protection device behind the rollers, which can protect the rollers from damage when there is too much feed or metal blocks between the two rollers.
The working principle of the charcoal press machine
Structurally speaking, the machine is mainly divided into the feeding part, driving part, and forming part.
The feeding part is mainly to achieve quantitative feeding to ensure that the material is evenly in the double roller space.
The screw feeding device is driven by the electromagnetic speed-regulating motor and driven by the belt pulley and worm reducer to force the pressed material into the inlet.
Technical Specifications
Model | Roller size (mm) | Spindle speed (r/min) | Power (kw) | Capacity (t/h) |
TY-290-2 | 290*200 | 12-15 | 5.5-7.5 | 1-3 |
TY-360-2 | 360*250 | 12-15 | 7.5-11 | 3-5 |
TY-430-2 | 430*250 | 12-15 | 15-18.5 | 4-7 |
TY-500-2 | 500*300 | 12-15 | 22-30 | 5-10 |
TY-650-2 | 650*350 | 10-13 | 37-55 | 8-13 |
TY-750-2 | 750*380 | 10-13 | 45-75 | 12-17 |
TY-850-2 | 850*460 | 10-13 | 75-110 | 15-20 |
TY-1000-2 | 1000*530 | 10-13 | 110-132 | 20-30 |
Final products & Application

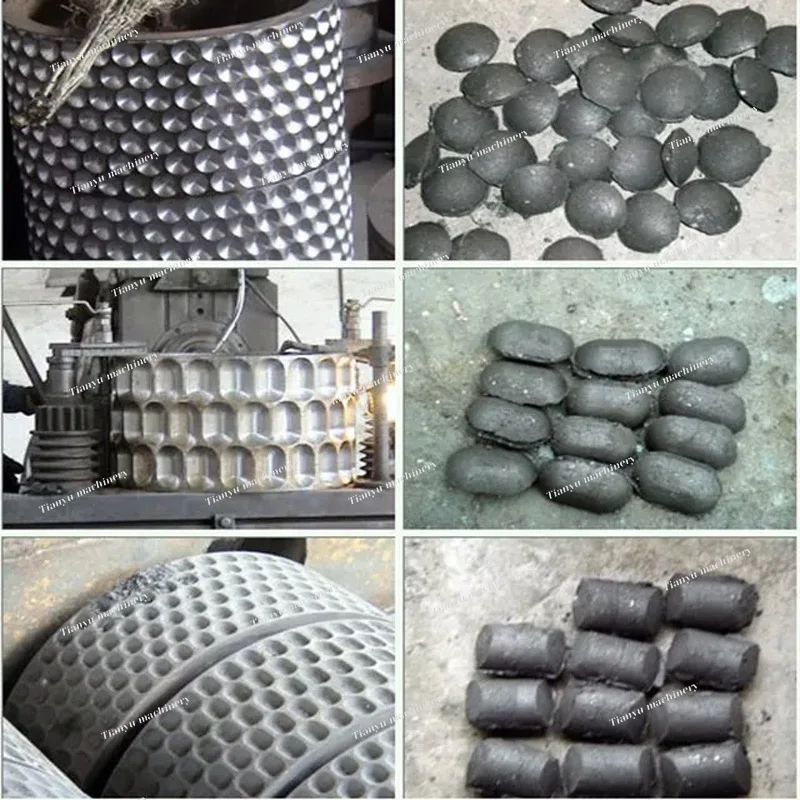

The charcoal or coal briquettes can be different shapes by changing with special molds, such as oval, pillow, round, egg, ball, column, and square.
1. The BBQ charcoal machine has high forming pressure, the adjustable revolution of the main machine, and hydraulic protection device.
2. Tianyu machinery provides a variety of professional barbecue charcoal press machines, the specific size and special shape models of the ball, and can customize the machine according to users' needs.
3. The quality of the finished coal is stable, the shape is not easy to be scattered and damaged, the density is large, and the combustion value is high.
4. The charcoal balls press machine has a large production capacity, simple maintenance and operation, and no dust pollution in the production process.
2. Tianyu machinery provides a variety of professional barbecue charcoal press machines, the specific size and special shape models of the ball, and can customize the machine according to users' needs.
3. The quality of the finished coal is stable, the shape is not easy to be scattered and damaged, the density is large, and the combustion value is high.
4. The charcoal balls press machine has a large production capacity, simple maintenance and operation, and no dust pollution in the production process.
Production line design
We also design it according to customer raw material, capacity or other requirement.

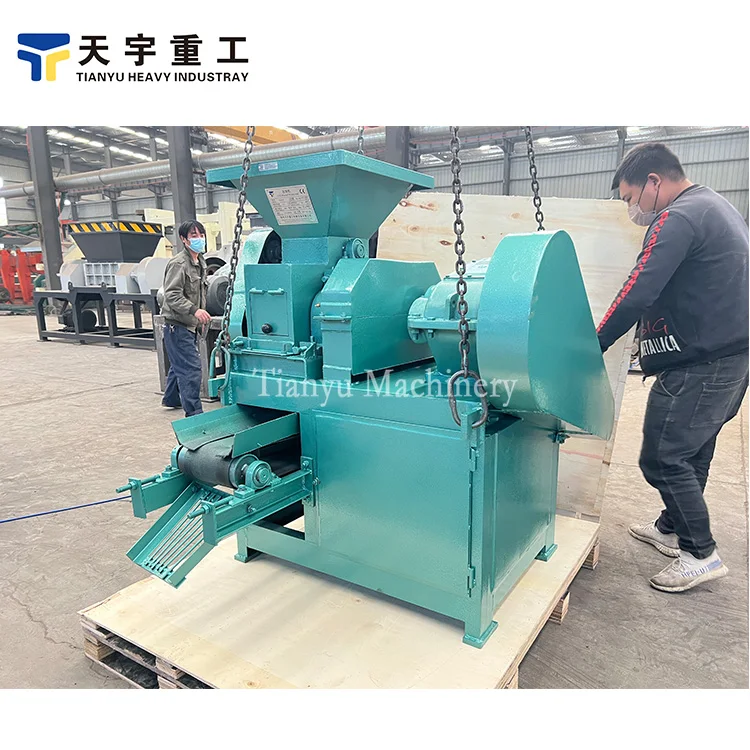

Package & Shipment
