customized bike battery 48v 26ah 36v 60v 20ah 30ah lithium ion 48v 26ah for e scooter akku 48v 26ah

Product Description

No.	Item	General Parameter		Remark
1	Rated Capacity	Typical	26Ah	Standard discharge(0.2C5A)after standard charge
		Minimum	25.5Ah
2	Nominal Voltage	48V		Mean Operation Voltage
3	Voltage at end of Discharge	35.8V		Discharge Cut-off Voltage
4	Charging at end of Voltage	54.6V
5	Internal Impedance	28mΩ
6	Standard charge	Constant Current 0.2C5A Constant Voltage 54.6V 0.02C5A cut-off
7	Standard discharge	Constant Current 1C5A end Voltage 35.8V
8	Fast charge	Constant Current0.5C5A Constant Voltage 54.6V 0.02C5A cut-off
9	Fast discharge	Constant Current 3C5A end Voltage 35.8V
10	Maximum Continuous Charge Current	0.5C5A
11	Maximum Continuous Discharge Current	3C5A
12	Operation Temperature Range	Charge:5~45℃		60+/-25%R.H. Bare Cell
		Discharge:-10~60℃
13	Storage Temperature Range	Less than 1 year:-20~25℃		60+/-25%R.H. at the shipment state
		Less then 3 months:-20~40℃
14	Weight	Approx 7kg

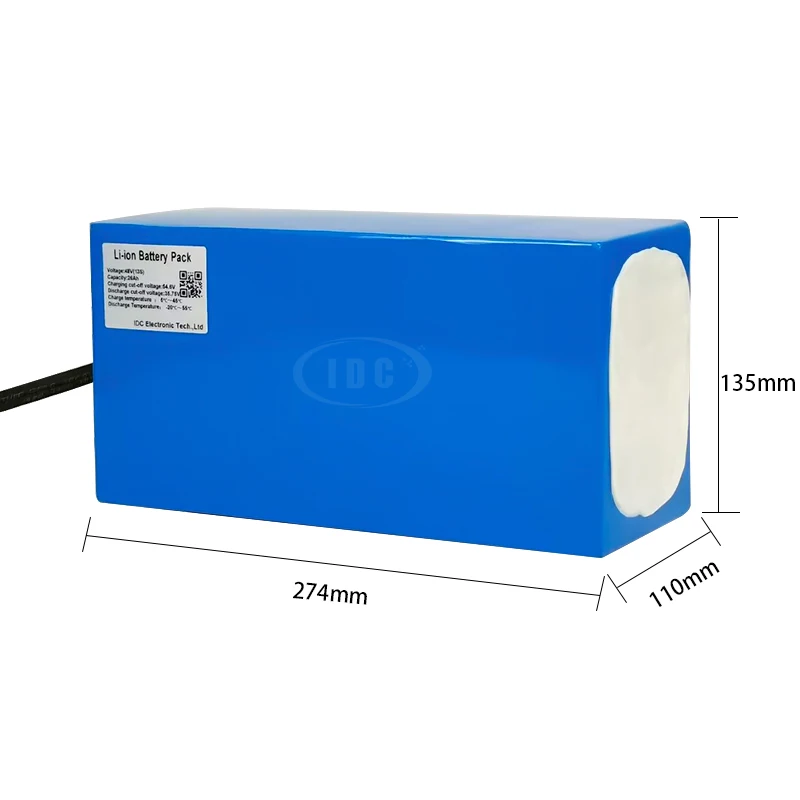

15	Dimension	274*110*135mm



General Feature

Long cycle life more than 1000times

Over-charge/over-discharge/over-current safety protection

Short circuit safety protection

High temperature safety protection

In-built safety protection BMS

All battery are complied with ISO/CE/UN/EC/EN62133/MSDS

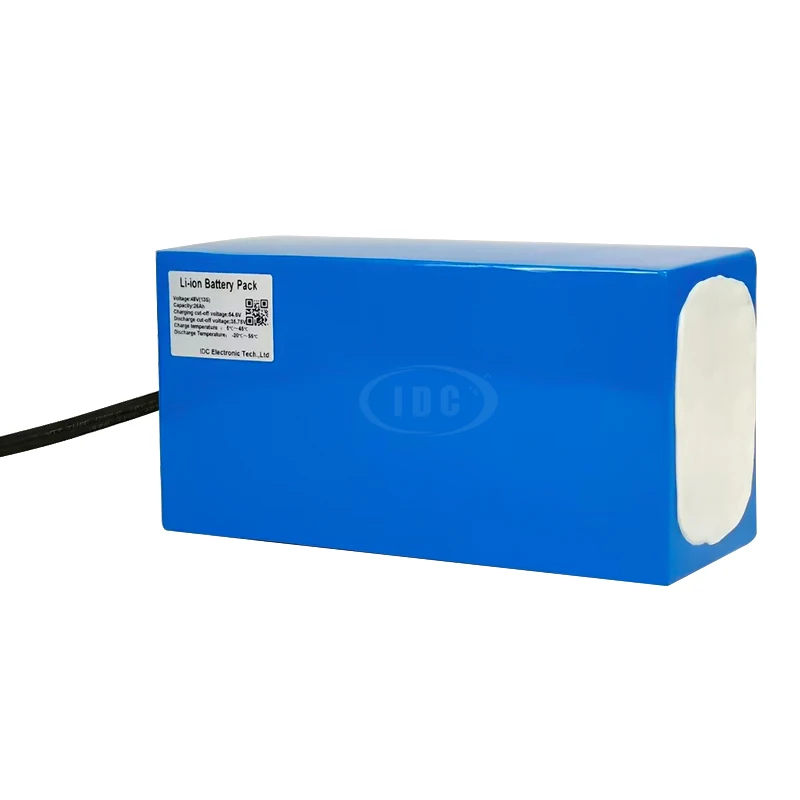

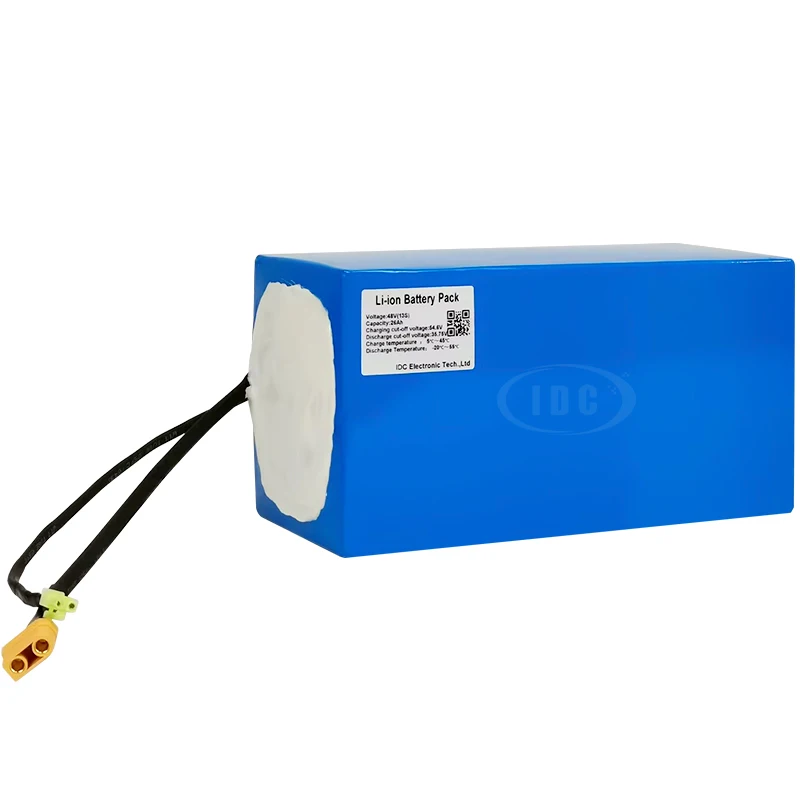

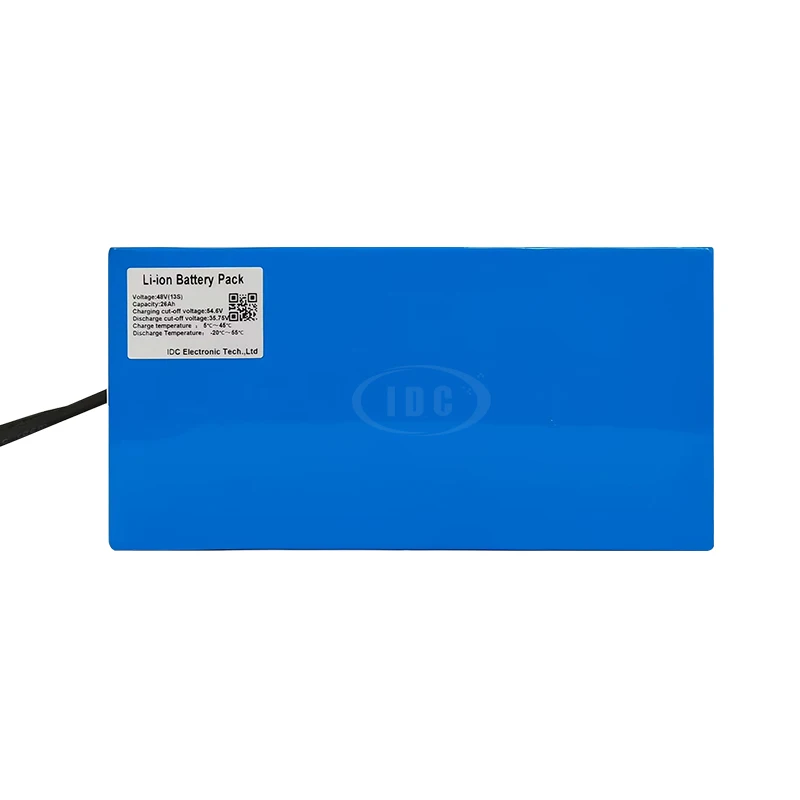

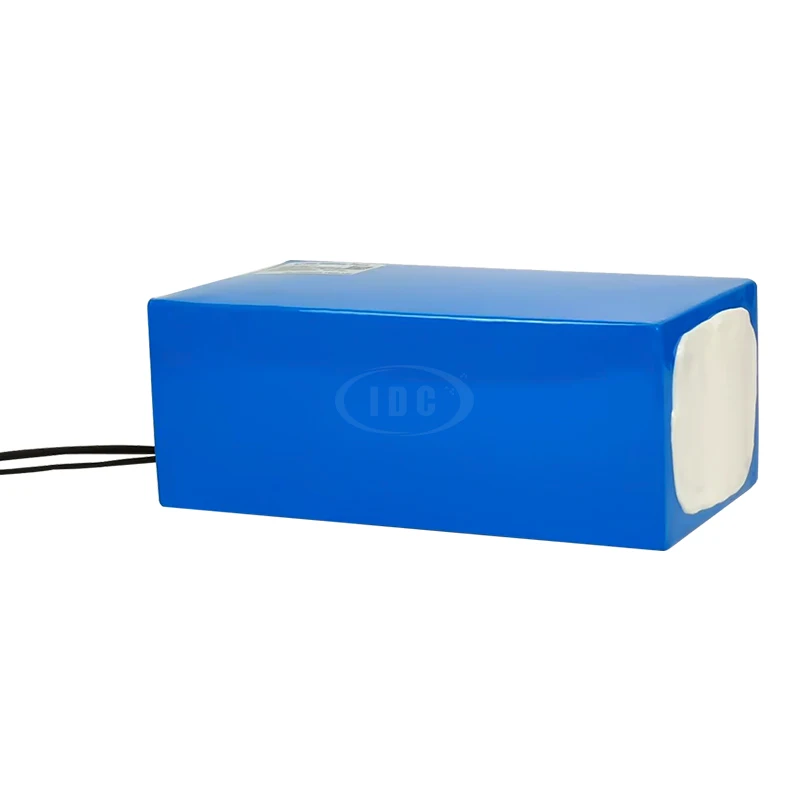

Product Images



Any different shape,voltage,capacity,dimension and logo etc.can be customized as customers' requirement

Any discharge plugs can be choose according to customer requirement

Application

The PVC lithium ion battery packs can be widely used in ebike,electric scooter,robot,medical device,electric motorcycle,electric wheelchair,energy storage etc.

Production Process

Package/Shipping

1.Packing:All goods are 100% tested pass before dispatch and packed by customized spongs with high hardness/thick cartons

2.For Samples:can ship within 7-10days

Customers' Feedback



Company Information

IDC Electronic Tech Co.,Ltd is a professional battery enterprise with real factory,the main products include lithium ion batteries,lithium iron phosphate batteries,lithium polymer batteries etc.Our products are widely used in electric vehicle,ebike,electric wheelchair,electric tools,medical equipment,household energy storage,solar street lamp,military products etc.Our company has 8 battery production lines with an annual production capacity of up to 3 million packs,has more than 200 employees, the core team is composed of professional management personnel and senior design and development personnel in the industry, with at least 10 years of management, research and development, production experience.We are adhering to provide excellent quality,stable performance,safe and environmentally batteries  for domestic and overseas customers.Our company has passed the ISO9001 quality management system certification,the batteries are all complied with CE, RoHS, MSDS, UN38.3 standards, to obtain good reputation from many famous customers in USA, Canada,Europe and Australia successfully.

For more information,pls check our website:www.idcbattery.com

FAQ

Q1:Are you factory?

A1:Yes,we are factory for more than 15years battery experience with superior quality and best price.

Q2:Can I have a sample order?

A2:Yes,we accept sample order to test and check quality firstly.Batteries can be made as your request

Q3:Do you have MOQ?

A3:No MOQ,but the more you order,the better price you get.All products are always in stocks

Q4:What's your delivery date?

A4:Usually about 7-10days for samples,15-20days for mass orders after payment confirmed

Q5:What's your payment terms?

A5:T/T,Paypal,Western Union

Q6:Which shipping method you usually take?

A6:Generally,battery will be shipped via express,UPS,DHL and so on.We can also ship with your own shipping forwarder

Q7:What kind of package you provide for your products?

A7:We pack the batteries by PE bag/cartons/boxes.Also if you ship with your own agents,we can pack as your agents requested

Q8:Can you accept Trade Assurance Order or deposit for order?

A8:Yes,welcome to send us trade assurance order anytime.also we can accept 30% deposit just make sure full payment before dispatch

Q9:What about your after-sales service?

A9:We will offer you 1year guarantee.If there are any problems,pls inform us,we'll give the most perfect solutions
