033 U-образная машина для производства питьевой соломы
US $9200-$9500
Машина для изготовления леденцов бумажных палочек украшения тортов
- Категория: Straw Making Machines >>>
- Поставщик: Suzhou,Deedo,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 25942.76 $* | 27239.50 $* |
| Aug-16-2025 | 25724.57 $* | 27010.22 $* |
| Jul-16-2025 | 21582.4 $* | 22661.94 $* |
| Jun-16-2025 | 25288.13 $* | 26552.24 $* |
| May-16-2025 | 22018.45 $* | 23119.91 $* |
| Apr-16-2025 | 24852.28 $* | 26095.64 $* |
| Mar-16-2025 | 24634.51 $* | 25866.14 $* |
| Feb-16-2025 | 24416.94 $* | 25637.19 $* |
| Jan-16-2025 | 24198.10 $* | 25408.13 $* |
Характеристики

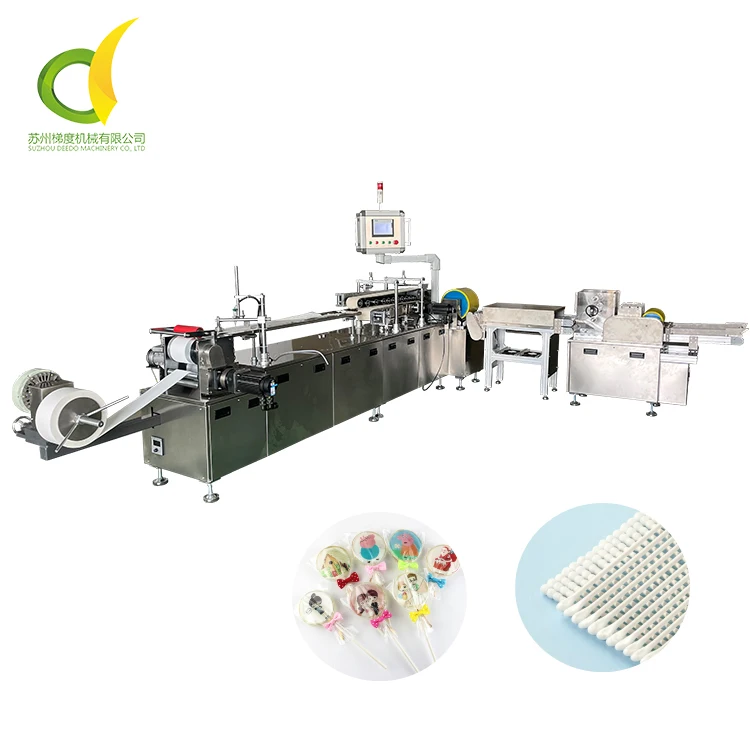

lollipop Paper Stick Making Machine for Cake and Chocolate Decoration
Products Description
The paper stick is made by three machines, paper stick making machine dryer machine and paper stick cutting machine.Of course, our price includes these three machines.
1、paper stick making machine:
The paper stick forming machine consists of a paper feeding mechanism, a loop twisting mechanism, and a gluing mechanism. Forming mechanism and conveyor belt feeding.Institutional composition

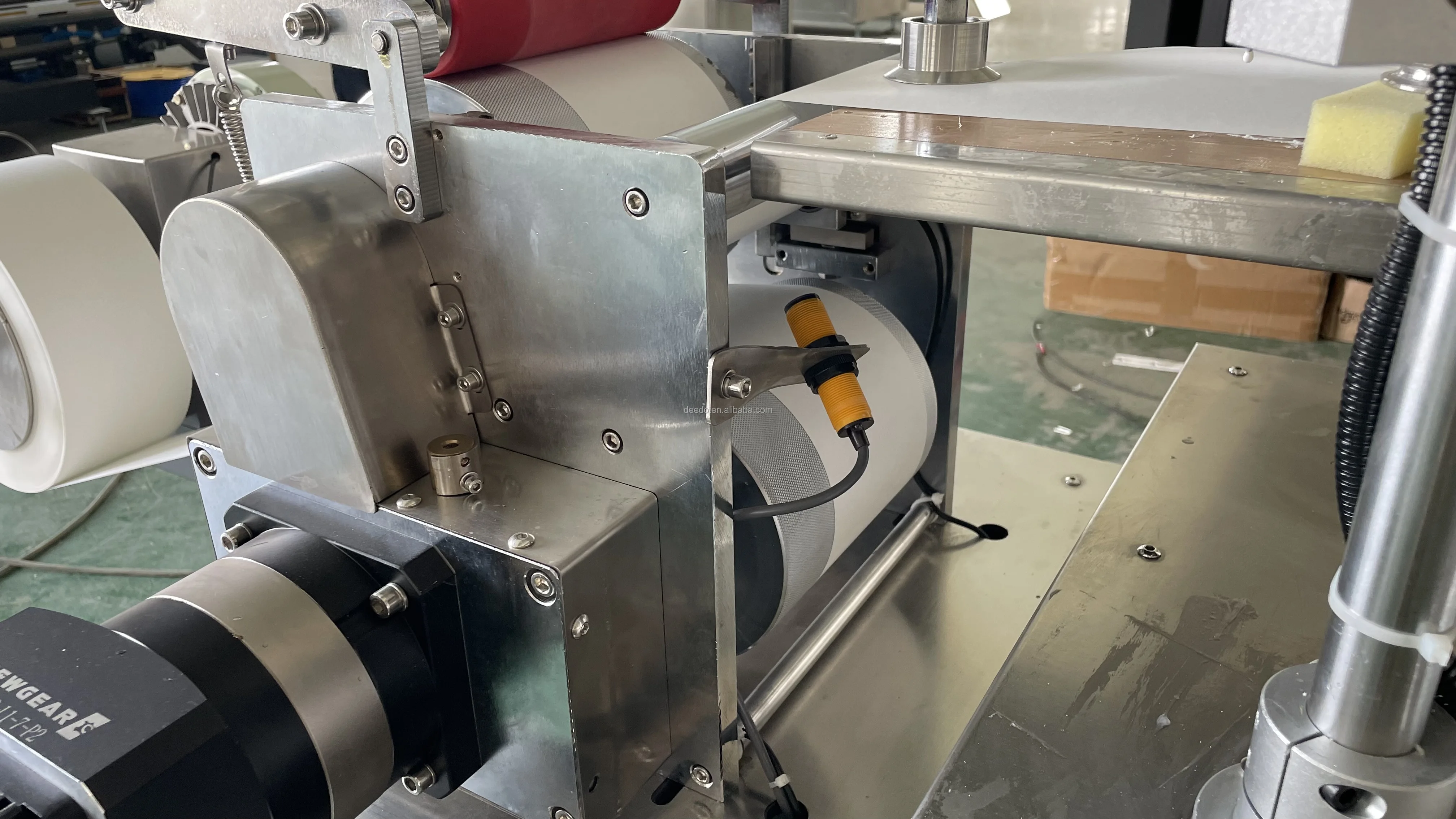

1.Paper feeding mechanism: The paper roll fixing mode is based on the diameter of the paper roll, which is divided into two types:built-in type and outer frame type. Magnetic powder tension controller is a device for ensuring that the paper has sufficient tension to ensure that the paper rod forms a belt.
2. Paper cutting mechanism: the mechanism for cutting the formed paper stick sent by the paper-to-roller automatically according to the set length.Note: paper stick diameter base on the thickness of the paper, so be sure to tell the thickness of the paper before ordering
Fine shaft paper stick: φ1.4-2.0mm, use around 30-50 grams
Thick paper stick: φ2.0-3.5mm, use around 50-70 grams
3. Paper stick forming mechanism: The rubber will press the cut shaped paper stick firmly on the setting template and rub the paper stick into a predetermined shape.
Diameter, the formed paper stick is sent out by the receiving conveyor
1.Paper feeding mechanism: The paper roll fixing mode is based on the diameter of the paper roll, which is divided into two types:built-in type and outer frame type. Magnetic powder tension controller is a device for ensuring that the paper has sufficient tension to ensure that the paper rod forms a belt.
2. Paper cutting mechanism: the mechanism for cutting the formed paper stick sent by the paper-to-roller automatically according to the set length.Note: paper stick diameter base on the thickness of the paper, so be sure to tell the thickness of the paper before ordering
Fine shaft paper stick: φ1.4-2.0mm, use around 30-50 grams
Thick paper stick: φ2.0-3.5mm, use around 50-70 grams
3. Paper stick forming mechanism: The rubber will press the cut shaped paper stick firmly on the setting template and rub the paper stick into a predetermined shape.
Diameter, the formed paper stick is sent out by the receiving conveyor

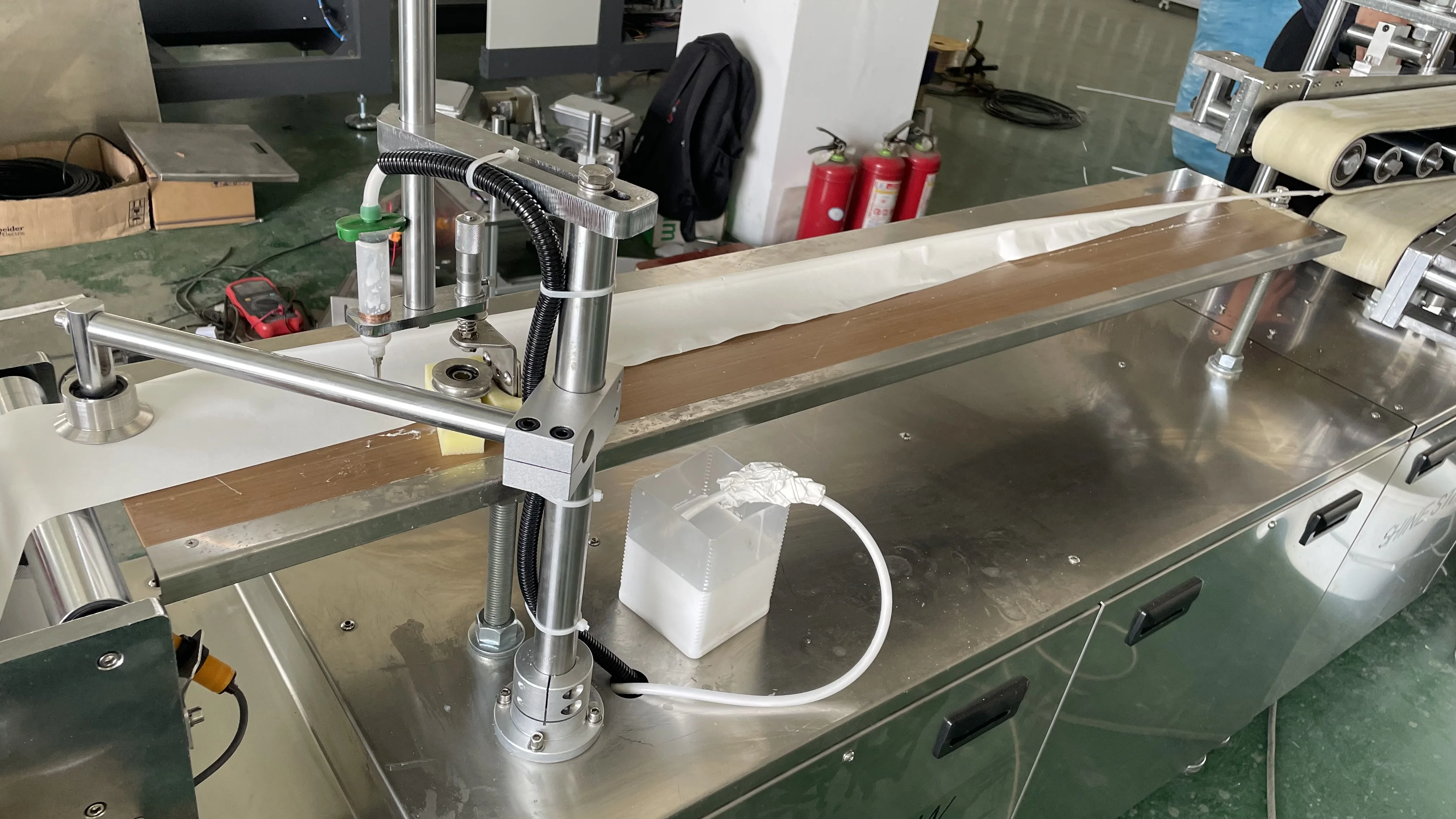

4.Glue supply mechanism: Glue coating wheel completes the glue application, and the glue amount is adjusted and controlled by the glue application motor.

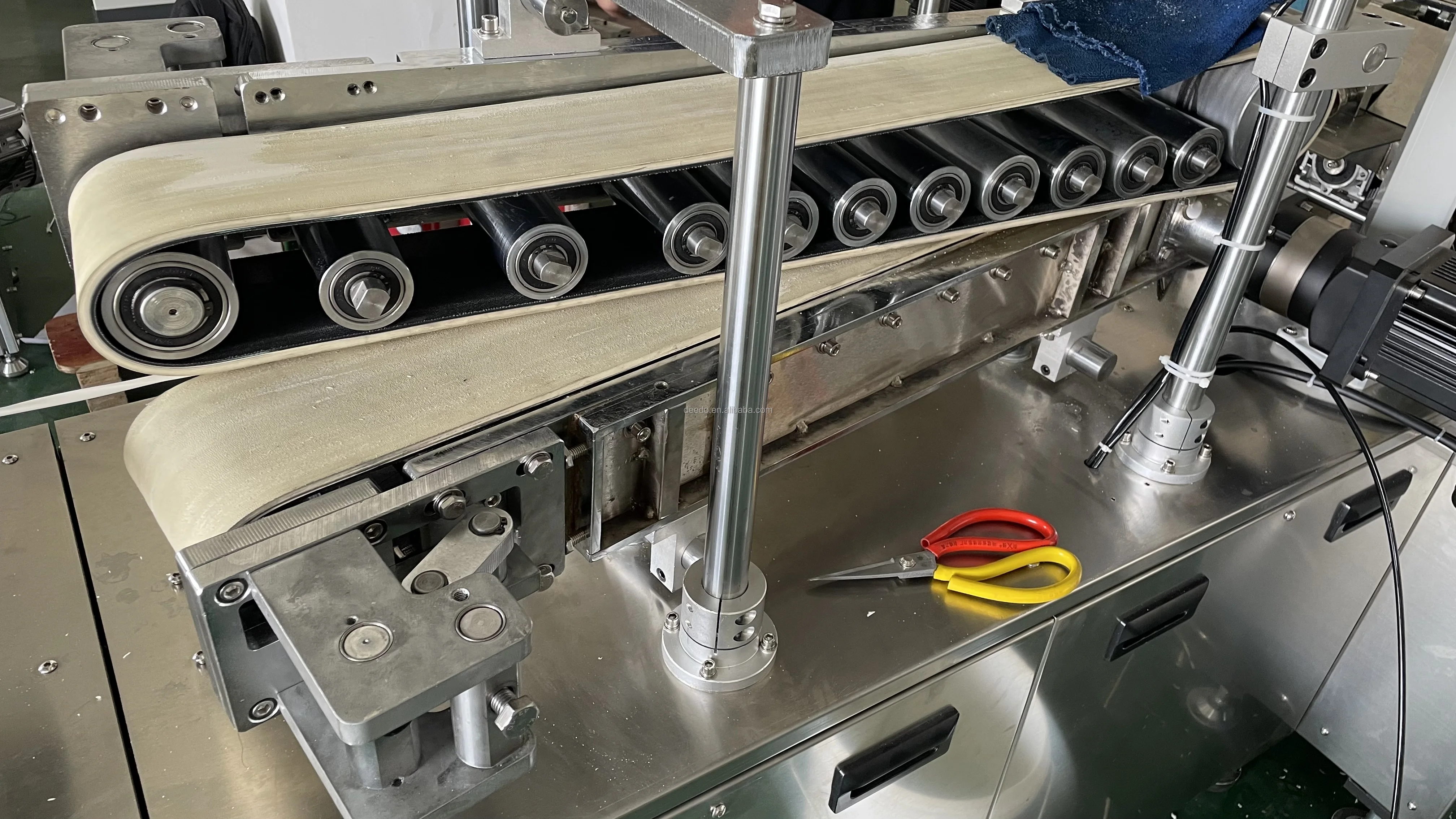

5. Conveyor belt feeding mechanism: The paper stick that has been cut off falls on the conveyor belt installed at the lower part,and is smoothly delivered to the box And then waiting to be collected.
5. Conveyor belt feeding mechanism: The paper stick that has been cut off falls on the conveyor belt installed at the lower part,and is smoothly delivered to the box And then waiting to be collected.
6.dryer machine：drying pepar stick.

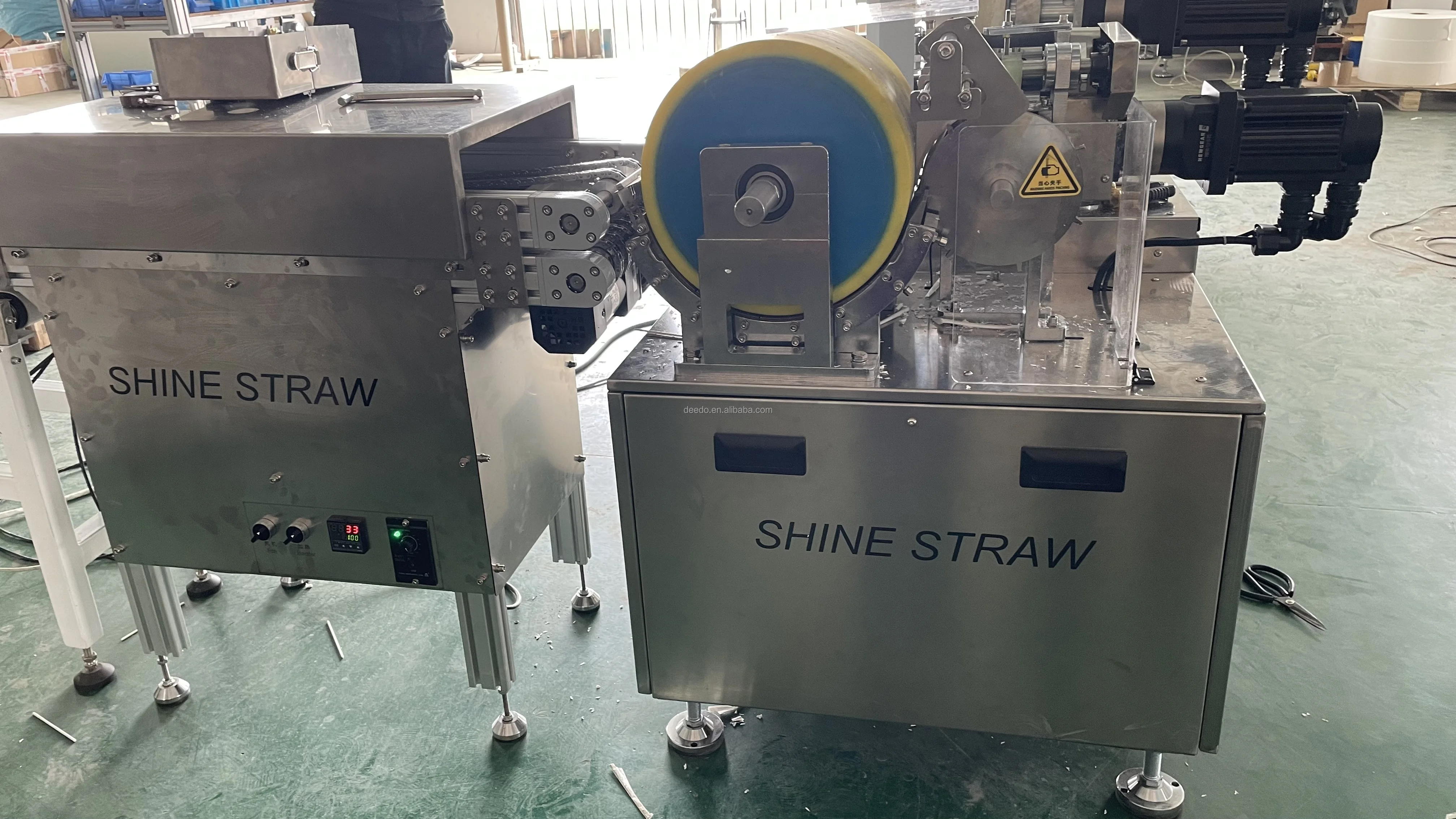

2、paper stick cutting machine.
The finished paper stick is cut with it, and the ends of the paper stick after being cut are very smooth. The length of the slitting can be customized.
paper stick
Like this is the finished paper stick.
Product Paramenters
Electrical parts | PLC inovance |
Voltage | Depends on required |
Power | 1.5kw |
Production speed | Around 120-200m/min or 2000pcs/min |
Paper stick diameter | 1.5mm-3.5mm |
Paper stick length | 55-210mm (also can adjustable) |
Machine size | 3900mmx1500mmx1550mm |
Machine weight | 1600kg |
Machine area space | 25m2 |
Details Images
Main Features
1.Using PLC and touch screen interface control, with stable speed and overload protection function
2. Microcomputer automatic speed regulation, can accurately control the watering amount required for paper stick roll sticking
3. Unwinding adopts magnetic powder tension automatic control to ensure stable paper feeding force.
4. Equipped with a flexible manual correction device, which can quickly adjust the deviation of paper feeding.
2. Microcomputer automatic speed regulation, can accurately control the watering amount required for paper stick roll sticking
3. Unwinding adopts magnetic powder tension automatic control to ensure stable paper feeding force.
4. Equipped with a flexible manual correction device, which can quickly adjust the deviation of paper feeding.
Certifications
Company certificates
Final Product
Company Profile
Suzhou Deedo Machinery Co.,Ltd as a professional paper straw machines manufacturer is more than 10 years, we have much experience on paper straw & tube production line . Our main products are as below: --High speed paper straws production line --Jumbo paper slitting rewinding machine --Single straw packing machine --Group straw packing machine --Straw machine and packing machine connecting system Our machines have been exported to USA, UK, Bulgaria, Turkey, Croatia, Vietnam, India, Indonesia, Mexico,Ecuador, Lithuania, Ukraine, Brazil, Poland, Egypt, Sweden, Taiwan area. We have our experienced R&D team, strict quality control system and excellent after-sales service, aims to provide customers with high quality machines at a reasonable price.
We always believe: Quality & Service is the Key of Success!!!
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2014,sell to . There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Paper Straw Production Line,Slitter Machine,Packing Machine: Extrusion Machine,Recycling Machine,Packing Machine,Extrusion Machine
4. why should you buy from us not from other suppliers?
Our machines have been exported to USA, UK, Bulgaria, Turkey, Croatia, Vietnam, India, Indonesia, Mexico, Ecuador, Lithuania,Ukraine, Brazil, Poland, Egypt, Sweden, Taiwan area. We have our experienced R&D team, strict quality control system and excellen.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Korean
We are based in Jiangsu, China, start from 2014,sell to . There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Paper Straw Production Line,Slitter Machine,Packing Machine: Extrusion Machine,Recycling Machine,Packing Machine,Extrusion Machine
4. why should you buy from us not from other suppliers?
Our machines have been exported to USA, UK, Bulgaria, Turkey, Croatia, Vietnam, India, Indonesia, Mexico, Ecuador, Lithuania,Ukraine, Brazil, Poland, Egypt, Sweden, Taiwan area. We have our experienced R&D team, strict quality control system and excellen.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Korean
