Стальная проволока/стальная лента бронированная/SWA Высокое напряжение XLPE Изолированная ПВХ оболочка 06/1KV 8 7/15KV/12/20KV 26/35KV
- Категория: Power Cables >>>
- Поставщик: Lantong,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.40 $* | 0.26 $* |
| Aug-18-2025 | 0.87 $* | 0.82 $* |
| Jul-18-2025 | 0.65 $* | 0.79 $* |
| Jun-18-2025 | 0.8 $* | 0.27 $* |
| May-18-2025 | 0.92 $* | 0.85 $* |
| Apr-18-2025 | 0.86 $* | 0.83 $* |
| Mar-18-2025 | 0.58 $* | 0.81 $* |
| Feb-18-2025 | 0.43 $* | 0.78 $* |
| Jan-18-2025 | 0.99 $* | 0.12 $* |
Характеристики
Product Overview

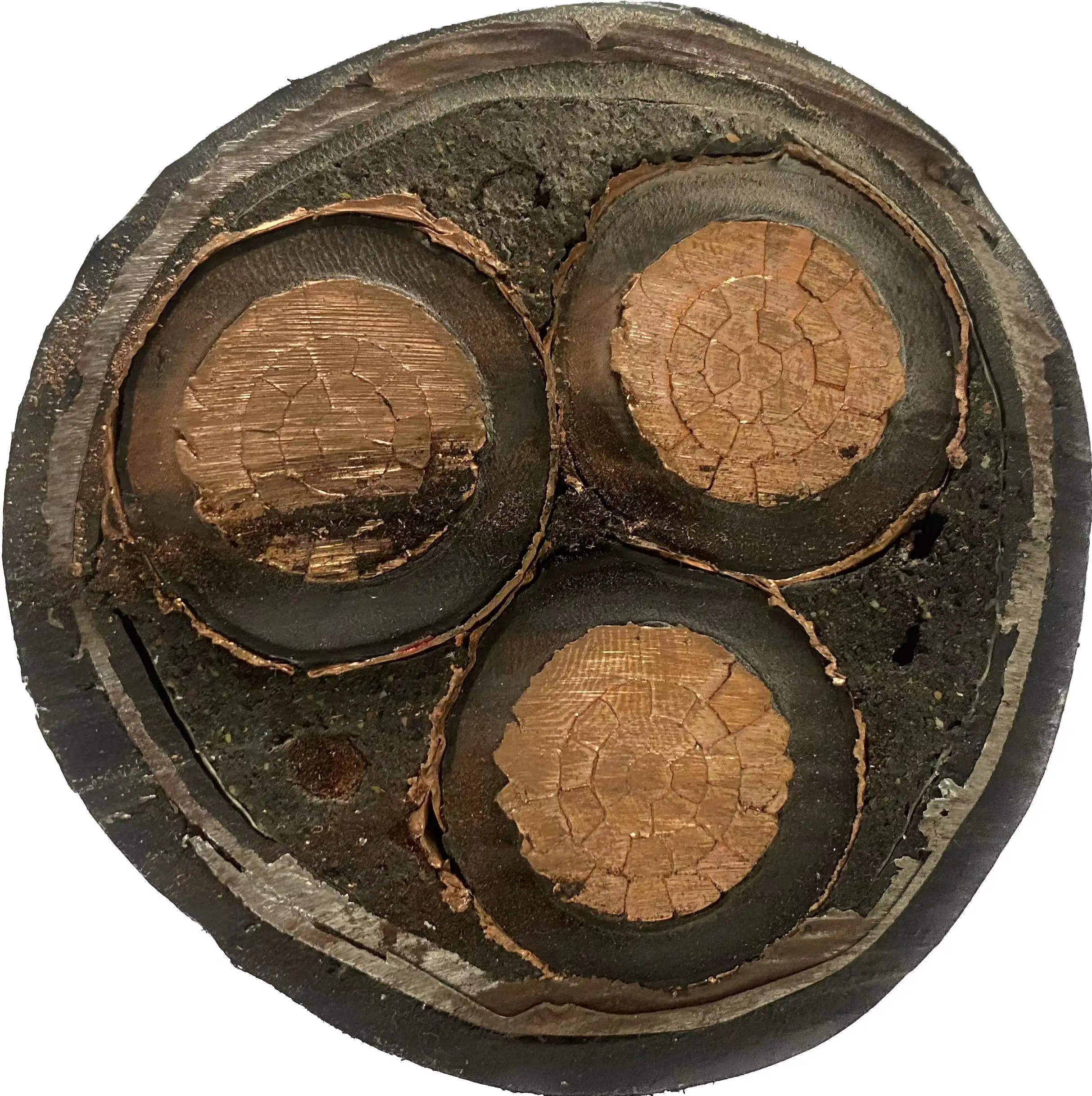

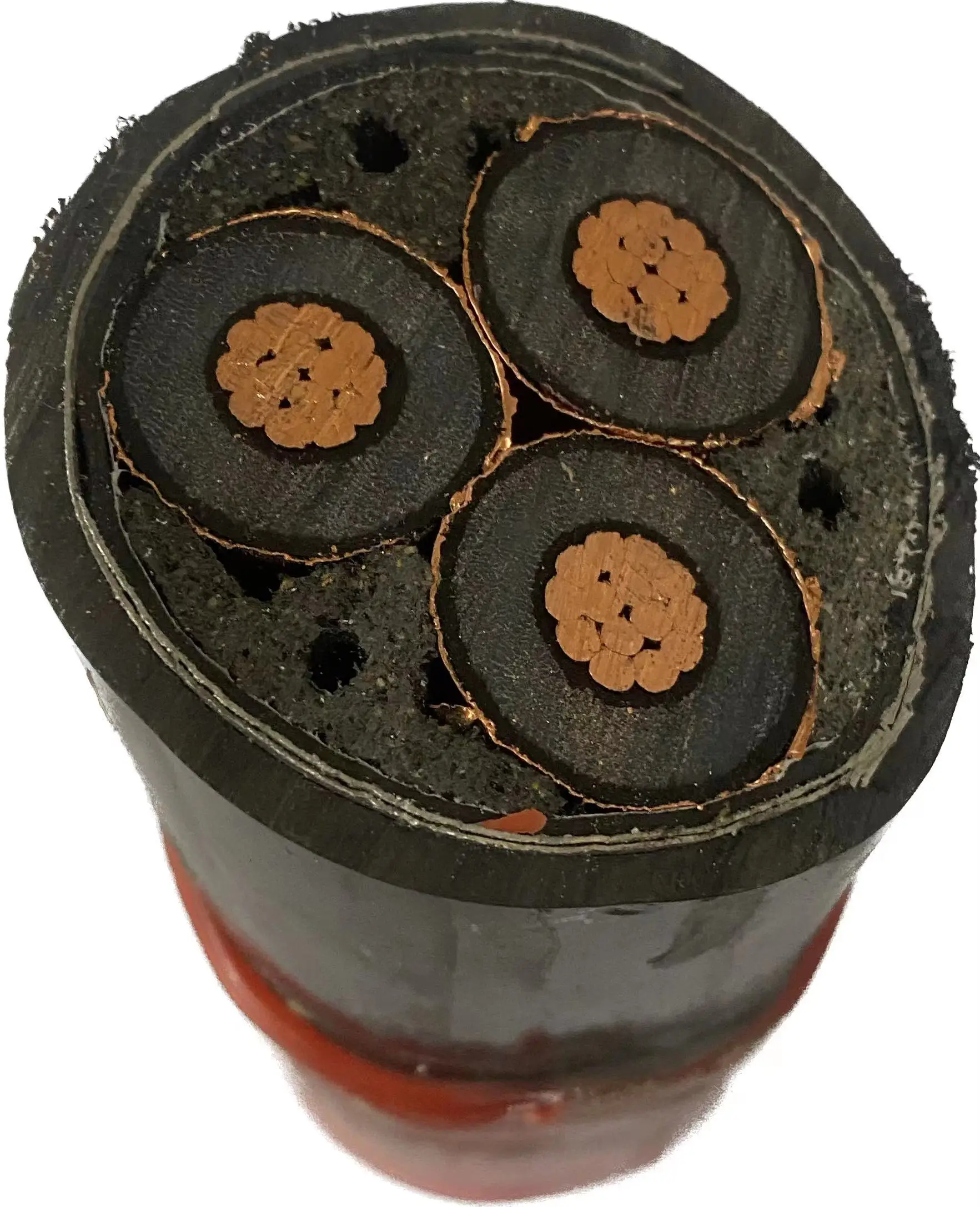

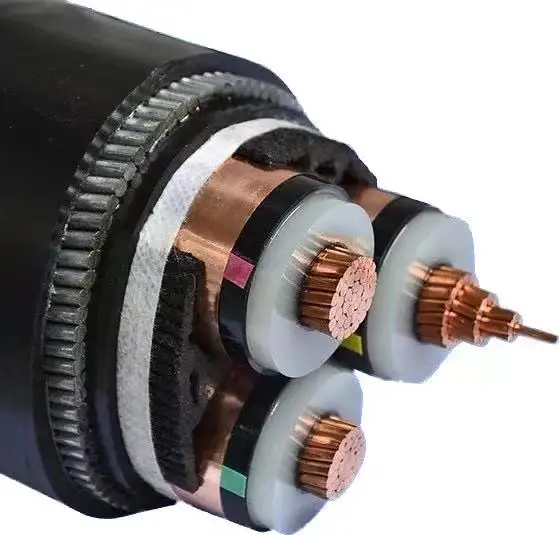

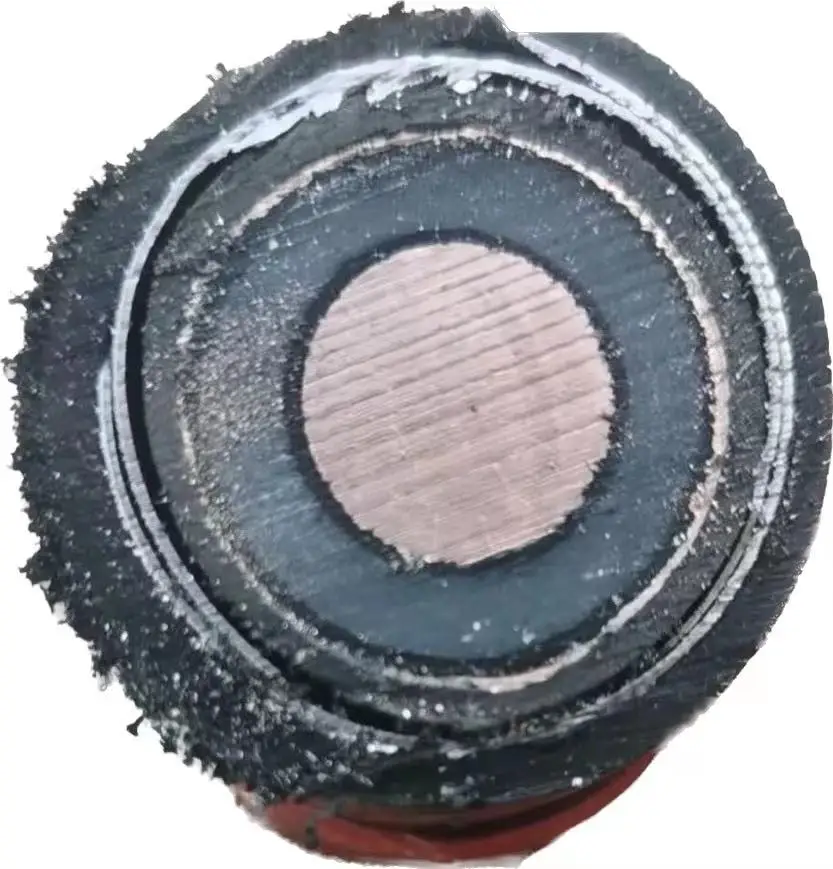

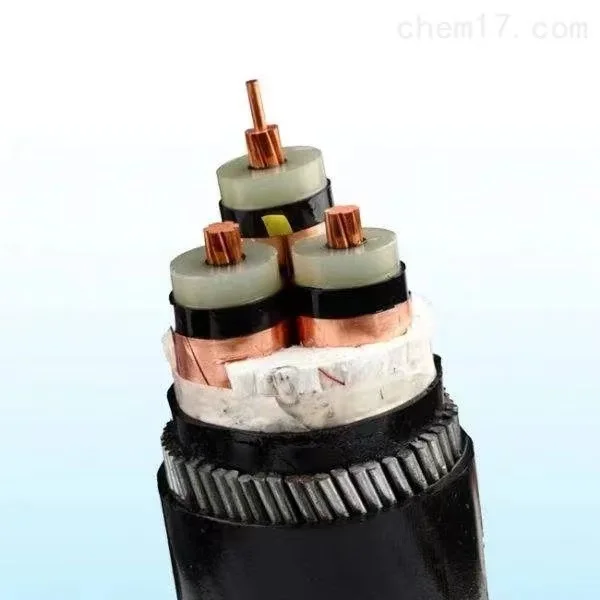

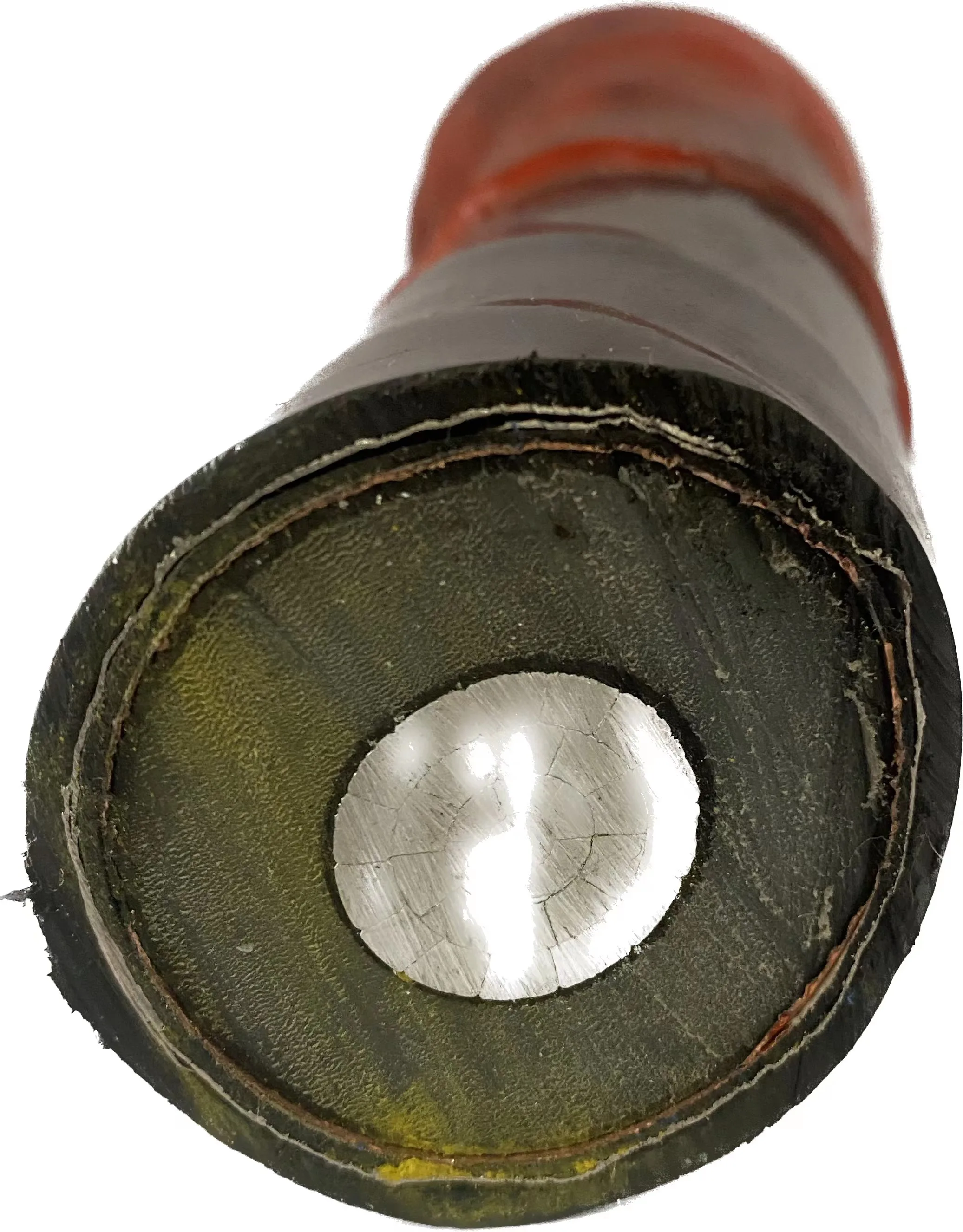

High voltage cable
High voltage cable is a kind of power cable. The conductor materials include copper, aluminum and aluminum alloy. The product is suitable for fixed laying below 220KV. 110-220KV is ultra-high voltage cable, 3.6/35KV is medium voltage cable, and 35-110KV is high voltage cable.Steel tape armored, steel wire armored and unarmoured
FEATURES AT A GLANCE
Steel tape armored, steel wire armored and unarmoured.
1core/3core
conductor:copper/aluminium/aluminium alloy
Voltage:1KV-220KV
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | conductor | Copper Ampacity | aluminium Ampacity | |
1 | 25 | 125A | 98A | |
2 | 35 | 150A | 115A | |
3 | 50 | 180A | 140A | |
4 | 70 | 220A | 170A | |
5 | 95 | 265A | 205A | |
6 | 120 | 305A | 235A | |
7 | 150 | 345A | 270A | |
8 | 185 | 390A | 305A | |
9 | 240 | 455A | 355A | |
10 | 300 | 520A | 455A |
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
Q1：Production time?
A1：1-15Day.
