3 оси самосвал/Самосвал/чаевые полуприцеп для
- Категория: Truck Trailers >>>
- Поставщик: Zhengzhou,Dongfeng,Mid-South,Enterprise,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 13685.0 $* | 14369.57 $* |
| Aug-16-2025 | 13570.3 $* | 14249.71 $* |
| Jul-16-2025 | 11385.66 $* | 11954.30 $* |
| Jun-16-2025 | 13340.7 $* | 14007.9 $* |
| May-16-2025 | 11615.40 $* | 12196.28 $* |
| Apr-16-2025 | 13110.58 $* | 13766.93 $* |
| Mar-16-2025 | 12995.90 $* | 13645.7 $* |
| Feb-16-2025 | 12880.99 $* | 13524.52 $* |
| Jan-16-2025 | 12765.58 $* | 13403.27 $* |
Характеристики
Products Description
Dump semi trailer adopt advanced design concept. For the tipper trailer box, we adopt high strength steel to make it durable when
load the sand or small stones or rocks, especially under the off road condition.
Dump box dimensions and U-shape, box thickness, HYVA hydraulic cylinder and optional accessories(two pieces spare tire carriers,
water tank, fuel tank, etc.) are all cutomised by different cargo needs which build modern transportation.
load the sand or small stones or rocks, especially under the off road condition.
Dump box dimensions and U-shape, box thickness, HYVA hydraulic cylinder and optional accessories(two pieces spare tire carriers,
water tank, fuel tank, etc.) are all cutomised by different cargo needs which build modern transportation.

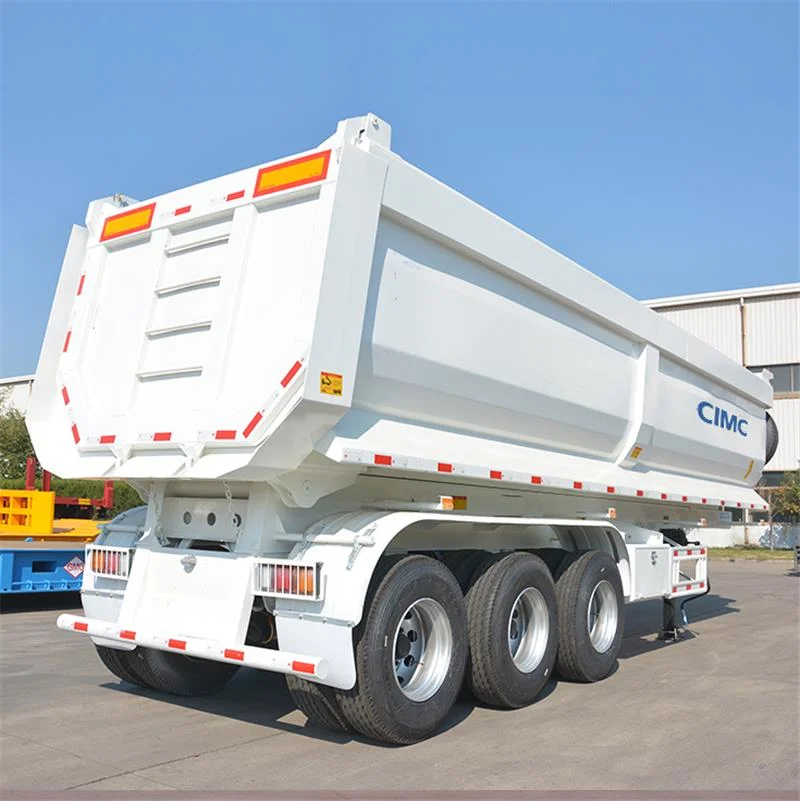

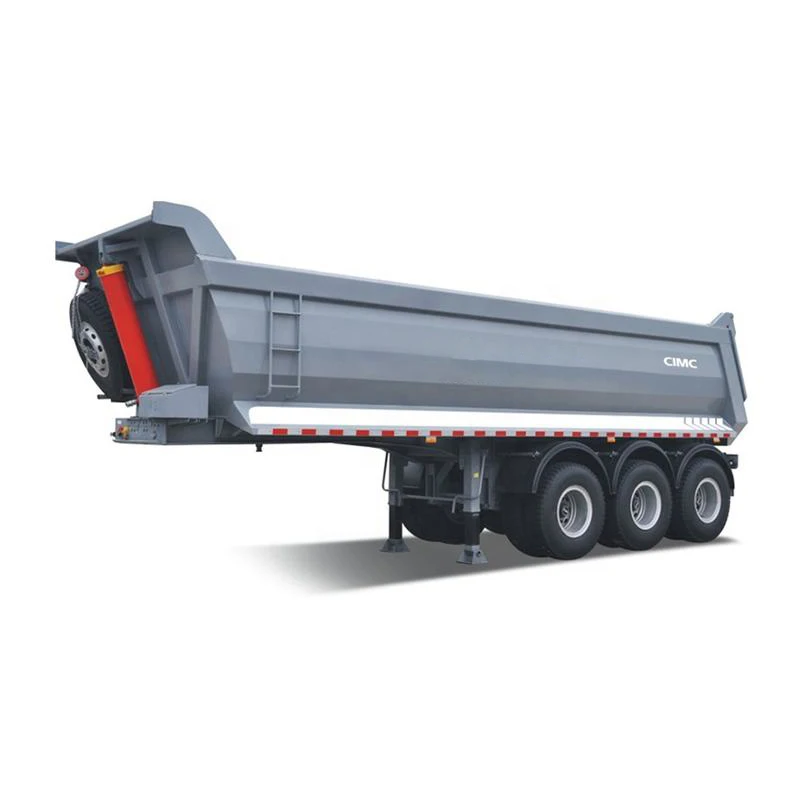

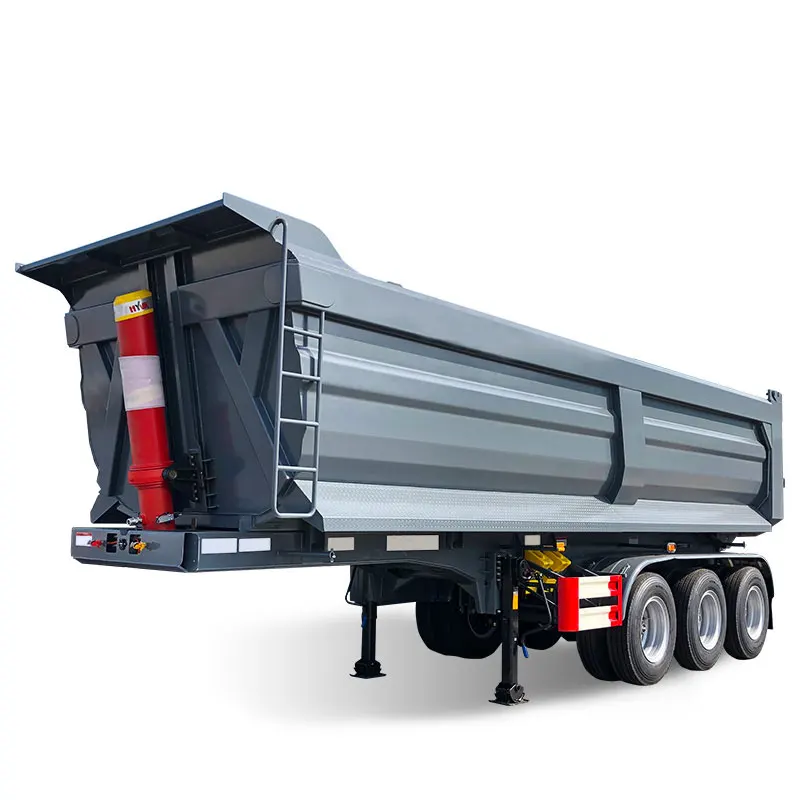

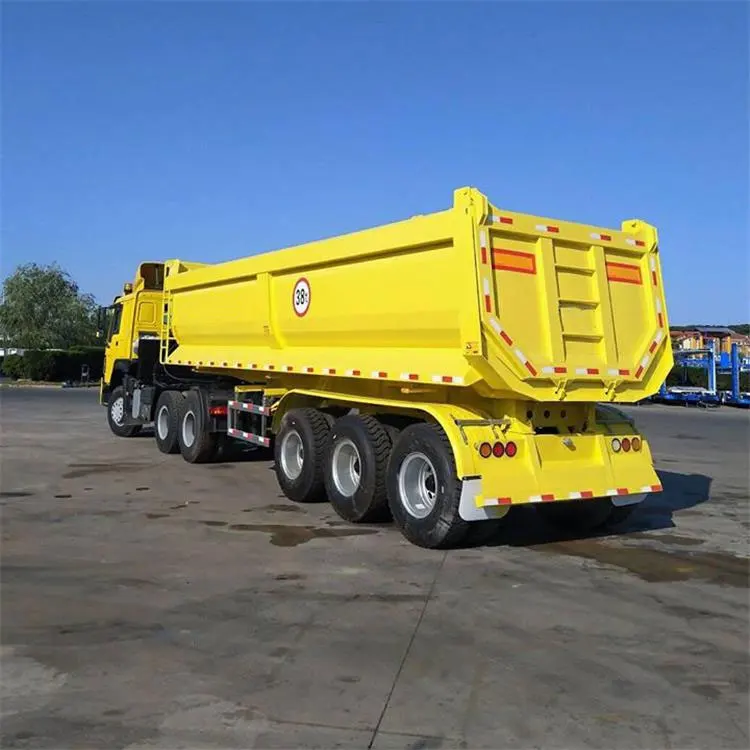

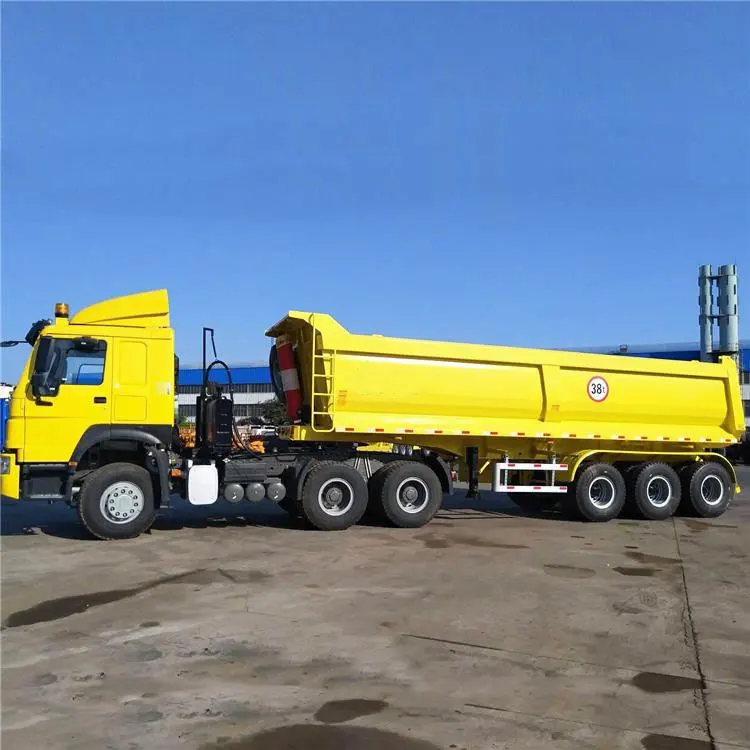

Details Images
Product Paramenters
Dimension | 9500*2550*3500mm ( inside dimension ) |
Axle Weight Load | 13T |
Axle number | 3 Axle |
Axle Brand | FUWA |
Tare Weight (semi trailer) | About 15600kg |
King Pin | 2" or 3.5" traction pin |
Total volume(m³) | 30m³ or less than 100tons |
Landing Gear | Standard 28ton |
Wheel Rim | 9.0-22.5 |
Tire | 12R22.5 |
Steel Spring | 10 pieces per axle |
Color and Logo | Optional and customized |
Leaf-spring | 90(W)mm*13(Thick)mm*10 Layer |
Endplate | 8mm |
Lifting System | Full set of HYVA lifting cylinder |
Main beam: Height | 480mm-500mm, Upper plate: 16mm-25mm |
