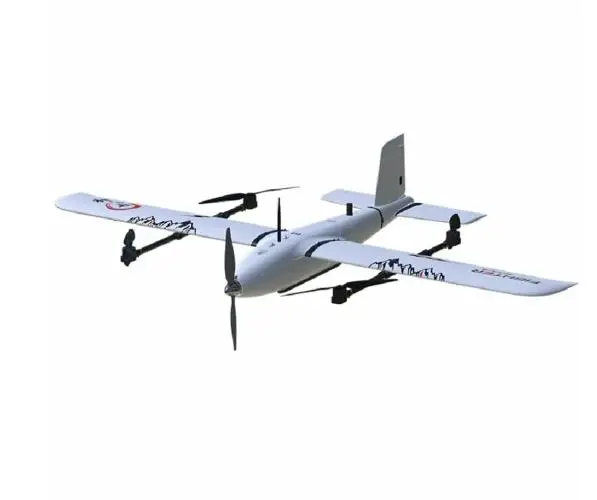

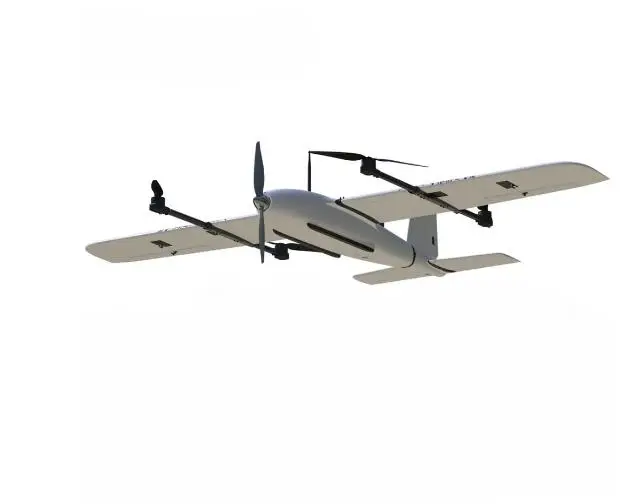

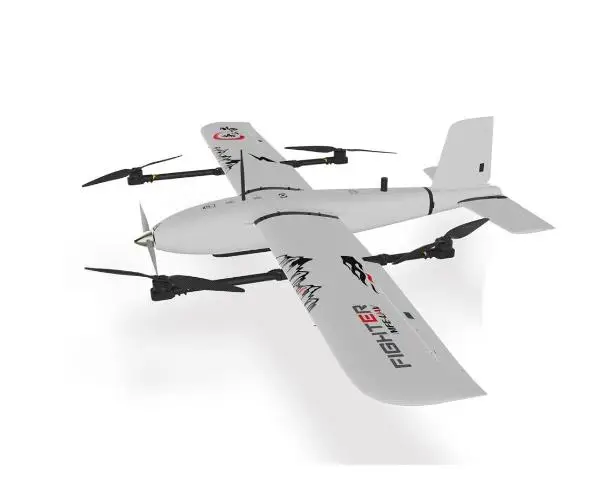

MFE Fighter 2430mm Wingspan Compound Wing EPO VTOL Aerial Survey Fix-wing UAV FPV RC Airplane KIT hobby DIY Toys

The fighter is a 10kg fixed-wing flight platform (hand parachute/VTOL), which is easy to carry,friendly to operate,stable and durable.The fighter is positioned as a heavy-duty,long-endurance fixed wing,which greatly reduces the difficulty of aerial survey,further liberates productivity and improves the efficiency of aerial survey

The modular design concept makes the aircraft easy and fast to assemble.The wings,folding arms and tail fins can be easily dismantled, making the aircraft practical and portable and user-friendly.The open flight control cabin is compatible with Pixhawk flight control and supports mounting of Sony A7R2 4200W pixel full-frame camera /1.5kg lightweight lidar. The maximum support is 12s@22000mah lithium polymer battery,which can achieve ultra-long range and high-quality shooting effect

Using proper control point cooperatively,the final mapping would satisfy 1:1000 and 1:2000 aerial survey standard,which realized a wide-ranging application such as geography surveys,farmland,forestry land and grassland protection,power line inspection,environment protection,water conservancy and etc

Overview:

Fighter is a 10kg level VTOL fixed-wing carrier aircraft which was optimized repeatedly for two years and iterated 5 versions by the MFE Team.

Specifications:

Brand Name: MFE

Item Name: Fighter

Material: EPO,EVA,carbon fiber,PC,engineering plastics and etc.

Wingspan: 2430mm

Fuselage Length: 1450mm

Fuselage Height: 180mm

Wing Area: 72.5dm²

Suggested Flight Speed: 17~20m/s

Stalling Speed: 10m/s

Maximum Payload: 1.5kg

Payload Cabin Size: 280*160*110mm

Longest Flight Range: >150km(600g load)

Max. Take-off Weight: 11.5kg

Practical Ceiling Height: 4000m

Wind Resistance: 5

Take-off and Landing Approach: VTOL

Dismounting Way: Tool-free

Transport Case Size: 1.25mx0.34mx0.49m

CG: Under the raised position of fuselage hook and the wing root plastic(same position)

Features:

- Efficient Aerodynamics, on the basis of the conventional inverted T layout,the Fighter have optimized the aerodynamic figure and relative positions of the wings,horizontal tail,vertical tail and fuselage.

- Light but Stable.

- The wing and tail adopt a toolless quick-release structure, disassembly quickly.

- IPX3 waterproof level.

- Large fuselage cabin,low resistance.
