Соединительная втулка для стального стержня 14 мм 16 18 Стальной Арматурный соединитель
- Категория: Metal Building Materials >>>
- Поставщик: Henan,Yugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.72 $* | 0.1 $* |
| Aug-20-2025 | 0.99 $* | 0.59 $* |
| Jul-20-2025 | 0.51 $* | 0.20 $* |
| Jun-20-2025 | 0.1 $* | 0.87 $* |
| May-20-2025 | 0.86 $* | 0.85 $* |
| Apr-20-2025 | 0.76 $* | 0.45 $* |
| Mar-20-2025 | 0.95 $* | 0.57 $* |
| Feb-20-2025 | 0.42 $* | 0.24 $* |
| Jan-20-2025 | 0.93 $* | 0.45 $* |
Характеристики
Product Description

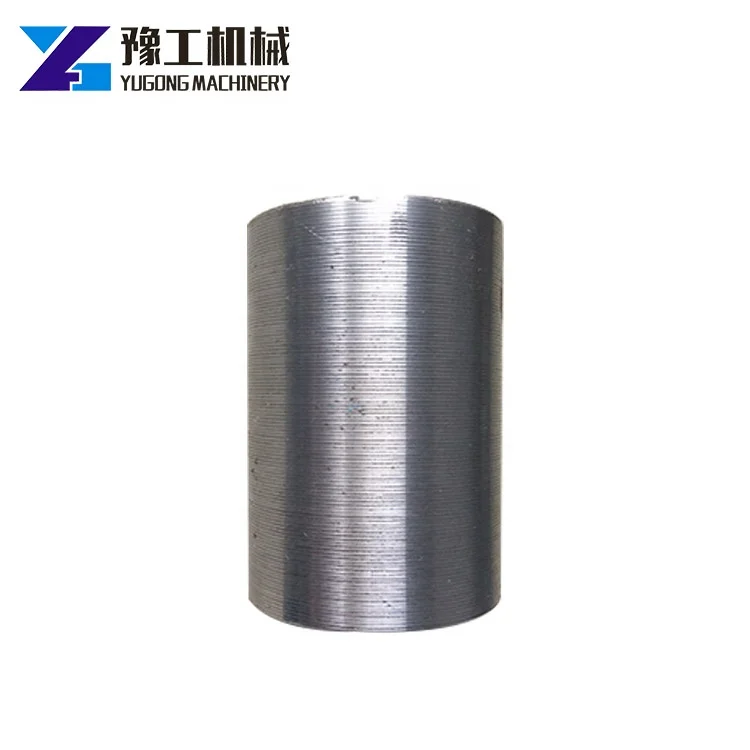

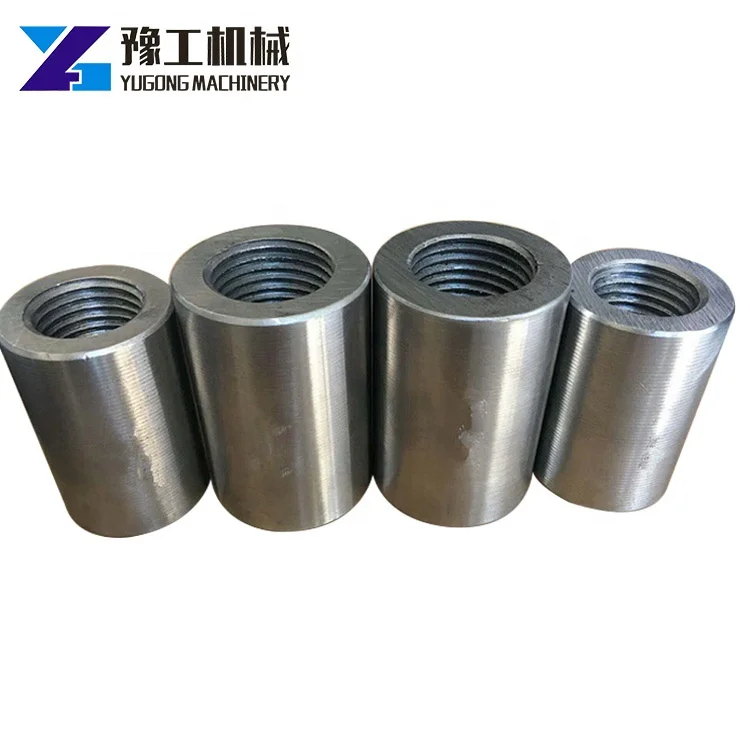

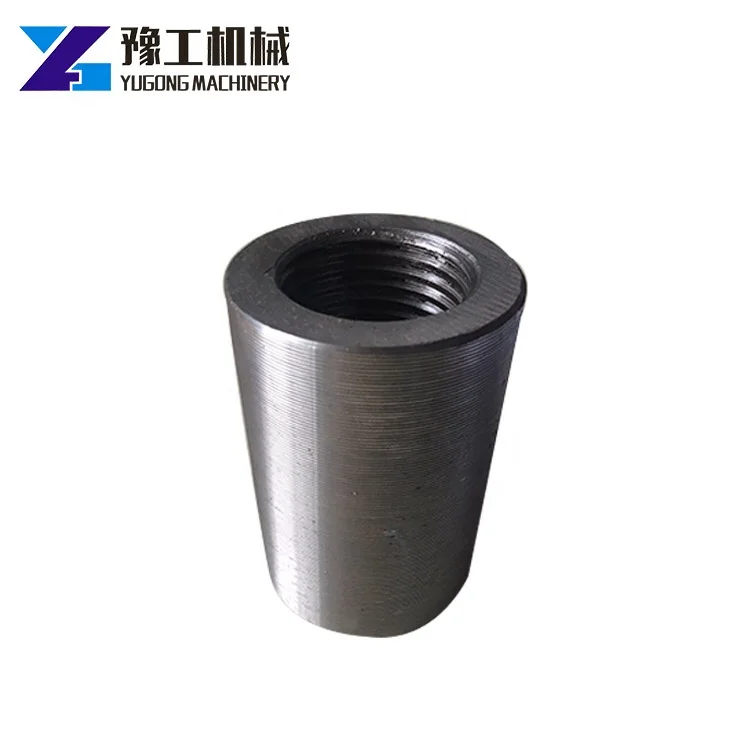

Steel Parallel Thread Rebar Coupler for Online Retailing and wholesale

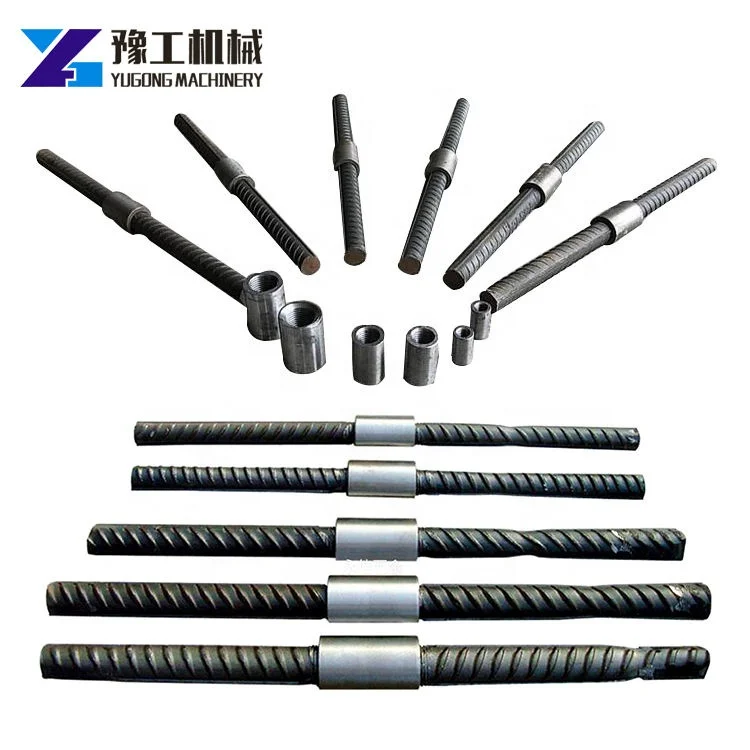

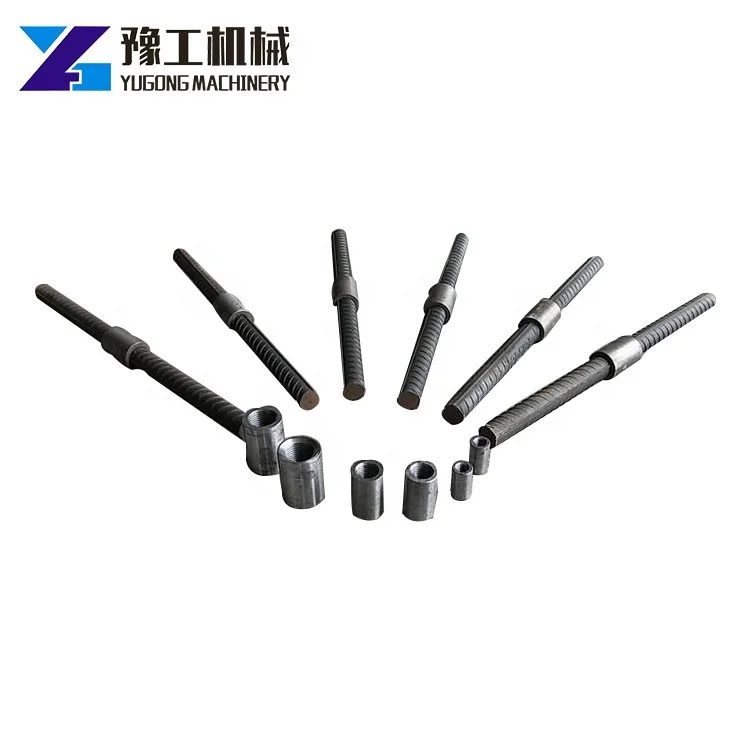

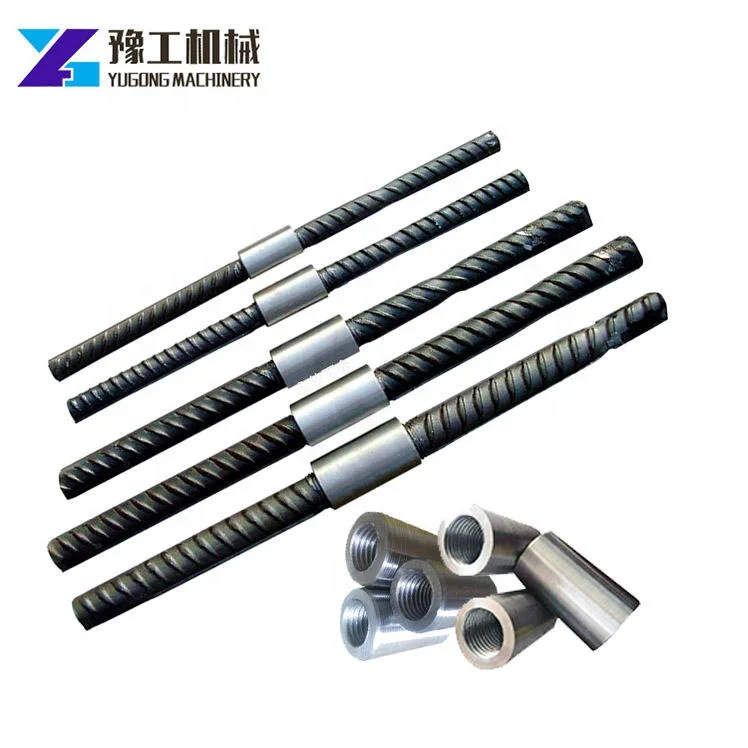

Four Steps Process Splicing rebars with coupler
1) Cutting off the end of rebar;
2) working the end of rebars by thread machine
3)Making parallel threads;
4) Splicing rebars by coupler.
Specification
Rebar size | D16mm | D18mm | D20mm | D22mm | D25mm | D28mm | D32mm | D36mm |
Outer diameter | 25mm | 28mm | 30mm | 32mm | 37mm | 41mm | 47mm | 54mm |
Length | 40mm | 45mm | 50mm | 55mm | 60mm | 70mm | 80mm | 90mm |
Thread pitch | 2.5 | 2.5 | 2.5 | 2.5 | 3.0 | 3.0 | 3.0 | 3.5 |
Thread angle (degree) | 60/75 | 60/75 | 60/75 | 60/75 | 60/75 | 60/75 | 60/75 | 60/75 |
G/W(KGS) | 0.086 | 0.125 | 0.152 | 0.200 | 0.284 | 0.400 | 0.602 | 0.940 |
Advantages of Steel Parallel Thread Rebar Coupler
1) YG rebar coupler is made of high-quality carbon structural steel 45#/40Cr with reasonable design, advanced technology, high precision and reliable connection quality.
2) We design the couplers of all specifications based on the strength requirements of HRB500 steel bars. Couplers are applicable to all screw thread steel on grade HRB335,HRB400,HRB500,HRB600.
3) The parallel rebar coupler system is one of the smallest and the most cost-effective coupler systems in our range, when used on large scale, high coupler volume projects.
4) The end of each bar to be joined is cut square and enlarged by cold forging. This increases the core
diameter of the bar to ensure that the joint is stronger than the bar.
5) The ends of the bars are enlarged and a parallel thread is cut onto the ends to suit the threaded coupler. The coupler is assembled using a pipe or chain wrench. Calibrated wrenches are not necessary.
6) Good low temperature resistance, and could pass the -40 degree low temperature test.
Packing & Delivery
Straight thread sleeves are steel sleeves for steel joints that provide the axial tension or pressure of the reinforcing bars. The longitudinal and transverse ribs of the steel bars to be connected are stripped off by means of cutting and then directly rolled Into ordinary straight thread, with a special straight thread sleeve connected to form a reinforced connection. The connection technology is efficient, convenient and rapid, which can save energy, improve efficiency and provide stable connection.
FAQ
1.You are a manufacturing company or trading company?
--We are a metal alloy manufacturing and we have years of export experience. we have a reasonable price.
2.What quote do you offer?
--FOB , CIF and others ways according the your needs.
3.Do you provide sampler? Is it free or extra?
---Yes,we could offer the sampler for free charge but do not pay the cost of freight.
4.What is your terms of payment?
---TT. PAYPAL .L/C
5.Can I order a small list ?
---Of course,you can.
6. How long is your delivery time ?
---Generally it is 7days if the goods are in stock or it’s 12-15days if the goods are not in stock , all depends on the quantity .
7..What else related accessories do you also supply ?
---. Yes,not only rebar couplers and thread machine , we also supply related parts ,such as :Blade\\Thread roller\\Spanner\\Torque
wrench\\ Thread head\\Eccentric shaft..
--We are a metal alloy manufacturing and we have years of export experience. we have a reasonable price.
2.What quote do you offer?
--FOB , CIF and others ways according the your needs.
3.Do you provide sampler? Is it free or extra?
---Yes,we could offer the sampler for free charge but do not pay the cost of freight.
4.What is your terms of payment?
---TT. PAYPAL .L/C
5.Can I order a small list ?
---Of course,you can.
6. How long is your delivery time ?
---Generally it is 7days if the goods are in stock or it’s 12-15days if the goods are not in stock , all depends on the quantity .
7..What else related accessories do you also supply ?
---. Yes,not only rebar couplers and thread machine , we also supply related parts ,such as :Blade\\Thread roller\\Spanner\\Torque
wrench\\ Thread head\\Eccentric shaft..
