Introduction of Best Choose JD-1 Mining Dispatching Winch 55kw Power

JD series explosion-proof dispatching winch is used for dispatching trolleys, tramcar in underground parking lots, middle roadways, mining transportation lanes in mines, dragging or carrying heavy loads. We can design and manufacture different types of dispatching winch with maximum pulling force 7.5-40KN.zmwm12

Parameter of Best Choose JD-1 Mining Dispatching Winch 55kw Power

Model	JD-0.5	JD-0.75	JD-1	JD-1.6	JD-4
Traction Force KN	7.5	7.5	10	17.6	30
Average Speed m/s	0.71	0.71	0.78	1.4	1.44
Dia of Wire Rope mm	9.3	9.3	12.5	15	20
Drum Size mm	200×300	200×300	224×304	310×400	620×580
Rope Capacity m	250	250	400	440	480
Total Reduction Ratio	34.81	34.81	41	32.5	31.8
Motor Type	YB132S-4-B5	YBJ-11.4	YBJ45-4	YBJ40-4	YB2-132S-4
Motor Power KW	5.5	11.4	25	40	5.5
Motor Rev Rev/min	1440	1460	1470	1470	1440
Motor Voltage V	380/660	380/660V	380/660V	380/660V	380/660V
Di mention mm  L×W×H	1085×730 ×697	1085×730 ×697	1073×766 ×727	1448×1255 ×1260	1900×2350 ×1370
Weight KG	400	400	578	1370	2800

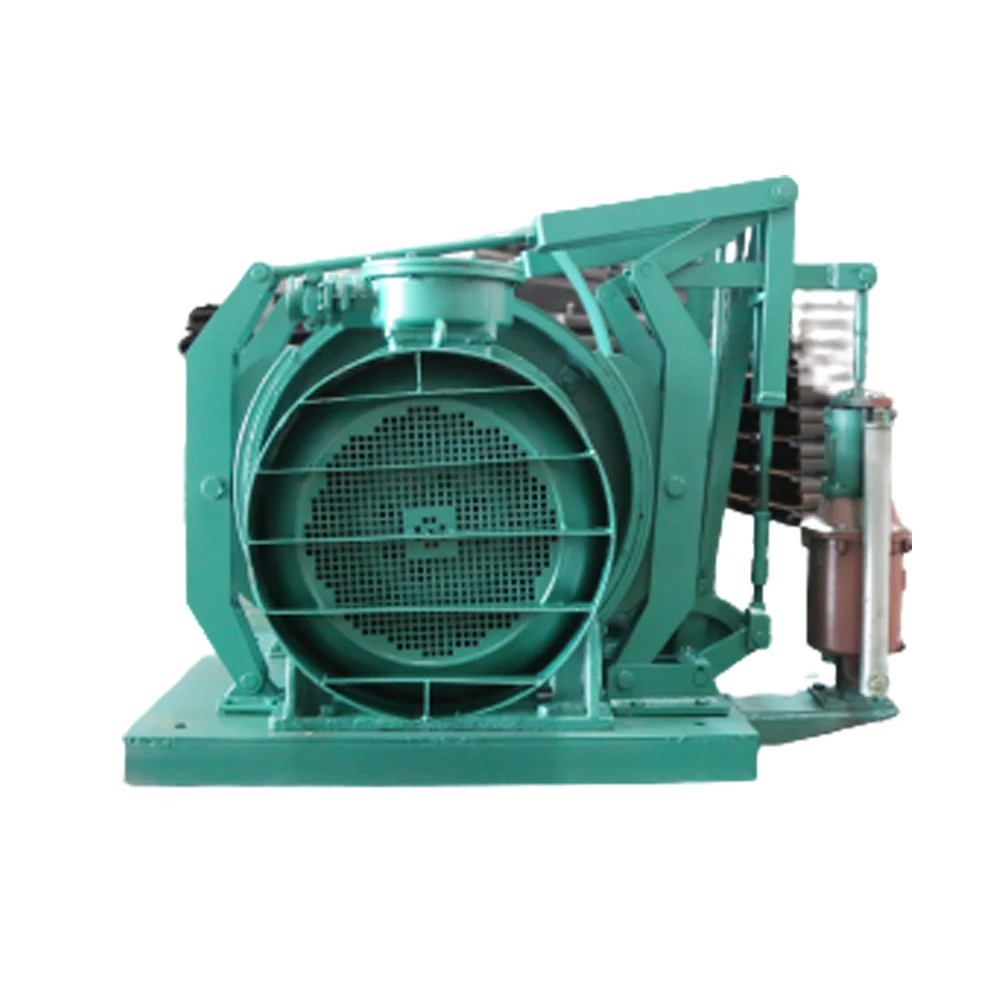

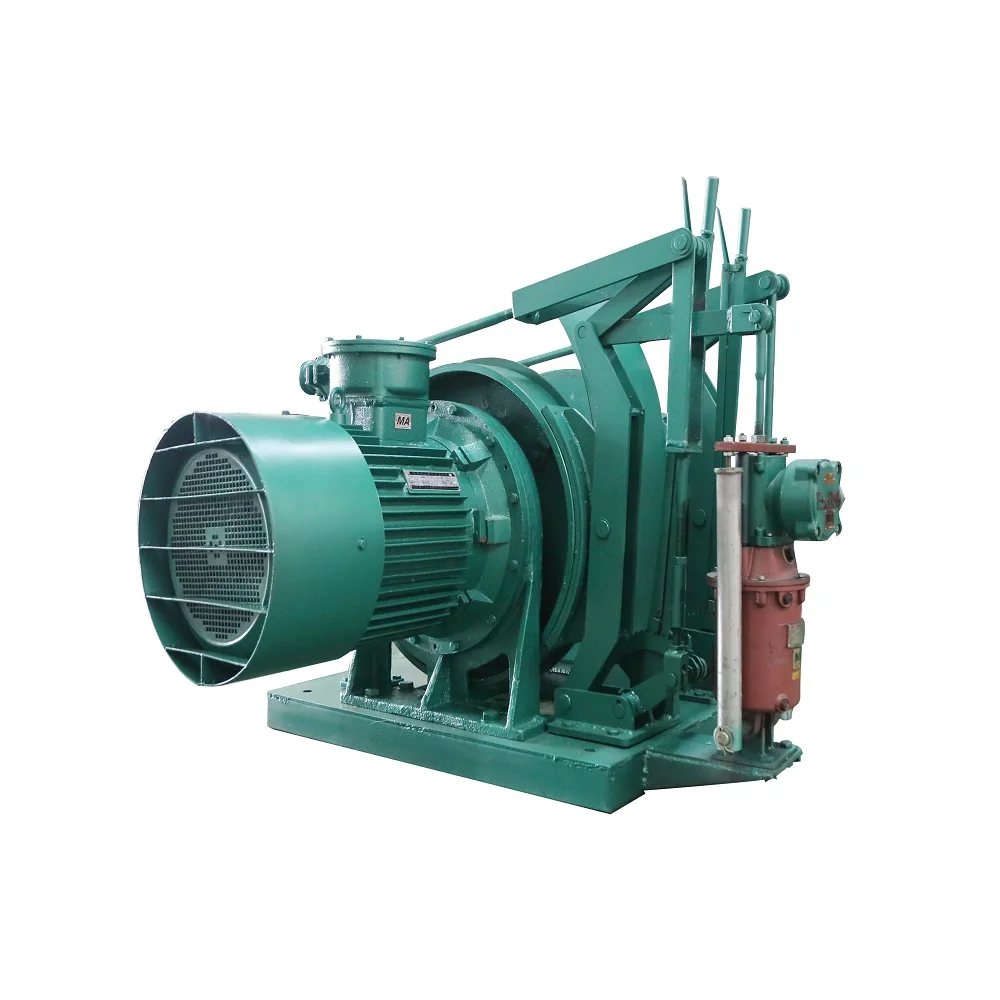

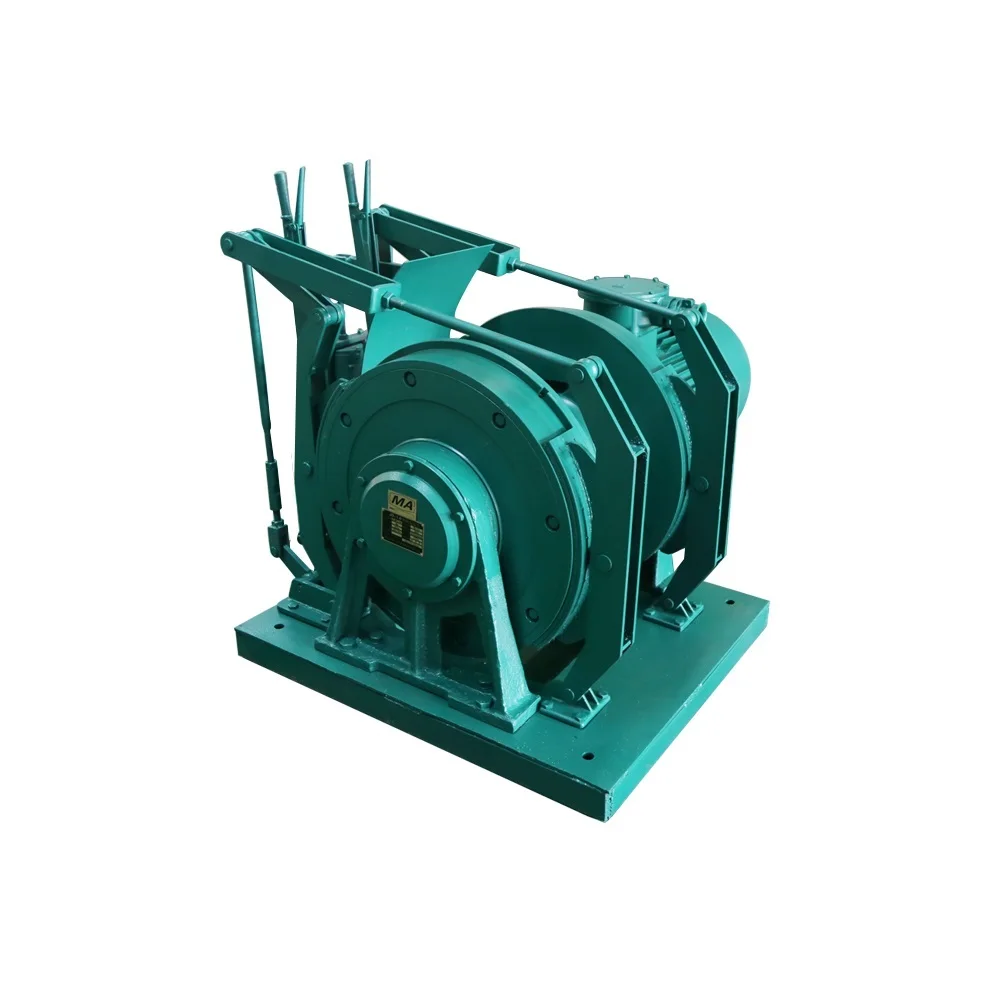

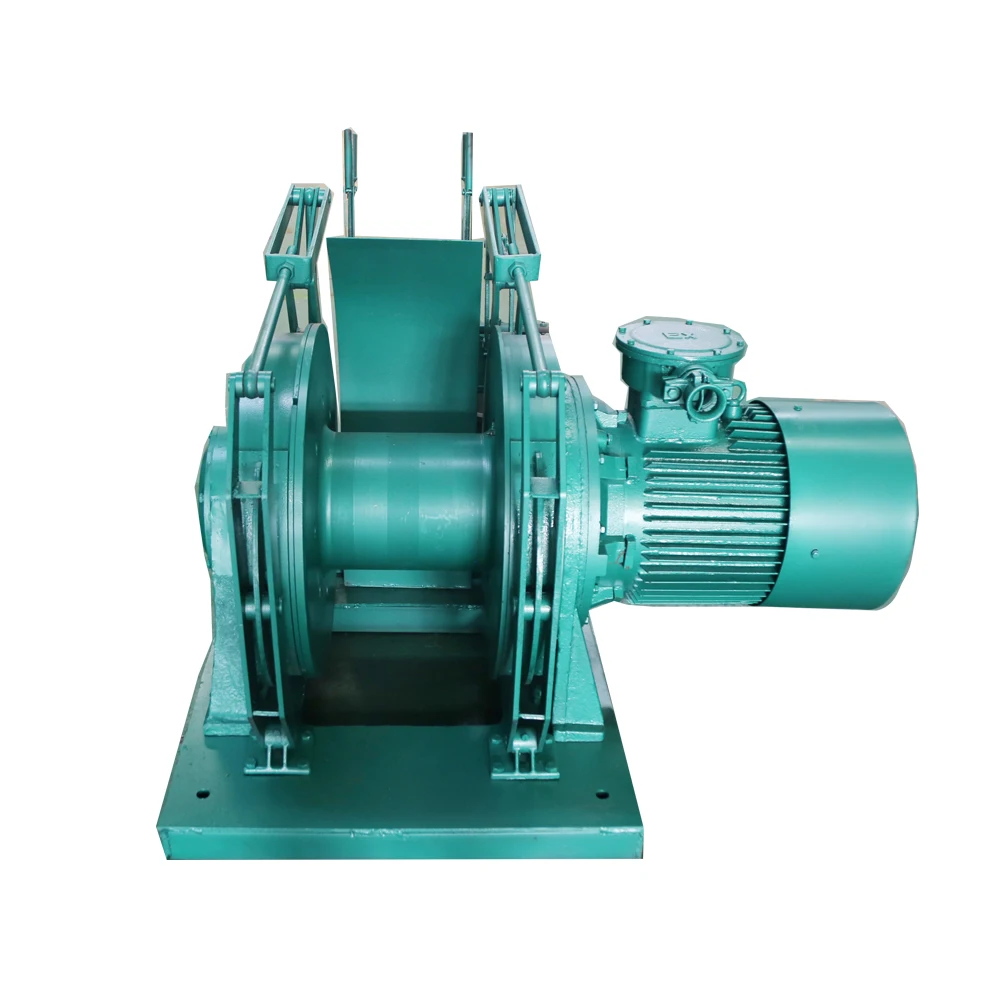

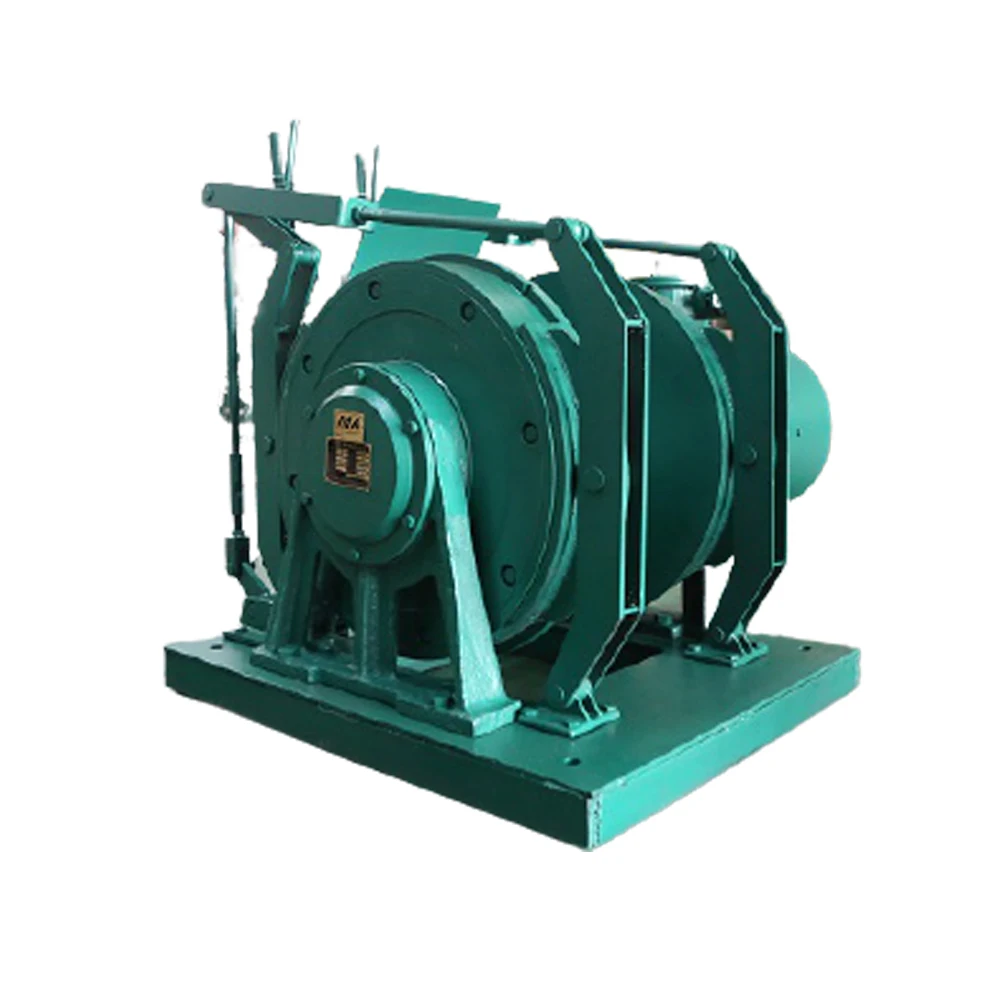

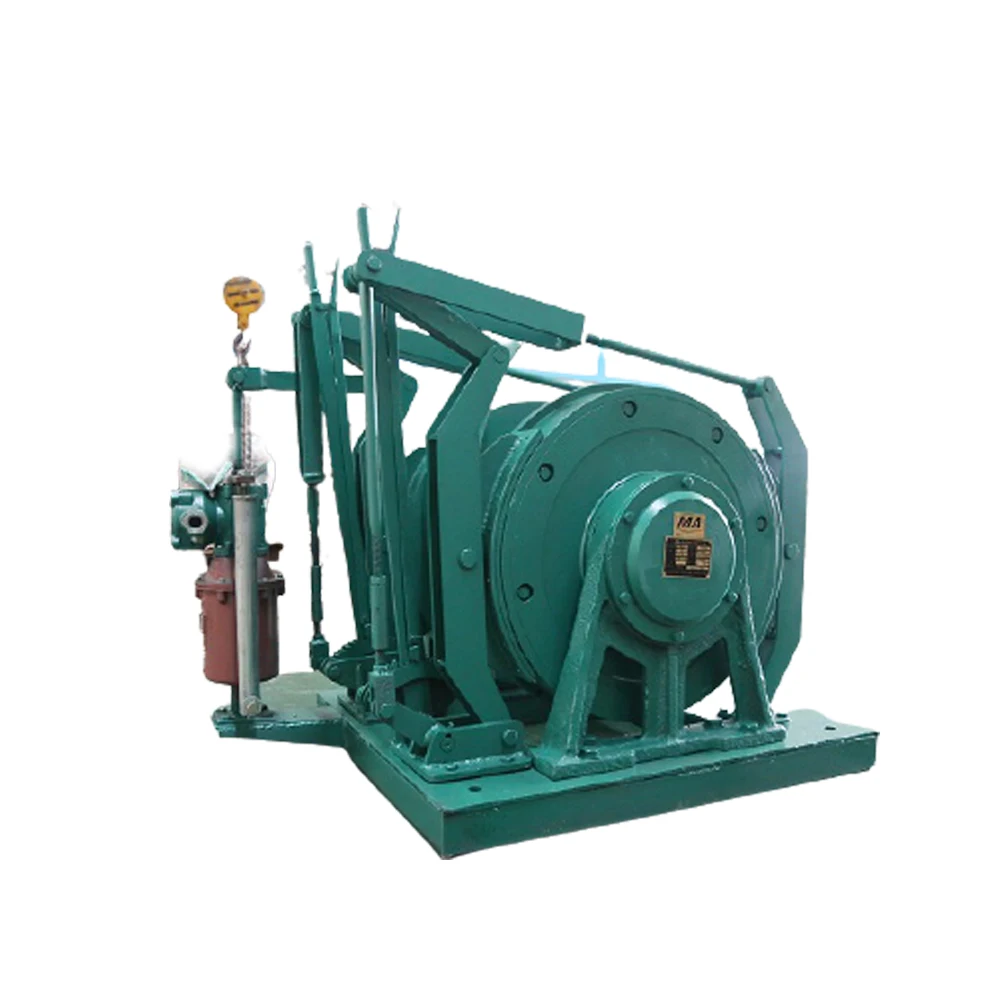

Pictures of Best Choose JD-1 Mining Dispatching Winch 55kw Power
