Один кусок 4 бортовой мешок запечатывания салфетки машина утилизация отходов

Один кусок 4 бортовой мешок запечатывания салфетки машина утилизация отходов

Категория: Wet Wipe Making Machines >>>
Поставщик: Henan,Honest,Heavy,Machinery,Co.,Ltd.

Цена:15 000,00 $ - 65 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	17850.83 $*	18743.31 $*
Aug-19-2025	17700.98 $*	18585.4 $*
Jul-19-2025	14850.19 $*	15593.30 $*
Jun-19-2025	17400.73 $*	18270.14 $*
May-19-2025	15150.81 $*	15908.7 $*
Apr-19-2025	17100.9 $*	17955.22 $*
Mar-19-2025	16950.87 $*	17798.73 $*
Feb-19-2025	16800.83 $*	17640.71 $*
Jan-19-2025	16650.61 $*	17483.62 $*

Характеристики

Technical Parameter

Model	SY-250R	SY-350R	SY-250W
Speed	60-120 bags/min			80-120 bags/min
Bag size range	(L)40-125mm (W)40-100mm	(L)40-175mm (W)40-100mm	the size can adjust L: 40-140mm W: 40-110mm
material	30-80g/m2 airlay paper,wet strength paper,spunlace nonwoven fabric			30-80g/m2 air laid paper, nonwoven, spunlace nonwoven fabric etc
Packing material	Lamination film,paper,aluminium			Lamination film,paper, aluminium
Outer Dia. Of Tissue Roll	1000mm			1000mm
Outer Dia. Of Packaging Film Roll	350mm			350mm
Folding option	Max 10 folding vertical,4 folding horizontal			Max 10 folding vertical, and 4 folding horizontal
Liquid range	0-10ml			0-5ml accuracy +0.01ml
Air consumption	300-500m/min, 0.6-1.0Mpa			0.6-1.0Mpa
Total Power	2.8KW			4. 8KW
Power Supply	220/380V 50/60HZ			220/380V 50/60HZ
Machine Weight	1100kg	1200kg	1200kg
Machine dimension	L3300xW2300xH1600mm	L3300xW2300xH1600mm	L3300W2200H1600mm

Products Description

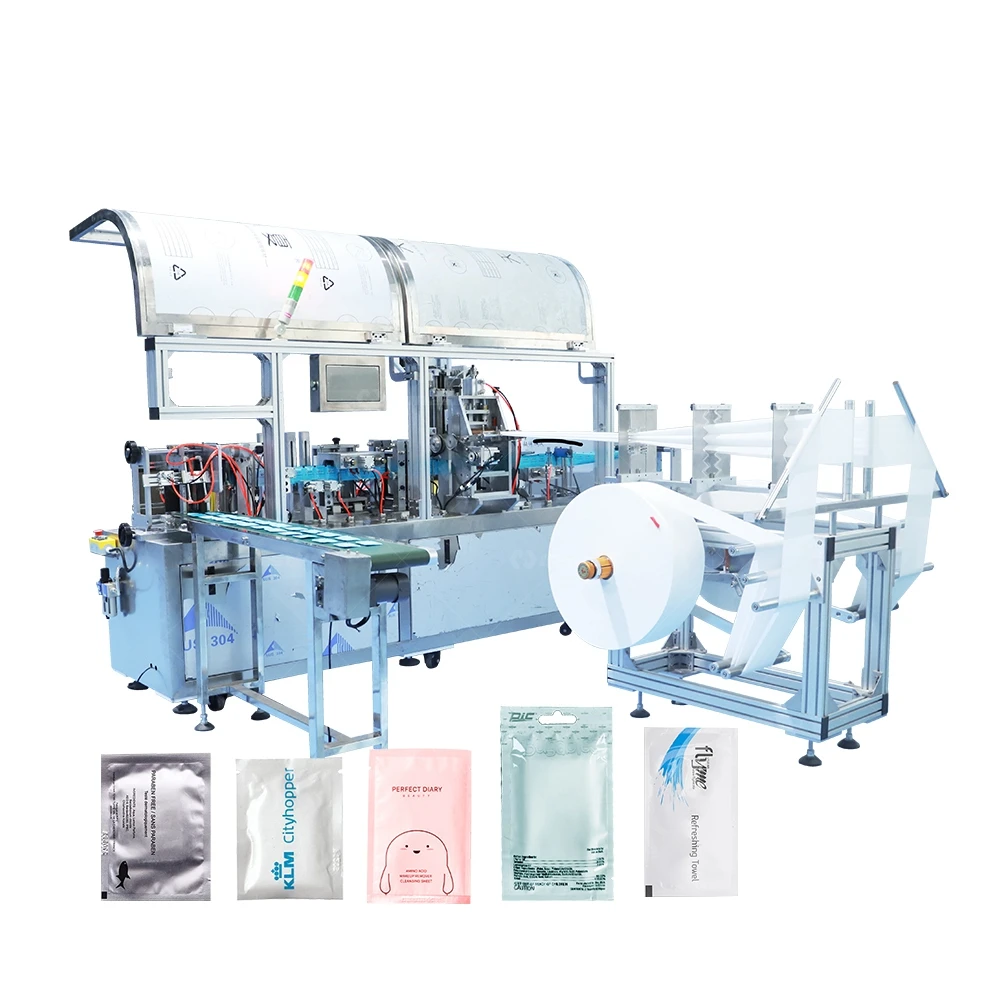

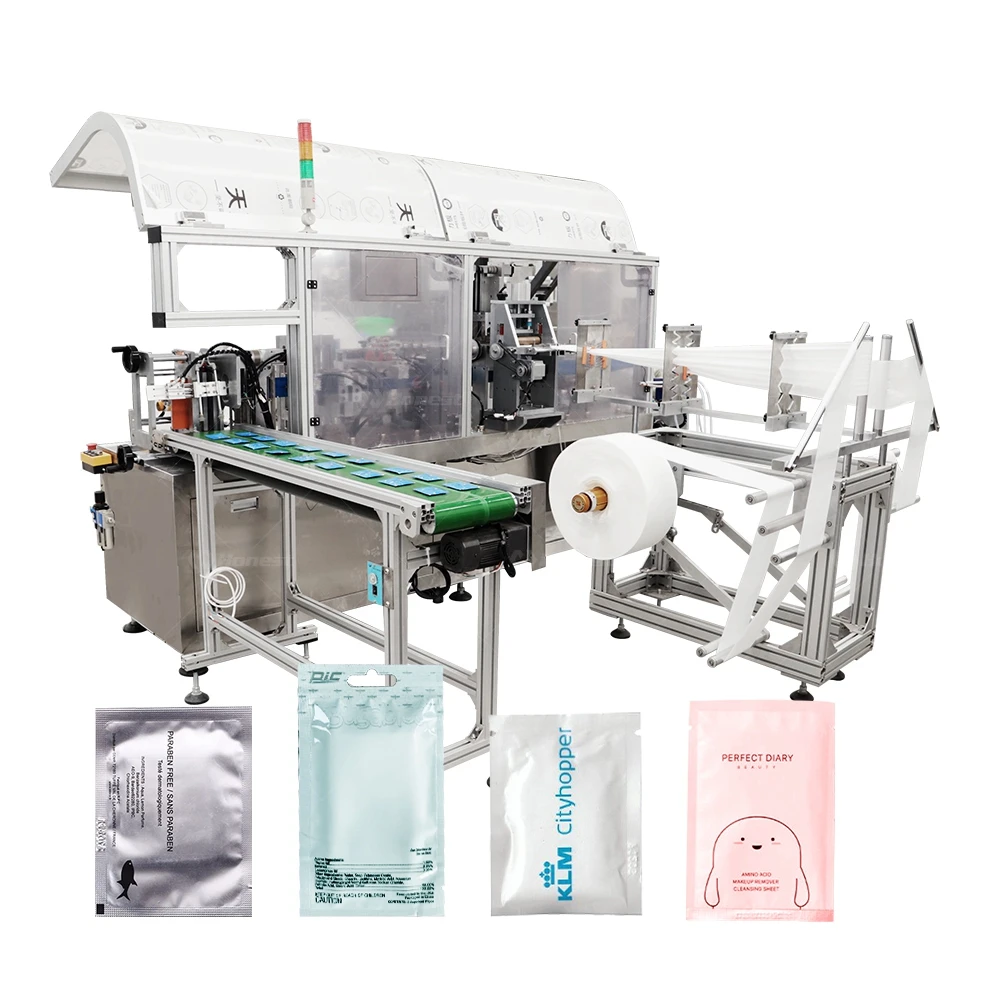

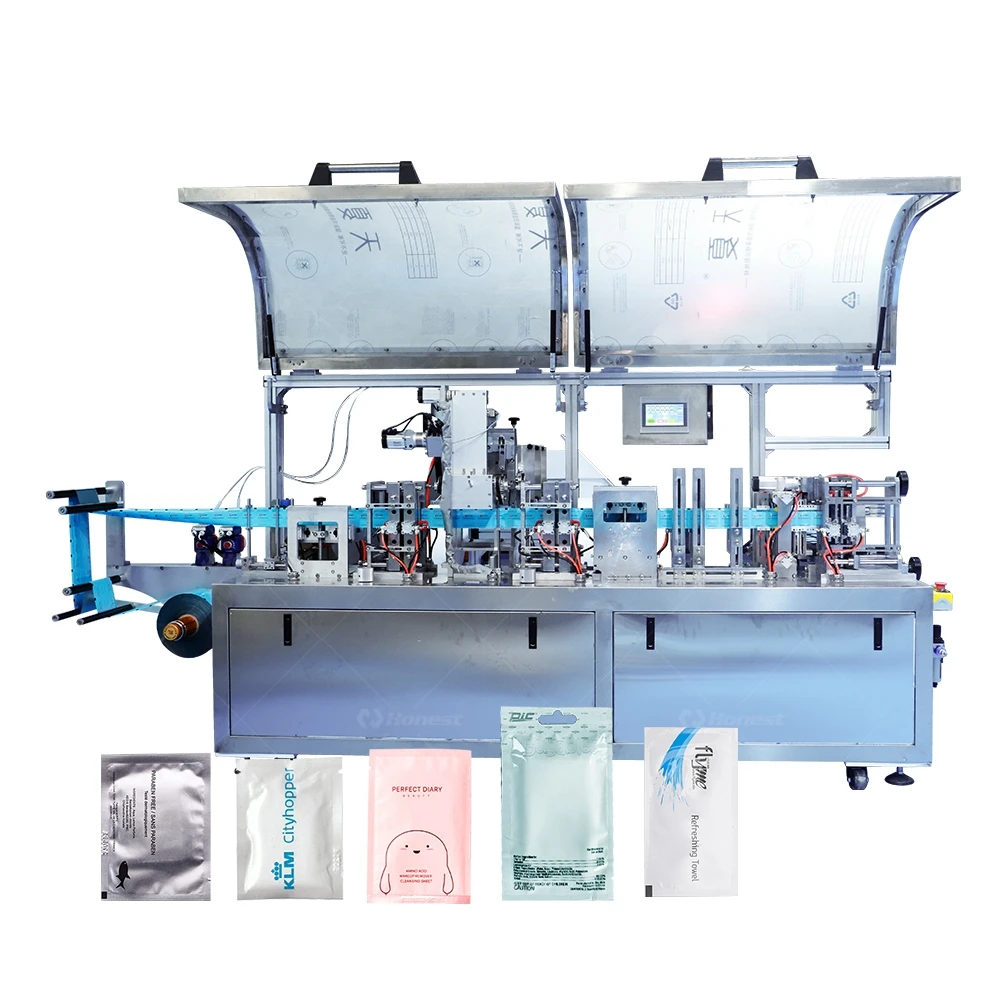

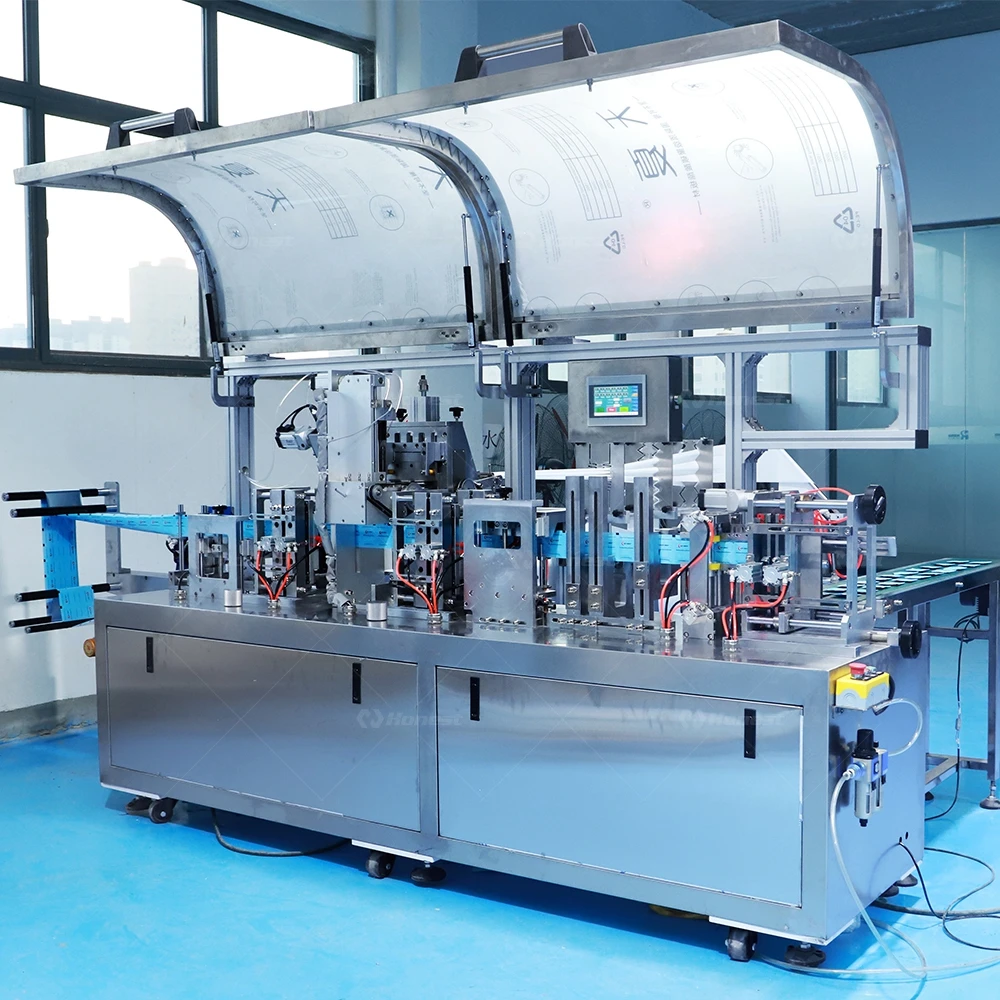

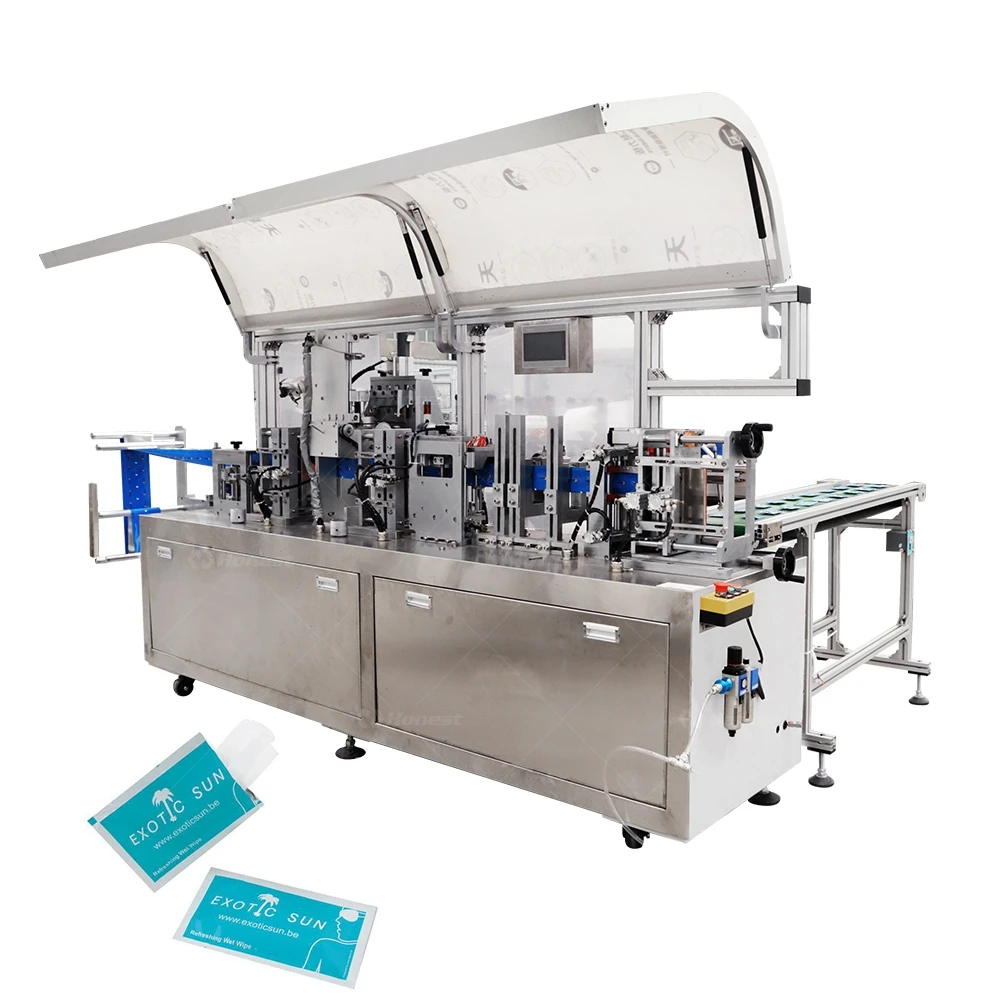

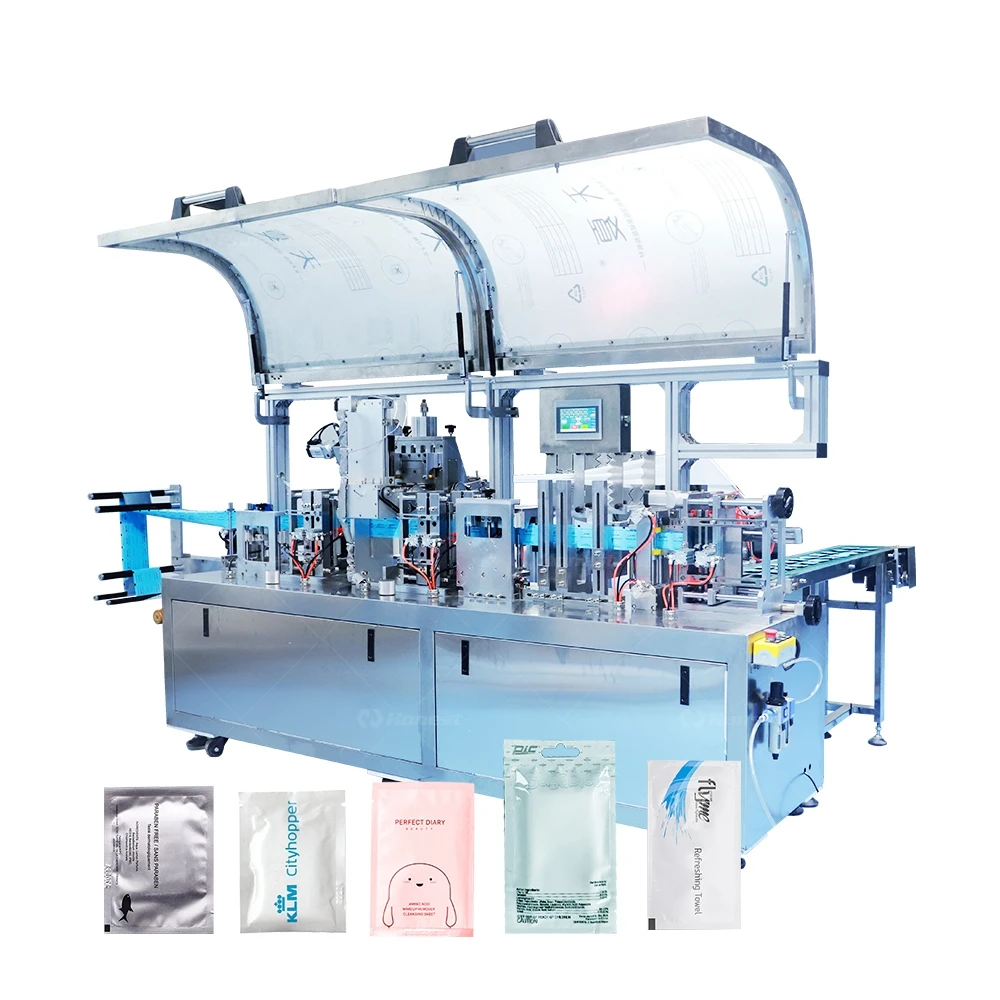

Factory On Sale Automatic Single Pack Back Seal Wet Wipes is designed as automatic production solutionfor sanitary wet wipes and make-up removing wet wipe and personal care wet wipe. lt can beadjustable to fit to various packaging sizes,a perfect choice for OEM and ODM factory whoproduce different sizes of wet wipe products on one machine.

FINISHED PRODUCT

Packaging speed is 60-120 pieces/minute, and packaging size can be adjusted, with length40-175mm and width 40-110mm.Composite film and paper-aluminum film can be selected aspackaging raw materials,with hot-melt edging around them, and the edging form can be "or "v".

Product Structure

Name : Fold and draw of film

Function: Fold the film and forming it into bag, the sensor make it more exactly ,no blank edge and
fault forming

Name : Aluminium alloy Wet wipes folding shelf

Function : Fold non-woven fabric according to customer's requirements (Max 10
folding vertical,and 4 folding horizontal)

Name : Cutting non-woven fabric

Function : Cut according to the size required by the customer.

Name : Fold and fill

Function : Servo control fold into the bag and add liquid to the bag (the part contacting the material is
316 stainless steel), Metering pump imported from Japan, accuracy +0.01ml

Name : Adjustable mould, Sealing

Function : Bag mouth sealing (hot sealing),The user can change the steel letters to control the
Date and codes print on the products the tear mouth have two types for select 'V' or "-“

Name : Conveyor belt,finished product output

Function : The finished product is discharged by manipulator, Count, place and transmit

Name: Touch screen

Function : The touch screen can be made in your local language(so you can your staff can operate it easily)

Feature

Aluminium Alloy Wet Wipes Folding Shelf

Fold non-woven fabric according to customer's requirements (Max 10 folding vertical, and 4 folding horizontal)

Fold And Draw Of Film

Fold the film and forming it into bag, the sensor make it more exactly ,no blank edge and fault forming

Paper Feeding Station

Fix the size of non-woven fabric after folding, servo control the paper feeding station. Cut according to the size required by the
customer

Fold And Fill

Servo control fold into the bag and add liquid to the bag (the part contacting the material is 316 stainless steel). Metering pump is imported from Japan, accuracy + 0.01ml.

Adjustable Mould,sealing

Bag mouth sealing (hot sealing). The user can change the steel letters to control the Date and codes print on the products the tear mouth have two types for select "V' or ''—",

Finished Product Output

The finished product is discharged by manipulator, Count, place and transmit.

Touch Screen

The PLC control touch screen can be made in your local language(so you can your staff can operate it easily).

Quality Assurance

Company Show

Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
