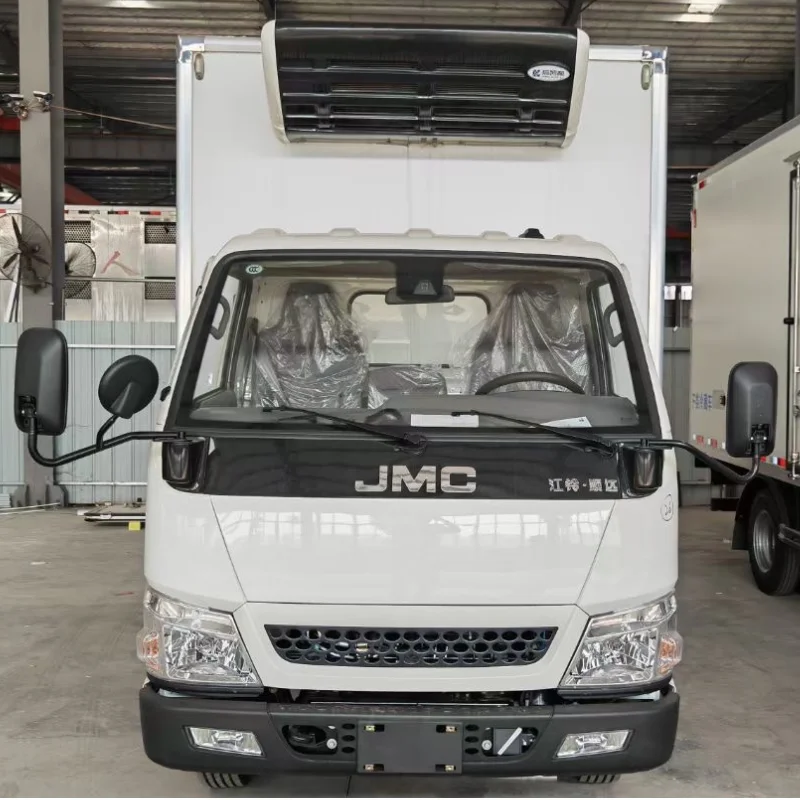

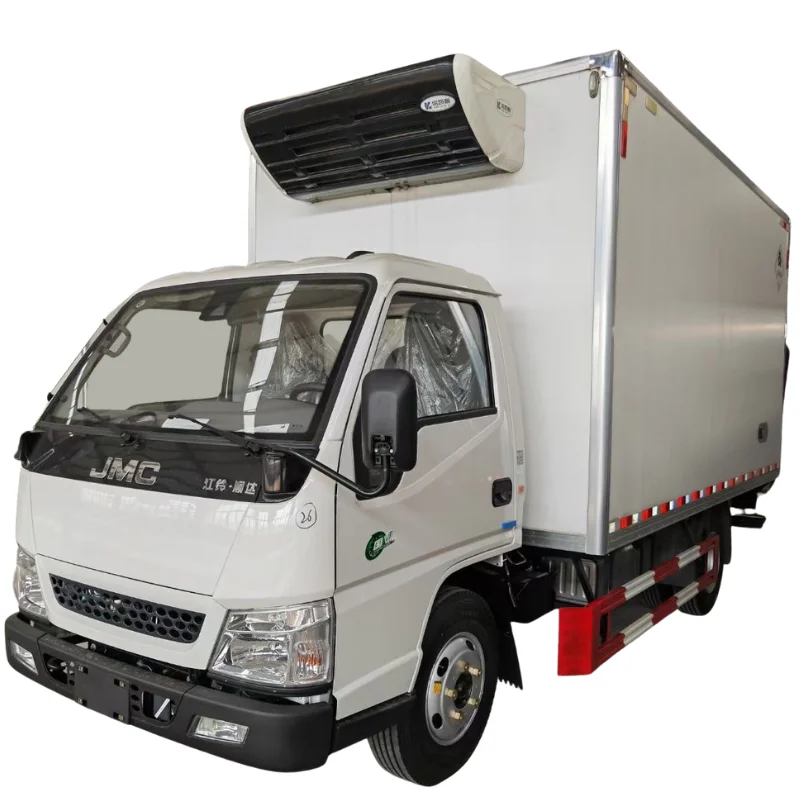

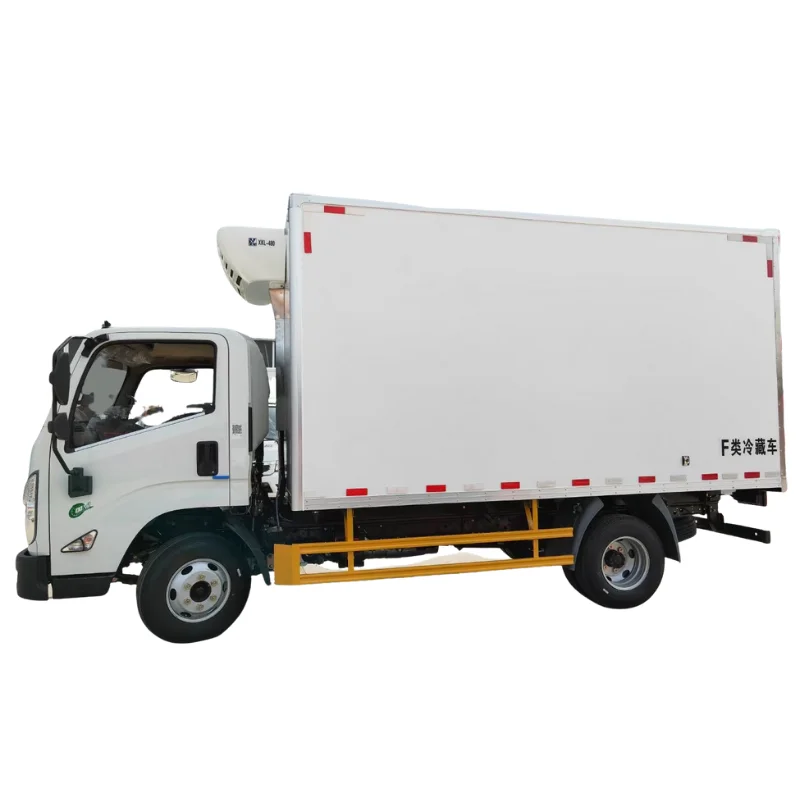

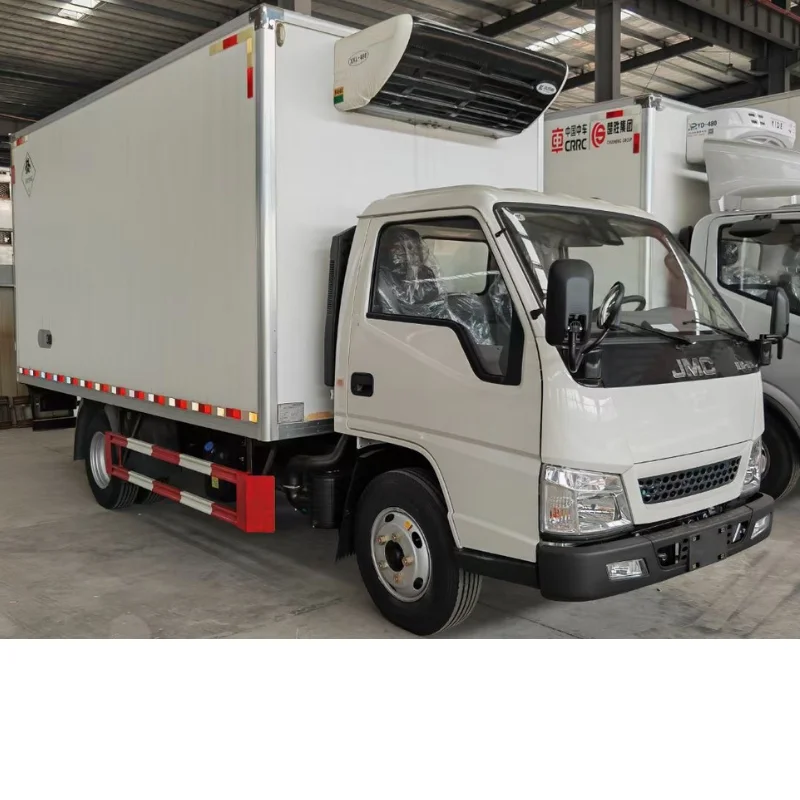

JMC single row driver cab,
3360mm wheelbase
4*2 LHD,
JX4D30B6H WUSHILING technique 90KW/122hp/2499ml displacement diesel engine, Euro 6 emission standard
5 speed manual gearbox, 5 forward gears with 1 reverse gear, manual type
7.00R16*6+1 spare,
air conditioner + oil cut braking + electric windows and doors + power steering , etc.
overall dimension(L*W*H): 5995×1970×2900(mm)
refrigerated van dimension(L*W*H): 4150×1750×1750(mm)
Total mass: 4495kgs
curb mass: 3080kgs
Clients choose to install high quality China-made brand or USA CARRIER/ THERMO KING refrigerated reefer unit. The lowest temperature is up to -18 degree.
Box Side: Exterior and interior with FRP (fiber Reinforced Plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure.
Box Floor: Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and
the compact resistance of the baseboard.

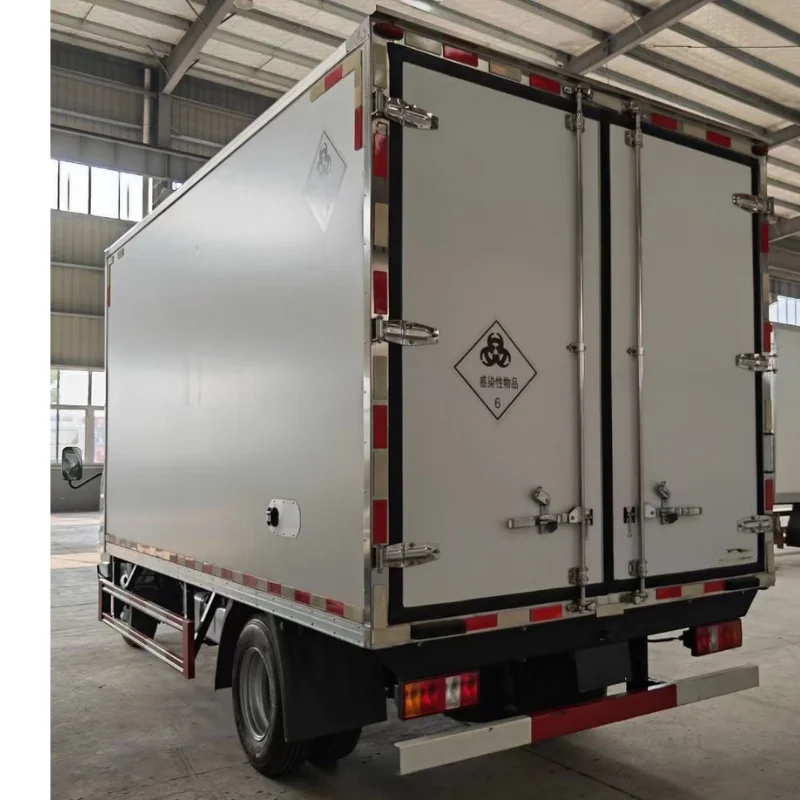

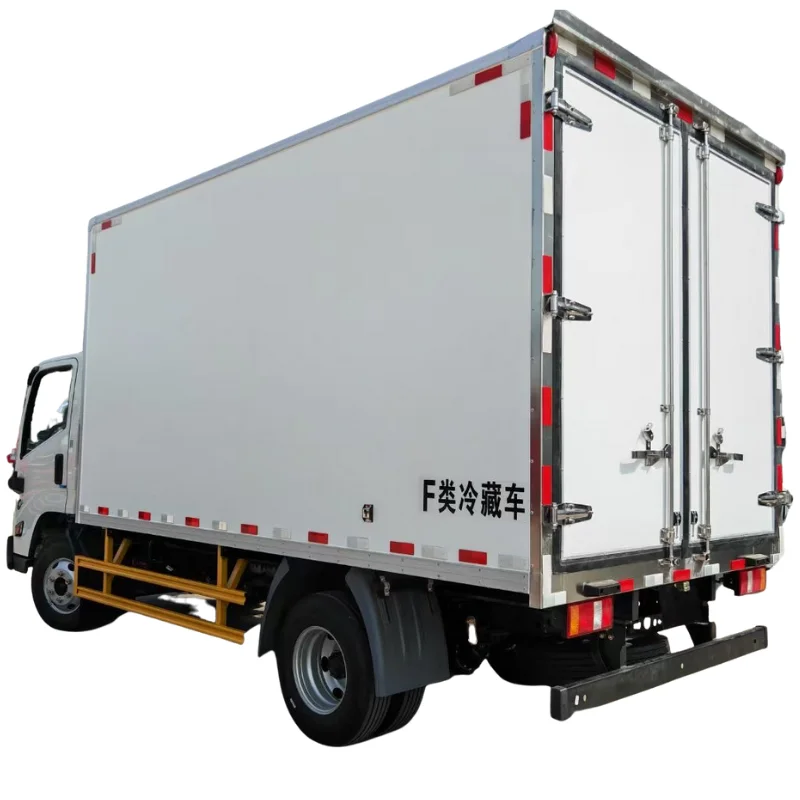

Doors: Frame of standard rear double doors adopts the stainless-steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials.
Refrigerator Unit: Refrigeration unit Choose high quality Chinamade or USA Carrier/Thermo King vehicle-powered reefer unit (reefer unit model:
C-500), the lowest temperature up to -10℃, adjusted at the driver cab).
The loading capacity of this JMC diesel refrigerated minivan is up to 2T.
A refrigerator truck is a van or truck designed to carry perishable freight at specific temperatures. Like refrigerator cars,
refrigerated trucks differ from simple insulated and ventilated vans (commonly used for transporting fruit), neither of which are fitted with cooling apparatus. Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by small displacement diesel engines, or utilize carbon dioxide (either as dry ice or in liquid form) as a cooling agent.
main technical parameters of JMC brand refrigerated truck is as below
