Description of product

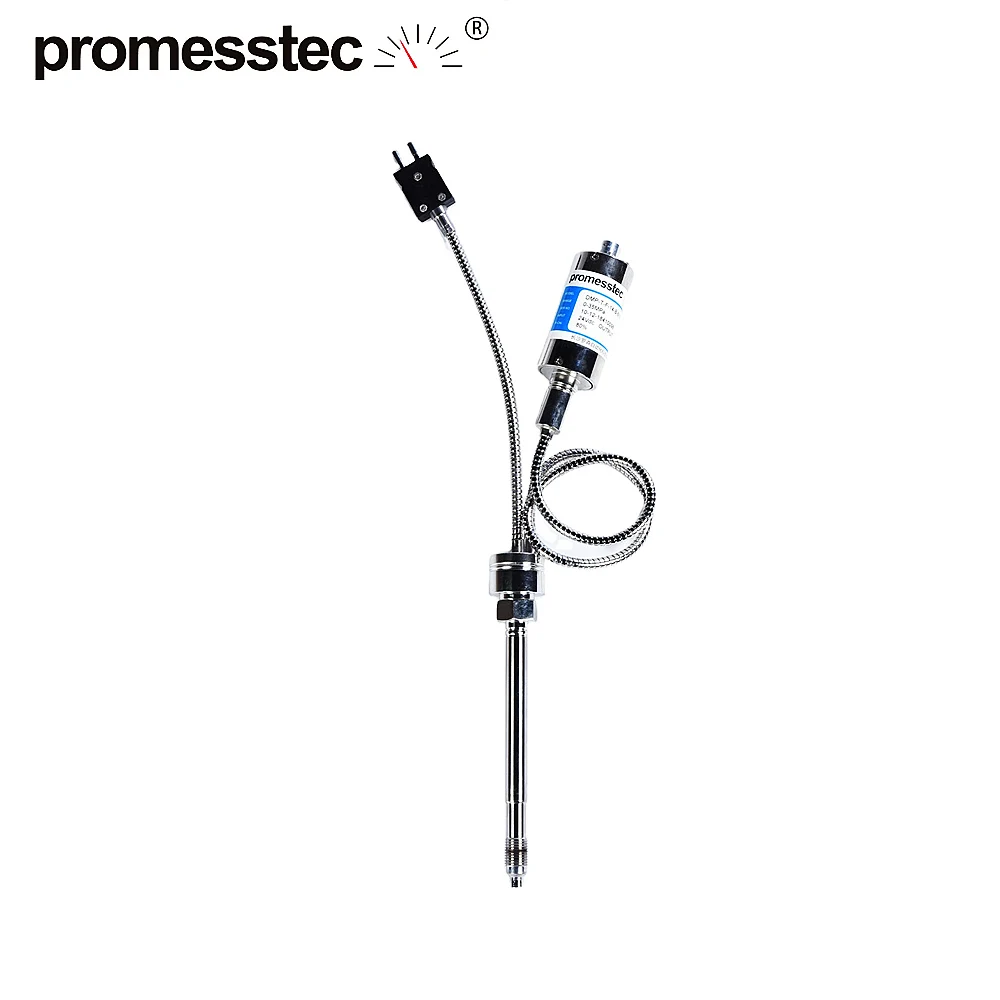

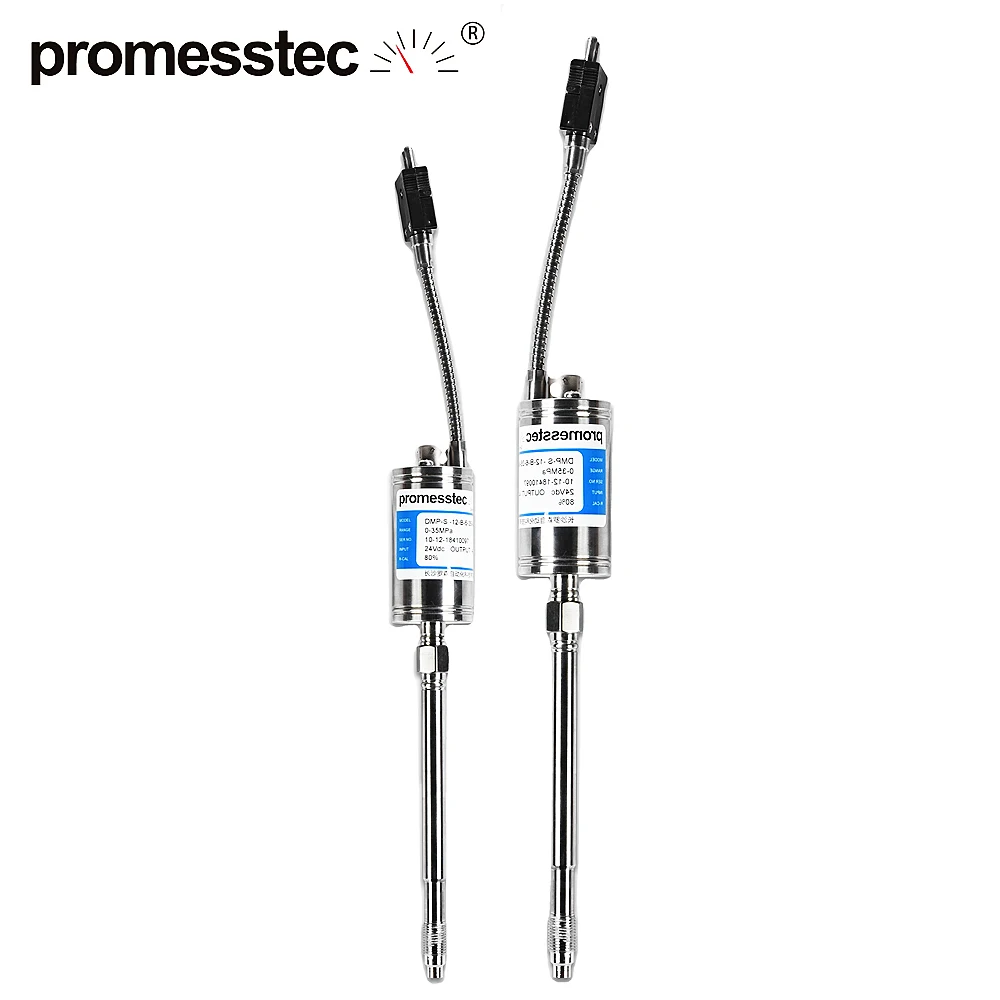

DMP standard pressure transducer/transmitter, is a straight rod melt pressure transducer/transmitter introduced by our company for the domestic market, in which DMP-T is equipped with thermocouple to measure pressure and temperature at the same point. This series of products can be matched with PY500 series intelligent digital pressure instruments of our company and the same type of domestic and foreign press instruments. Its advantage is that the pressure measurement is accurate and reliable, and the amplified signal is directly entered into the PLC control system, 80% inner calibration, simple installation and high cost ratio. It is widely used in high temperature pressure monitoring of chemical fiber and plastic extrusion industry.





Technical Specifications



Ordinary	Data		Remarks
Pressure range	0-3.5MPa...0-300MPa		0-500psi...0-43511 psi
Combined Accuracy	±0.5%FS±1.0%FS (including linear; repeatability & hysteretic nature)		including linear; repeatability & hysteretic nature
Output	Transducer	Transmitter
	3.33 mV/V. 2mV/V	4-20mA, 0-10V. 0-5V
Input Voltage	10VDC (9-12V)	24VDC (12-36V)
Repeatability	± 0.2%FS
OutputImpedance	350 Ohms ±10%
Internal Shunt Calibration	80% FS ± 1 %
Max Diaphragm Temperature	400℃
Diaphragm Material	15-5PHwith Coated Stainless Steel Shell
Electrical connector	5 PIN,6 PIN connector
Process connector	1/2" -20UNF, M14 x 1.5, M18 x 1.5.M22 x 1.5,customer design



Changsha Luosen's clients include Fortune 500 companies, government agencies, integrated divisions and distributors to meet the diverse market needs of manufacturing and industry. Changsha Luosen's products are mainly used in: plastic machinery, chemical fiber machinery, petrochemical, water treatment engineering, power plants, aerospace, air compressors, air conditioners, automobiles, plastics, packaging. Medical, electronics, chemical, rubber, textile and food packaging. All of our customers have a common need: to get reliable products from trusted companies. Our products have been successfully applied in many fields in Italy, the United States, Germany, Canada, the United Kingdom, Austria, Malaysia, India, Pakistan, Singapore, Japan, Australia, etc. This proves that we have reliable products and quality products. service.
