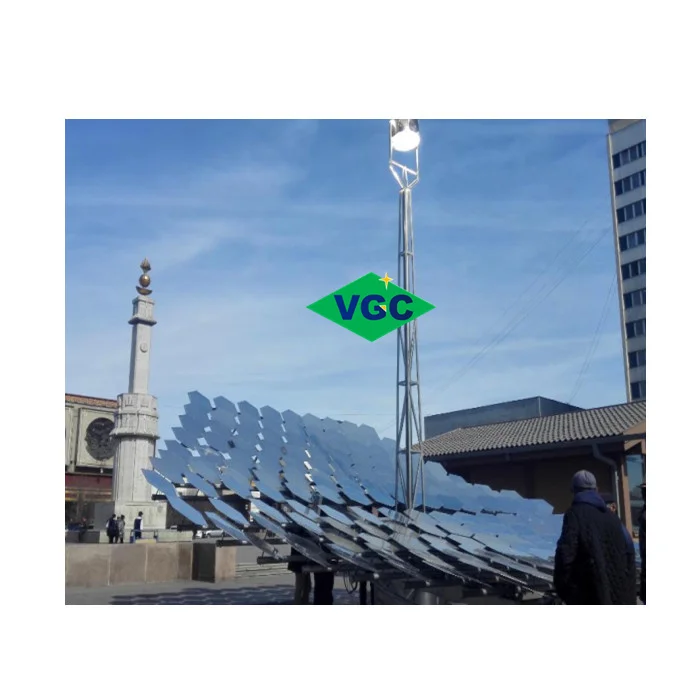

VGC Dish Concentrating Solar Thermal Collector

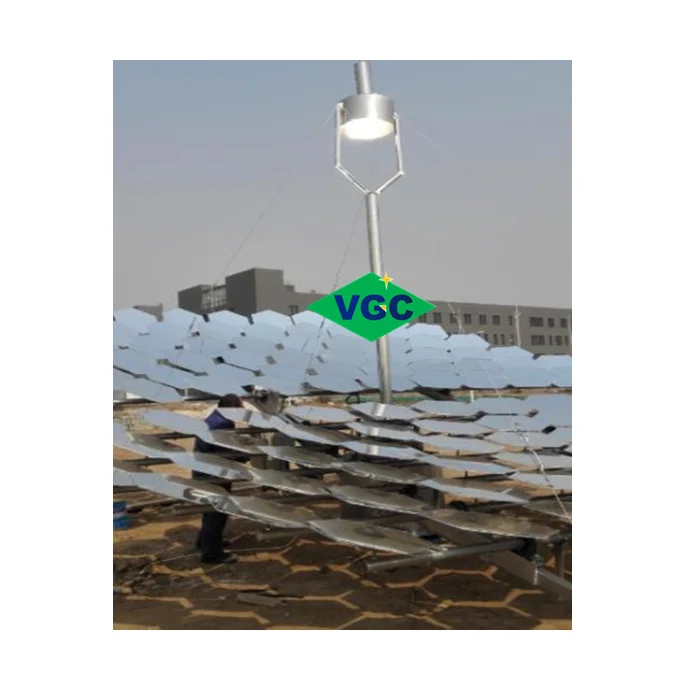

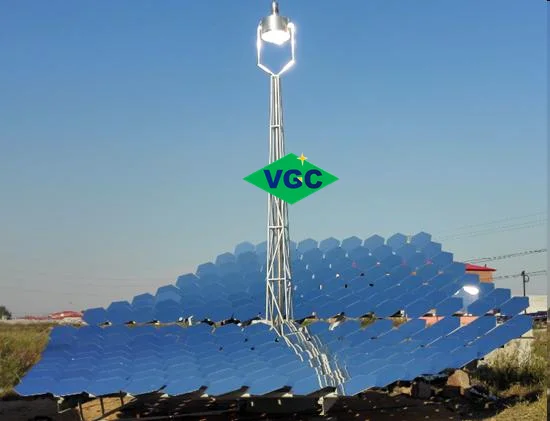

Introduction Of Composite Dish Concentrating Solar Heat Collector
The full name of the composite disc is "multi disc con-focal tower type Fresnel solar concentrating system".
It is a low wind resistant design using biaxial tracking technology. Multiple single disc lenses focus light and
collect heat into the tower heating chamber to generate high temperature. High grade heat energy is collected and
then transmitted to the energy storage tank by the circulation pipeline inside the column, so as to complete the
collection of solar energy. It has the advantages of high heat collection temperature, high wind resistance,
modular assembly, low requirements for installation site, simple pipeline connection, simple maintenance, etc.

1. Characteristics of composite disc collector system
This system is suitable for distributed systems, which is easy to combine and connect.
Brief introduction to system advantages:
 1. Fixed focus design (i.e. fixed system heat collector)
2. High precision dual axis tracking and high power point focusing design
3. Optimize the layout of reflector field and receiver form
4. Low profile design
5.Application of high heat collection components






.





VGC can provide New Engery Solar Mirror System: Mainly 5types Solar concentrating systems:

Trough Solar Collector/ Sterling Solar Mirror Plant/Tower Solar Plant/ Fresnel Solar Concentrating system/Composite Disc Concentrating Solar Mirror System.







Flat Solar mirror

Original: Ultra white float glass (transmittance 91%)

Main specifications: 1M × 1M/1M × 2M/1.5M × 1.5M

Thickness: 4mm-6mm

Coating:silver plating /Aluminum plating

Painting: three layersof protective paint,

UV resistant and external Boundary environment corrosion

Reflectivity: ≥ 92.5% (silver plated) ≥ 85.5% (aluminum plating)





Parabolic Mirror Original:

Ultra white float glass (transmittance 91%)

Main specifications: opening 1.5M/2M/3M/6M

Thickness: 3mm~5mm

Plating:Silver plating

Aluminum plating Painting: three layers of protective paint, Anti UV and external environment corrosion Reflectivity: ≥ 92.5% (silver plated) ≥ 85.5% (aluminum plating )

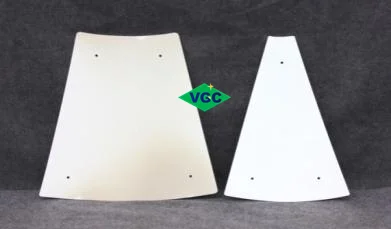

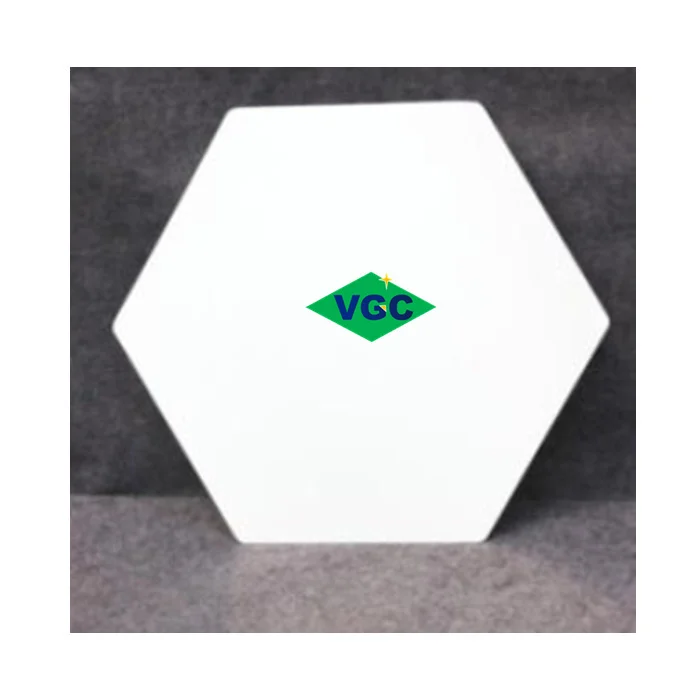

Dish mirror

Original: Ultra white float glass (transmittance 91%)

Main specifications: 7 specifications of finalized products

Customized according to customer design

Thickness: 2mm~5mm

Coating: silver plating

aluminum plating

Painting: three layers of protective paint,

Anti UV and external environment corrosion

Reflectivity: ≥ 92.5% (silver plated) ≥ 85.5% (aluminum plating)



Linear Fresnel mirror



Original: Ultra white float glass (transmittance 91%)

Main specifications: customized according to customer requirements

Thickness: 3mm~5mm

Plating: Silver plating

Aluminum plating

Painting: three layers of protective paint,

Anti UV and external environment corrosion

Reflectivity: ≥ 92.5% (silver plated) ≥ 85.5% (aluminum plating)











FEATURES- SOLAR MIRROR





1) made from low iron extra clear glass, the solar mirror visible light reflectivity> = 93%
2) silver coated, enhanced silver adhesion processing
3) Water-resistance,scratch-resistance, Anti-UV,outdoor application, long shelf time up to 25 years with UV resistant coating system.
4) customer size available
5) edge grinded before mirror coating.
