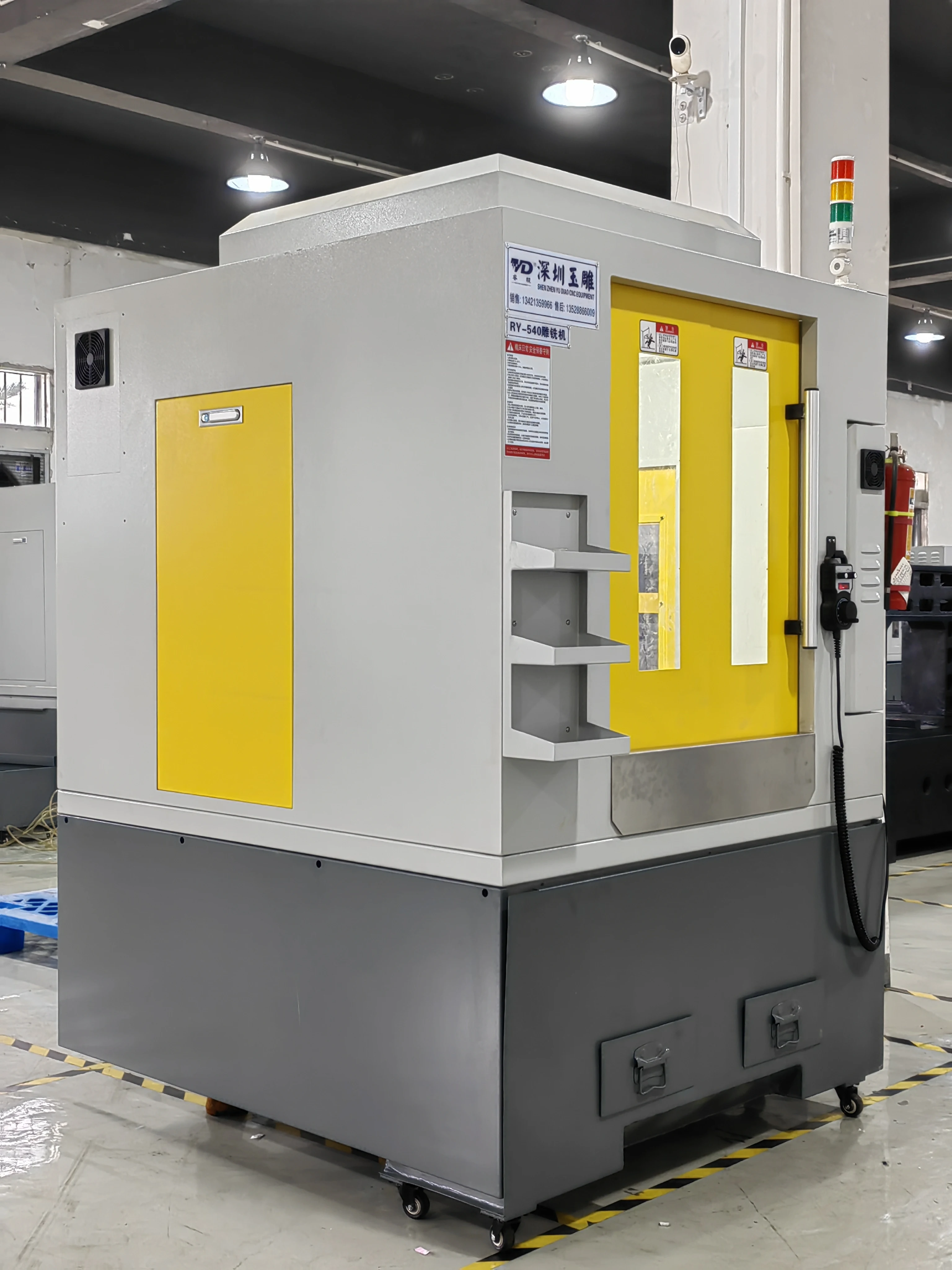

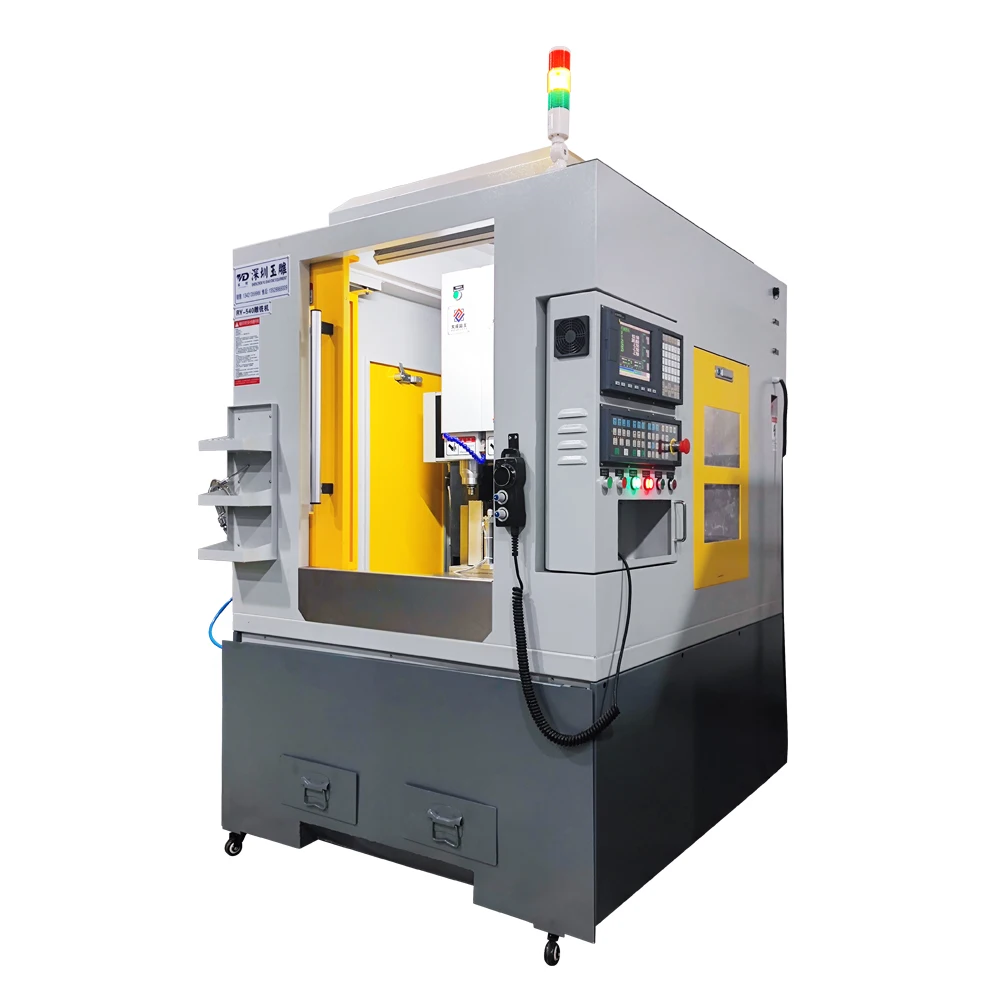

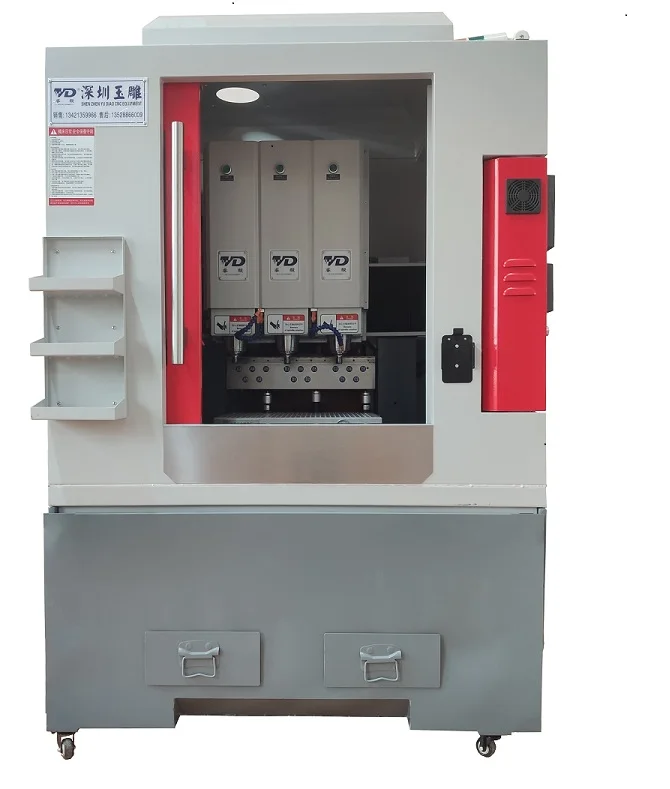

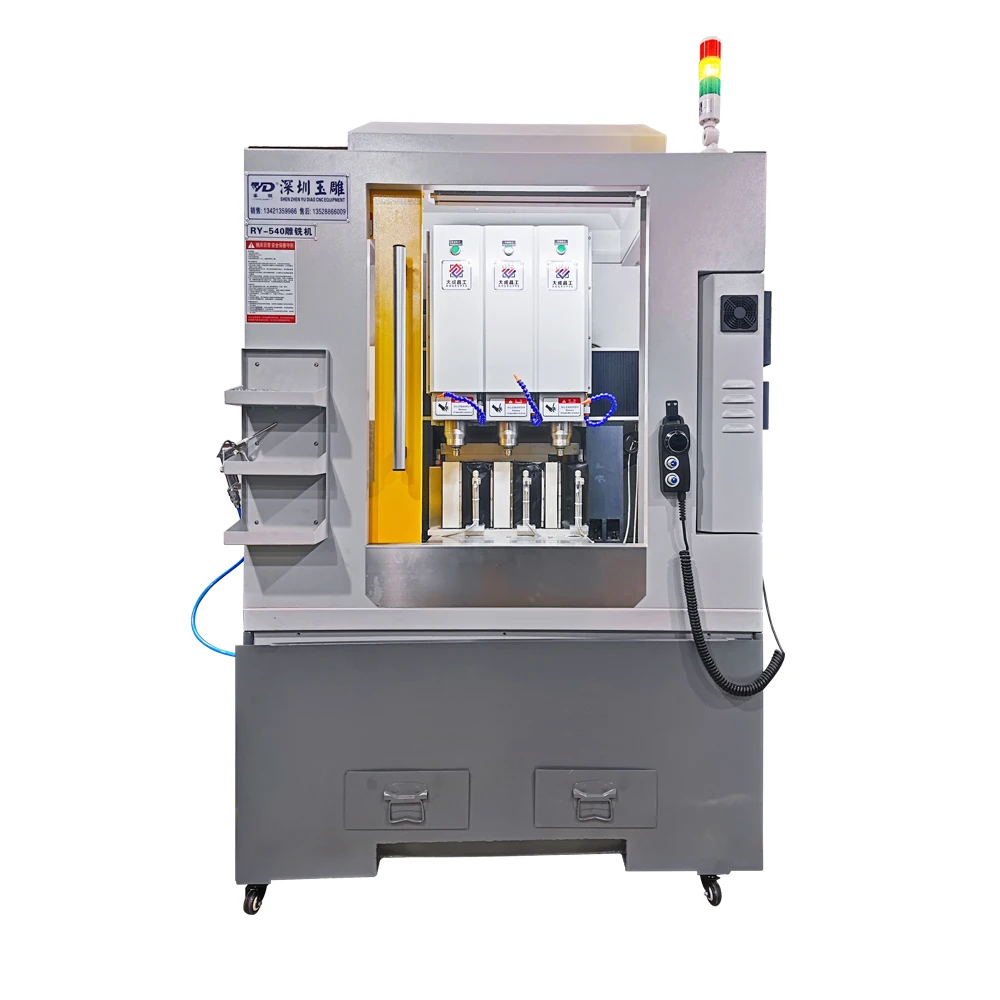

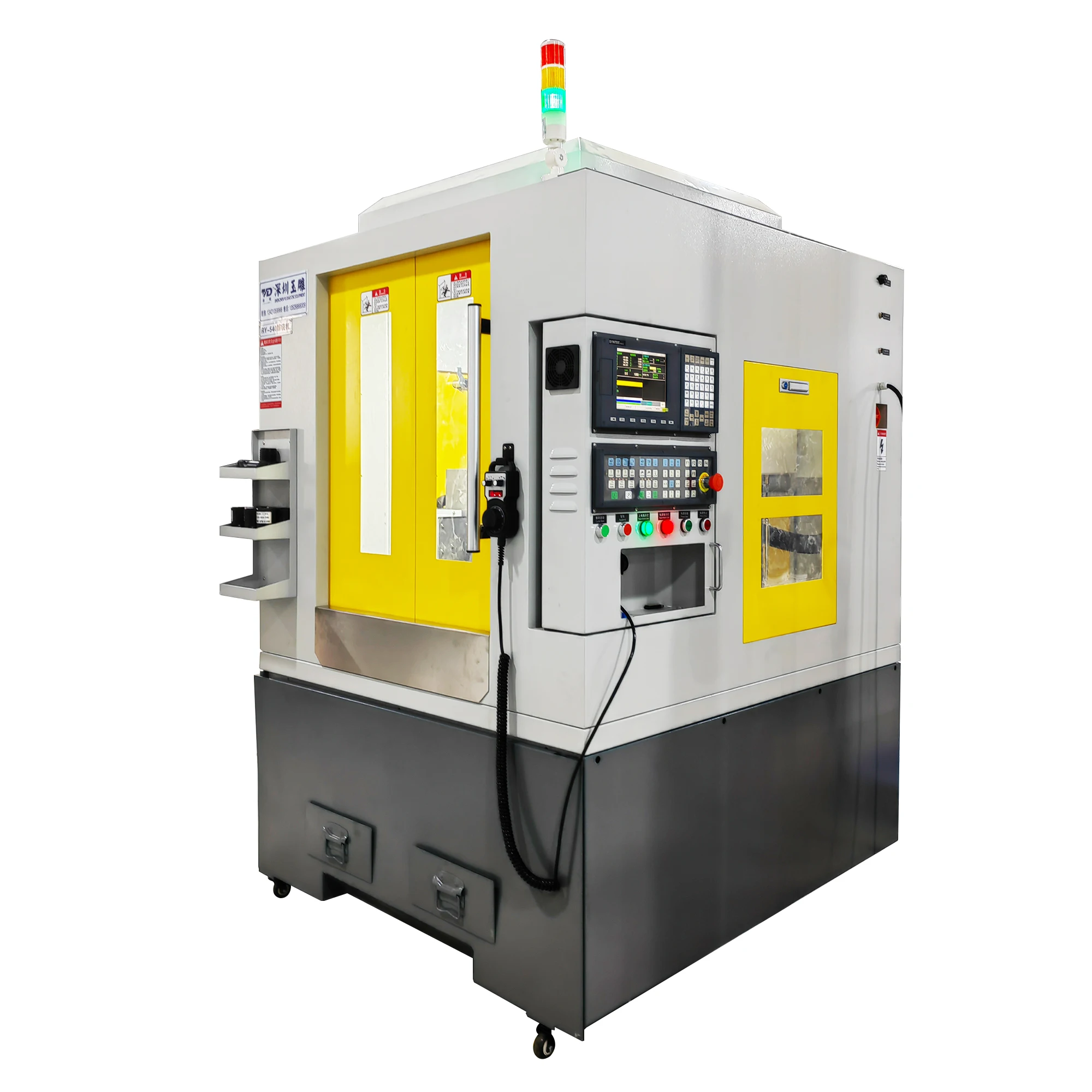

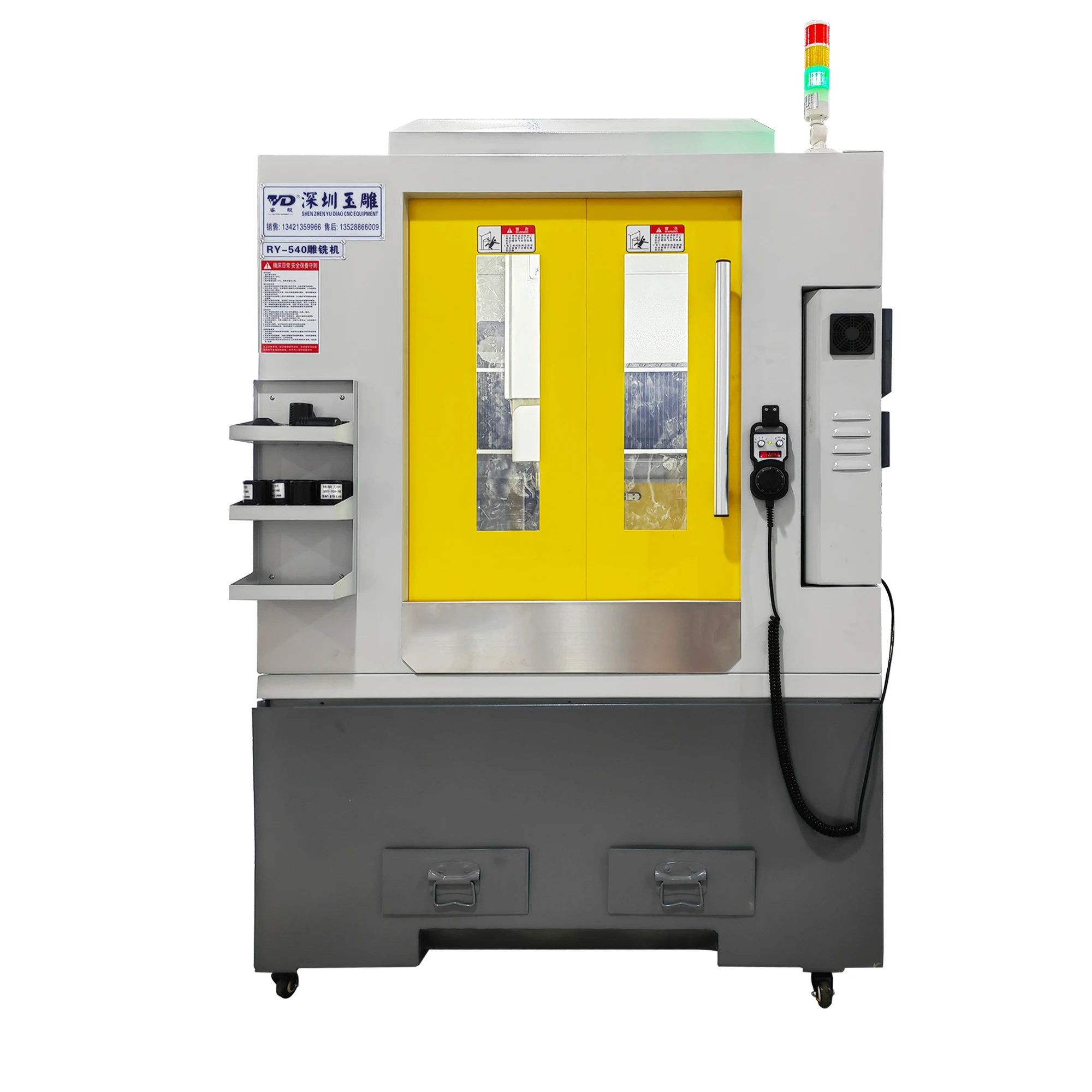

RY-540 высокоскоростной лазерный станок для резки гравировальный стали литья одна осветительная головка с ЧПУ micro
- Категория: Metal Engraving Machinery >>>
- Поставщик: Shenzhen,Yu,Diao,Cnc,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 13685.6 $* | 14369.78 $* |
| Aug-19-2025 | 13570.11 $* | 14249.77 $* |
| Jul-19-2025 | 11385.56 $* | 11954.36 $* |
| Jun-19-2025 | 13340.96 $* | 14007.76 $* |
| May-19-2025 | 11615.68 $* | 12196.43 $* |
| Apr-19-2025 | 13110.29 $* | 13766.72 $* |
| Mar-19-2025 | 12995.39 $* | 13645.98 $* |
| Feb-19-2025 | 12880.13 $* | 13524.48 $* |
| Jan-19-2025 | 12765.96 $* | 13403.69 $* |
Характеристики
Products Description
Product parameters
A | Technical parameters of machine tool： | ||||||||
1 | The machine body and all parts are made of nano castings | ||||||||
2 | Table size | 500×400mm | |||||||
3 | T-groove (width x quantity x spacing) | 10×5×78mm | |||||||
4 | The largest load | 200KG | |||||||
5 | Maximum feed height | 250mm | |||||||
6 | Distance from spindle face to work | 80－250mm | |||||||
7 | Triaxial travel X/Y/Z | 500/400/170mm | |||||||
8 | The spindle diameter | Ǿ80/Ǿ105 | |||||||
9 | Spindle speed | 24000RPM | |||||||
10 | Spindle motor power | 2.2KW/3.5KW | |||||||
11 | Spindle tool library capacity | / | |||||||
12 | Tool change time | / | |||||||
13 | The spindle taper | / | |||||||
14 | Knife library classes | / | |||||||
15 | Fast moving rate X/Y/Z | 12/12/12m/Min | |||||||
16 | Processing speed | 6－12m/Min | |||||||
17 | Positioning accuracy | ±0.006/300mm | |||||||
18 | Repetitive positioning accuracy | ±0.006/300mm | |||||||
19 | Machined surface accuracy | ≤Ra1.6 | |||||||
20 | The machining accuracy | ±0.01mm | |||||||
B | 5 axis motion parameters of machine tool： | ||||||||
1 | Angle of rotation of axis A | / | |||||||
2 | Fifth axis C axis rotation Angle | / | |||||||
3 | Turntable response time | / | |||||||
4 | Five-axis linkage mode | / | |||||||
5 | Working voltage | 380V±10% | |||||||
6 | Machine size (l * W * H) | 1450×1600×2100mm | |||||||
7 | The body weight | 1400KG | |||||||
C | Machine tool configuration details brand parameters： | ||||||||
1 | The system configuration | Taiwan SYNTEC 6GA control System (Absolute bus value)/NCstudio280 | |||||||
2 | The spindle | China Ronghua 2.2KW/3.5KW/4KW | |||||||
3 | Ball screw | Japan NSK, Germany RexRoth 2005 | |||||||
4 | Linear guide | Taiwan HIWIN/ABBA high precision guide H25 | |||||||
5 | Servo unit | Panasonic Servo motor 750W/Ncstudio | |||||||
6 | Wire rod bearing | Taiwan TPI precision grade bearing | |||||||
7 | Switching power supply | Taiwan Ming weft | |||||||
8 | Electric switch | China chint | |||||||
9 | Lubrication system | China Xiangda automatic | |||||||
10 | coupling | China dacheng | |||||||
11 | The knife instrument | China dacheng | |||||||
12 | The handwheel | China dacheng | |||||||
13 | converter | China's four sides | |||||||
14 | Spindle cooling system | China special domain from cold water cooling machine | |||||||
15 | Cooling pump head | 7M | |||||||
16 | Disc servo cutter library | / | |||||||
17 | Machine tool processing bin closed | Semi-enclosed/fully enclosed (optional) | |||||||
18 | The equipment can run continuously for a long time | 7*24 hours/week | |||||||
