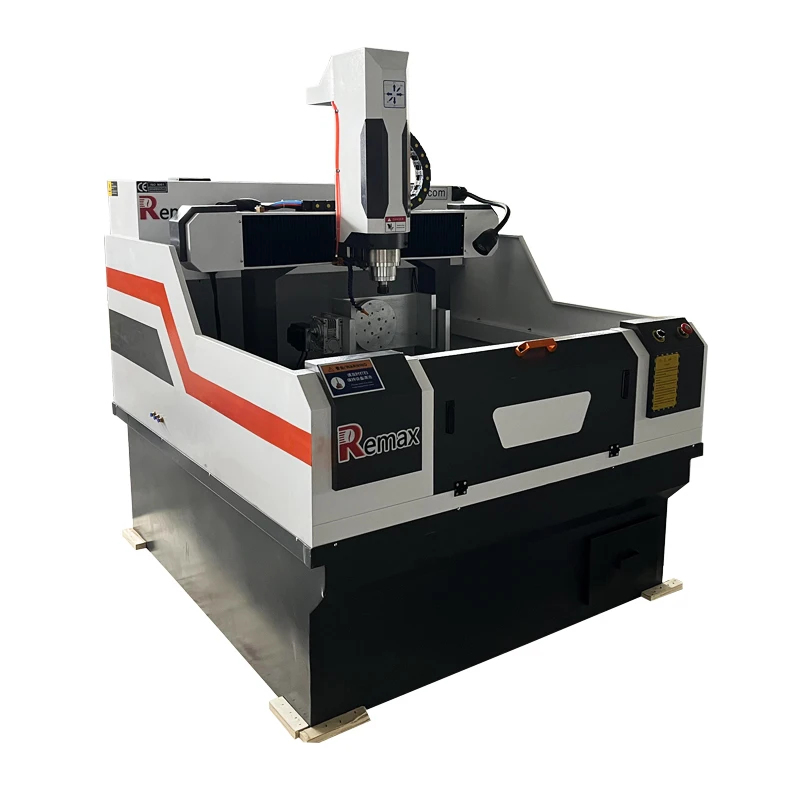

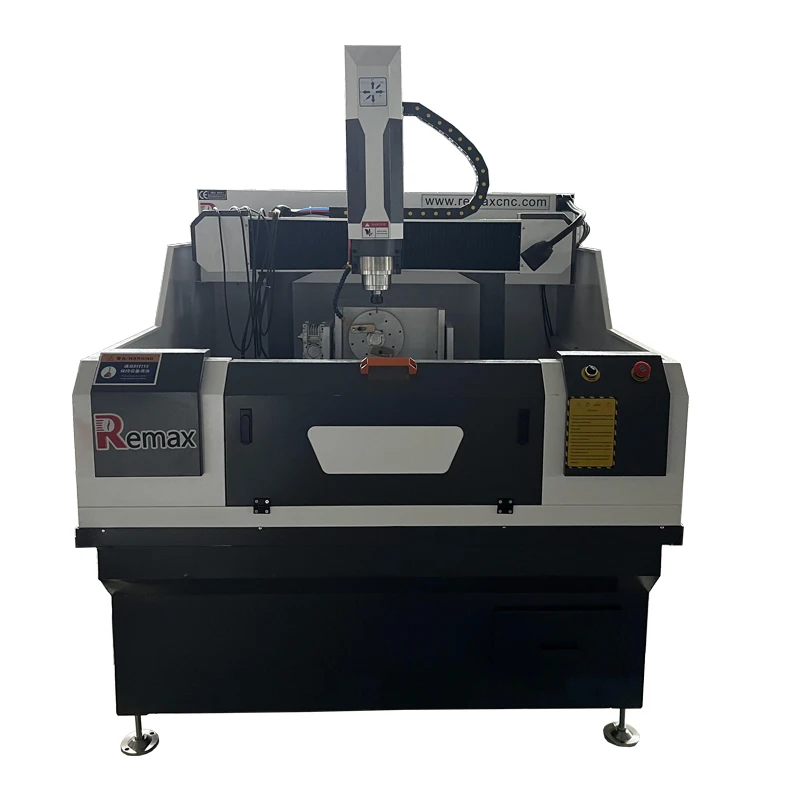

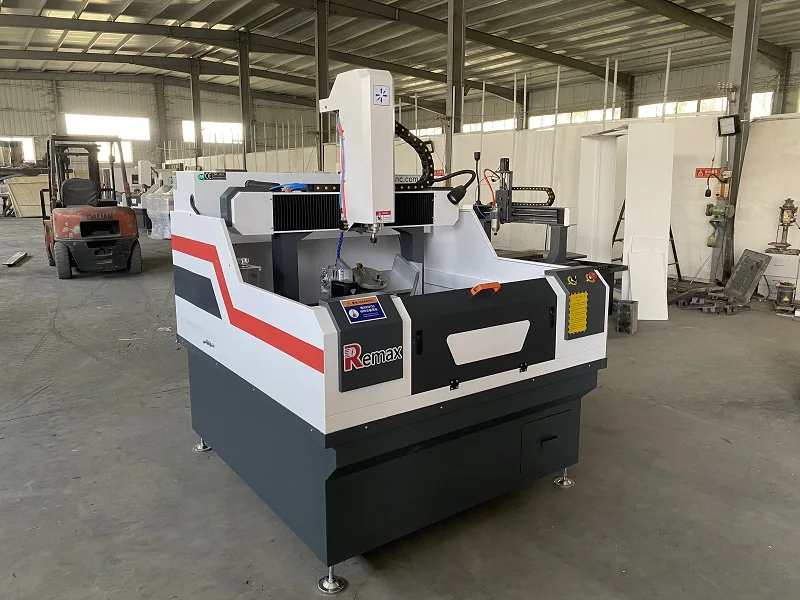

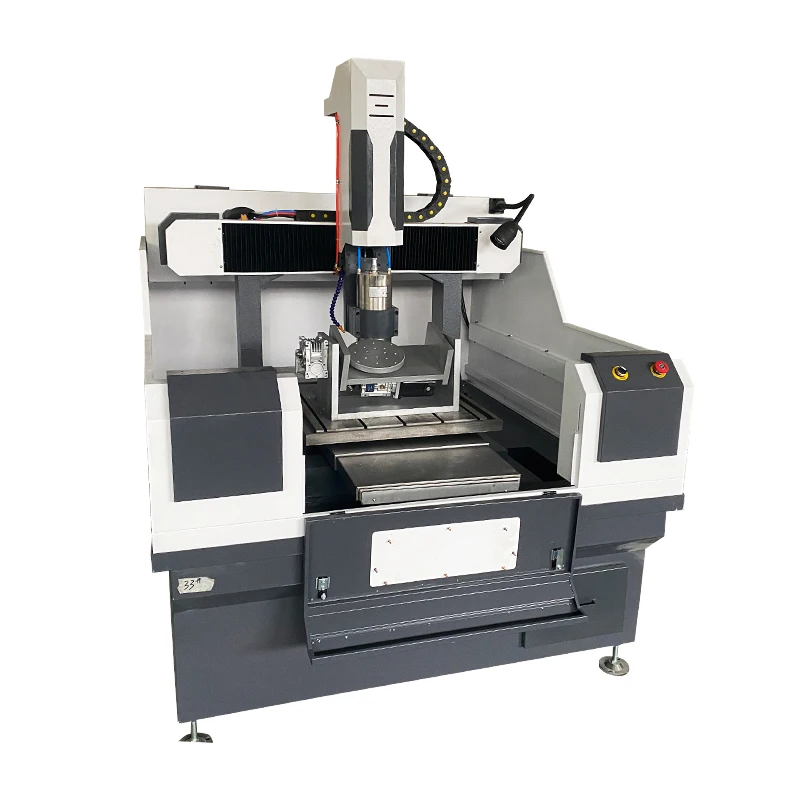

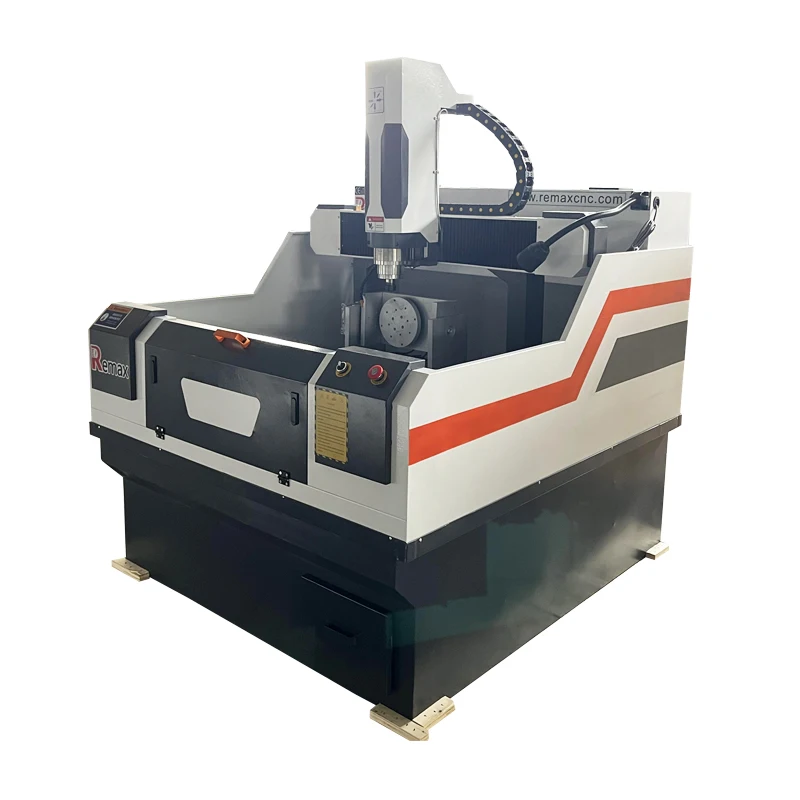

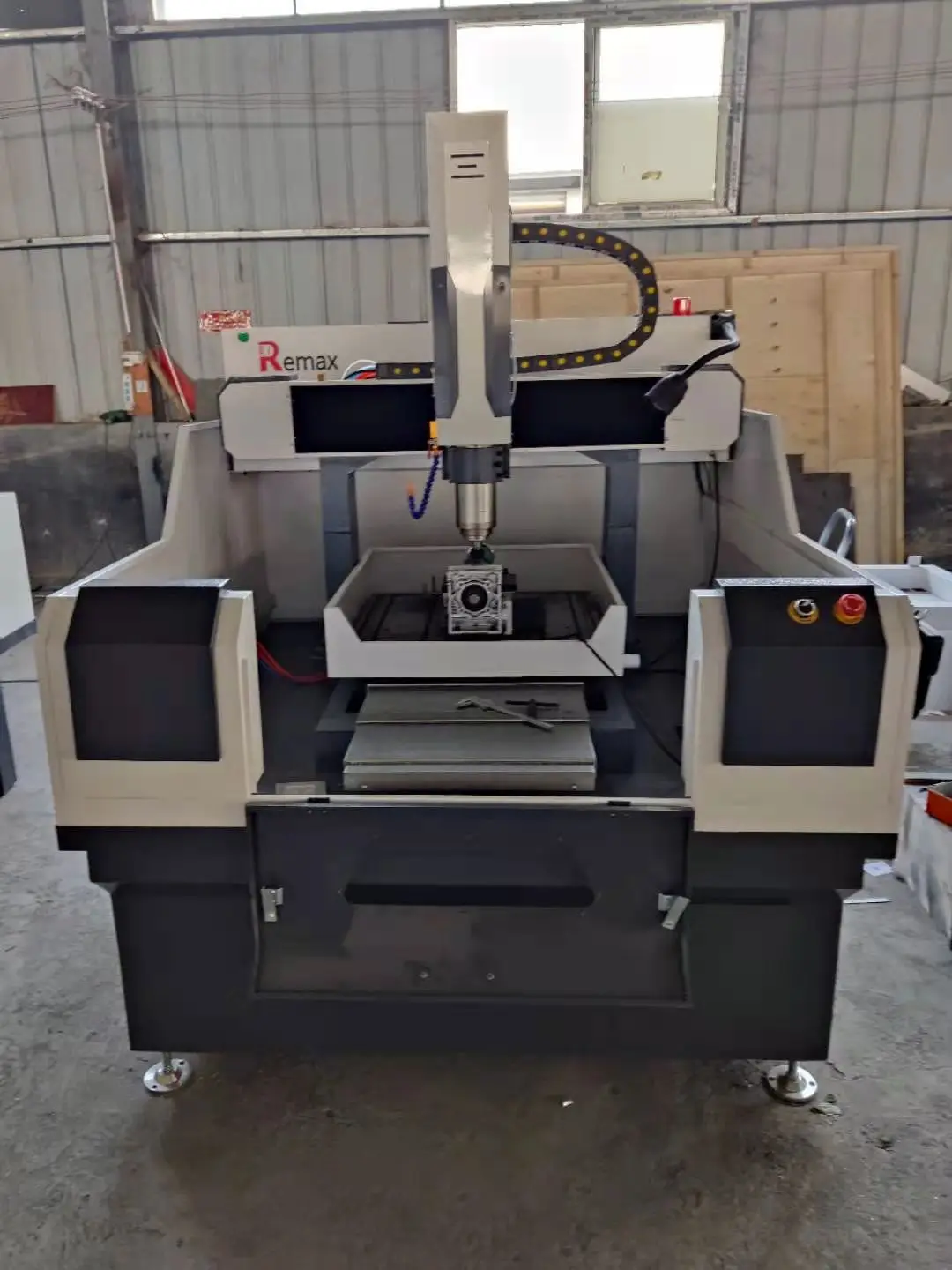

5 оси cnc router машина центр пресс-маршрутизатор с ЧПУ 6060
- Категория: Metal Engraving Machinery >>>
- Поставщик: Jinan,Remax,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 8998.60 $* | 9178.3 $* |
| Jul-19-2025 | 7298.96 $* | 7444.72 $* |
| Jun-19-2025 | 8856.72 $* | 9033.85 $* |
| May-19-2025 | 8785.36 $* | 8961.77 $* |
| Apr-19-2025 | 7014.88 $* | 7154.47 $* |
| Mar-19-2025 | 8644.97 $* | 8817.48 $* |
| Feb-19-2025 | 8573.74 $* | 8744.89 $* |
| Jan-19-2025 | 8502.4 $* | 8672.95 $* |
Характеристики
Product Description
Feature
1)Whole machine cast by iron, very strong and never out of shape.
2)Taiwan TBL ball screw transmission ensures high accuracy.
3)Imported Taiwan square rail ensures high accuracy and heavy workload.
4)Mach3 control system ,easy cooperation.
Application and parameter
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 600*600*200mm |
2 | X,Y,Z Accuracy | ±0.02mm |
3 | X,Y,Z Repositioning Accuracy | ±0.0254mm |
4 | Table Surface | T-slot Table |
5 | Frame | Whole machine cast by iron |
6 | Transmission | Hiwin square rail and TBI ball screw for 3 axis |
7 | Max.Power Consumption | 2.5kw-3kw (without spindle) |
8 | Max. Working Speed | 10m/min |
9 | Max.Rapid Travel Rate | 18m/min |
10 | Spindle Power | 5.5kw water cooling |
11 | Spindle Speed | 0-24000rpm/min |
12 | Driver and Motor | Leadshne servo motor and drivder |
13 | Working Voltage | 220/380V 50/60Hz |
14 | Command language | G Code |
15 | Operation System | Mach3 for 5 axis |
16 | Computer Intertface | USB |
17 | Software | Type3 or Artcam |
18 | Running Environment Temperature | 0-45 Centigrade |
19 | Relative Humidity | 30%-75% |
20 | Inverter | Delta/Fuling |
21 | Electrical components | Schneider |
22 | Limit switch | OMRON |
23 | Tool sensor and lubrication | With |
24 | Royary axis | Option |
Machine parts
Samples
Packing & Delivery
Our customer
Company Profile
