SVLEC Smart M12 4-канальные одноканальные распределительные блоки с разъемным входом печатной платы для датчика и
- Категория: Power Distribution Equipment >>>
- Поставщик: Kunshan,SVL,Electric,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 22.72 $* | 22.61 $* |
| Jul-19-2025 | 18.76 $* | 18.49 $* |
| Jun-19-2025 | 21.11 $* | 21.35 $* |
| May-19-2025 | 21.28 $* | 21.20 $* |
| Apr-19-2025 | 17.63 $* | 17.15 $* |
| Mar-19-2025 | 21.15 $* | 21.3 $* |
| Feb-19-2025 | 21.2 $* | 21.56 $* |
| Jan-19-2025 | 20.74 $* | 20.90 $* |
Характеристики
Product Description
Junction box
M8/M12 splitter can provide an easier connection of field components and clear wiring. In addition to the M8/M12 thread full
plastic dispenser, we also offer 7/8" dispensers. Main cable connection can be based on needs to choose a screw connection or convenient direct connection.Use Y - type distributor to double the junction box socket. Thus, the wiring time and workload can be saved and the field signal
distribution can be simplified.
Distribution boxes are designed for consistently plugged solutions from the control into the field. They can be easily separated for assembly and transport. The boxes are fully potted which makes them sealed and very resistant.
Practical and Economical
* Pluggable connections from the control into the field
* Quick installation with pre-wired and tested cables
* Double assignment of M12 ports saves space
* Choice of connection methods
* Quick installation with pre-wired and tested cables
* Double assignment of M12 ports saves space
* Choice of connection methods

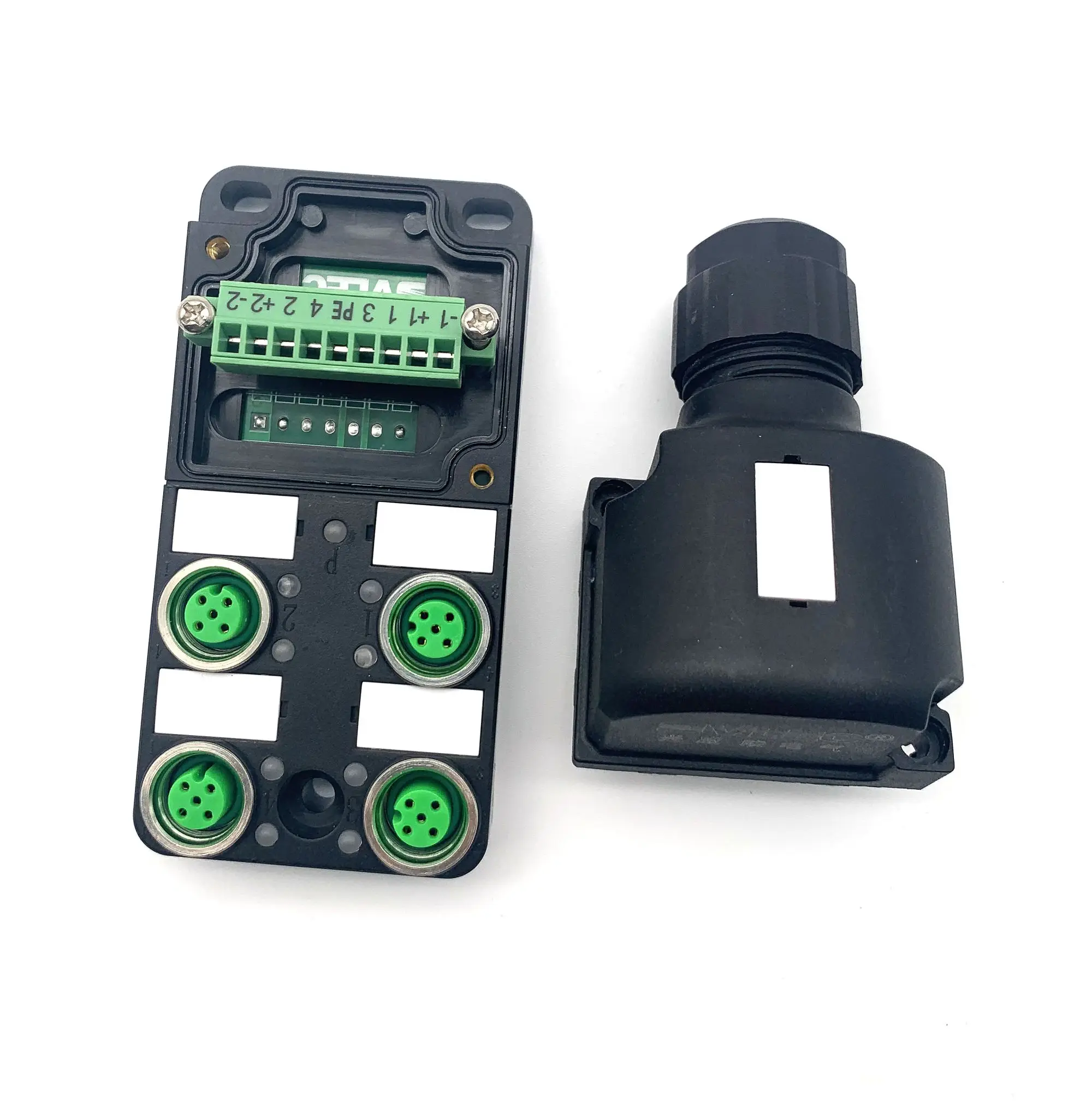

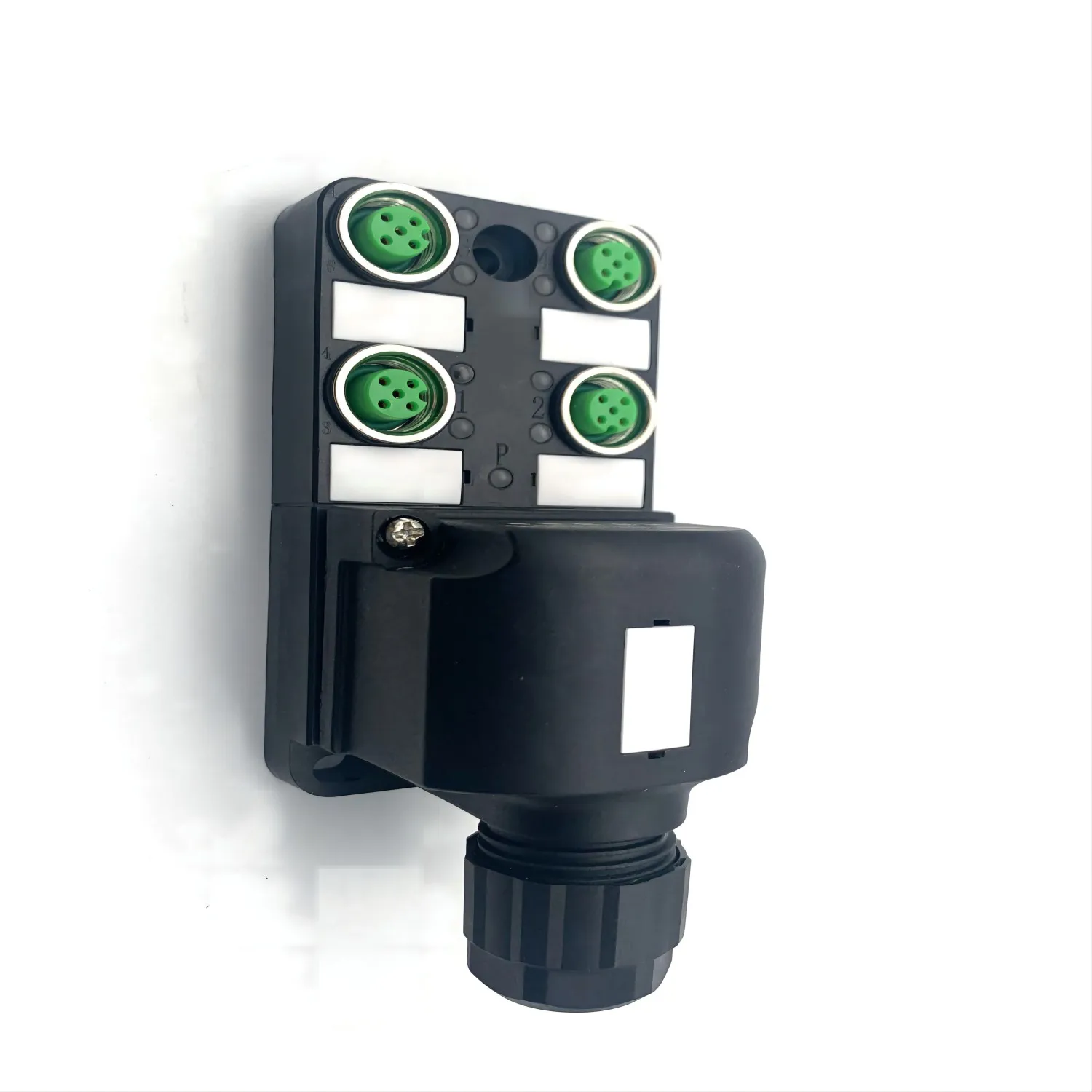

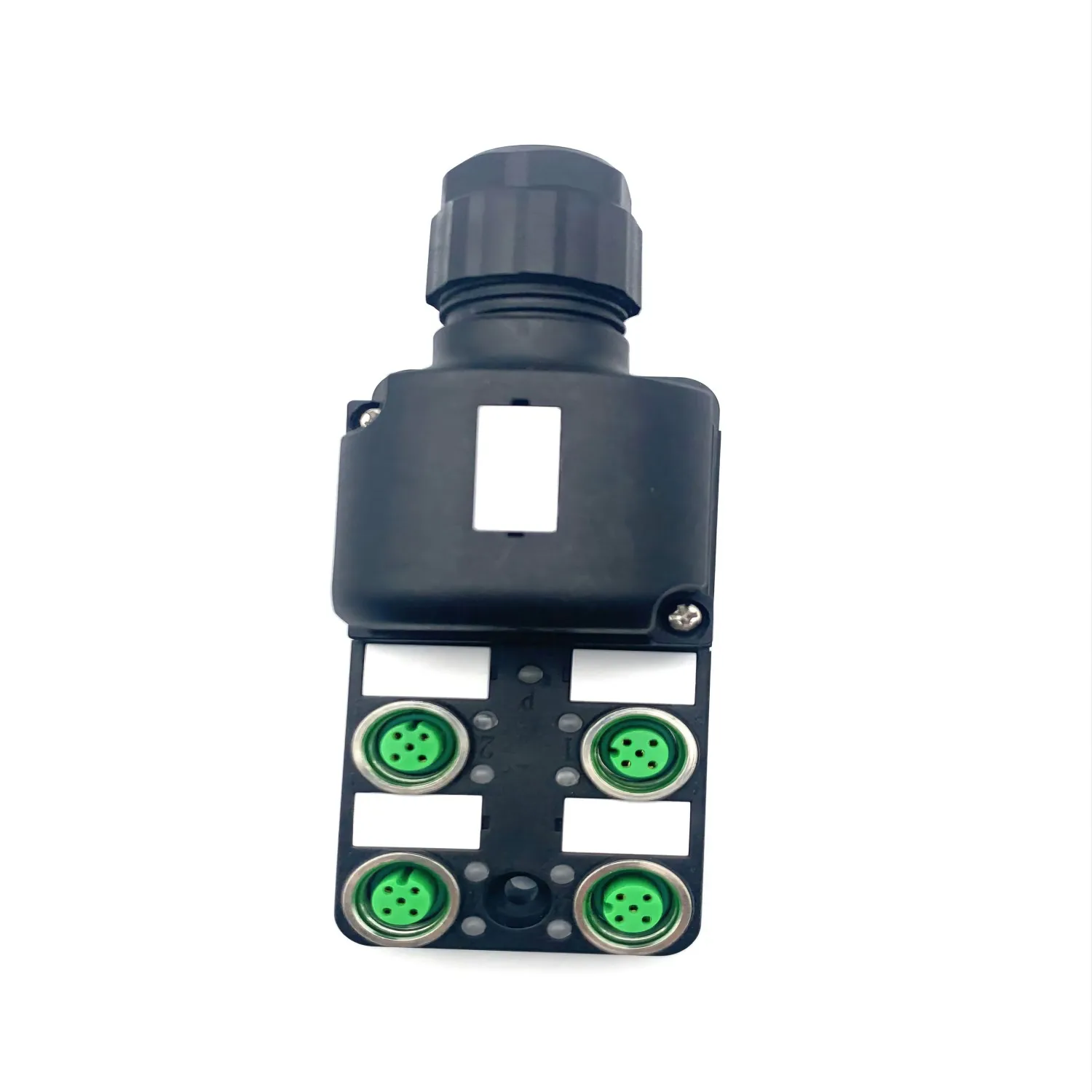

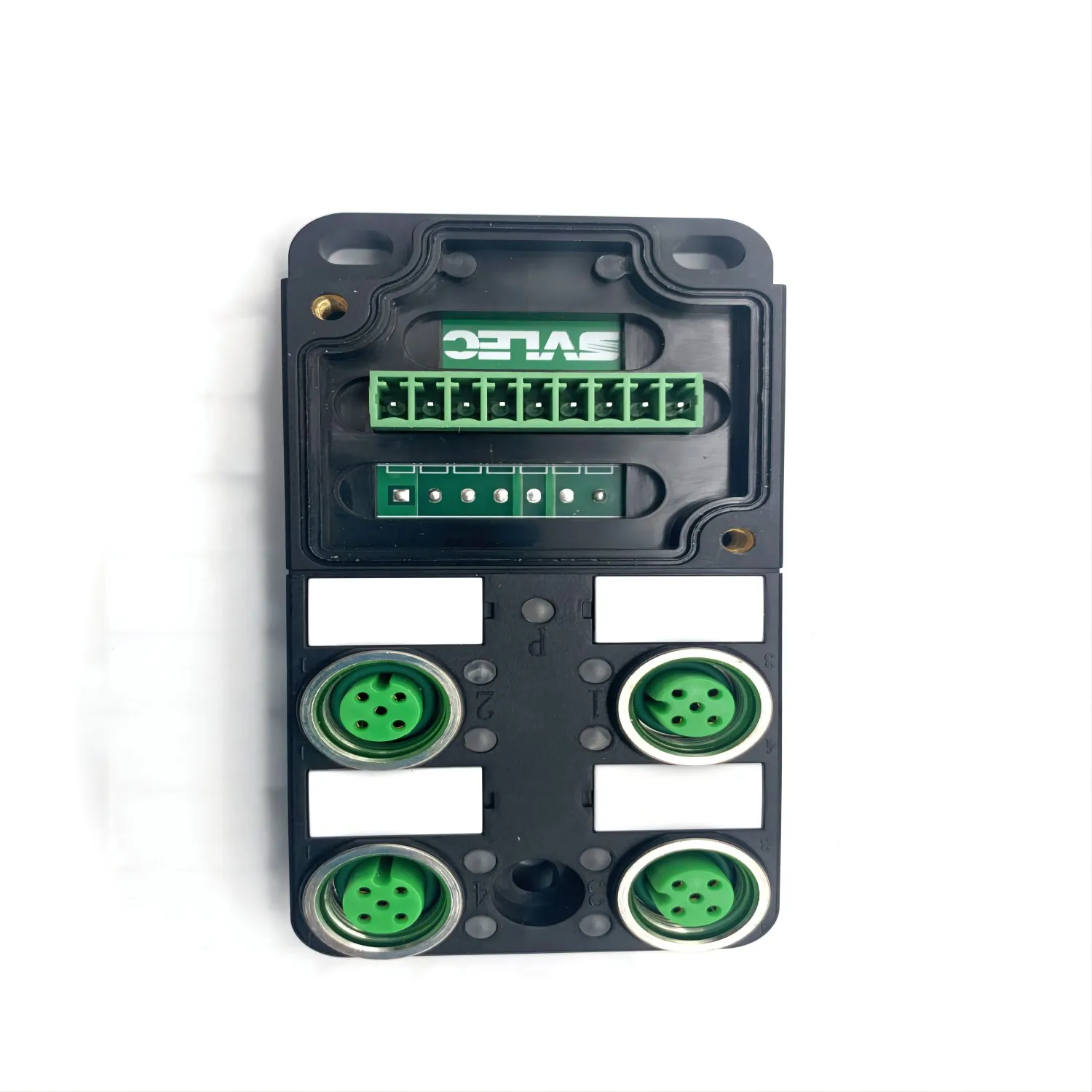

SVLEC single channel 4-way 5-pole M12 distribution boxes with PCB terminals for sensors and actuators
Technical data:
Product name | M12 distribution boxes with PCB terminals |
Port | 4-way |
Pin | 5 pole female |
Form | PNP or NPN |
Feature | 1 signal per port with LED |
Cable material | PVC or PUR |
Protection | IP67 |
Circuit diagram

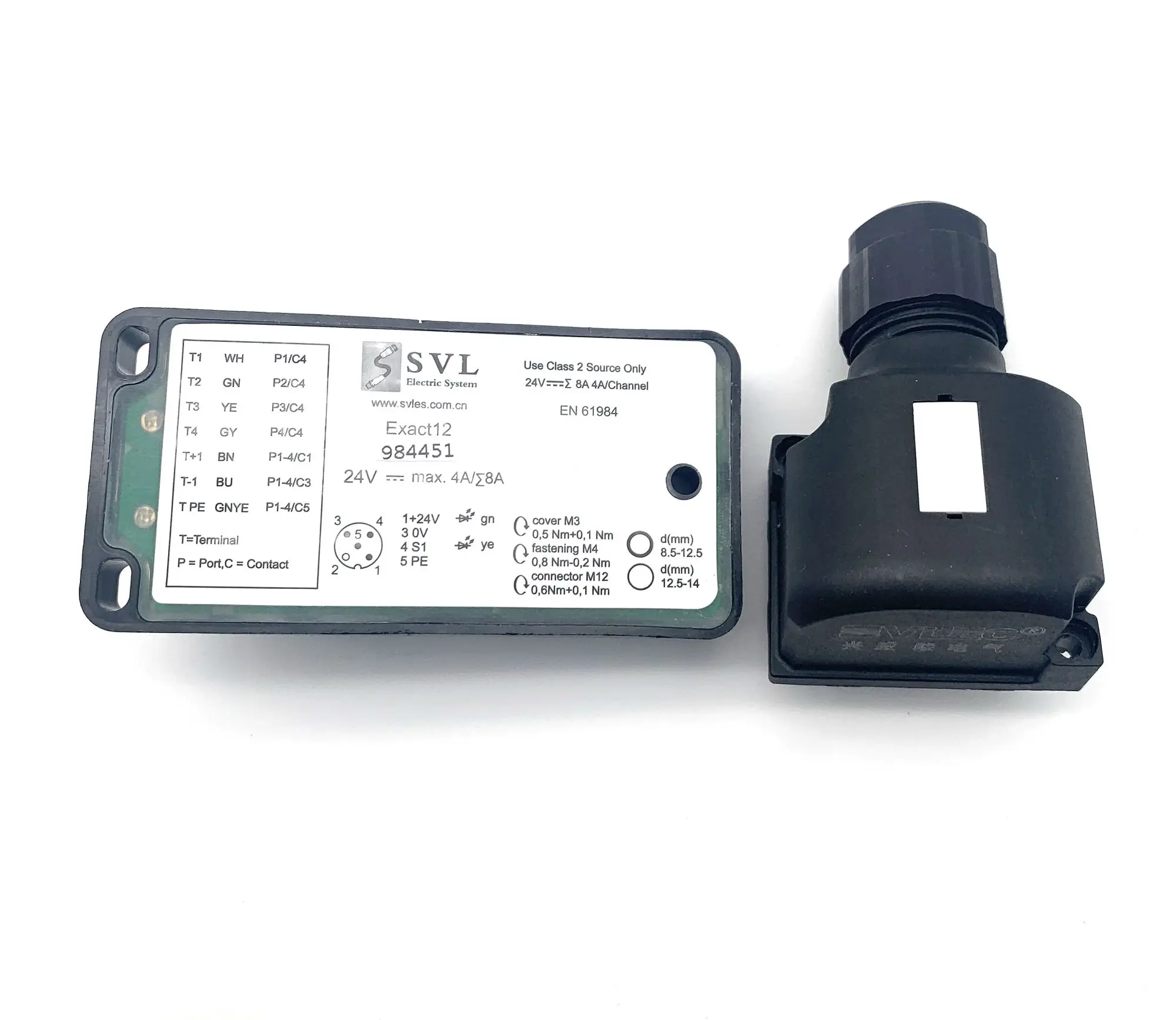

Contact layout
Pin 1 | (+) |
Pin 3 | (-) |
Pin 4 | S1 |
Pin 5 | PE |
LED indicator | Green ( power) |
Yellow ( signal) |
Dimension
Packing & Delivery
For product in stock, we will ship within 3-7 days.
For OEM product, please inquire.
Transport Package: PE bag/Bubble bag→Carton→Pallet
Payment: T/T , 50% Deposit, 50% Balance Before Delivery.
For OEM product, please inquire.
Transport Package: PE bag/Bubble bag→Carton→Pallet
Payment: T/T , 50% Deposit, 50% Balance Before Delivery.
Trade term: EXW , FOB , CIF, CFR, DDU.
Shipment: Express, air cargo, sea shipment.
Company Profile
Kunshan SVL Electric co., LTD., located in German industrial zone, kunshan city, jiangsu province, with a workshop area of 3000square meters.We are innovative Scientific and technological enterprise integrating R&D, production and sales. SVLEC can provide automatic components such as connectors and wiring harness, heavy-duty connectors, servo wiring harness, panel interface, valve plug, cable entry system, magnetic switch, pressure switch, industrial LED lighting, bus module, etc.
SVLEC ‘s high-quality, innovative products are strictly tested in the laboratory and long-term user integration. Our laboratory fully conforms to the IEC 61984 & IEC 17025 construction standards. Our products have passed CE, TUV, UL certification successively. SVLEC provide reliable products and high-quality and efficient services for customers in the energy industry,process industry, infrastructure, factory automation and other industrial fields.
SVLEC ‘s high-quality, innovative products are strictly tested in the laboratory and long-term user integration. Our laboratory fully conforms to the IEC 61984 & IEC 17025 construction standards. Our products have passed CE, TUV, UL certification successively. SVLEC provide reliable products and high-quality and efficient services for customers in the energy industry,process industry, infrastructure, factory automation and other industrial fields.
