H3C 2U стойка для сервера UniServer R4300 G3 серверное оборудование и программное


Поделиться:


Цена:2 400,00 $ - 3 200,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 2856.80 $* 2999.13 $*
Aug-20-2025 2832.93 $* 2974.7 $*
Jul-20-2025 2376.16 $* 2495.16 $*
Jun-20-2025 2784.71 $* 2923.40 $*
May-20-2025 2424.18 $* 2545.7 $*
Apr-20-2025 2736.62 $* 2873.83 $*
Mar-20-2025 2712.47 $* 2848.74 $*
Feb-20-2025 2688.88 $* 2822.28 $*
Jan-20-2025 2664.78 $* 2797.8 $*

Характеристики



Product Description




The R4300 G3 server realize the comprehensive needs of high storage capacity, efficient data calculation, and linear expansion within 4U rack. This model is suitable for multiple industries such as government, public security, operator, and the Internet. As an advanced high-performance dual-processor 4U rack server, the R4300 G3 features the most recent Intel® Xeon® Scalable processors and six-channel 2933MHz DDR4 DIMMs, increasing server performance by 50%. With up to 2 double-width or 8 single-width GPUs, equipping R4300 G3 with excellent local data processing and real-time AI acceleration performance. The R4300 G3 server support up to 52 drives, seamless select from M.2 to NVMe drives and flexible NVDIMM/DCPMM combination as well as Optane SDD/NVMe high-speed flash. With up to 10 PCIe 3.0 slots and up to 100 GB Ethernet card 56Gb、100Gb IB card, Server can easily achieve reliable and flexible I/O expansion to deliver high volume and concurrent data service. R4300 G3 Server support power supplies with 96% efficiency that greatly improves data center efficiency and reduce the datacenter cost. R4300 G3 provide a favorable linear expansion of DC-level storage capacity. It can also support multiple modes Raid technology and power outage protection mechanism to make the server an ideal infrastructure for SDS or distributed storage, - Big Data – manage exponential growth in data volume includes structured, unstructured, and semi-structured data - Storage-oriented application – eliminate I / O bottlenecks and improve performance - Data warehousing/Analysis – extract valuable information for wiser decision-making - High-performance and deep learning–Powering machine learning and artificial intelligence applications The R4300 G3 supports Microsoft® Windows® and Linux operating systems, as well as VMware and H3C CAS and can operate perfectly in heterogeneous IT environments.

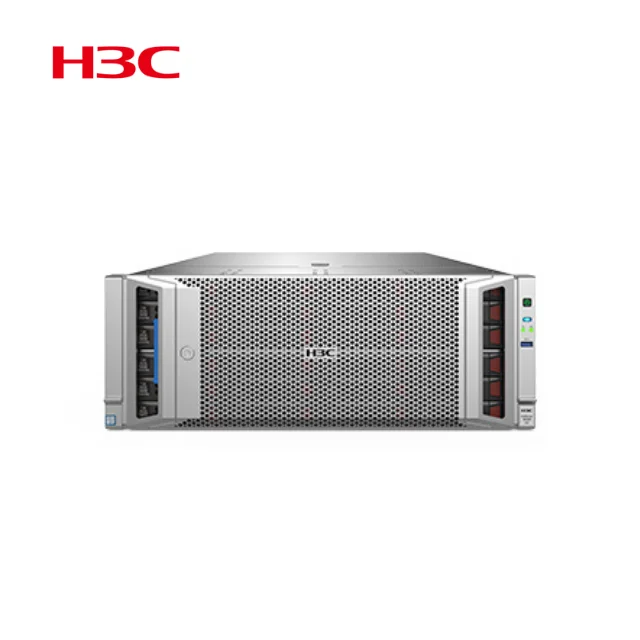

Product detail drawing



Specification



Computing
2 × Intel® Xeon® Scalable processors (Up to 28 cores and maximum 165 W power consumption)
Chipset
Intel® C621
Memory
24 × DDR4 DIMMs 3.0 TB (maximum)

(Up to 2933 MT/s data transfer rate and support for both RDIMM and LRDIMM)

(Up to 12 Intel ® Optane™ DC Persistent Memory Module.(DCPMM)

Optional NVDIMM*
Storage controller
Embedded RAID controller (SATA RAID 0, 1, 5, and 10)

Mezzanine HBA card (SATA/SAS RAID 0, 1, and 10) (Optional)

Mezzanine storage controller (RAID 0, 1, 5, 6, 10, 50, 60, 1E and Simple Volume) (Optional)

Standard PCIe HBA cards and storage controllers (Optional)

NVMe RAID
FBWC
4 GB cache
Storage
Support SAS/SATA/NVMe U.2 Drives

Front 24LFF; Rear 12LFF+4LFF(2LFF)+4SFF;Support internal 4LFF* or 8SFF*;Optional 10 NVMe drives

Support SATA M.2 optional part
Network
1 × onboard 1 Gbps HDM management Ethernet port and 2 x GE Ethernet port

1 × FLOM Ethernet adapter that provides 4 × 1GE copper ports ; 2 × 10GE fiber ports; FLOM support NCSI function

PCIe 3.0 Ethernet adapters (Optional), Support 10G,25G,100G LAN Card or 56G/100G IB card
PCIe slots
10 × PCIe 3.0 slots (8 standard slots, one for Mezzanine storage controller, and one for Ethernet adapter)
Ports
Rear VGA connector and serial port

3 × USB 3.0 connectors (two at the rear and one at the front)
GPU
8 × single-slot wide or 2 x double-slot GPU modules*
Optical drive
External optical drive
Management
HDM (with dedicated management port) and H3C FIST
Security
Support Chassis Intrusion Detection

TPM2.0
Power supply and Cooling
2 x 550W/850W/1300W or 800W –48V DC power supplies (1+1 Redundant Power Supply)

80Plus certification, up to 94% energy conversion efficiency

Hot swappable fans (supports 4+1 Redundancy)
Standards
CE,UL , FCC,VCCI,EAC, etc.
Operating temperature
5°C to 40°C (41°F to 104°F)

Storage Temperature:-40~85ºC(-41°F to 185°F)

The maximum operating temperature varies by server configuration. For more information, see the technical documentation for the
device.
Dimensions (H × W × D)
4U Height

Without a security bezel: 174.8 × 447 × 782 mm (6.88 × 17.60 × 30.79 in)

With a security bezel: 174.8 × 447 × 804 mm (6.88 × 17.60 × 30.79 in)
Details Images



Chassis appearance display
Front of model
Rear of model
Model side
Packing&Shipping



Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Packing & Delivery

All the products are shipped in one piece at Beijing and hongkong.
phone:00852-56466680
Wechat: 15901547465
E-mail:huayingxintong@163.com
Company Introduction



Hebei Tengyi Technology Co., Ltd. is a high-tech hardware company. Our core business is to provide customers with HUAWEI, H3C, ZTE, HPE, DELL, Cisco and other brands of servers, storage, switches, routers, network equipment, firewalls, wireless AP and IP phones, voice communication equipment and other hardware products and data centers Computer room construction, intelligent operation and maintenance management. We also have independently developed servers and IPPBX products. Provide a number of customers with intelligent overall solutions for computer rooms. The company is headquartered in Beijing. There are branches in Hebei, Gansu, Ningxia, Shanxi, Shaanxi and other cities. The company has achieved efficient and rapid development and has developed a number of products with independent intellectual property rights. It has achieved good performance and reputation in finance, manufacturing, medical, education, government and other industries.
