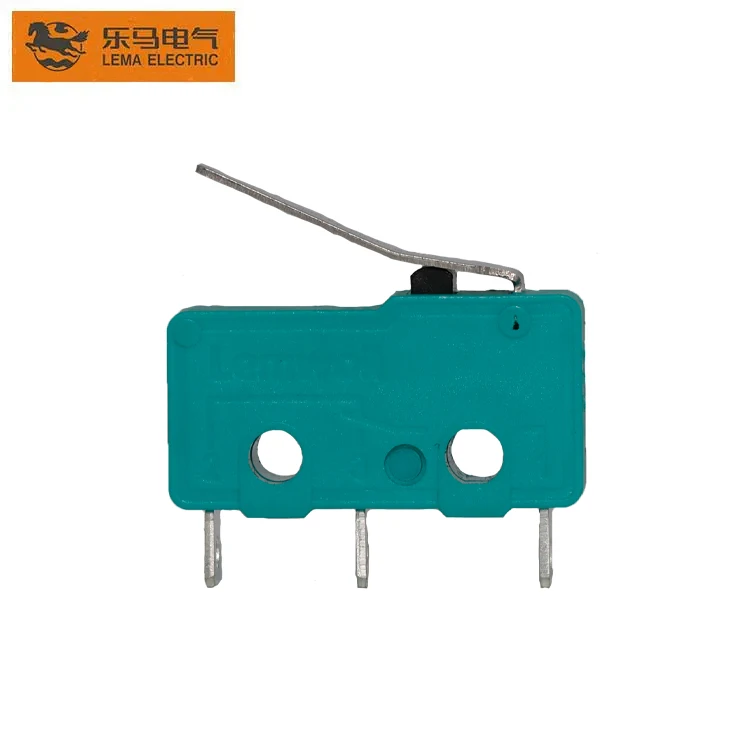

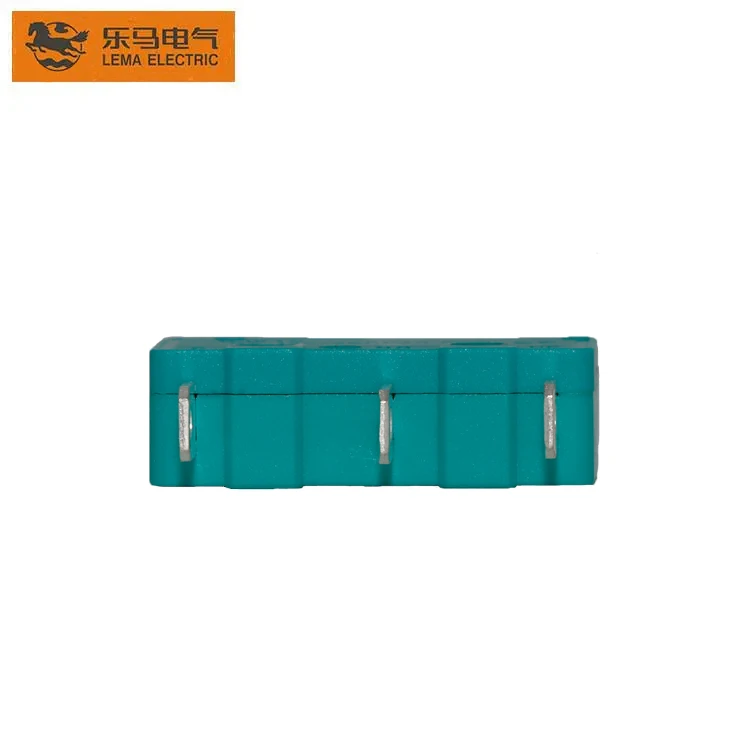

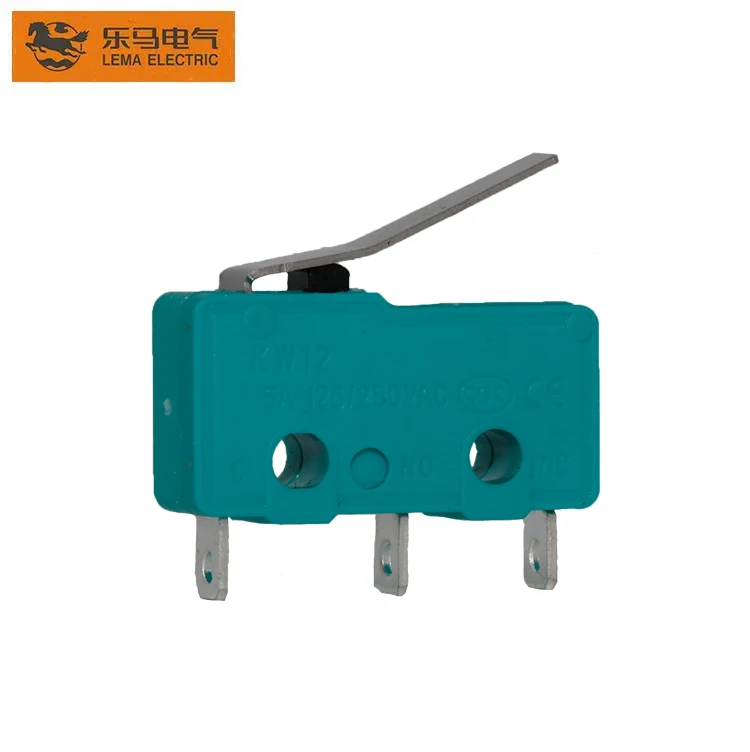

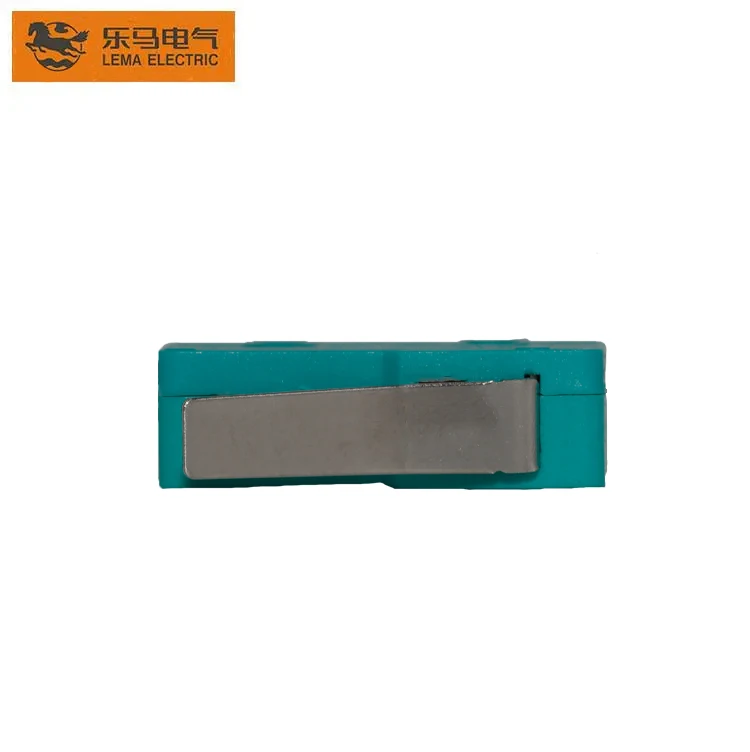

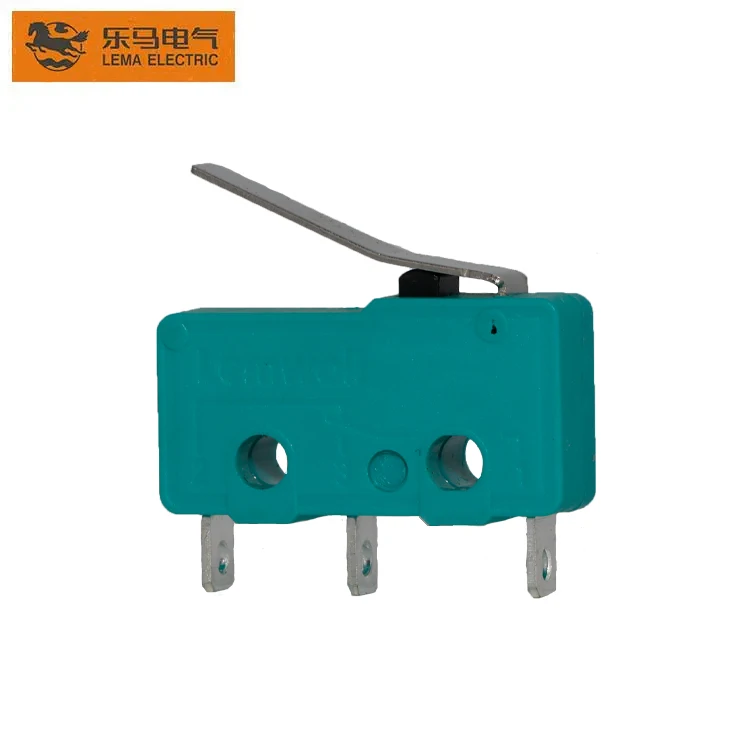

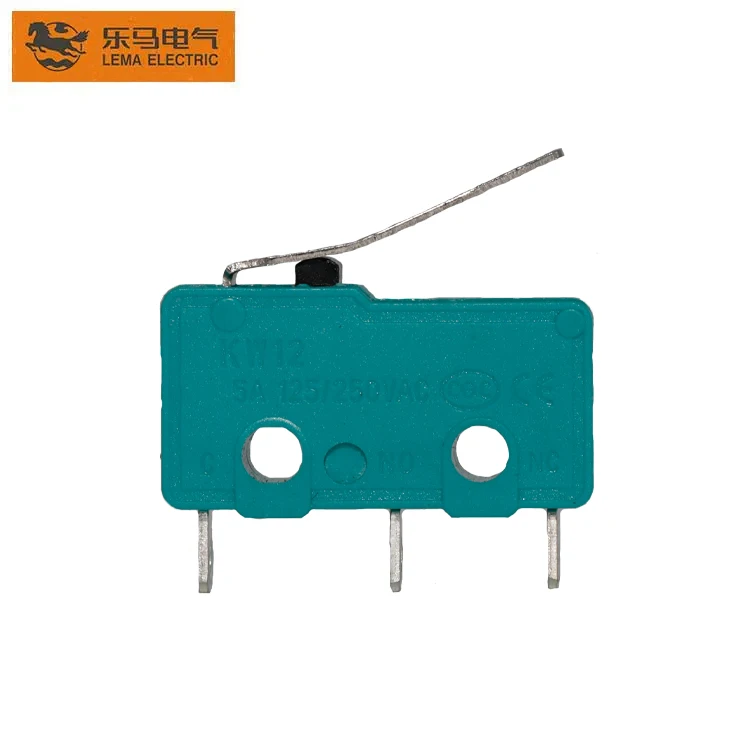

Lema KW12-12 Микро Кнопочный тактильный переключатель 3
- Категория: Switches >>>
- Поставщик: Zhejiang,Lema,Electrics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.53 $* | 0.74 $* |
| Aug-17-2025 | 0.58 $* | 0.10 $* |
| Jul-17-2025 | 0.73 $* | 0.64 $* |
| Jun-17-2025 | 0.8 $* | 0.90 $* |
| May-17-2025 | 0.90 $* | 0.25 $* |
| Apr-17-2025 | 0.11 $* | 0.42 $* |
| Mar-17-2025 | 0.89 $* | 0.73 $* |
| Feb-17-2025 | 0.64 $* | 0.90 $* |
| Jan-17-2025 | 0.91 $* | 0.2 $* |
Характеристики
Product Description
Brand | LEMA |
Model | KW12-12 |
Voltage | 250V |
5Electric Current | 5A |
Protection level | IP40 |
Package | CARTON |
Size | 19.8*14.1*6.4mm |
Certification | CQC CE |
Operating speed | 0.1mm-1m/s | ||||||
Operating life | Mechanical: 1,000,000 operations/min Electrical: 10,000 operations/min | ||||||
Initial insulation resistance | 100MΩmin.(at 500VDC) | ||||||
Initial contact resistance | 25MΩmax. | ||||||
Dielectric strength | Between non-consecutive terminals | 1,000Vrms, 50/60Hz for 1 min | |||||
Between non-current carrying metal parts and each terminal | 1,500Vrms, 50/60Hz for 1 min | ||||||
Between ground and each terminal | 1,500Vrms, 50/60Hz for 1 min | ||||||
Vibration resistance | 10-55Hz,1.5mm double amplitude | ||||||
Max.shock resistance | Destruction: O.F.>0.5N: 1000m/s² Malfunction: O.F.>0.5N: 200m/s² | ||||||
FAQ
Q: How do you control the products’ quality? A: 100% Auto inspection machine and manual testing together before packing. | ||||||||
Q: What's your payment term? A: We usually accept T/T. Samples cost can be paid by PayPal, Western Union. | ||||||||
Q: Would you accept to use our logo? A: If you have good quantity, we can make OEM and ODM, customized specification. | ||||||||
Q: Can I get a sample for reference? A: We are glad to send samples for your testing. Samples are free, but you may need to pay the express cost. | ||||||||
Q: What is your delivery time? A: Usually it takes 15-20 working days for productions. | ||||||||
