Пользовательский боковой вход 304 316 из нержавеющей стали PP мешок корпус фильтра с фланцевым
- Категория: Cleaning Equipment >>>
- Поставщик: Hebei,Ince,Environmental,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 464.83 $* | 487.93 $* |
| Aug-19-2025 | 460.8 $* | 483.83 $* |
| Jul-19-2025 | 386.19 $* | 405.46 $* |
| Jun-19-2025 | 452.56 $* | 475.28 $* |
| May-19-2025 | 394.97 $* | 414.77 $* |
| Apr-19-2025 | 445.35 $* | 467.99 $* |
| Mar-19-2025 | 441.82 $* | 463.83 $* |
| Feb-19-2025 | 437.29 $* | 459.4 $* |
| Jan-19-2025 | 433.96 $* | 455.0 $* |
Характеристики
Product Description
Application: Chemical industry, pharmacy, automobile industry, light industry, food industry, electroplating industry, etc.
Specification
Product name: | Bag filter housing |
Materials: | stainless steel 304 |
Bag Size: | 180*810mm |
Bag number: | 1 bag |
Filter area: | 0.5 ㎡ |
Diameter: | φ219mm |
Height: | 1200mm |
Design Pressure: | 150PSI |
Vent Connection: | ¼'' BSPT |
Seal Material: | EPDM O-ring |
Inlet and outlet: | 2'' BSPT |

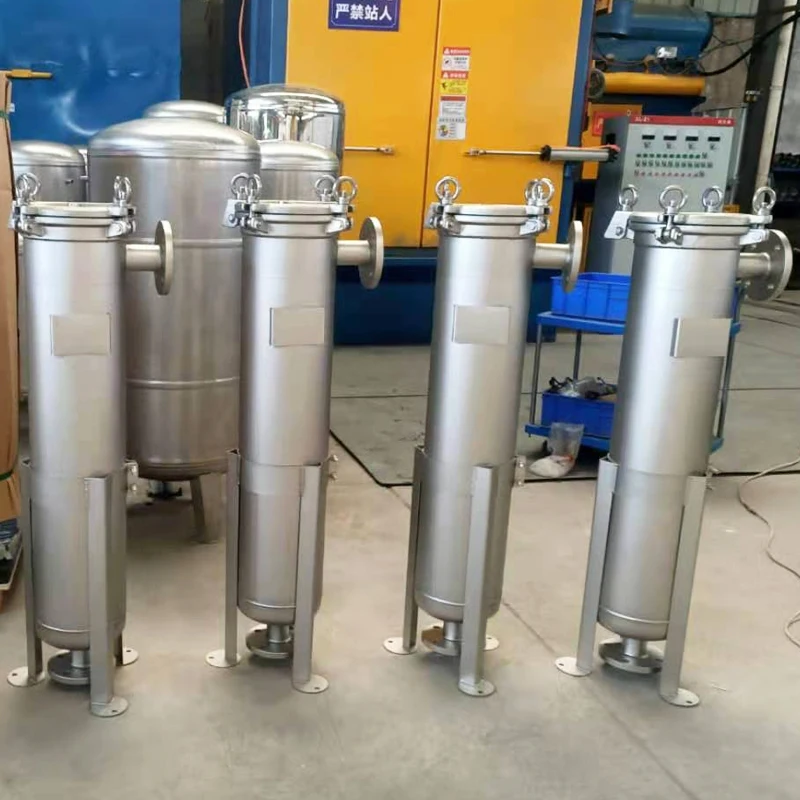

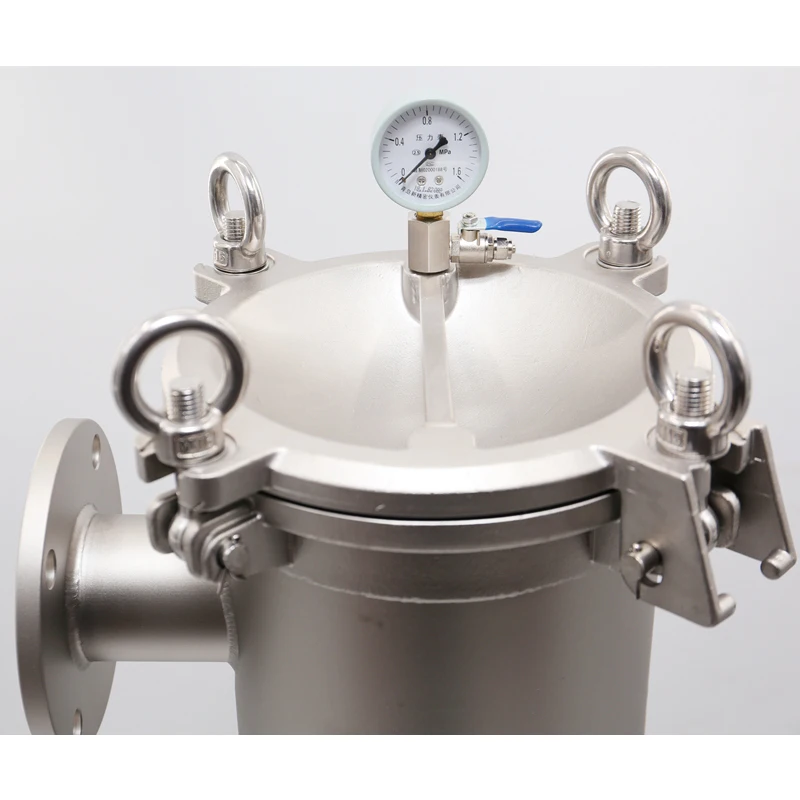

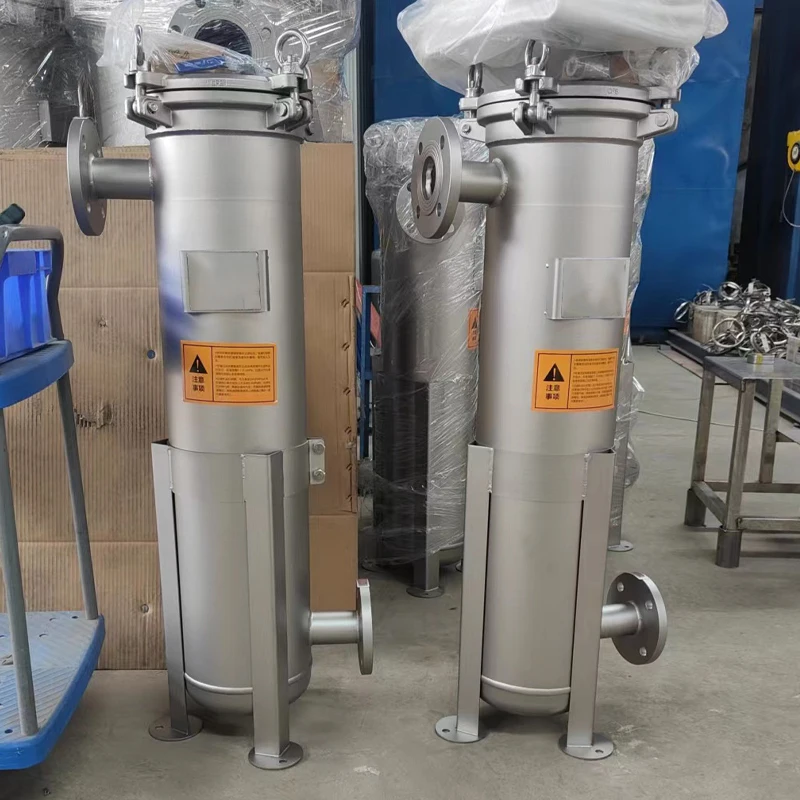

Products Show

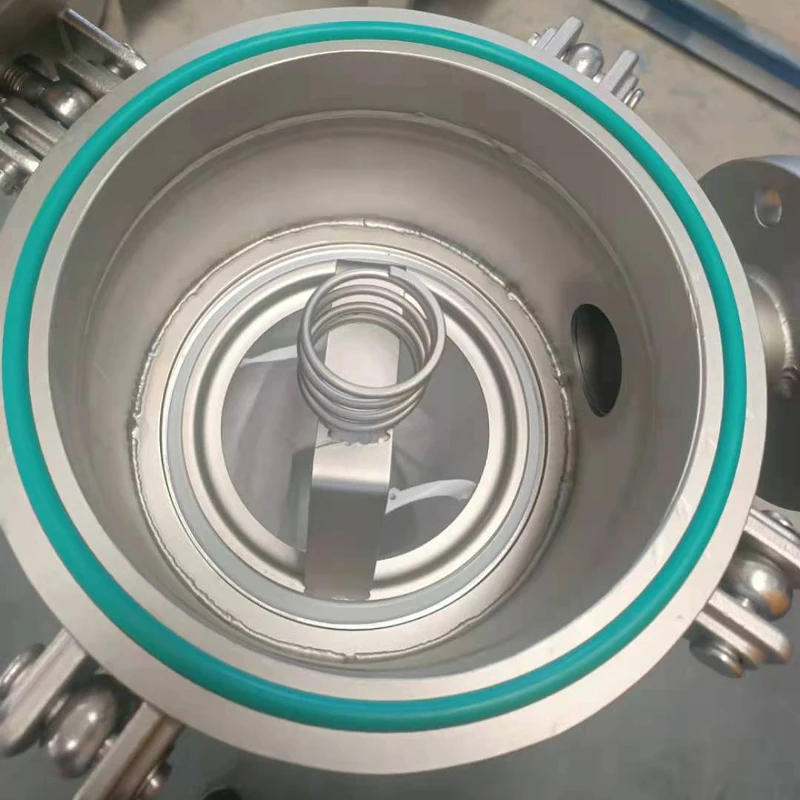

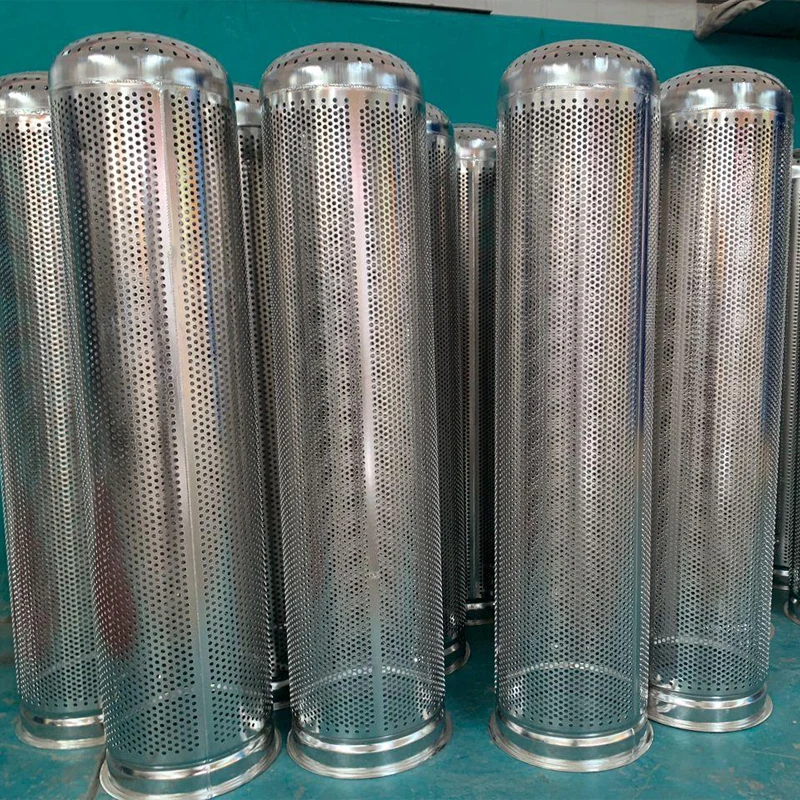

The filter bag is supported by the stainless steel mesh inside. The liquid flows into the chamber via inlet, and go through the filter bag.
The impurities will be blocked into the filter bag. The filter bag can be reused repeatedly after washing or cleaning and it is easy to change the bag. The filter is features of no material consumption and low operation cost.
The impurities will be blocked into the filter bag. The filter bag can be reused repeatedly after washing or cleaning and it is easy to change the bag. The filter is features of no material consumption and low operation cost.
Max capacity is the reference value base on water test: the actual value can be different because of liquid viscosity, solid
content and pressure difference
content and pressure difference
The material can be carbon steel, SUS304 and SUS316
1) High capacity, small size
2) Easy to replace the filter bag, no need clean and labor saving
3) After cleaning the filter bag can be used repeatedly to save cost
4) Lower leakage risk ensures high quality
5)Wide application, flexible use, various installation model for choice
6) High working pressure, low pressure loss, low operation cost and energy saving
2) Easy to replace the filter bag, no need clean and labor saving
3) After cleaning the filter bag can be used repeatedly to save cost
4) Lower leakage risk ensures high quality
5)Wide application, flexible use, various installation model for choice
6) High working pressure, low pressure loss, low operation cost and energy saving
Packing & Delivery
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
