-0 1-0-100MPa OEM воздуха санитарный передатчик

Категория: Pressure Transmitters >>>
Поставщик: Baoji,Xingyuteng,Measure,And,Control,Instruments,Co.,Ltd.

Цена:60,00 $ - 65,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	71.8 $*	75.44 $*
Aug-16-2025	71.3 $*	75.55 $*
Jul-16-2025	59.47 $*	62.49 $*
Jun-16-2025	70.69 $*	74.0 $*
May-16-2025	61.14 $*	64.81 $*
Apr-16-2025	68.74 $*	71.88 $*
Mar-16-2025	68.65 $*	71.31 $*
Feb-16-2025	67.6 $*	70.54 $*
Jan-16-2025	67.0 $*	70.88 $*

Характеристики

Product Description

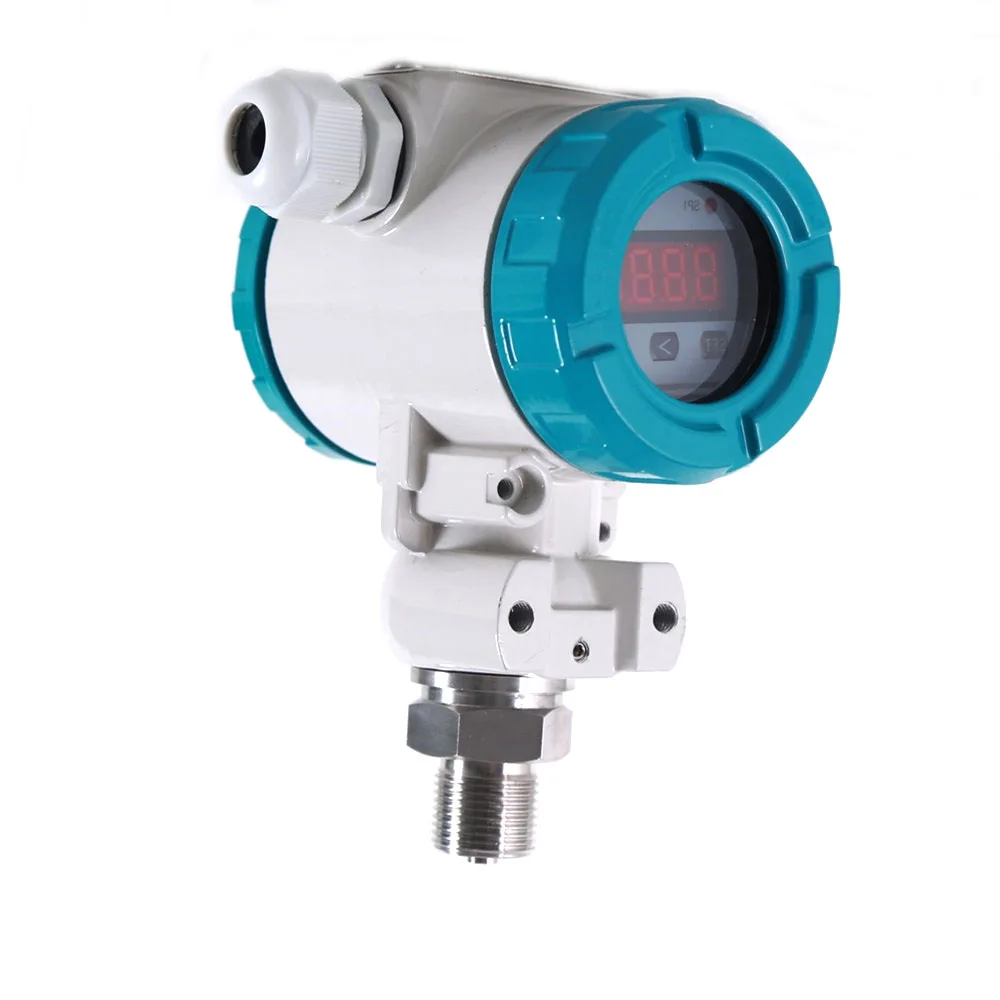

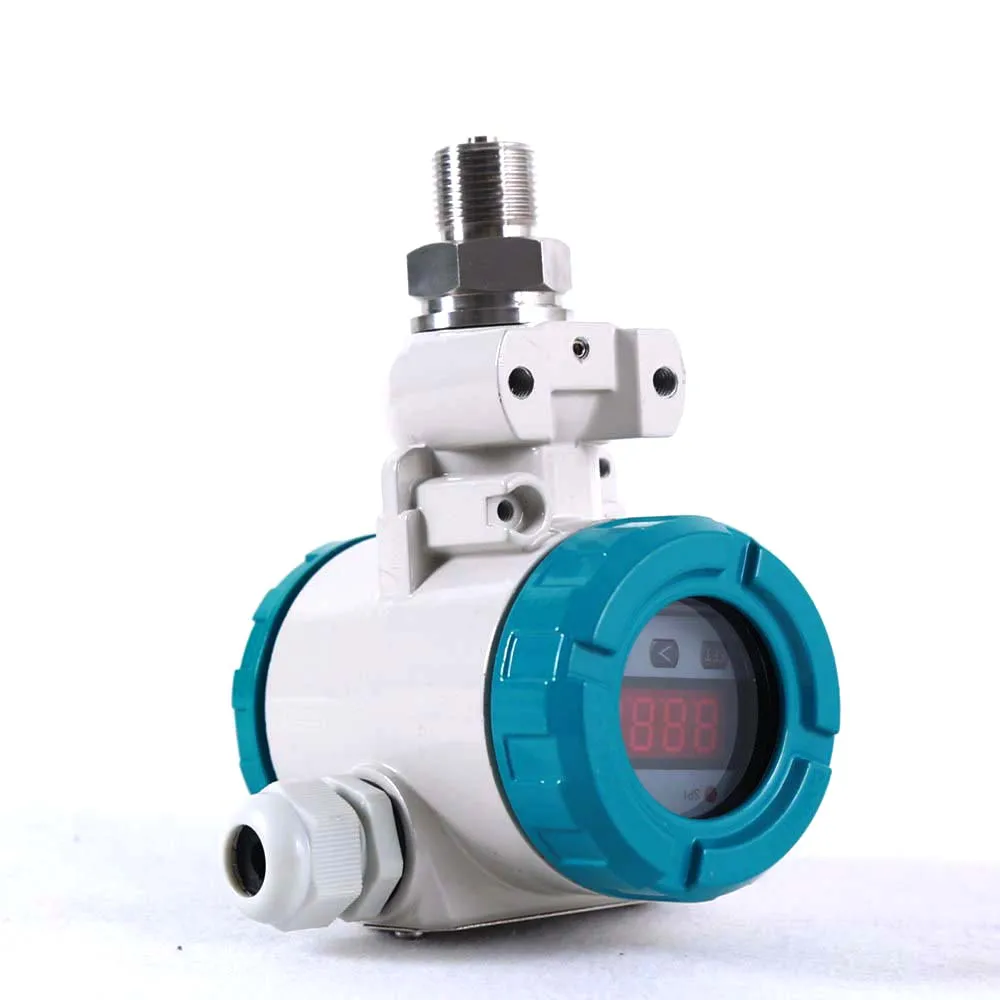

-0.1-0-100MPa OEM air sanitary pressure transmitter

Piezoresistive negative pressure sensor 5v

QYB102 5

QYB102 .jpg

Details

Product Application

QYB103 is the most popular transmitter and Industrial explosion-proof shell, been widely used in Harsh environment of petroleum and chemical industry etc.

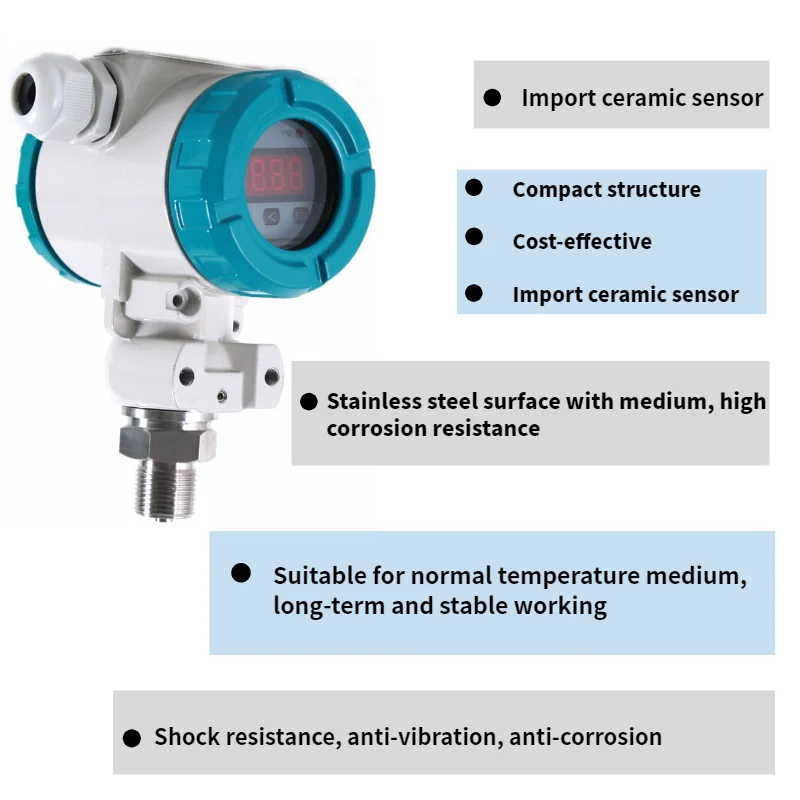

Main Features

1) Diffusion silicon sensor .

2) Wide range.

3)High protection grade, high precision and good stability.

4) Digital pressure display LCD for double Output signal 4~20mA/RS485

5) Having the functions of conversion Various metering units counting

5)self-contained power, after the instrument power-off, can Sustainable work 48 hours

5) Shock resistance, vibration resistance, applicable in industrial field and explosion-proof.

SELECTIONS FOR QYB103 PRESSURE TRANSMITTER
Model	display	LCD
Output signal	I	4-20mA
	R	RS485 & 4-20mA
	OTHERS	Please contact us for customization
Threaded connection	G12	G1/2
	G14	G1/4
	M20	M20*1.5
	OTHERS	Please contact us for customization

SPECIFICATIONS FOR QYB103 PRESSURE TRANSMITTER
PRESSURE RANGE	-0.1~0...100MPa
ACCURACY	0.25%F.S
STABILITY	≤0.1%/year
POWER SUPPLY	12~30VDC
WORK TEMPERATURE	-30°C~80°C
MEDIA TEMPERATURE	-40°C~150°C(Temperature over 80C shall equipped with heat radiator)
OVERLOAD CAPACITY	150%F.S
BURST CAPACITY	300%F.S
PRESSURE TYPE	Gauge pressure/Absolute pressure(vacuum)/seal pressure
RELATIVE HUMIDITY	0~90%
PROTECTION LEVEL/IP RATING	IP65
MEDIA	Gas/Liquid/Oil etc
Sensor	Diffused sillcon

3051
	Pressure range	-0.1. . .0~0.01...100MPa
	(0-X)KP Or MPa	X:Measurement range
		Code	Power supply
		D1	24VDC
		D2	5VDC
		D3	Others
			Code	Output signal
			S1	4~20mADC			S5		0~20mADC
			S2	RS485			S6		0 RS485
			S3	4~20Madc & RS485			S7		4~20Madc & RS485
				Code	Pressure Port
				J1	M20×1.5 male
				J2	G1/2 male
				J3	G1/4 male
				J5	Others(such as DN50 flange)
					Code	Electrical connection
					B4	3051 industry housing
					B5	3051 housing with LED
					B6	others
						Code		Pressure type
						G		Gauge
						A		Absolute pressure
						S		Sealed pressure

Installation diagram


Exhibition

.jpg

Certifications

.png

FAQ

1. How long will you reply me?
Normally in 1 hours, longest time wouldn't over 12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.
