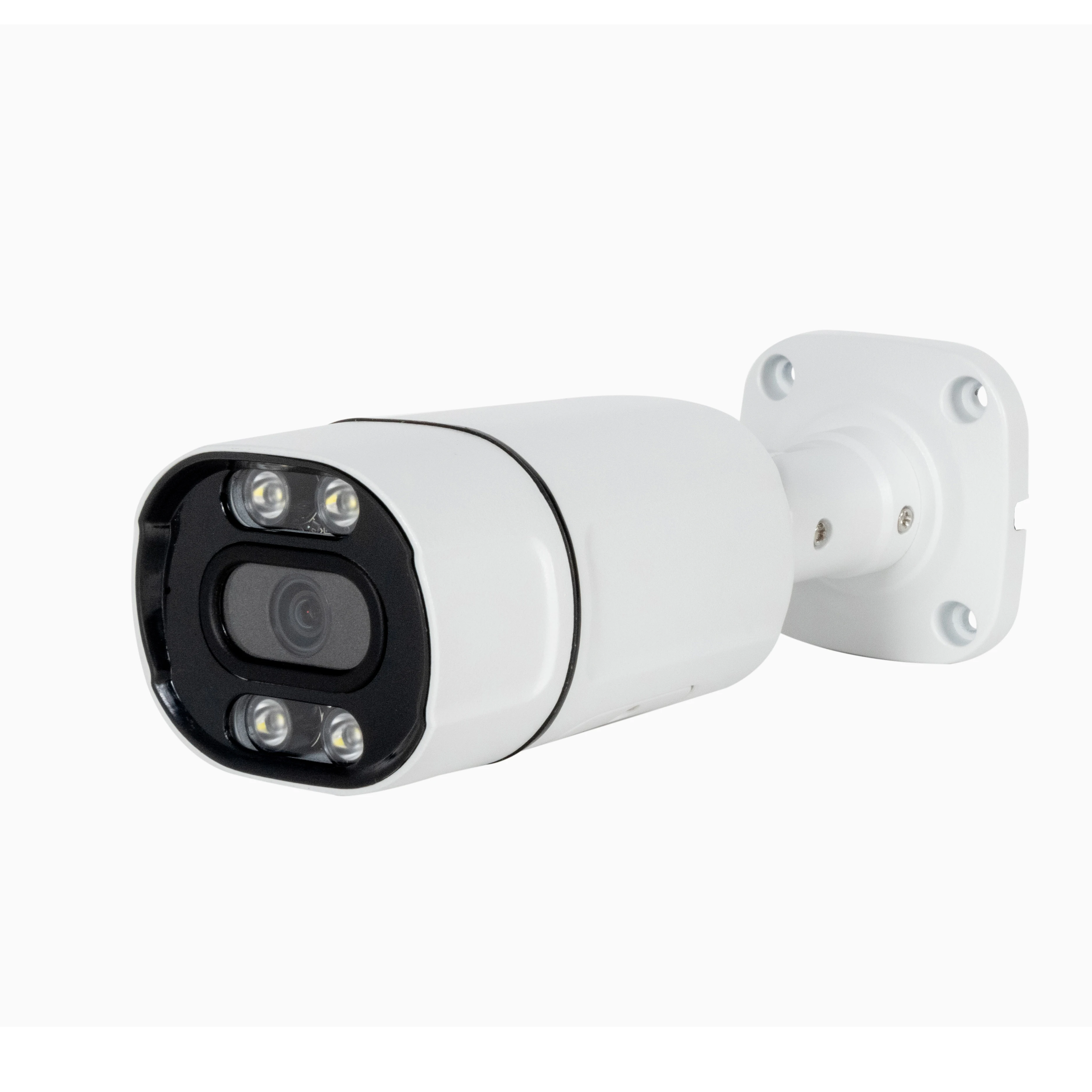

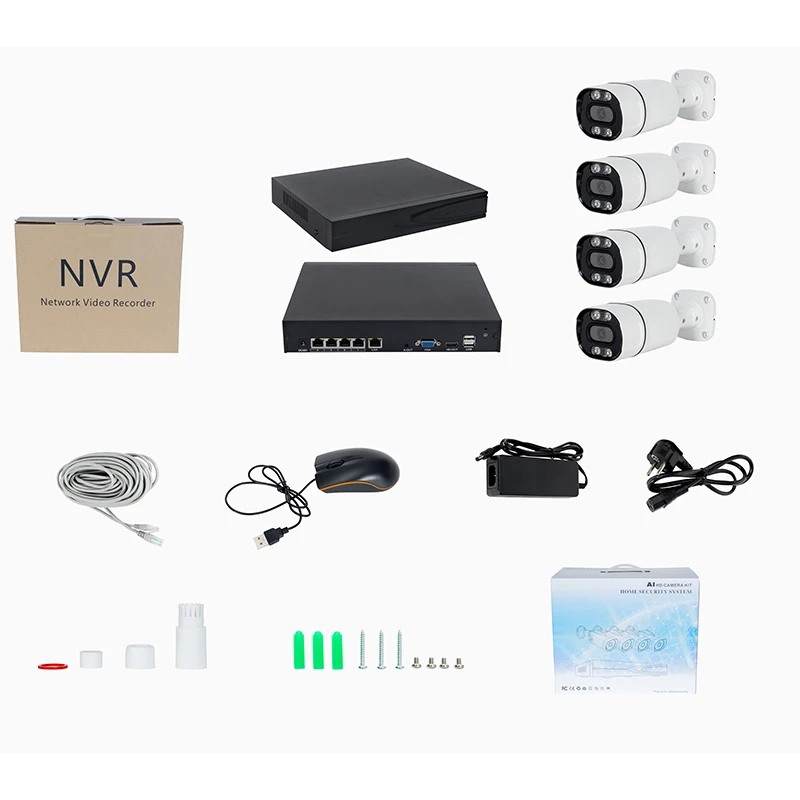

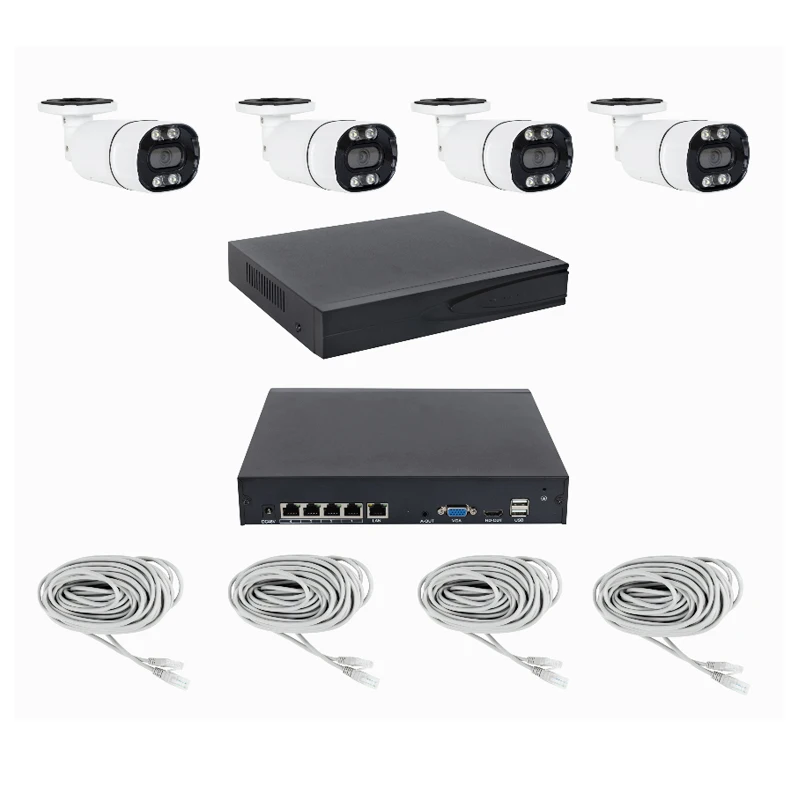

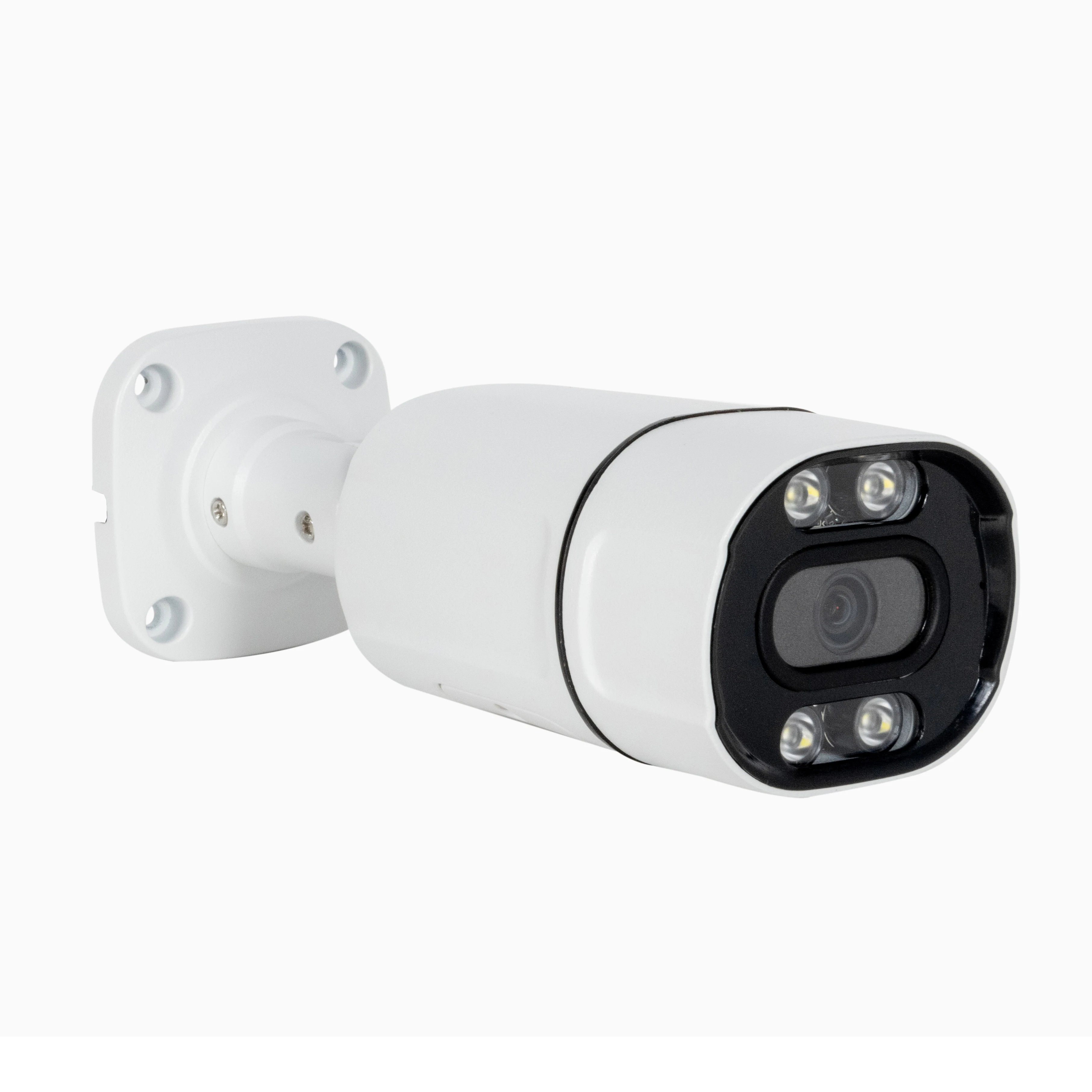

Система видеонаблюдения IMX335 5 Мп наружная IP-камера с обнаружением человека купольная цилиндрическая камера аудио 4 камеры комплект 8-канального видеорегистратора

IMAGE SENSOR

1/2.8" 30KD+ST501AI

Video compression

H.265+/H.265/H.264 video coding, support dual stream, AVI format; code stream 500k~8M bps adjustable, support PAL and NTSC

MIN. ILLUMINATION

0.01Lux@F1.2(AGC ON), 0Lux IR on

Frame Rates

5MP@20 FPS, 4MP@25 FPS;3MP and below @30FPS

VIDEO FRAME RATE

Main stream:2880×1620,2592×1520,2560×1440,2048×1520,2304×1296,1920×1080;

Audio Interface

1channel input,support mic or pickup input;1channel output, support headset or amplifier play

Audio code

G.711 CODEC standard, support dual voice talkback, audio and video synchronization

Network Interface

1*RJ45 Ethernet interface,10/100M self-adaption,8KV anti-static electric capacity;support RTSP/DHCP/NTP,GB/T28181,compatible ONVIF
and so on network protocols

IR LED

Nano-tech IR LED: 28µ x 4pcs, IR Range: 60M

FOCAL LENGTH

2.8/3.6mm

APERTURE

F1.4

TF

support (512G)

Network interface

Built in RJ45network interface support 10M/100M IP DATA

Smart Alarm

Face detection/humanoid and vehicle detection/motion detection/ video loss/network cable disconnection/IP address conflict

Video decoding parameters

Support H.265+/H.265/H.264 decoding;

Video Playback

NVR synchronous playback 2 channels (2*8MP); Seetong client remote video playback supports up to 2 channels;

Preview

8 channels*5MP 2 channels*8MP

Video resolution

Support 720P/960P/1080P/3MP/4MP/5MP/8MP;

Motion Detection

Depends on the cameras

User Management

Supports up to 38 users locally;

Video mode

Manual>Alarm>Motion Detection>Timing

Local playback

2 channels*5M/4 channels*4M/4, 8, 8 channels*1080P/8 channels*960P

Video Search

Time point search, calendar search, event search, channel search

Storage management

1 SATA interface, each interface supports a hard disk with a maximum capacity of 14TB;

Support timing recording, motion detection linkage recording, alarm linkage recording, cross-border recording, area intrusion
recording, intelligent face recording, intelligent license plate recording, intelligent humanoid recording, intelligent vehicle
recording

Network backup, USB mobile hard disk, USB burning, SATA burning

Video output

1 VGA, 1 HDMI

Loop through output

none

Audio input

1

Audio output

1

Alarm input

8

Alarm Output

2

Network Interface

8 POE network ports + 1 RJ45 WAN port

USB interface

2 USB ports

Hard disk interface

1 SATA interface (each supports up to 8T)

power supply

POE 48V
