Портативный пиролизный реактор биомасса/лабораторный шнековый для быстрой
- Категория: Reactors >>>
- Поставщик: Weihai,Chem-Equip,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2975.43 $* | 3124.29 $* |
| Aug-15-2025 | 2950.96 $* | 3098.16 $* |
| Jul-15-2025 | 2475.80 $* | 2599.77 $* |
| Jun-15-2025 | 2900.62 $* | 3045.78 $* |
| May-15-2025 | 2525.11 $* | 2651.23 $* |
| Apr-15-2025 | 2850.83 $* | 2993.91 $* |
| Mar-15-2025 | 2825.93 $* | 2966.59 $* |
| Feb-15-2025 | 2800.4 $* | 2940.28 $* |
| Jan-15-2025 | 2775.5 $* | 2914.99 $* |
Характеристики
Product Description
A reactor can conduct a reaction under pressure inside its vessel, pressure reactor is a special application of a pressure vessel.
The pressure can be caused by the reaction itself or created by an external source, like hydrogen in catalytic transfer hydrogenation.
High pressure reactors are used in reactions included but are not limited to Hydrogenation, Polymerization, Synthesis, Catalytic, Petrochemical and so on. They are also used to perform research such as Upstream, Biomass, Biopolymer, Zeolite, etc.
High pressure reactors are used in reactions included but are not limited to Hydrogenation, Polymerization, Synthesis, Catalytic, Petrochemical and so on. They are also used to perform research such as Upstream, Biomass, Biopolymer, Zeolite, etc.
Chem-Equip reactor is widely used in a big range, like Medical Industrial, Food Industrial, Chemical Industrial, Raw Material Industrial, Petroleum Industrial, Energy Industrial, New Material and Polymolecular Industrial.
Specification
Technical Parameters | ||||||||
Working Volume (L) | 0.1~1 | 1~10 | 10~25 | 25~50 | ||||
Working pressure (MPa) | Negative pressure -0.1~40 MPa | Negative pressure -0.1~40 MPa | Negative pressure -0.1~30 MPa | Negative pressure -0.1~30 MPa | ||||
Working temperature | -196~500 ℃ | |||||||
Stirring speed (r/min) | 0-1500 | |||||||
Motor power (W) | 40~80 | 80~200 | 300~750 | 1100 | ||||
Heating power (KW) | 0.8~1 | 1~3 | 3~6 | 4~9 | ||||
Heating type | Electric heating, steam or water or thermal oil circulation, far infrared heating. | |||||||
Charging type | Charging from above, discharging from below or above. | |||||||
Shaft | Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media. | |||||||
Stirring type | Paddle, Impeller, Anchor, Screw, Belt or as per customer request | |||||||
Seal type | Magnetic seal, packing seal. | |||||||
Motor | 0.1~10L DC motor, 10~50L AC motor, both in explosion-proof type. | |||||||
Reactor material | Contacting material inside kettle mainly use SUS304, SUS316L, SUS321, SUS310, as well as titanium, nickel, zirconium, hastelloy, etc, or lined with PTFE, PPL, PFA, Ni (Ni6) according to various reaction medium. | |||||||
Kettle lid open port | Needle Valve on Gas Port and Liquid Port, Bottom Insert Tube for sampling or inlet use, Pipe Plug on Solid Charging Port, Platinum Resistance (PT100) on measuring and controlling Temperature Port, Pressure Gauge and Safety Device (Blasting Disc) on Security Blasting Port, and Cooling Coil Faucet for cooling water inlet/outlet. | |||||||
Controller Device | Equipped with automatic or programmed PID or PLC to achieve: Temperature display and control, accuracy ± 1 ℃; Program Control; Mixing Speed display and control; Pressure display and control; Level display and control; Flow display and control; Valve open/close control, etc. | |||||||
1. It can conduct a reaction above the boiling point of a solvent. Increase in temperature can speed up the desired reaction, and also speed up the decomposition of reagents and starting materials.
2. Closed vessel with static magnetic seal (or also called static seal) can prevent releasing toxic gas and explosion, ensure both zero leakage and a safety operation.
3. The pressure can reduce the reaction volume, less solvent is needed, including the liquid phase, and in turn increase concentration and collision frequency, and accelerate a reaction.
However, pressure can speed up the desired reaction and only impacts decomposition when it involves the release of a gas or a reaction with a gas in the vessel. When the desired reaction is accelerated, competing reactions are minimized. Pressure generally enables faster reactions with cleaner reaction profiles.
For easy operation, each reactor equips with many instruments in below.
The reactor lid and reactor body are connected by bolts and nuts on flanges, some times, quick open structure will be used for easy opening process.
With water or gas circulation through cooling coil, temperature inside reactor kettle can be cool down quickly without opening kettle lid.
Types of mixer styles available for various working medium according to different viscosity and property,

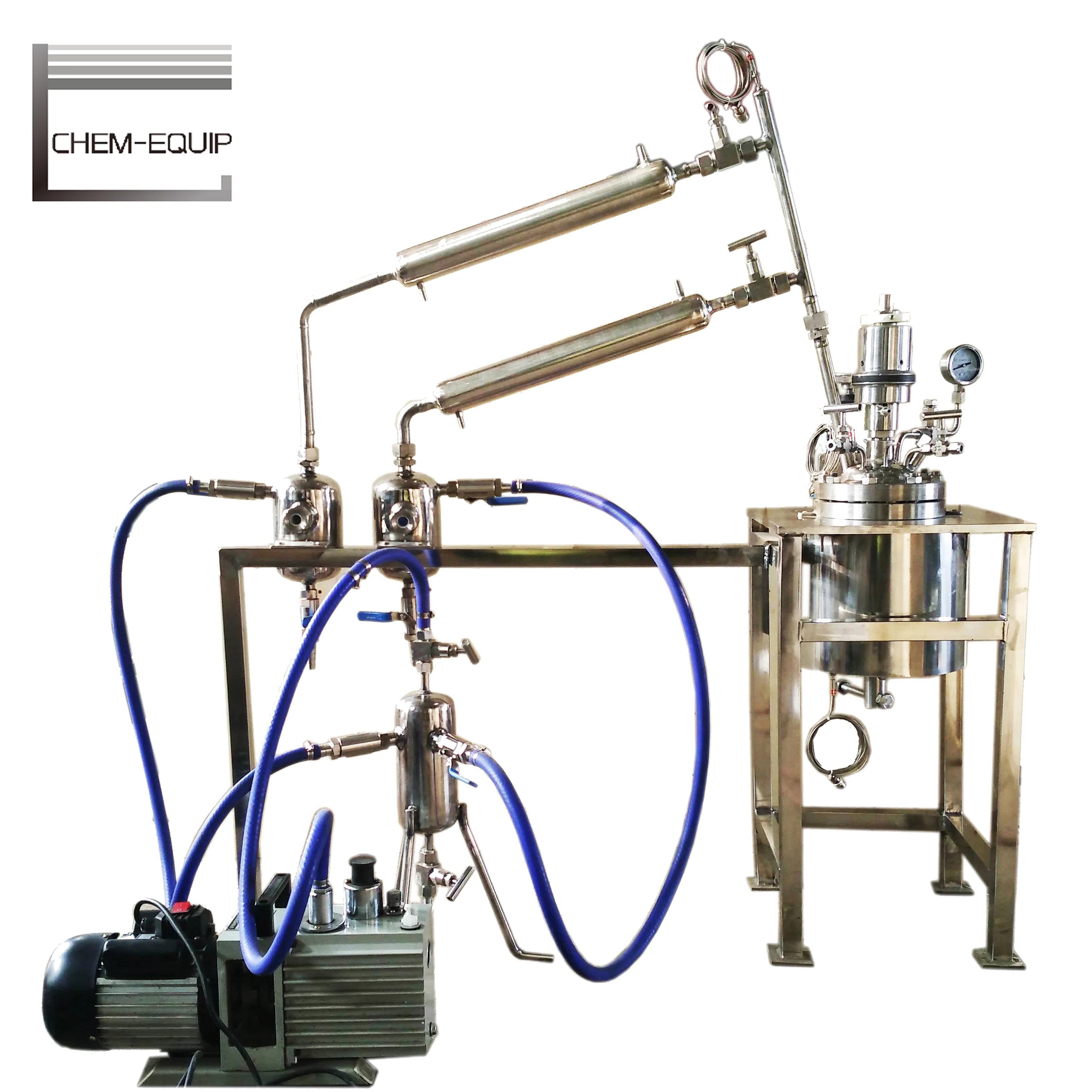

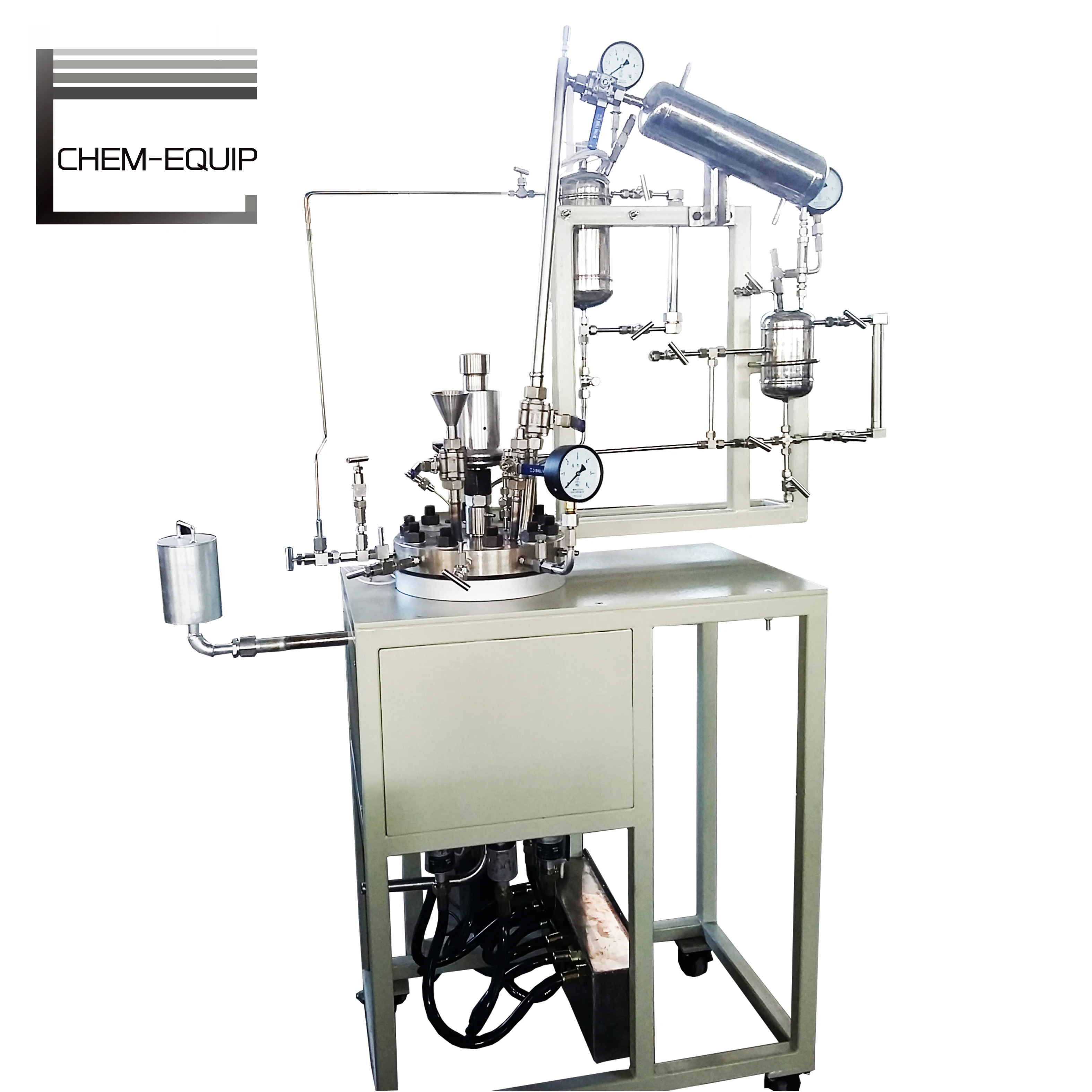

With extra components, like horizontal condenser, vertical condenser, collecting tank, buffer tank, a distillation or esterification reaction can happen inside, a vacuum pump can help speed up the whole process.
Packing & Delivery
Plastic film wrapping against moisture;
Steel frame or wood frame inside for necessary support;
Strong fixture for whole set equipment;
All wood used in package is Fumigation free type, no need extra inspection during custom.
Company Profile
With 10 years experience in chemical industry,
Weihai Chem-Equip Machinery Co., Ltd is a professional supplier in various chemical equipment, we help customer design, develop and fabricate suitable production lines, from initial chemical process design, to workshop building and long term maintaince.
We have own factories in Weihai and Laizhou area, product covers Reactor, Pressure Vessel, Mixer, Kneader, Sand Miller, Filter, Dryer etc, almost cover all chemical industry.
With our Chemical Process Designer, ASME AI (Authorized Inspector), American CWI (Certified Welding Inspector), we dedicate in a Turn-Key solution for customers who wants to build up new factory or expand new production lines, in an efficient and safety way.
We have own factories in Weihai and Laizhou area, product covers Reactor, Pressure Vessel, Mixer, Kneader, Sand Miller, Filter, Dryer etc, almost cover all chemical industry.
With our Chemical Process Designer, ASME AI (Authorized Inspector), American CWI (Certified Welding Inspector), we dedicate in a Turn-Key solution for customers who wants to build up new factory or expand new production lines, in an efficient and safety way.
FAQ
Pre-Sale Stage
Provide Chemical Process , Project Drawing and Suitable Equipment Model according to customer's request, for accurate design and quote, please kindly advise below:
Whole time report for manufacture status;
Inspection video for quality checking;
Full set Engineering Documents, include User Manual, General Drawing, Electric Circuit Drawing, All Related Test Report, Approval Certificate.
Life long service for all equipment;
Free spare parts in warranty period;
Discount price for all spare parts after warranty period;
Technical consulting is always for free.
Arrange engineer to assist customer in equipment assembly and installation;
Training workers to use machine properly.
