Сверхмощный гидравлический 3 оси низкорамный полуприцеп/голова грузовик с прицепом 40
- Категория: Truck Trailers >>>
- Поставщик: Shandong,Luen,Auto,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 6545.44 $* | 6872.38 $* |
| Aug-16-2025 | 6490.83 $* | 6815.61 $* |
| Jul-16-2025 | 5445.5 $* | 5717.20 $* |
| Jun-16-2025 | 6380.78 $* | 6699.20 $* |
| May-16-2025 | 5555.58 $* | 5833.1 $* |
| Apr-16-2025 | 6270.48 $* | 6584.83 $* |
| Mar-16-2025 | 6215.46 $* | 6526.6 $* |
| Feb-16-2025 | 6160.12 $* | 6468.25 $* |
| Jan-16-2025 | 6105.29 $* | 6410.39 $* |
Характеристики

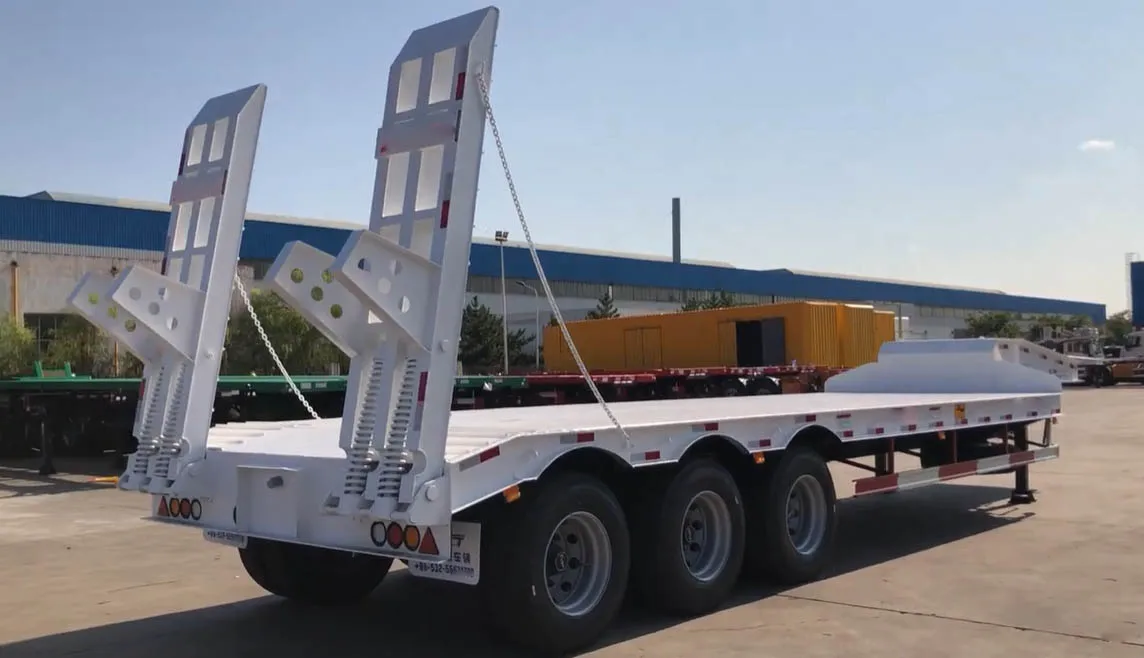

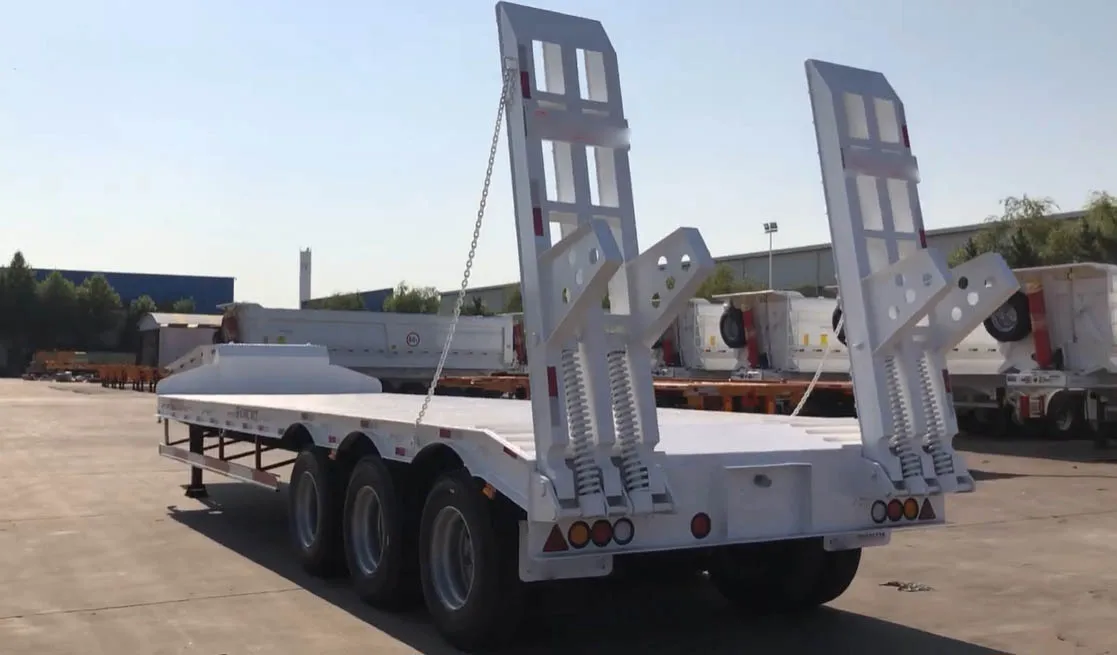

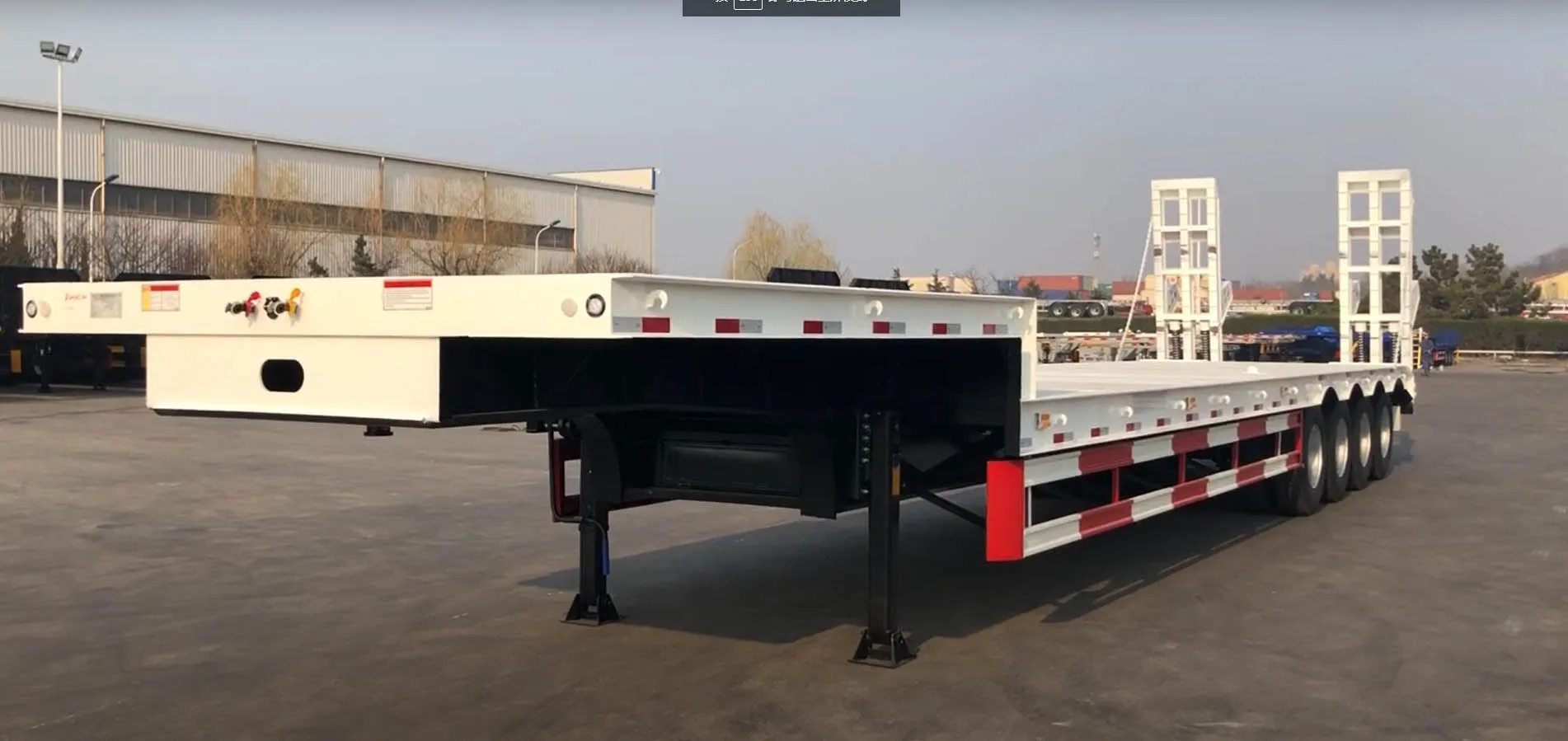

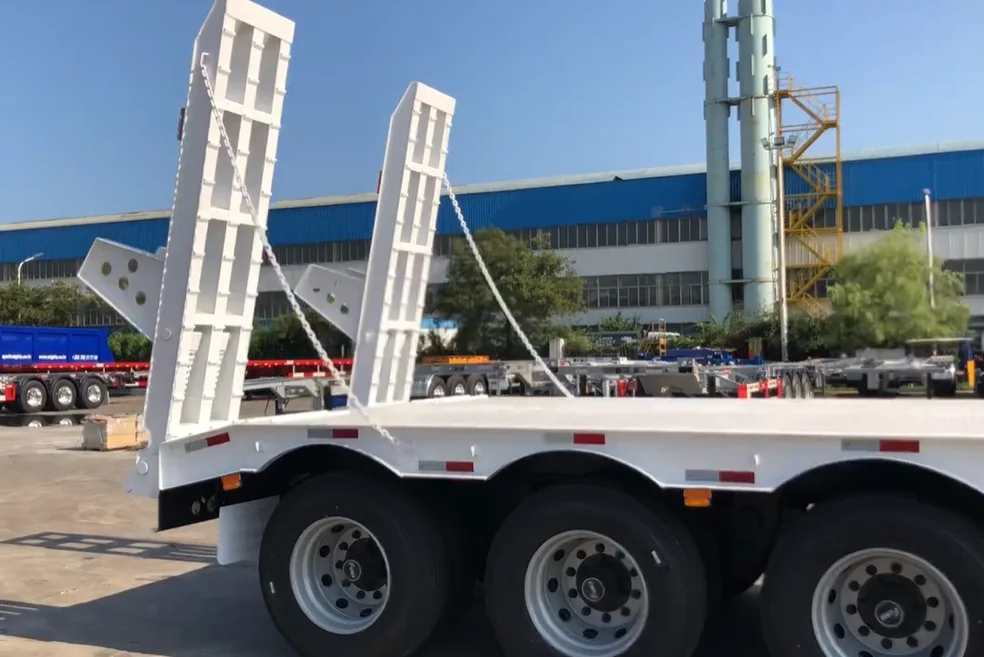

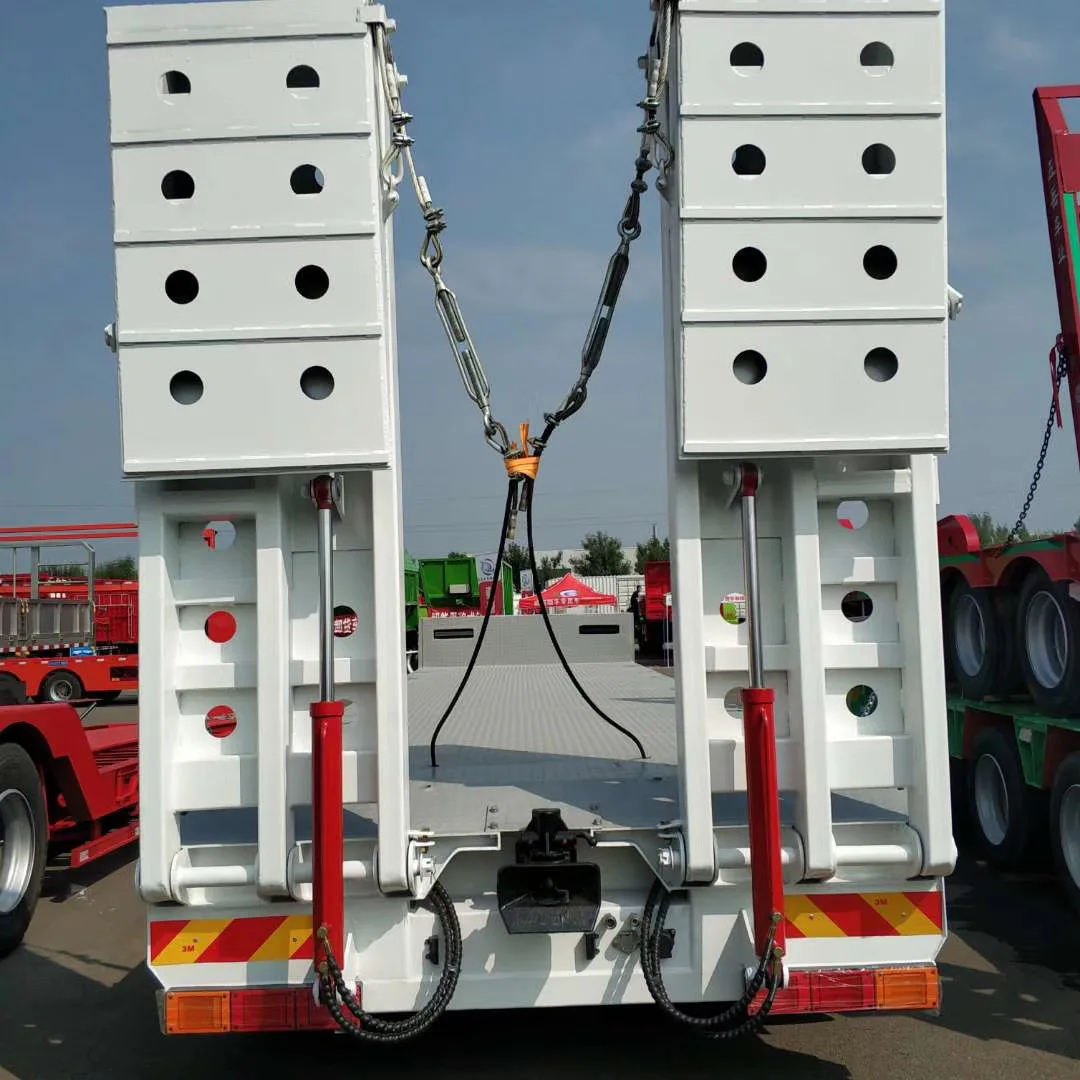

Heavy duty hydraulic 3 axles low bed semi-trailer/head truck trailer 40 tons
There are plate types, concave beam type and exposed tire type structure, its frame for the ladder, longitudinal beam section for the i-shape, with high stiffness, high strength characteristics. The main plane of the frame and cargo platform is low, which ensures the smoothness of transportation.
The above specifications are optional, and Fuwa/PBW axles can be configured. For more product information, please contact me. |
Type | Low bed semi trailer | ||
Dimensions: | |||
(LxWxH) | 12500×3000×3150mm(Outside) | ||
Weight: | |||
Tare Weight | 10T | ||
Payload | 60T | ||
Specification: | |||
Axle number | Three | ||
Axle Brand. | FUWA /BPW brand or other china brand | ||
Axle Weight Load | 13T per axle | ||
Suspension | Heavy-duty mechanical suspensions | ||
Steel Spring | 100(Width)mm×16(Thickness)mm×10(Layer) | ||
King Pin | JOST 2.0 or 3.5bolts type or Welding type | ||
Landing Leg support | Jost D200T / FUWA 28 ton (Double speed) | ||
Rim | 8.00-20 Zhengxing Brand 12 pieces | ||
Tire: | |||
Tire specs. | 8.25R20 16PR Triangle Brand 12 pieces | ||
Frame: (specs. and materials) | Main frame is height 480-500mm . | ||
Frame Beam | Upper and lower plate is20mm,middle is16mm,height is 480-500 mm,Material is Q345 low alloy high strength steel . | ||
Frame Floor | 3mm thickness checkered steel.,Material is Q235 Carbon Steel | ||
Brake: | |||
Brake | Kemi Brand of China | ||
Brake Chamber | Two double and two single chamber | ||
ABS | Kemi Brand of China(4S/2M) | ||
Electrical: | |||
Voltage | 24V | ||
Receptacle | 7 ways(7 wire harness) | ||
Painting process: | |||
Sand blasting before painting one coats of primer, anti corrosion two coat of finish painting Colour advised by client | |||
Specifications
1. 60T 3 axle low bed semi trailer
2. strong frame beam, chassis
3. CCC,BV,ISO9000,WMI
4. small order accepted
2. strong frame beam, chassis
3. CCC,BV,ISO9000,WMI
4. small order accepted
