Гидравлический шланговый обжимной станок YONG FENG Y120
US $1950-$4100
Полностью автоматическая машина для обжима проволоки 2 дюйма с
- Категория: Rubber Product Making Machinery >>>
- Поставщик: Henan,Chengyitong,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 4879.19 $* | 5123.48 $* |
| Aug-16-2025 | 4838.54 $* | 5080.44 $* |
| Jul-16-2025 | 4059.64 $* | 4262.76 $* |
| Jun-16-2025 | 4756.39 $* | 4994.82 $* |
| May-16-2025 | 4141.48 $* | 4348.85 $* |
| Apr-16-2025 | 4674.50 $* | 4908.56 $* |
| Mar-16-2025 | 4633.63 $* | 4865.5 $* |
| Feb-16-2025 | 4592.4 $* | 4822.59 $* |
| Jan-16-2025 | 4551.41 $* | 4779.69 $* |
Характеристики
Product Description

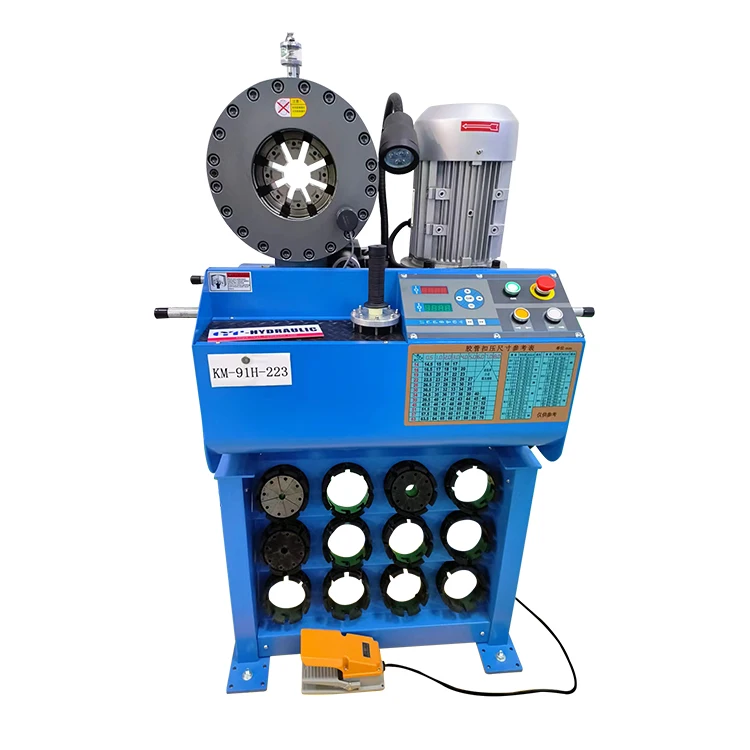

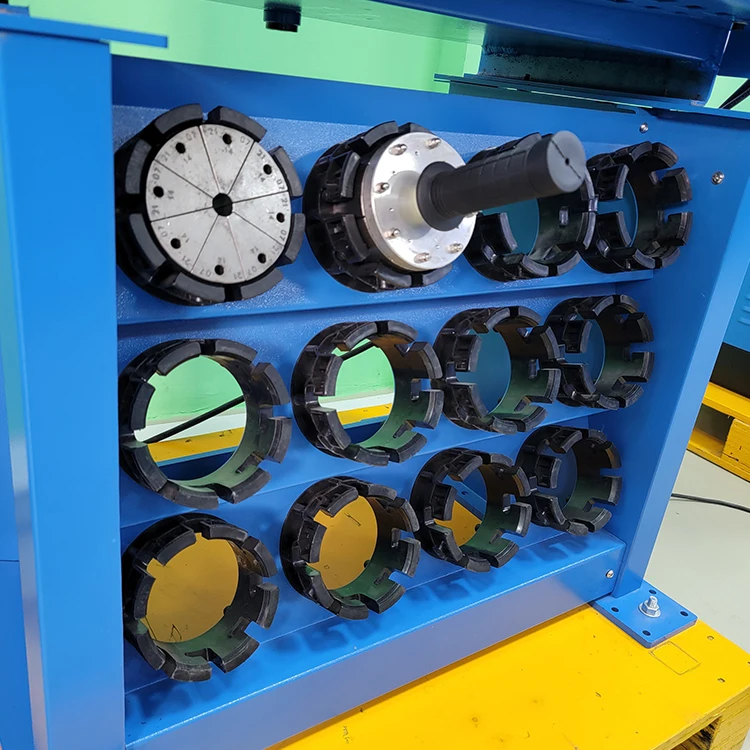

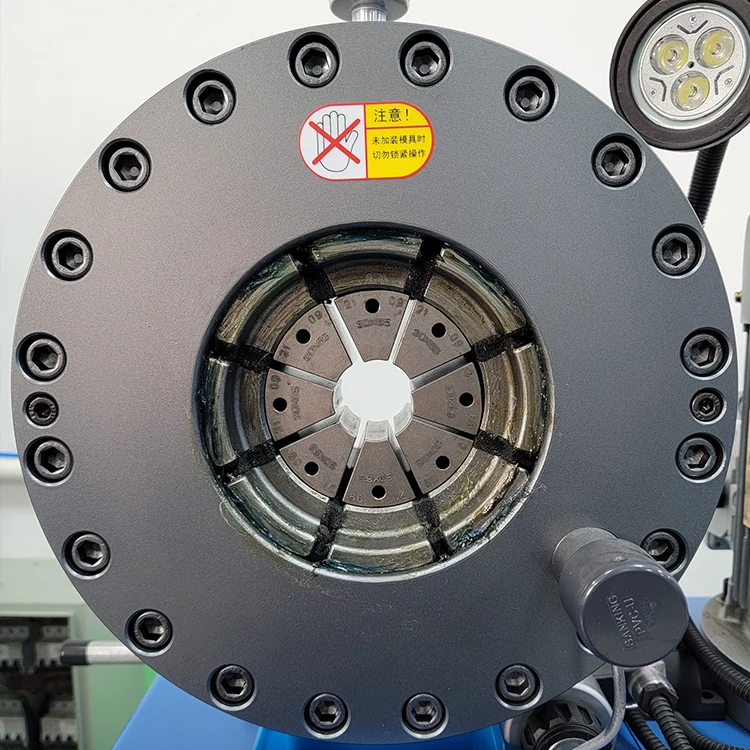

2" fully automatic crimping wire machine with quick change dies tool is our new product. Facing the problem that it’s inconvenient to add lubricating oil to the annular head, our technicians add the self–filling oil cup and oil groove, with which oil can be filled automatically. The resin gasket between die base can protect the machine from debris dropping. Considering to crimp the non-standard bend, we enlarge the opening and passing ability. Moreover, integrated hydraulic system keeps the operation stronger and more stable. The new developed operation system makes the crimping more efficient and accurate. We will do our best to create satisfaction with the brand!
Technical parameters of 2" fully automatic crimping wire machine with quick change dies tool | ||
Model | CYT-91H6-223 | |
Motor | 3KW | |
Voltage | 380V/50Hz/3ph | |
Systematic pressure | 30MPa | |
Opening | ≥28mm | |
Opening without dies | Φ122mm | |
Capacity of oil pump | 14.5L/min | |
Hydraulic oil | Winter:YB-N32(HM32) Summer:YB-N46(HM46) | |
Oil tank | 45L | |
L*W*H | 720×530×730 mm3 | |
Crimp range | Ф6－Ф51 mm 6 wire hose | |
Maintenance of 2" fully automatic crimping wire machine with quick change dies tool
1.High strength screw around the machine head should be regularly tightened, requiring at least once a quarter, tightening torque to 120 ± 20Nm.
2.Please shorten the maintenance period (≤ 30 workdays)on the condition of full loaded operation (working pressure≥28MPa ).
3.The working surface of the machine should keep clean, and lubricated with enough grease.
4.Clean the resin gasket regularly, and change new ones in time.
5.Check the fittings, if loose, please change in time.
6.Clean oil filter and internal tank regularly, and filter the oil once six months.
7.Please don’t operate the machine if the high strength screw loses, and do not change them unauthorized.
1.High strength screw around the machine head should be regularly tightened, requiring at least once a quarter, tightening torque to 120 ± 20Nm.
2.Please shorten the maintenance period (≤ 30 workdays)on the condition of full loaded operation (working pressure≥28MPa ).
3.The working surface of the machine should keep clean, and lubricated with enough grease.
4.Clean the resin gasket regularly, and change new ones in time.
5.Check the fittings, if loose, please change in time.
6.Clean oil filter and internal tank regularly, and filter the oil once six months.
7.Please don’t operate the machine if the high strength screw loses, and do not change them unauthorized.
Product Application of 2" fully automatic crimping wire machine with quick change dies tool：
The crimping machine is suitable for all kinds of mechanical high and low pressure oil pipes, gas pipes, water pipes, cable joints, automobile air conditioning pipes, automobile power steering pipes, oil pipes, gasoline fuel supply pipes, as well as the buckles of construction parts and daily hot water pipes. Vehicles, engineering machinery, hydraulic machinery, welding and cutting equipment and other industries.
Any color can be customized. 2" fully automatic crimping wire machine with quick change dies toolcan specify the brand requiryed by customers, such as Famous brand motors. We can customize customer's own logo and machine OEM. Molds can be customized in different models.
Packing & Delivery
Packaging Details of 2" fully automatic crimping wire machine with quick change dies tool
1.Our machine is wellpacked in plastic protection film and out into a wooden box
2. Prepare fumigation-free wooden pallets as export standards for packaging and inspecting Conveniently.
3. Fix the machine on the wooden pallet to avoid slipping and shaking.
4. Add wooden cases to ensure transportation and prevent collision.
5. Wooden case is secured by overall steel strapping to ensure the package is firm and the machine is not damaged.
6.Trailer / Forklift loading.
1.Our machine is wellpacked in plastic protection film and out into a wooden box
2. Prepare fumigation-free wooden pallets as export standards for packaging and inspecting Conveniently.
3. Fix the machine on the wooden pallet to avoid slipping and shaking.
4. Add wooden cases to ensure transportation and prevent collision.
5. Wooden case is secured by overall steel strapping to ensure the package is firm and the machine is not damaged.
6.Trailer / Forklift loading.
2" fully automatic crimping wire machine with quick change dies tool is in stock, they can be delivered once the payment is finished. As for the customized ones, we promise that they can be deliverd within a week after we received the payment.
Transportation: The first choice is by sea, air or land is also avaliable if customers have special request.
Transportation: The first choice is by sea, air or land is also avaliable if customers have special request.

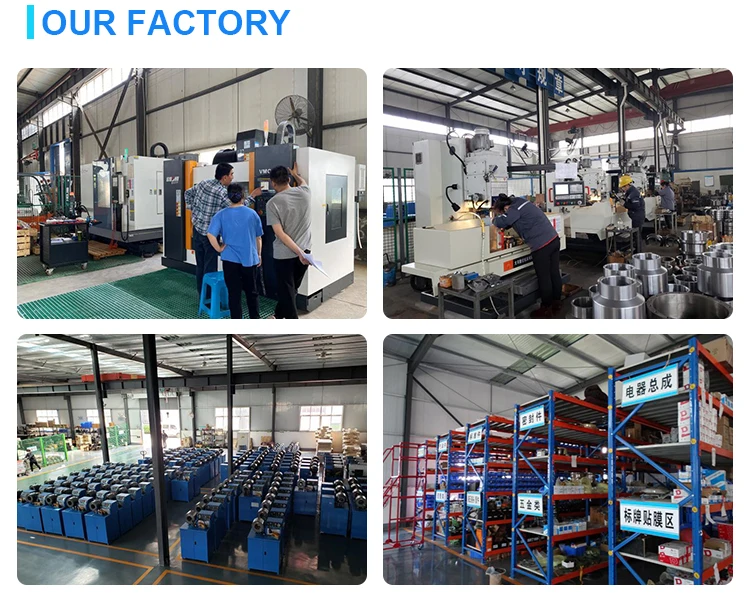

Our Company
We insist Quality Creates Value and not only sell products , but also give our customers a series of solution.
Our technical engineer often goes to application site and learns about customers demands, then researches new products so that provides our customers better quality products and helps them reduce cost. We will try our best to provide our customers one-stop service.
Our technical engineer often goes to application site and learns about customers demands, then researches new products so that provides our customers better quality products and helps them reduce cost. We will try our best to provide our customers one-stop service.
Our products meet the national standard and passed the ISO9000, CE and the rest. We will provide a guarantee to keep the machine in good repair within 12 months from the day when the machine is purchased.
Our excellent service makes customers trust us, and we have been praised by many customers. Our products are popular in market, and sell well in more than 20 countries.
Recommend Products
FAQ
1.Q:Do you have CE certificate?
A:Yes,the following is our CE certificate.
2.Q:What's the packing of the machine
A: we use the fumigation wooden case.
3.Q:What mode of payment do you usually accept?
A:Usually we accept T/T in advance.
4.Q:How long does it usually take you to make delivery?
A:within 7 days after receiving your payment,we will send the machine to our customer.
5.Q:Is professional oversea engineer service available?
A:Of course.For your mentioned questions,our engineer will help you solve it patiently.
6.Q:Do you offer other products?
A:Yes,we have rubber hose ,PVC hose , hose fittings and so on.
7. Could your machine crimp R15 hose?
Yes, it can crimp 6 wire hose.
