Оптовая продажа от производителя под заказ высококачественные конкурентные УФ Сменные лампы Кварцевая трубчатая лампа
- Категория: Ultraviolet Lamps >>>
- Поставщик: Zhuozhou,Lanyu,Special,Lamp,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 24.92 $* | 24.98 $* |
| Jul-15-2025 | 20.61 $* | 20.97 $* |
| Jun-15-2025 | 24.12 $* | 24.26 $* |
| May-15-2025 | 24.95 $* | 24.86 $* |
| Apr-15-2025 | 19.42 $* | 19.1 $* |
| Mar-15-2025 | 23.31 $* | 23.94 $* |
| Feb-15-2025 | 23.89 $* | 23.10 $* |
| Jan-15-2025 | 23.94 $* | 23.4 $* |
Характеристики
Product Description

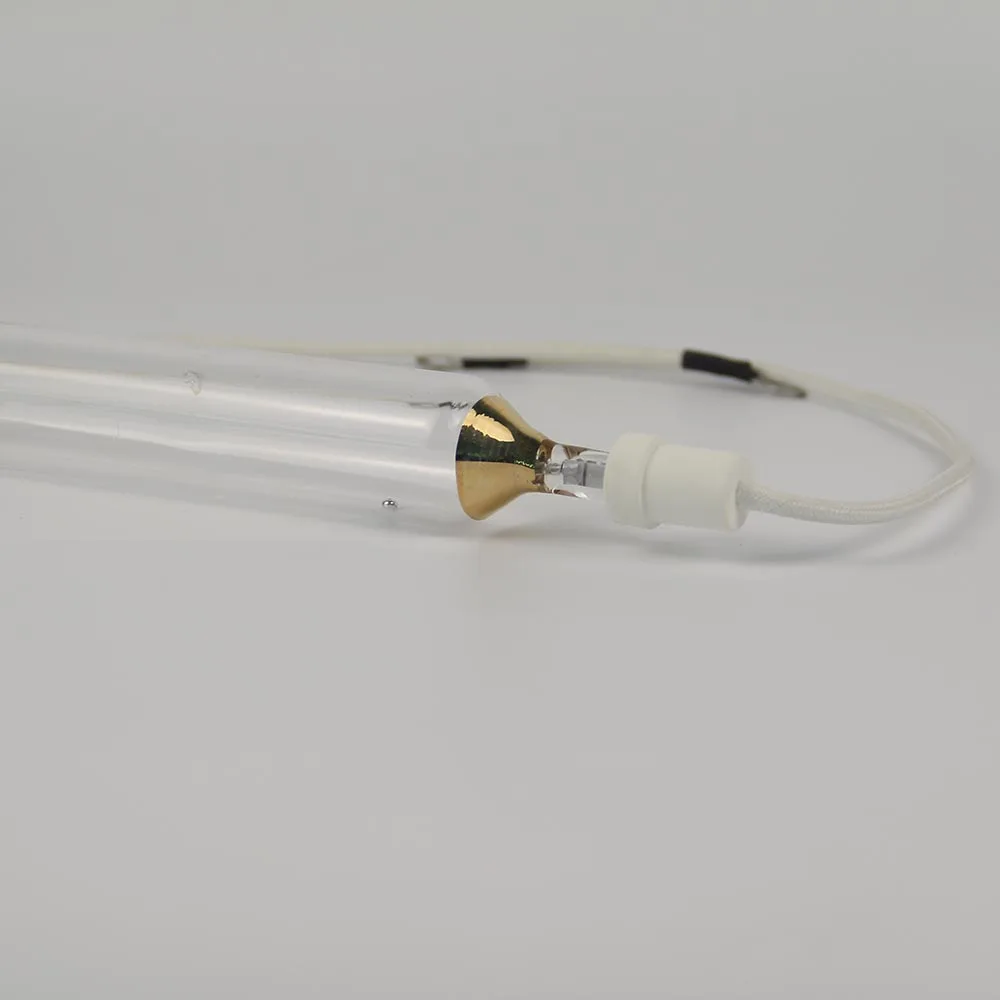

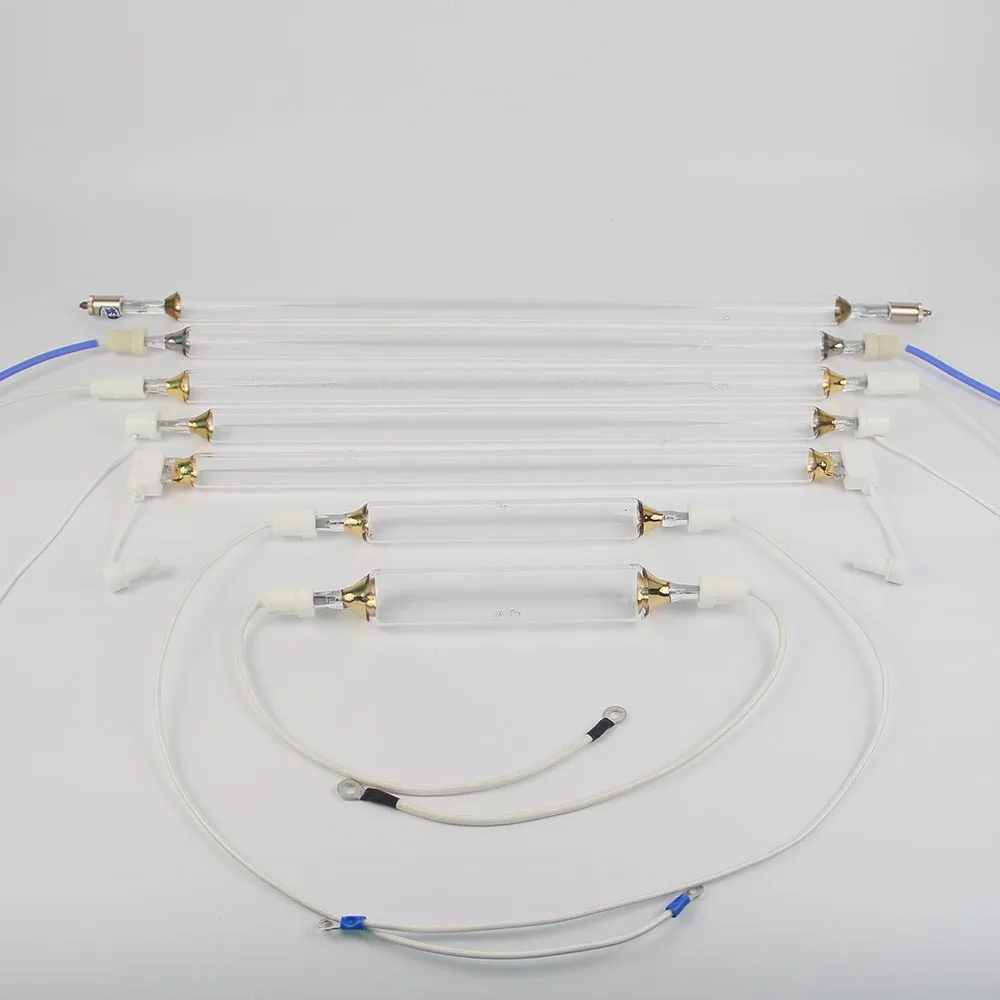

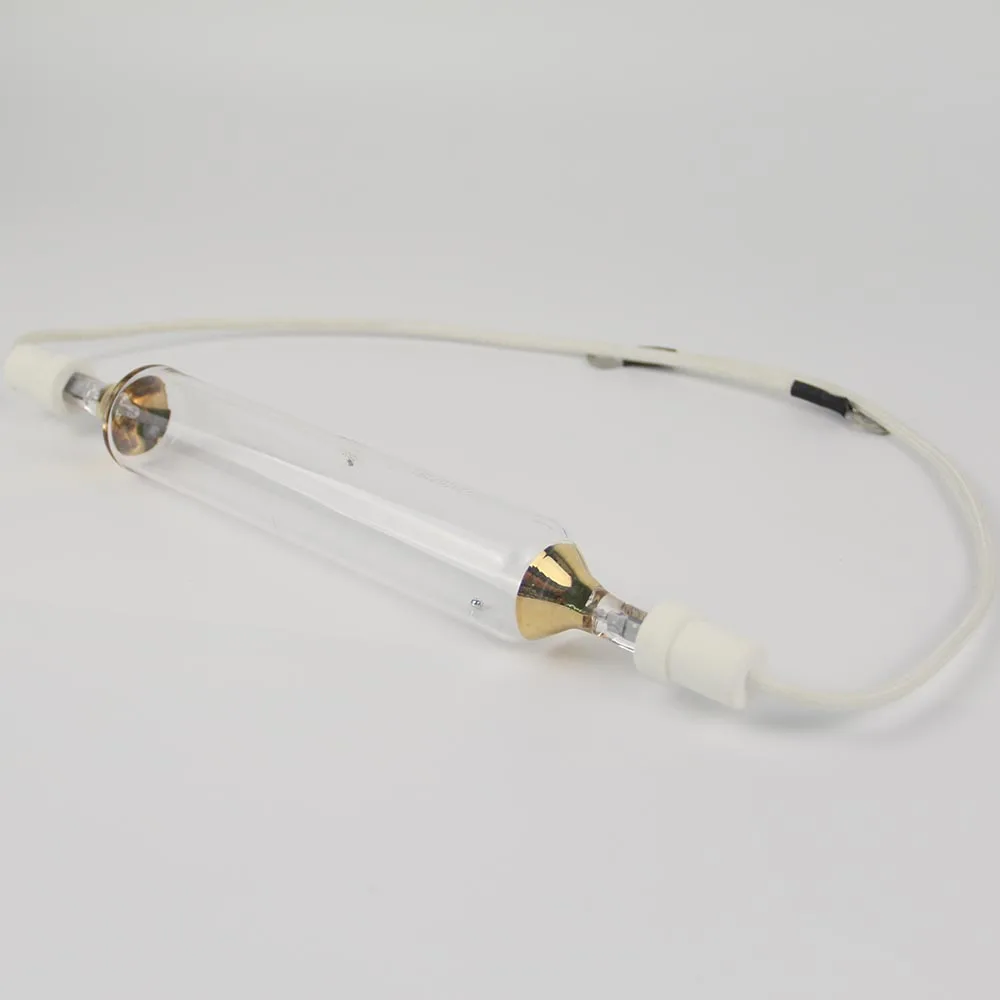

Wholesale High-quality UV Curing Mercury Lamps
Product Name | Standard UV Curing Mercury Lamps |
Brand | Lanyu |
Fill | Mercury |
Watt | Regular/Custom |
Arc Length | Custom |
Tube Material | US General Electric, Raesch Quartz Germany |
Warranty | 1Year |
Certification | CE |
Application | sealing and curing of printing, billboard, glass, ceramics, electronic parts, circuit board, wood, plastic, liquid crystal, and other industries. |
UV CURING LAMPS YOU CAN RELY ON:
Lanyu UV lamps are manufactured for an extensive range of medium-pressure mercury arc lamps suitable for all known UV curing systems. Offering outstanding performance, the lamps provide exceptionally good service life and consistent UV output. Primarc UV curing lamps are used world-wide for curing inks and coatings in the printing, packaging and labeling industries as well as in a wide range of industrial applications, including fiber optic cable production, wood products and electronics.
All Lanyu UV curing lamps are manufactured from high-clarity vitreous silica, commonly called quartz. Quartz has the property of high transparency to ultraviolet light, particularly at the shortwave end of the spectrum where more than 90% of the UV energy generated is transmitted through the quartz. The electrode components are manufactured using the highest-quality materials, ensuring long and reliable lamp life.
The Lanyu Quality Standard not only ensures that each lamp is manufactured to the most stringent specifications, but also that lamp performance is consistent over time.
All Lanyu UV curing lamps are manufactured from high-clarity vitreous silica, commonly called quartz. Quartz has the property of high transparency to ultraviolet light, particularly at the shortwave end of the spectrum where more than 90% of the UV energy generated is transmitted through the quartz. The electrode components are manufactured using the highest-quality materials, ensuring long and reliable lamp life.
The Lanyu Quality Standard not only ensures that each lamp is manufactured to the most stringent specifications, but also that lamp performance is consistent over time.
1. High-Quality Quartz TubingHigh temperature resistance, slow UV attenuation, UV light transmittance up to 99%, and long lamp life.

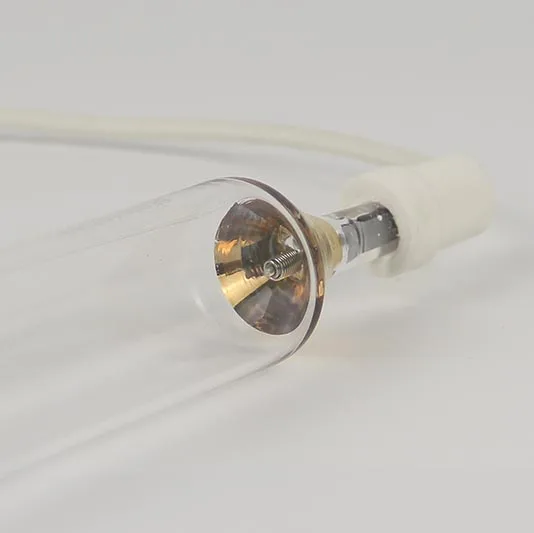

2. Pure Tungsten ElectrodePure tungsten electrodes can enhance ultraviolet light exposure, stable performance and remarkable curing effect.
3. High-Quality CeramicLamp Base
Made of high-quality ceramic materials, resistant to high temperatures and not easy to age.
Made of high-quality ceramic materials, resistant to high temperatures and not easy to age.
A Glimpse Of Some Of The Work Of The Manufacturing Staff In Our Factory
Worker are debugging equipment
Worker is checking the appearance of the finished curing lamp
Worker is energizing and exhausting the lamp
Workers are installing leads for curing lamps
Scope of application:
Applicable industries are divided into:
With spectrum mainly distributed in the range of 200nm and 450nm with the peak value of 365nm, the lamp is mainly used as an ideal light source for the surface coating of printing and plate making, flexible packaging and color printing, the furniture industry, decorative materials, paper vanishing and printed cans, aging of polymer compounds, photosensitive flame retardant and photosensitive character ink on semiconductors, printed circuit boards and signs.
Applicable industries are divided into:
UV printing: offset plate, letterpress, flexo, inkjet, glue, hot melting, inseparably linked printing;
UV painting: for CD; for electronic components: such as printed circuit boards and resistors; film coating; photoconductor; wood, plastic; UV coating of three-dimensional objects made of plastic, glass and wood;
UV disinfection: sterilization and disinfection of food packaging materials, air, packaging films and cocks;
UV adhesion: for DVD; electronic components, display screen, sensors; for glass: such as jewelry, furniture; plastic parts; precision mechanical components; medical technology: such as needles, catheters; optical components: such as lenses, prisms and optical conductors;
UV embedment: UV light curing in the glass industry, electronic components and mechanical components, medical technology, manufacturing of optical products, and stone manufacturing.
UV painting: for CD; for electronic components: such as printed circuit boards and resistors; film coating; photoconductor; wood, plastic; UV coating of three-dimensional objects made of plastic, glass and wood;
UV disinfection: sterilization and disinfection of food packaging materials, air, packaging films and cocks;
UV adhesion: for DVD; electronic components, display screen, sensors; for glass: such as jewelry, furniture; plastic parts; precision mechanical components; medical technology: such as needles, catheters; optical components: such as lenses, prisms and optical conductors;
UV embedment: UV light curing in the glass industry, electronic components and mechanical components, medical technology, manufacturing of optical products, and stone manufacturing.

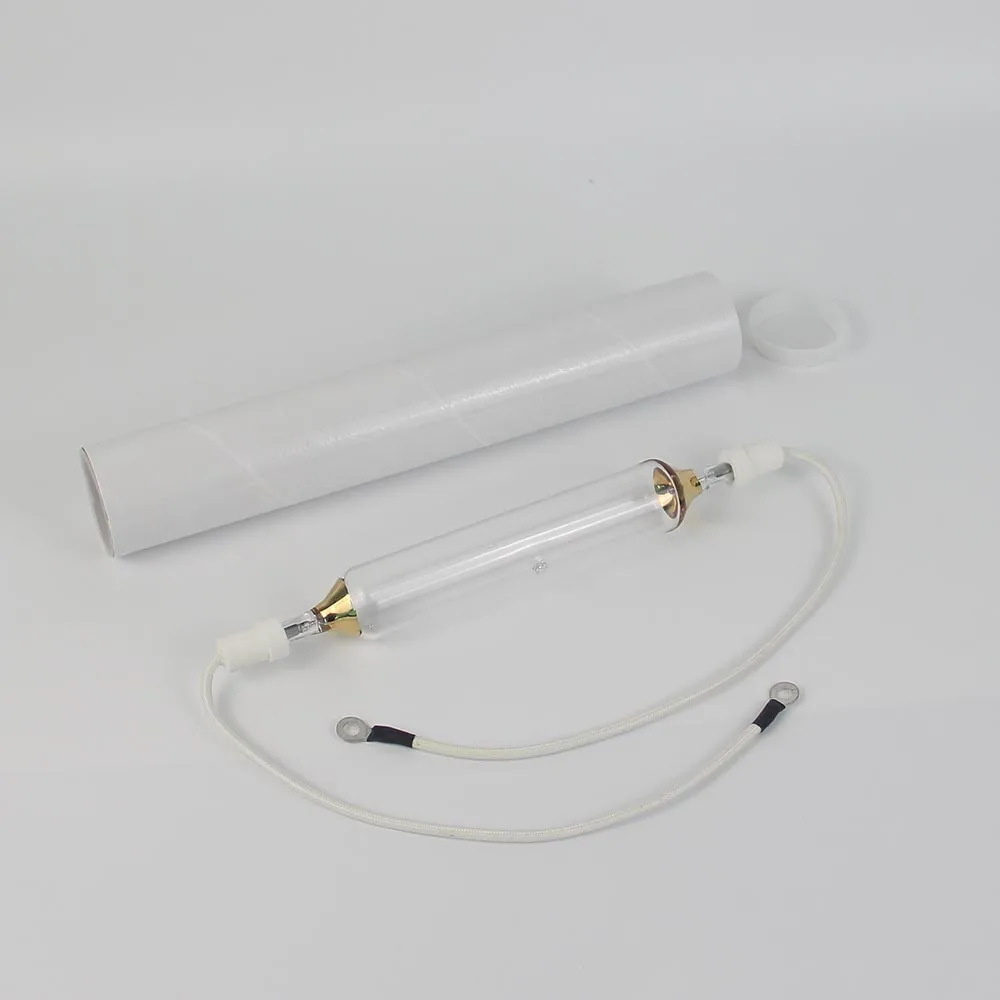

Packaging & Delivery:
The delivery way by DHL, UPS, TNT.
After-sales service assured:
1. Advanced Technical support
2. buyback discount
3. One-year guarantee
4. Package tracking
5.Confidentiality of customer information
(Each lamp will be tested by our quality control department before shipment. The company solemnly PROMISES: If the bulb is damaged during transportation and any quality problems, we will re-deliver it once it is confirmed.)
Lanyu Manufactures Uv Lamp Parameter Range | ||
Power output | 500w to 40kw | |
Wavelength | 320nm to 450nm | |
Arc length | 50mm to 2000mm | |
Pipe diameter | 18mm to 32mm | |
Power density | 30/60/80/120/160/200 w/cm | |
Spectrum | UVA / UVB / UVV | |
Fill | Mercury / Metal halide / Gallium iodide | |
Material | US General Electric, Raesch Quartz Germany | |

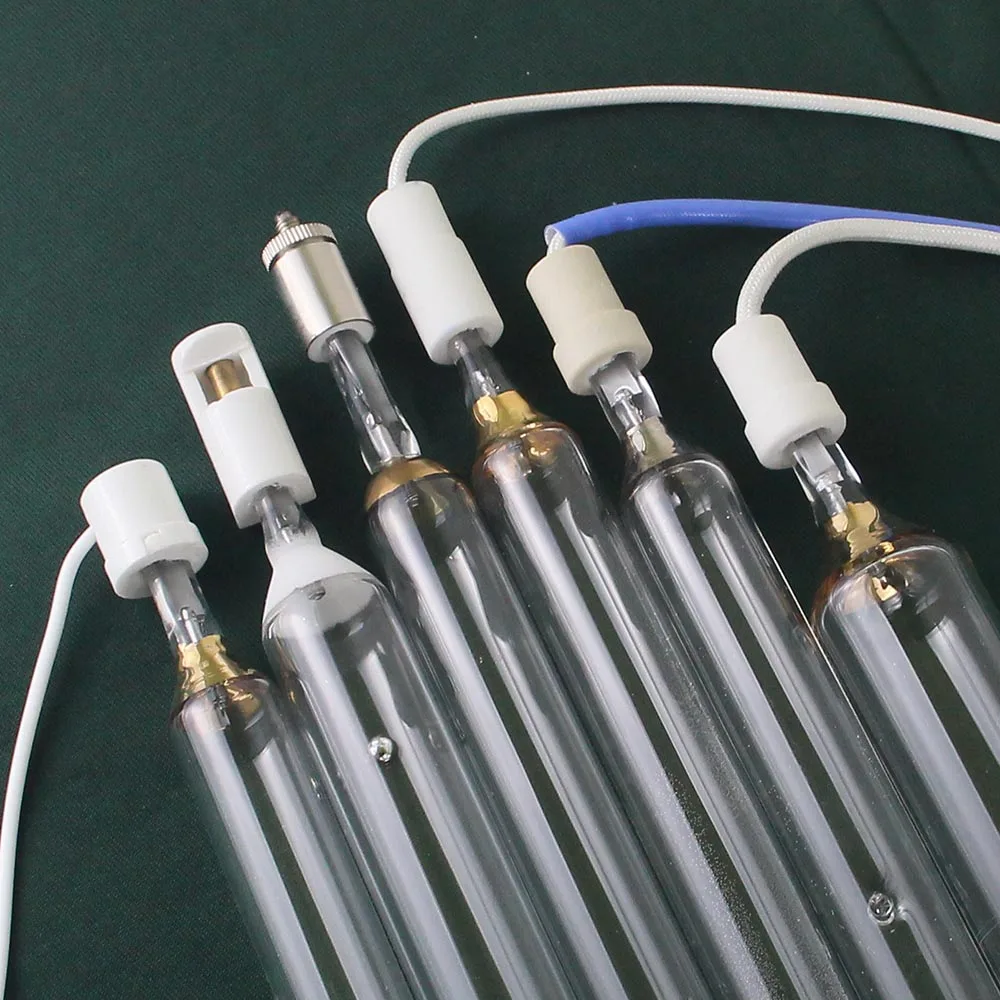

End caps | Ceramic / metal ( more than 100 kinds) | |
Service life | 800 to 1000 hour | |
UV CURING LAMPS YOU CAN RELY ON:
WE DESIGN, MANUFACTURE AND SUPPLY UV CURING LAMPS.
1.The Electromagnetic Spectrum
UV On The Electromagnetic Spectrum
Ultraviolet reactive inks and coatings require a high intensity source of ultraviolet light to initiate a chemical reaction, curing the ink or the coating almost instantaneously. Ultraviolet light forms a small part of the electromagnetic spectrum which ranges from radio waves at the long-wave end, to x-rays and gamma rays at the short-wave end. The chart here shows how ultraviolet wavelengths fit into the electromagnetic spectrum.
Ultraviolet reactive inks and coatings require a high intensity source of ultraviolet light to initiate a chemical reaction, curing the ink or the coating almost instantaneously. Ultraviolet light forms a small part of the electromagnetic spectrum which ranges from radio waves at the long-wave end, to x-rays and gamma rays at the short-wave end. The chart here shows how ultraviolet wavelengths fit into the electromagnetic spectrum.
2.Typical Uv Lamp Construction
Ways To Cure And Lamp Styles
The ultraviolet wavelengths most suitable for curing inks lie between 200 and 400 nanometers.
There are several types of lamp suitable for generating these wavelengths, the main ones being high-pressure mercury-arc lamps, electrodeless lamps and medium-pressure mercury-arc lamps.
The high-pressure mercury-arc lamp is generally constructed as a capillary type tube and requires a water jacket to maintain correct running temperatures. These lamps are limited to short lengths only and lamp life is usually less than 1,000 hours.
The ultraviolet wavelengths most suitable for curing inks lie between 200 and 400 nanometers.
There are several types of lamp suitable for generating these wavelengths, the main ones being high-pressure mercury-arc lamps, electrodeless lamps and medium-pressure mercury-arc lamps.
The high-pressure mercury-arc lamp is generally constructed as a capillary type tube and requires a water jacket to maintain correct running temperatures. These lamps are limited to short lengths only and lamp life is usually less than 1,000 hours.
The electrodeless mercury-arc lamp has, as its name implies, no electrodes. An arc is established by the generation of micro-waves. These types of lamps are generally produced in two standards lengths, 6 inch and 10 inch. By far, the most widely used is the medium pressure mercury arc lamp (an MPMA Lamp). This can be air or water-cooled and can be manufactured in a wide range of lengths. Single lamps of two metres long are not uncommon, and the working life of MPMA lamps can be expected to be well over 1,000 hours.
3.Spectral Output Of An MPMA Lamp
typical lamp spectral output
As has been stated earlier, the achievement of the precise wavelengths of ultraviolet light suitable for curing ultraviolet inks and coatings is very important if a system is to be highly efficient. MPMA lamps emit not only ultraviolet light, but also visible light, and wavelengths in the infrared spectrum. In fact, all lamps emit approximately 20% ultraviolet light,
60% infrared light and 20% visible light. It is therefore important that when selecting a lamp, output in the ultraviolet spectrum
should be closely examined.The ultraviolet spectral output is sometimes expressed graphically, showing the proportional output at
the important ultraviolet wavelengths. A graph of a typical MPMA lamp is shown here.
should be closely examined.The ultraviolet spectral output is sometimes expressed graphically, showing the proportional output at
the important ultraviolet wavelengths. A graph of a typical MPMA lamp is shown here.
4.Lamp Life
Medium-pressure mercury arc lamps do not normally fail suddenly, as do ordinary household light bulbs. Efficiency declines relatively slowly, until insufficient UV light is being emitted for the lamp to cure effectively. This decline is caused primarily by the deterioration in UV transparency of the quartz jacket, and depends on a number of factors:- lamp cooling efficiency, power rating, current rating of the electrodes, electrode cooling efficiency, contamination of the lamp's external surface (dust etc.)and switching frequency.
When correctly used, Lanyu UV Curing Lamps are guaranteed to produce a high level of curing efficiency for at least 1,500 hours and, with proper handling, they will still be capable of delivering at least 80% of original output.
When correctly used, Lanyu UV Curing Lamps are guaranteed to produce a high level of curing efficiency for at least 1,500 hours and, with proper handling, they will still be capable of delivering at least 80% of original output.
Custom Curing Lamps
(quotes are free & we offer more than 8,000 designs to choose from)
Production Process
FAQ
Q1. Are you a trading company or a manufacturer?
We are a FACTORY with our own production line, welcome to visit our factory anytime. Q2. Can the product be customized?
We are a factory producing UV lamps, IR lamps and UV CURING SYSTEMS. All our products can be made according to the details you provide.
Q3. How to guarantee quality?
The guaranteed life of our company's products is 800 HOURS, but it can reach more than 1,000 hours. If the product life cannot meet the promise of our company's lamps, compensation will be made according to the specific situation.
Q4. What about the delivery time?
After receiving your payment, it will be shipped within 3 DAYS at the fastest according to the order quantity. Please consult customer service for a specific time.
Q5. About custom service?
We can provide you with suitable solutions and provide OEM services; can print your LOGO on your products according to your requirements; also can CUSTOMIZE PACKAGING for you.
Q6. About after-sales service?
Each lamp will be tested by our quality control department before shipment. The company solemnly PROMISES: If the bulb is damaged during transportation and any quality problems, we will re-deliver it once it is confirmed.
Company Profile
LANYU - Focus On Special Light Sources 30 Years
* LANYU Is A Company Focusing On The Research And Development, Production And Sales Of Special Light Source Technology.
* We Look Into Your Processes, Challenges And Markets And Provide You With The Best Solution For Uv Heating And Curing That Strengthen Your Competitiveness In The Long Term.
* "Your Choice, Our Commitment!" Is Our Service Tenet.
* We Look Into Your Processes, Challenges And Markets And Provide You With The Best Solution For Uv Heating And Curing That Strengthen Your Competitiveness In The Long Term.
* "Your Choice, Our Commitment!" Is Our Service Tenet.
We Support OEM ODM
Our product range includes bespoke UV lamp designs to meet the exact requirements demanded by our customers, as well as a wide selection of ceramic and metal end caps, and lead terminations.
LANYU Ultraviolet Lamps Sold Worldwide
LANYU Is Recognised Globally for Delivering The Highest Quality Uv Lamp Technology Directly to End-users, and Working in Partnership with Leading Uv System Manufacturers Around the World.
