Оптоволоконный кабель HUAMAI цена для улицы 8 12 16 24 36 48 72 96 144 ядер одномодовый Span 100 200 300 400 500 800 1000 1200 2400
- Категория: Communication Cables >>>
- Поставщик: Nanjing,Huamai,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.78 $* | 0.76 $* |
| Aug-19-2025 | 0.64 $* | 0.37 $* |
| Jul-19-2025 | 0.20 $* | 0.52 $* |
| Jun-19-2025 | 0.23 $* | 0.1 $* |
| May-19-2025 | 0.73 $* | 0.23 $* |
| Apr-19-2025 | 0.97 $* | 0.5 $* |
| Mar-19-2025 | 0.5 $* | 0.12 $* |
| Feb-19-2025 | 0.72 $* | 0.95 $* |
| Jan-19-2025 | 0.99 $* | 0.54 $* |
Характеристики
Product Description

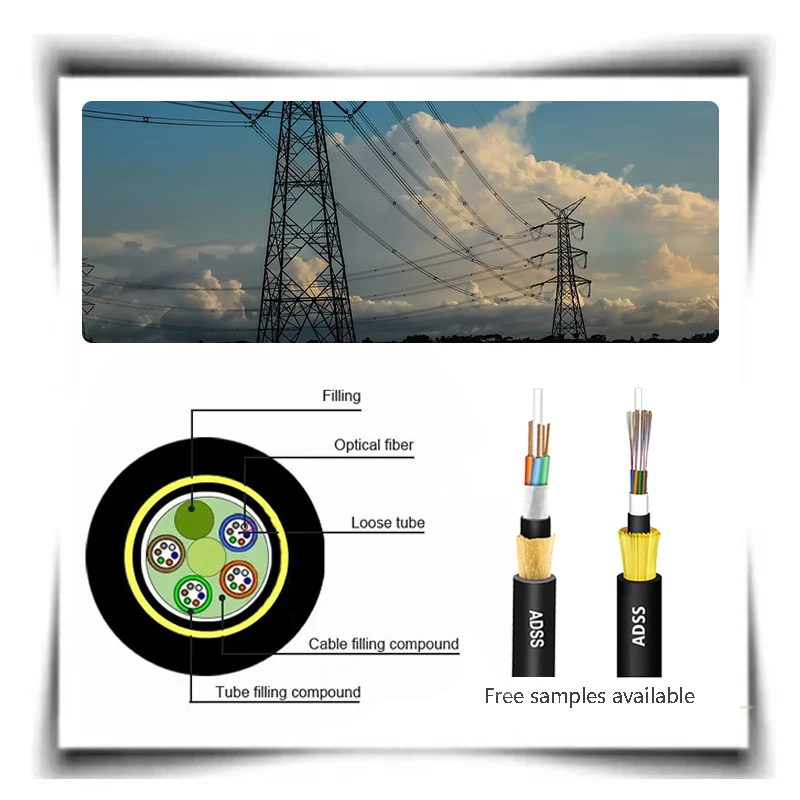

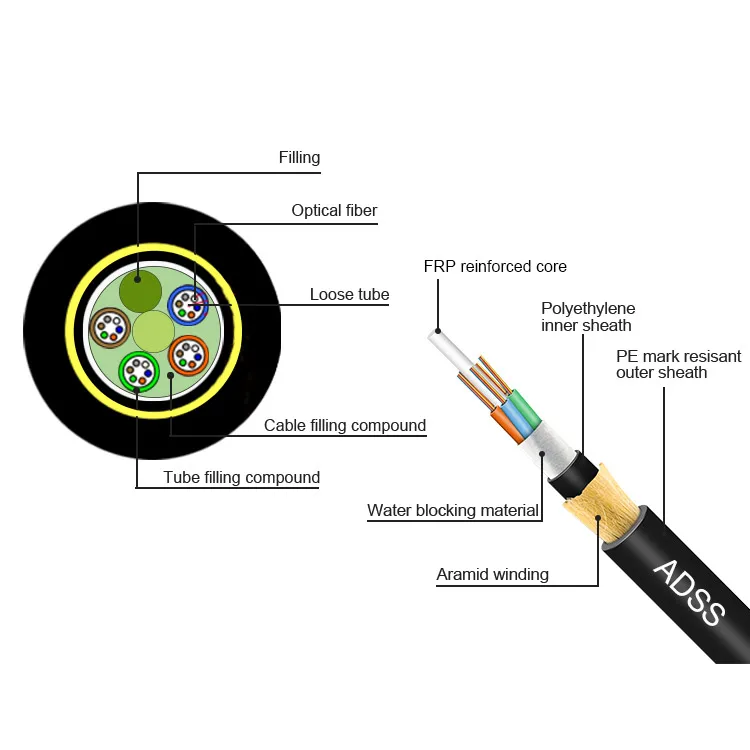

All Dielectric Self-supporting Fiber Cable（ADSS）
All dielectric self-supporting fiber cable (ADSS) is a kind of outdoor fiber cable for telecommunication with loose tube, non-metallic strength member, aramid yarn and PE sheath.
Outdoor overhead ADSS fully insulated self-supporting ADSS fiber optic cable, can be installed without turning off the power, light weight, small diameter, reducing the load brought by ice and wind, reducing the load on the tower column and back column, large span, good tensile strength and temperature resistance, anti-arc punch, 30 years of service life, packaging: 2 ~ 4 km / barrel

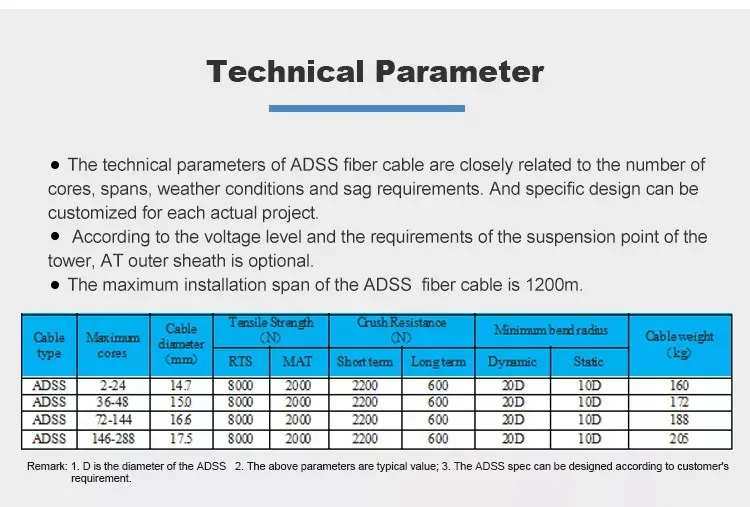

Technical parameters
The technical parameters of ADSS fiber cable are closely related to the number of cores, spans, weather conditions and sag requirements. And specific design can be customized for each actual project.
According to the voltage level and the requirements of the suspension point of thetower, AT outer sheath is optional.
The maximum installation span of the ADSS fiber cable is 1200m.
Cable type | Maximm cores | Cable diameter (mm) | Tensile strength(N) | Grush resistance(N) | Minimmm bend radius | Cable weight (kg) | ||||||
RTS | MAT | Short term | Long term | Dyramic | Static | |||||||
ADSS | 2-24 | 14.7 | 8000 | 2000 | 2200 | 600 | 20D | 10D | 160 | |||
ADSS | 36-48 | 15.0 | 8000 | 2000 | 2200 | 600 | 20D | 10D | 172 | |||
ADSS | 72-144 | 16.6 | 8000 | 2000 | 2200 | 600 | 20D | 10D | 188 | |||
ADSS | 146-288 | 17.5 | 8000 | 2000 | 2200 | 600 | 20D | 10D | 205 | |||
Remark :
1.D is the diameler of the ADSS
2.The above parameters are typical value
3.The ADSS specification can be designed according to customer's requirement
4.We produce fiber optic cables of various sizes and specifications, we have a large number of stock, we can send you test samples quickly, contact us for the latest preferential quotation
Why Choose Us
Professional Consultance
Every one of our sales engineers has years of working experience in this industry and professional trained. No matter from technology or business, they can provide you with reliable support
One of the top five leading companies in China's fiber optic cable industry
We were listed in 2017, stock code is 603042, after years of accumulation in the fiber optic cable industry, our services and prices are very competitive in the market, we always keep the customer first concept
Strategic cooperation
Strategic cooperation with a number of leading fiber optic raw material companies in China has provided a strong security backing to stabilize the cost of fiber optic raw materials, ensuring an annual 3×-3% price reduction.
Authoritative certification
ISO/TS 16949, VDA 6.3, ISO9001, ISO14001 certified companies, RoHS, REACH, SGS TLC compliant products
Company Profile
Nanjing Huamai Technology Co., Ltd. was founded in 1998. Over the past 20 years, Huamai has been dedicated in the field of communication physical connection and established a solid industry foundation. Executing high tech strategy and intensive quality management, Huamai has won its reputation as “High-tech Enterprise of Jiangsu”, “Famous Brand of Jiangsu”.
Establish year | 1998 |
Headquarter location | Nanjing China |
Stock code | 603042 |
Subsidiary companies | 10+ |
Product range | FTTX, FOC, ODN, IDC, IOT, New Energy, WIRELESS |
Professional Testing
All of our export products are professionally tested to ensure that the auality of the goods delivered to our customers are of the best possible quality.
Alibaba Super Supplier
Product Engineering Cases
Vietnam fiber optic cable laying case
Philippines fiber optic cable laying case
Overhead laying of fiber optic cables on Japanese highways
Korea high voltage tower power communication
Partners
Payment&Delivery
Over 10 years of working with FedEx, DHL, UPS and TNT to keep your shipping costs to a minimum
Experienced ocean and air freight forwarder. We have our own ocean and air freight forwarders.
Experienced ocean and air freight forwarder. We have our own ocean and air freight forwarders.
FAQ
