Лазерный сварочный аппарат с воздушным охлаждением 1500 Вт лазерная сварочная машина лазерные сварочные аппараты для

Product Application

Applied for the welding of various metal letters, LED illuminated letters, customized metal signage, and exterior billboards.
More informations to contact with us! Inquiry Inquiry Inquiry Don't Hesitate
Welding Materials:
Stainless steel, carbon steel, titanium, auminum, galvanized sheet, gold, silver and brass, etc

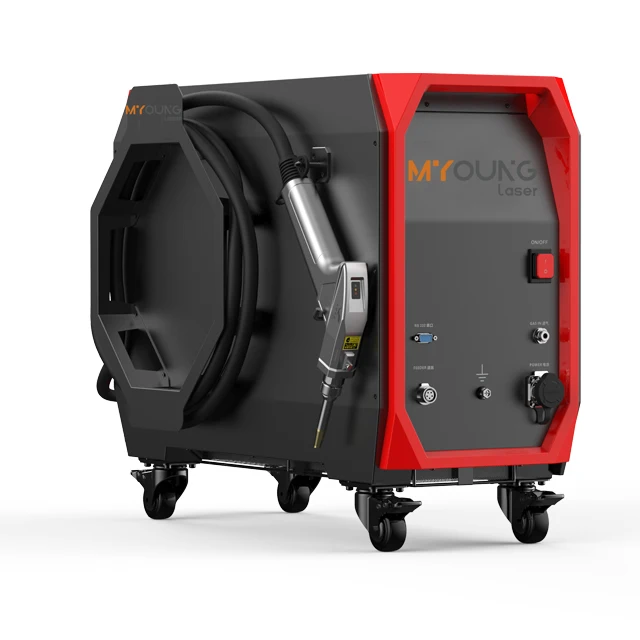

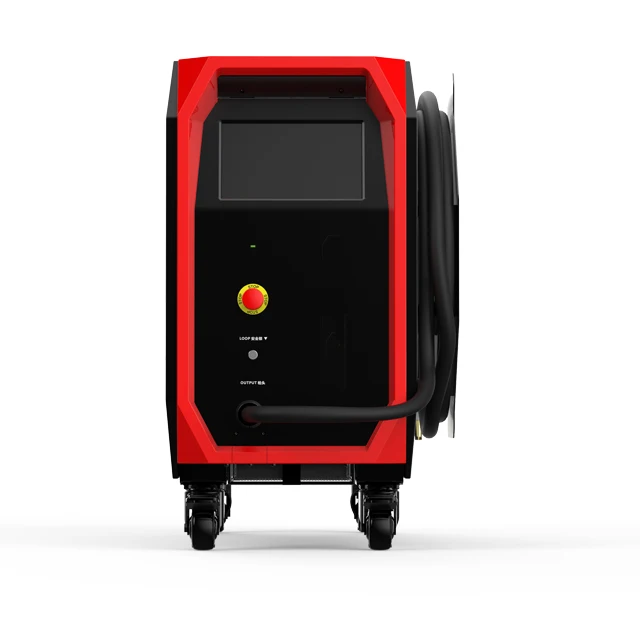

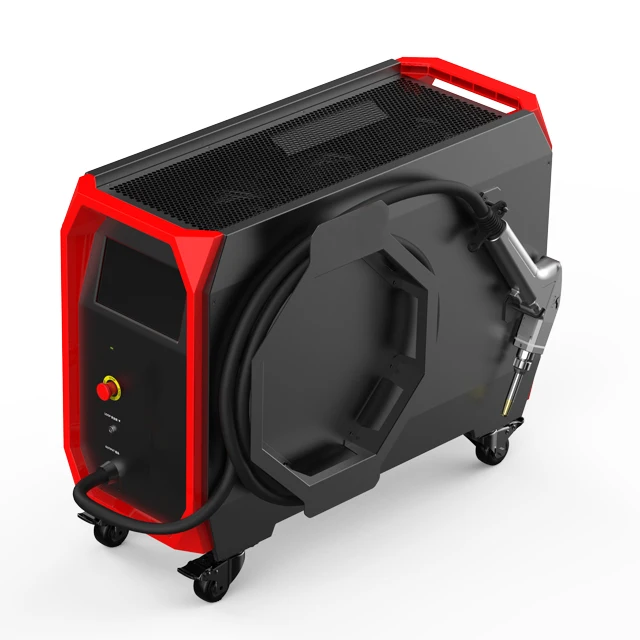

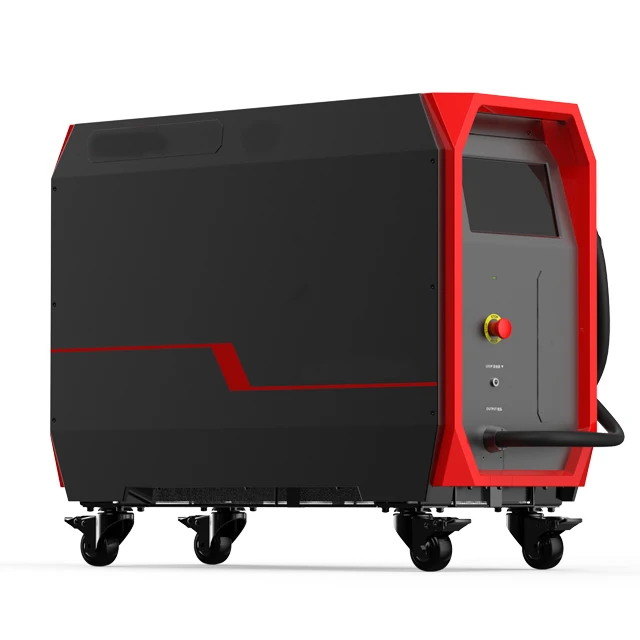

SPECIFICATIONS FOR Fiber Laser Welding Machine
Model		MY-SC1500W
Laser Source	IPG(Germany)	Laser Power	1000W ~2000W
Welding Metarials	Metal and Non-Metal	Welding Thickness	4mm
Laser Mode	Multimode	Laser Wavelength	1070nm
Working Mode	Continuous	Laser Wavelength	3%
Transmission Fiber Diameter	50um	Min Light Spot	0.2mm
Fiber Length	5,10,15m	Power Adjusting Range	5~95%
Cooling Method	Water Cooling	Power Supply	220V,50/60Hz

	Wobble Welding Torch  3in1 function welding head, while supporting a comprehensive system of handheld laser welding, laser cleaning and laser cutting. The working mode can be freely switched according to different application scenarios, providing diversified solutions for users' different application needs. The product covers welding head/cleaning head and self-developed control system, and sets multiple safety alarms and active safety power and light off settings. It has the characteristics of high reliability and high stability. The product can be adapted to various brands of fiber lasers, optimized optical and water-cooled design makes the laser head can work stably for a long time under 2000W. Weight 0.7kg.
Fiber Laser Source  The third generation of single-module continuous fiber laser developed by Raycus has higher photoelectric conversion efficiency (>40%), better and more stable beam quality, and stronger anti-reflectivity. The optimized second generation transmission system is also introduced to ensure more stable and precise results in welding. 1. High photoelectric conversion rate 2. Maintenance-free operation 3. good quality of laser output 4. Strong anti-hyper-reflection capability
	Contorl System  Humanized design operation panel, touch control by hand, complete functions, convenient for users to operate. All parameters are visible, monitoring the whole machine status in a real time to avoid problems ahead of time,facilitate troubleshooting and problem solving to ensure the stable operation of the system Supporting 8 kinds languages to meet more clients’ requirements. Including welding/cleaning/cutting working modes, a dedicated laser source data monitoring page, technical info. can be set to try various of process effects.
Wire Feeder  1. Self-developed metal sheet wire feeding control system,with function of pulling back to make up the wire. 2. Full-featured English version control system, which can directly set the wire feeding speed/running status/continuous mode setting, etc., very easy to operate.

Laser Welding Machine Parameter
Laser Power	MY-SC1000	MY-SC1500	MY-SC2000	MY-SC3000
Laser source	Raycus/MAX/BWT
Welding Thickness(SS)	3mm	4mm	5mm	7mm
Welding Thickness(CS)	3mm	4mm	5mm	6mm
Welding Thickness(AL)	2mm	3mm	4mm	6mm
Feeding Wires' Dimension	0.8-1.2mm	0.8-1.6mm	0.8-1.6mm	0.8-2.0mm
Output Fiber Length	5/10/15m (Optional)
Laser Wavelength	1070±5nm
Power Requirements	220v±10%, 50/60HZ,1P	220v±10%,50/60HZ,1P	Raycus is 380V/3P and Max can be 380V/3P or 220V/1P, 50HZ/60HZ	380v±10%,50/60HZ,3P
Welding Speed	0-120mm/s	0-120mm/s	0-150mm/s	0-160mm/s
Gross Power	10KW	12KW	15KW	20KW
Air Humidity	10-90%
Laser Frenquency	50-5000HZ
Position System	Red Light Indicator
Welding Head	Wobble Laser Welding Head
Power Adjustment	10-100%
Cooling Method	Water Chiller
Shielding Gas Flow	15-20L/min(Ar or N2)
Machine Size(Mini Design)	450X1000X680mm
Weight(Mini Design)	100 KG
Machine Size(Standard Design)	720X950X1080mm
Weight(Standard Design)	200 KG

More informations to contact with us! Inquiry Inquiry Inquiry Don't Hesitate

Foshan Myoung Laser Technology Co., Ltd. was established in 2012. It is an emerging enterprise of laser equipments integrating R & D, manufacturing, sales and service. It is engaged in laser process research and development, laser equipment design and development, production, technical support, customized services and consulting .

The products are widely used in electronics, IC chips, electrical appliances,lighting fixtures, jewelry, hardware tools, sanitary ware, Instruments and meters, automobile and motorcycle accessories,mobile phone communication parts, molds, precision machinery, medical equipment, IT digital, metal casing, military aviation parts, clothing leather, craft gifts, advertising decoration, models, kitchen equipment and other industries.

Myoung laser welder Frequently Asked Questions (FAQ)

Is Myoung laser welder really faster than MIG and TIG welding?

Yes, Myoung laser welder travel speed is up to four times faster than traditional methods, fixturing is simpler or not necessary, and post-weld grinding or sanding is not needed or significantly reduced – all of which increases productivity while minimizing rework.

Is Myoung laser welder really that easy to learn?

Yes, compared with MIG and TIG welding, either of which can take a lifetime to master, Myoung laser welder is quick to learn, allowing new users to make high-quality welds in just a few hours.

The controls look confusing. How do I know what to adjust?

Myoung laser welder comes preloaded with optimized welding parameters for the most common materials and thicknesses. You can adjust the power up or down to match your travel speed and desired penetration, and you can save those settings and recall them as needed.

Can Myoung laser weld dissimilar metals or parts with different thicknesses?

Yes, you can easily weld dissimilar metals like copper to stainless steel or to aluminum, plus parts with different thicknesses across all weld joint types: tee, butt, corner, lap and edge.

What is the maximum material thickness that can be welded?

For stainless steel, galvanized steel, mild steel and aluminum, you can weld single-sided up to 4 mm and double-sided up to 10 mm – copper single-sided up to 1 mm and double-sided up to 2 mm.

What about vertical welding or upside down welding?

Myoung laser excels at both vertical and upside down welding since there are normally no consumables and minimal spatter produced, making it safe and easy to weld in any position.

Is the laser beam constant or can it be pulsed?

Myoung laser offers five modes of operation to match your needs:

Continuous wave - the laser is on constantly for maximum penetration and travel speed

Tack mode – to create identical tack welds

Stitch mode – used for repeated tacking or overlap welds

High peak power mode – short burs
