Product Description
Overview
LD2410 is a high-sensitivity 24GHz human presence status sensing module developed by Hi-Link Electronics. Its working principle is to use FMCW frequency-modulated continuous waves to detect human targets in the set space. Combined with radar signal processing and accurate human body sensing algorithms, it realizes high-sensitivity sensing of human presence status, and can identify human bodies in motion and stationary states. And auxiliary information such as the distance of the target can be calculated.
This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. The farthest sensing distance can reach 5 meters, and the distance resolution is 0.75m.
Provides a visual configuration tool, which can easily configure the sensing distance range, sensing sensitivity in different intervals and unmanned delay time, etc., to adapt to different specific application needs.
Supports GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and terminal products.
This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. The farthest sensing distance can reach 5 meters, and the distance resolution is 0.75m.
Provides a visual configuration tool, which can easily configure the sensing distance range, sensing sensitivity in different intervals and unmanned delay time, etc., to adapt to different specific application needs.
Supports GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and terminal products.
Product Features and Advantages
* Plug and play, easy assembly
* The farthest sensing distance is up to 5 meters
* Large detection angle, coverage up to ±60 degrees
* Accurately identify within the interval, supportsthe division of the sensing range, and shield the interference outside the
interval
* Multi-level intelligent parameter adjustment to meet the needs of changing scenes
* Visual debugging and configuration tools

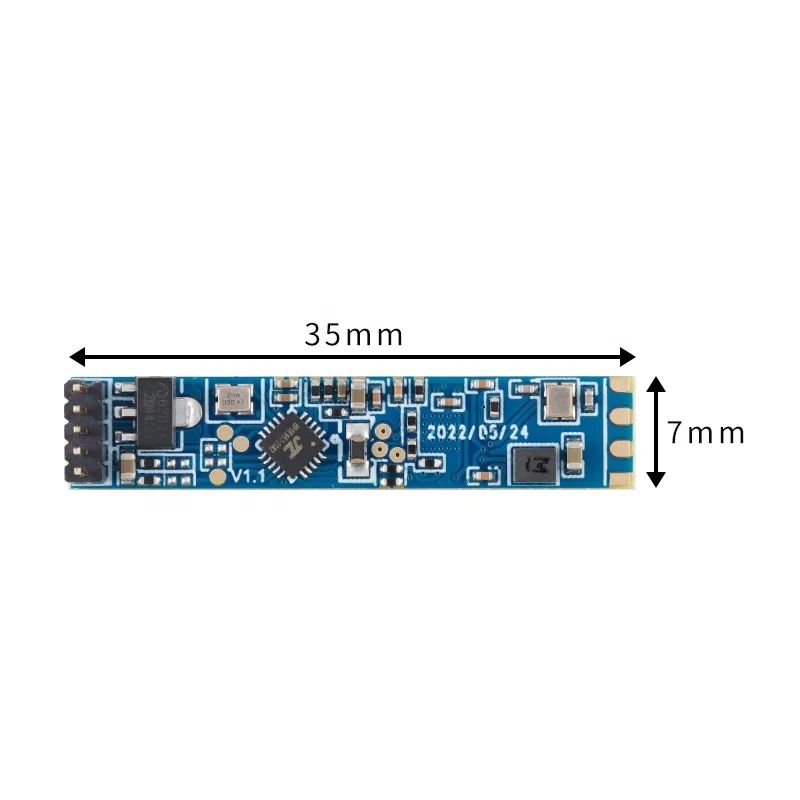

* Compact and simplified, the minimum size is only 7mmx35mm
* Supports various installation methods such as ceiling hanging and wall hanging
* 24GHz ISM band, can be certified by FCC and CE spectrum regulations
* 5～12V wide voltage power supply
* The ultimate cost-effective choice
* The farthest sensing distance is up to 5 meters
* Large detection angle, coverage up to ±60 degrees
* Accurately identify within the interval, supportsthe division of the sensing range, and shield the interference outside the
interval
* Multi-level intelligent parameter adjustment to meet the needs of changing scenes
* Visual debugging and configuration tools
* Compact and simplified, the minimum size is only 7mmx35mm
* Supports various installation methods such as ceiling hanging and wall hanging
* 24GHz ISM band, can be certified by FCC and CE spectrum regulations
* 5～12V wide voltage power supply
* The ultimate cost-effective choice
Pin | Symbol | Name | Function |
1 | OUT | Target status output | Human presence detected: output high level No human presence: output low level |
2 | UART_Tx | Serial port Tx | Serial port Tx pin |
3 | UART_Rx | Serial port Rx | Serial port Rx pin |
4 | GND | Power ground | Power ground |
5 | VCC | Power input | Power input 5V (acceptable 5V ~ 12V voltage power supply) |
Specification
item | value |
Model Number | HLK-LD2410 |
Place of Origin | China |
Guangdong | |
Brand Name | Hi-Link |
Usage | sensing |
Theory | radar |
Voltage - Supply | 5-12V |
Modulation | FMCW |
Mounting Type | ceiling and wall mounting |
Frequency | 24GHz |
Output | 3.3v |
Size / Dimension | 7mmx35mm |
Technology | radar |
Sensing Range | 0.75-5m |
Sensing Light | daylight sensor |
Application | sensor |
