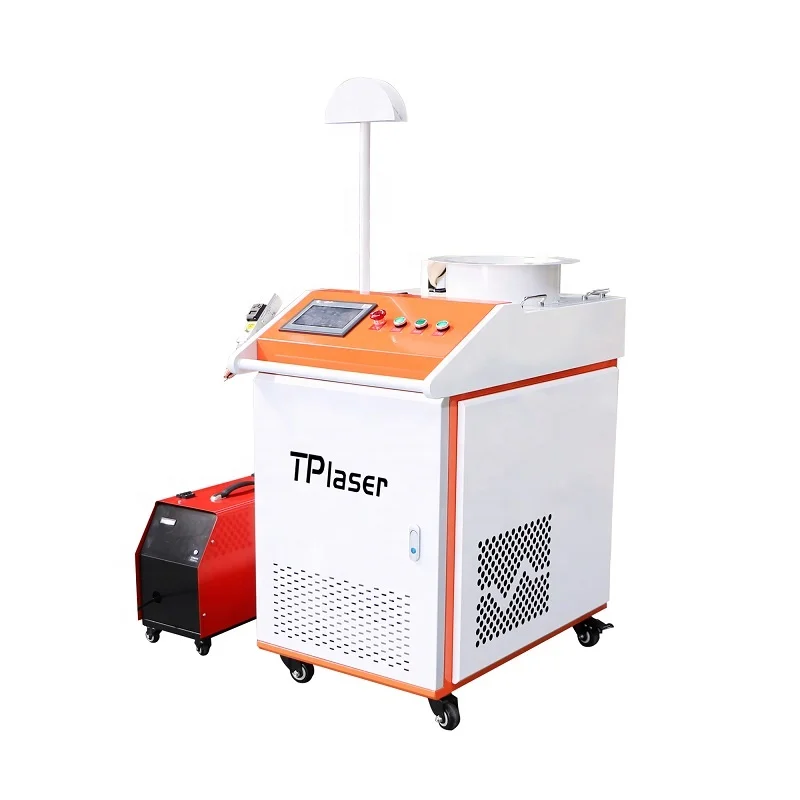

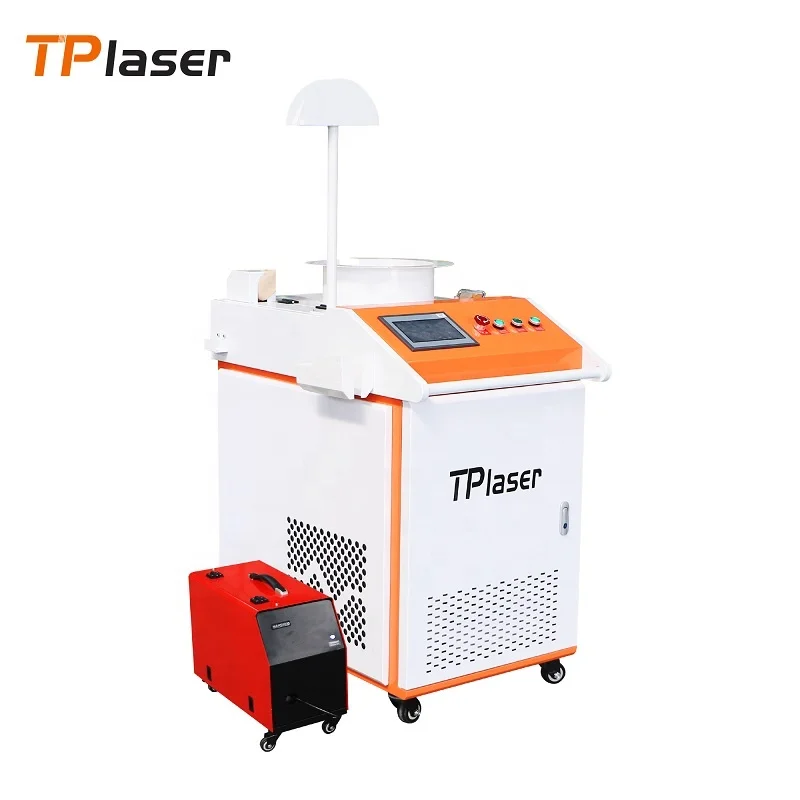

Новая технология волоконно-лазерный сварочный аппарат для углеродистой стали меди
- Категория: Laser Welders >>>
- Поставщик: Jinan,TechPro,CNC,Equipment,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.56 $* | 0.21 $* |
| Aug-16-2025 | 0.79 $* | 0.17 $* |
| Jul-16-2025 | 0.39 $* | 0.87 $* |
| Jun-16-2025 | 0.40 $* | 0.4 $* |
| May-16-2025 | 0.30 $* | 0.56 $* |
| Apr-16-2025 | 0.47 $* | 0.18 $* |
| Mar-16-2025 | 0.78 $* | 0.65 $* |
| Feb-16-2025 | 0.97 $* | 0.21 $* |
| Jan-16-2025 | 0.15 $* | 0.22 $* |
Характеристики
Product Description
Description Of Laser Welding Machine
1.This welding head could be widely used in complex and irregular welding process such as cabinets, kitchen, staircase, shelf, gridiron, stainless steel door and window guardrail, distribution box, stainless steel furniture and other industries.
2.The handheldwelding head is mild and bendy, smooth and easy to operate, laser welder machine use wobble laser head, which can get good welding effect
3.Smart internal design and interactive control system expan the tolerance range and welding width of the processing parts, and solve the disadvantage of minor laser welding spot, and provide better welding forming.
4.Small solder joints, small heat affected area, blackening, and traces on the back; it is the high-quality choice for factories with various product shapes and complex
5.Handheld fiber laser welder meet lot of angles, more than one positions of welding; may be completed to finish the arbitrary components of the arbitrary factor of view welding, sensitive and convenient, appropriate for all sorts of messy welds, all kinds of equipment spot welding.
2.The handheldwelding head is mild and bendy, smooth and easy to operate, laser welder machine use wobble laser head, which can get good welding effect
3.Smart internal design and interactive control system expan the tolerance range and welding width of the processing parts, and solve the disadvantage of minor laser welding spot, and provide better welding forming.
4.Small solder joints, small heat affected area, blackening, and traces on the back; it is the high-quality choice for factories with various product shapes and complex
5.Handheld fiber laser welder meet lot of angles, more than one positions of welding; may be completed to finish the arbitrary components of the arbitrary factor of view welding, sensitive and convenient, appropriate for all sorts of messy welds, all kinds of equipment spot welding.
Machine Configuration
Machine Configuration | ||
Model | TPH-1000W | |
Laser source | Raycus | |
Laser power | 1000w/2000w/3000w | |
Cooling system | Water cooling | |
Working environment temperature range | 15~35 ℃ | |
Adjusted spot range | 0.1-5.0mm | |
Spot size | 0.2-4.0mm | |
Humidity range of working environment | < 70%No condensation | |
Working voltage | 220V,50/60hz | |
Detailed Images

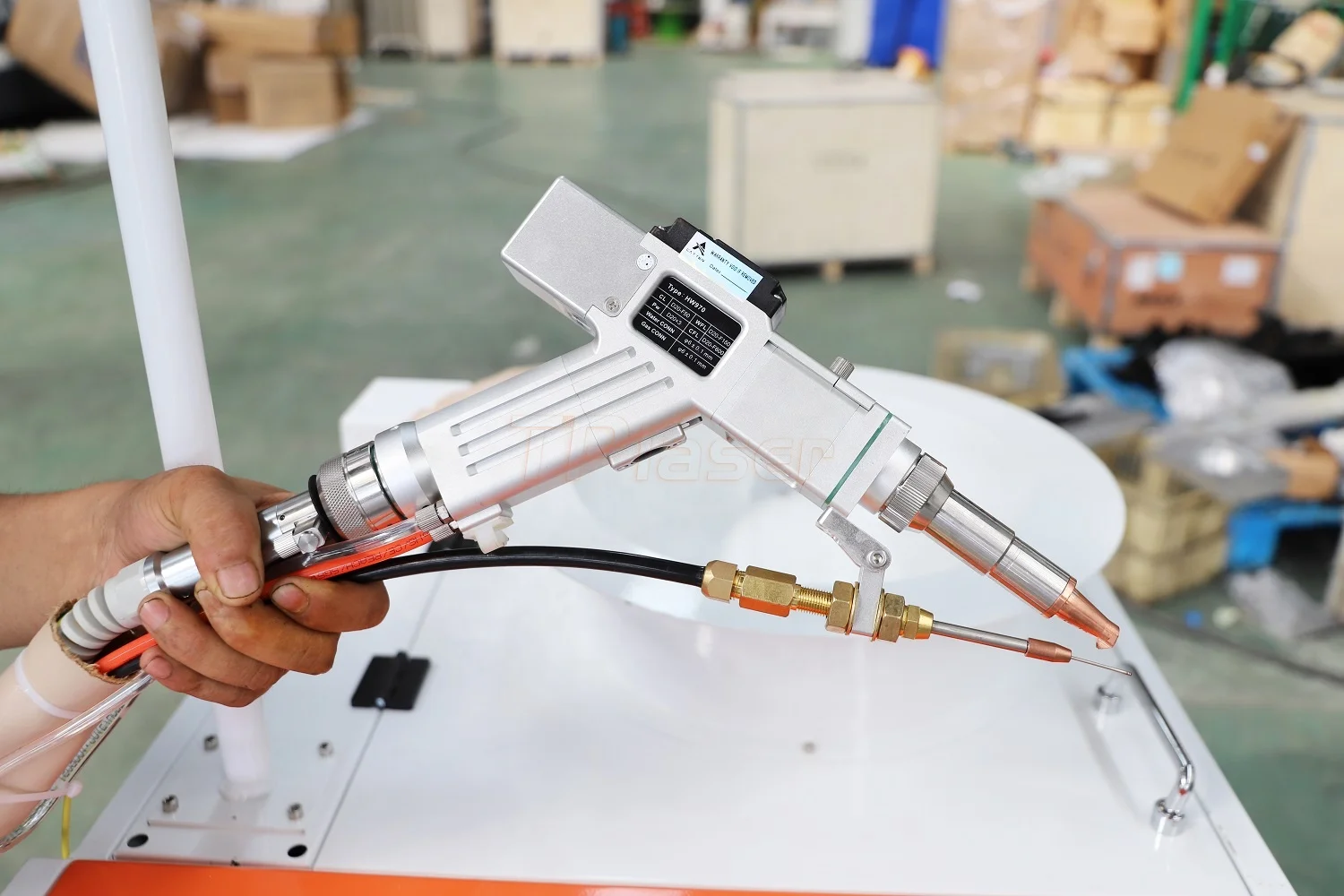

Laser Welding Heads
The latest galvanometer welding head in 2020, it has the advantages of high energy density, low heat input, small thermal deformation, narrow and deep melting zone and heat affected zone. The welding workpiece is not deformed. The welding speed is fast, 2 ~ 10 times faster than traditional welding, saving time and cost. Easy to operate

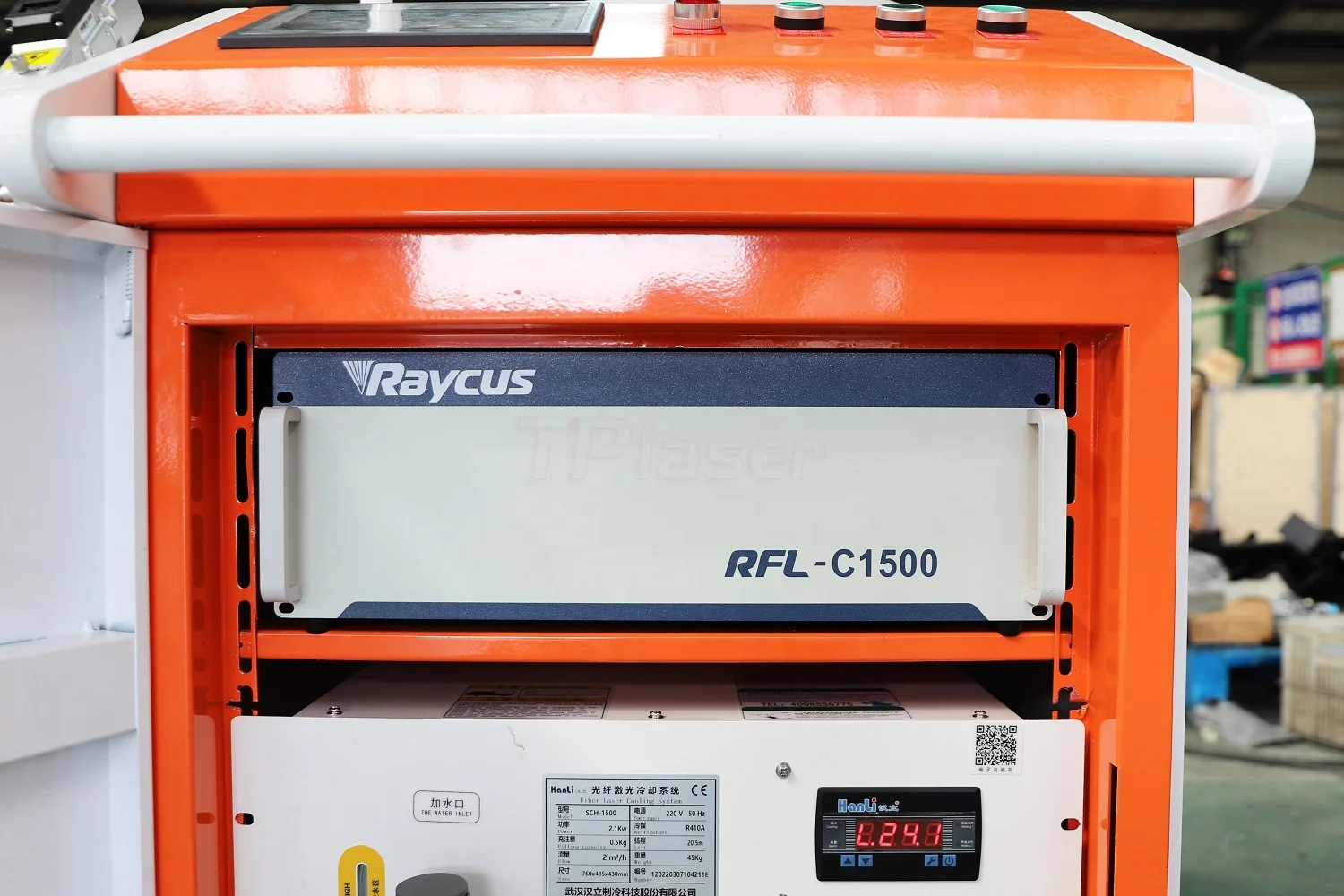

Raycus Laser Generator
The photoelectric conversion rate is greatly improved, laser welder power is enhanced, has better welding effect, it according to the needs of customers with different configurations to meet customer needs.

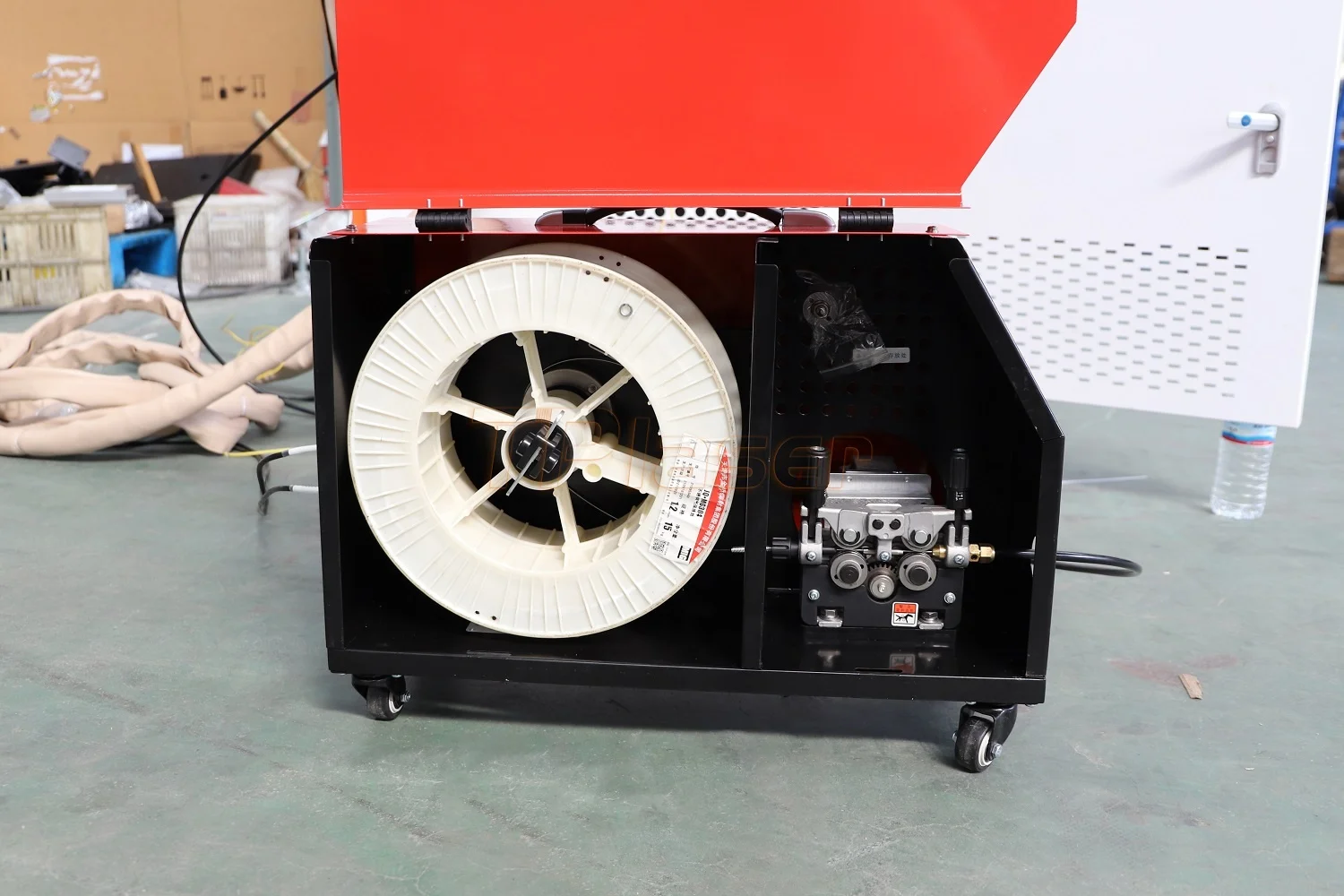

Automatic Wire Feeder
According to the processing speed, wire can be automatically feed, improve the welding efficiency. High wire feeding accuracy and good repeatability

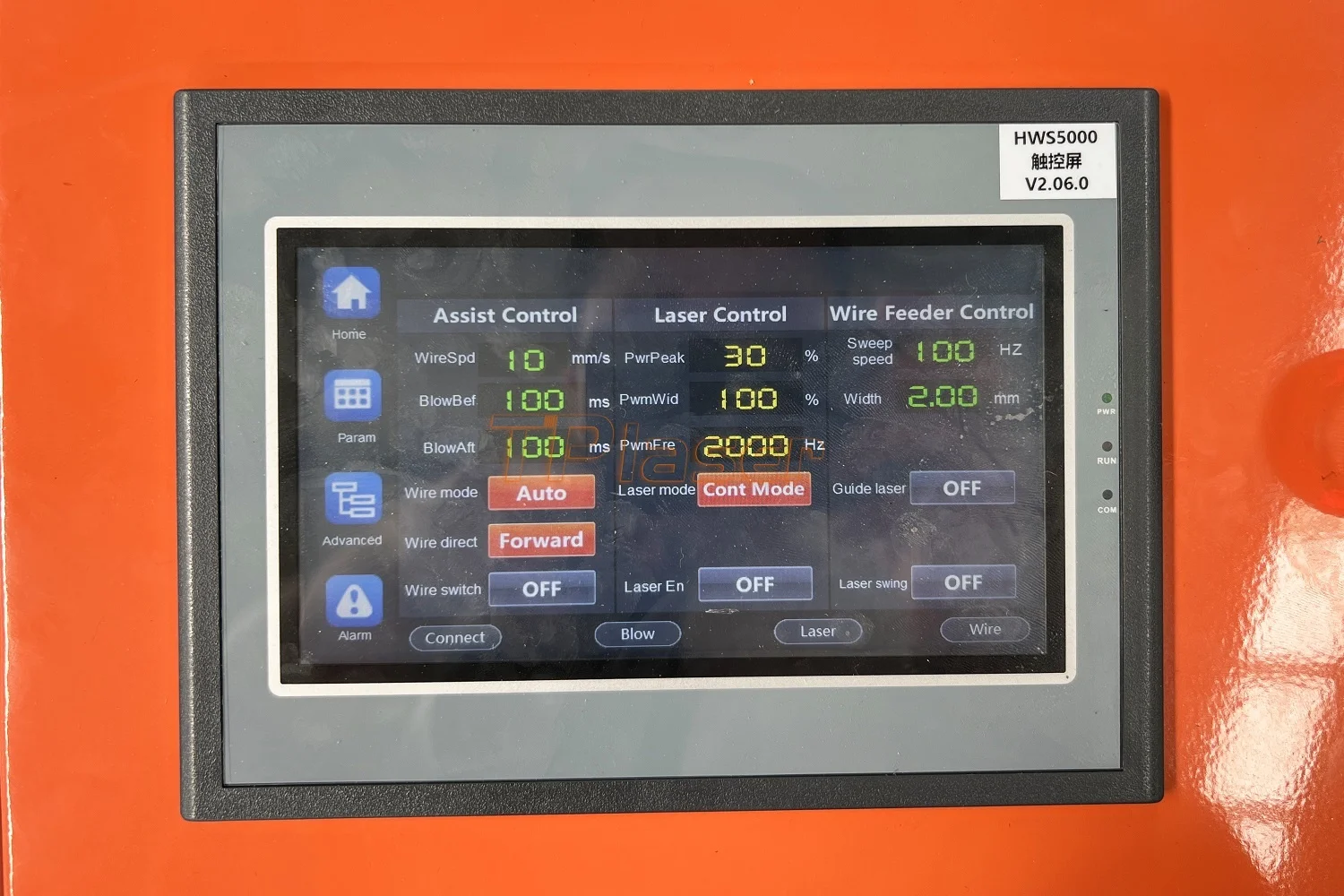

Control System
Professional control sytem for laser welding machine, easy to operate and flexible, high stability. More user-friendly operation.
Water Chiller
With compressor can cool down fiber laser quickly to ensure that the fiber laser has stable power and efficient and fast operation.
Exclusive no water warning and automatic protection system, if there's no water or the water flows in opposite direction, there'll be no laser,can protect the working life of fiber laser effectively.
Control Box
When welding, the signal interference is small, which makes the welding more stable. Use France Schneider electrical components, circuit protection against short-circuit currents,Circuit protection against overload currents,Breaking and industrial disconnection as per standard IEC/EN 60947-2.
Gas-assisted welding
Gas-assisted welding makes the surface smooth, more beautiful and increases the welding thickness
Recommended 0.2 MPa
Machine Sample
Welding Penetration Data | ||||||||
Power | 1000w | 1500w | 2000w | |||||
Stainless Steel | Depth of fusion | 0-4mm | 0-5mm | 0-6mm | ||||
Penetration thickness | 0-3mm | 0-4mm | 0-5mm | |||||
Mild steel/Iron | Depth of fusion | 0-4mm | 0-5mm | 0-6mm | ||||
Penetration thickness | 0-3mm | 0-4mm | 0-5mm | |||||
Galvanized sheet | Depth of fusion | 0-3mm | 0-4mm | 0-5mm | ||||
Penetration thickness | 0-2mm | 0-3mm | 0-4mm | |||||
Aluminum/brass | Depth of fusion | 0-2mm | 0-3mm | 0-4mm | ||||
Penetration thickness | 0-1mm | 0-2mm | 0-3mm | |||||
Packing&Shipping
Packaging & Shipping detail:
1).Outside package: Standard marine export plywood case.
2). Inner package: Stretchy film and plastic film for humidity.
3). Machine packing size:1350*780*1350mm ,GW: 350kg
2). Inner package: Stretchy film and plastic film for humidity.
3). Machine packing size:1350*780*1350mm ,GW: 350kg
Shipped in 7-15 working days after payment.
1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
1) Machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
After Service
After Service
1.) Warranty: 3 years on parts from date of shipping date, Life-time technical support.2.) Machine spare parts and repair service is offered in lifetime.
3.) Demand research, technical Seminar, application testing and samplings service.
4.) 30 domestic technicians, 10 oversea technicians, 5 online engineers, 24 hours technical online support by E-mail,Skype online contact software or door-to-door service.
3.) Demand research, technical Seminar, application testing and samplings service.
4.) 30 domestic technicians, 10 oversea technicians, 5 online engineers, 24 hours technical online support by E-mail,Skype online contact software or door-to-door service.
Company Profile
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
A:We will help you choose the suitable machine and share you the solution; you can share us the following information
1. what material will you weld
2. The welding material thickness
3. Is it joint welding or over-lay welding
4. What is the exact usage for the machine , for product welding or repair or other application
A:We will help you choose the suitable machine and share you the solution; you can share us the following information
1. what material will you weld
2. The welding material thickness
3. Is it joint welding or over-lay welding
4. What is the exact usage for the machine , for product welding or repair or other application
Q2: When I got this machine, but I don’t know how to use it. What should I do?
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
A:We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: If some problems happen to this machine, what should I do?
A:We provide 3 years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
A:We provide 3 years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q4: What’s consumables of laser marking machine?
A: nozzle. our machine with 3 nozzles when delivery. It’s very economical and cost effective.
A: nozzle. our machine with 3 nozzles when delivery. It’s very economical and cost effective.
Q5: What’s package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q6: What’s delivery time?
A: As per your requirement , we will suggest the suitable machine . The exact delivery time as per your machine.
A: As per your requirement , we will suggest the suitable machine . The exact delivery time as per your machine.
Q7: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
