Дешевый ювелирный лазерный сварочный аппарат
- Категория: Spot Welders >>>
- Поставщик: Shenzhen,Yintao,Laser,Equipment,Tech,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 4879.90 $* | 5123.79 $* |
| Aug-16-2025 | 4838.99 $* | 5080.66 $* |
| Jul-16-2025 | 4059.6 $* | 4262.67 $* |
| Jun-16-2025 | 4756.25 $* | 4994.53 $* |
| May-16-2025 | 4141.93 $* | 4348.39 $* |
| Apr-16-2025 | 4674.50 $* | 4908.25 $* |
| Mar-16-2025 | 4633.72 $* | 4865.10 $* |
| Feb-16-2025 | 4592.82 $* | 4822.24 $* |
| Jan-16-2025 | 4551.10 $* | 4779.99 $* |
Характеристики
Product Description

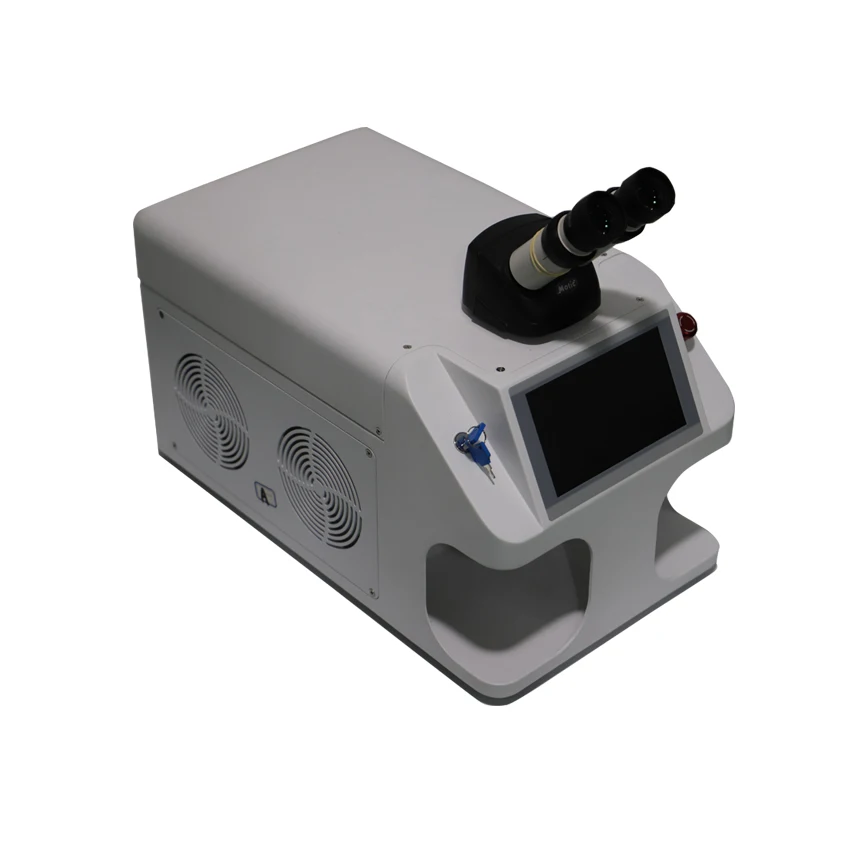

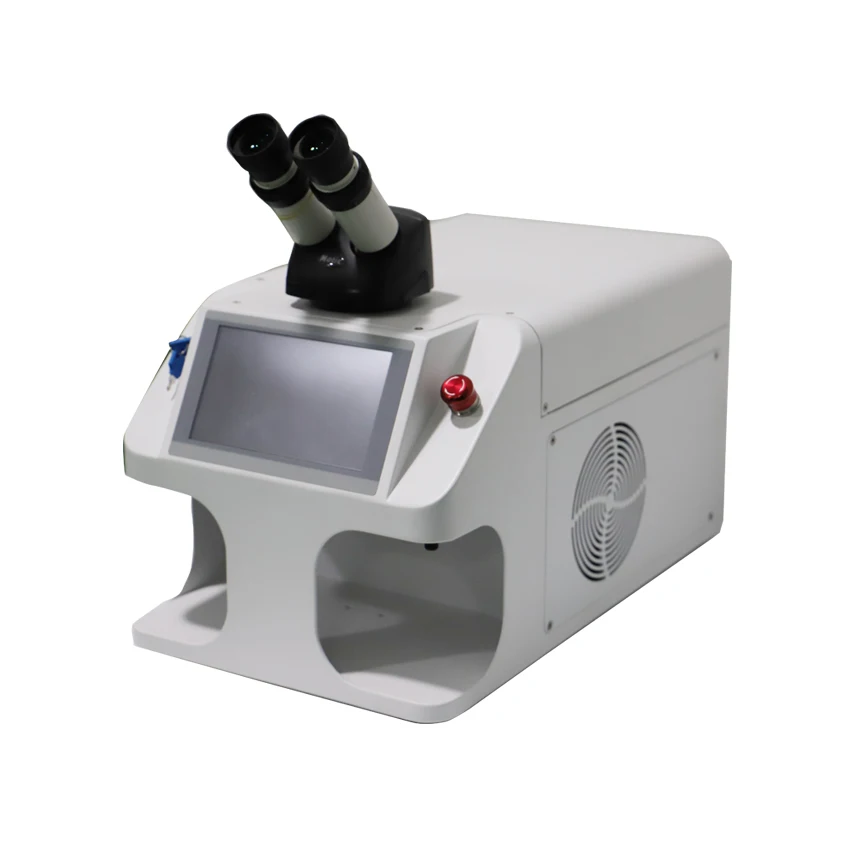

Machine:100W Cheap Compact Jewelry Fiber Laser Spot Welding Machine for Aluminum with CE
Features:
1. All accessories of the mini jewelry laser welder using high technology integrated technology, stable and functional.
2. The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects.
3. Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.
4. It is able to work 24 hours continuously, stable performance
5. Human-based design accords with ergonomics, no fatigue after long time working.
Advantage: No need fill wire, fast welding speed, small heat effected zone,Low power consumption
Widely use for jewelry name pendant cutting and mark logo photo on jewellery products.
Specification
Machine | Mini Jewelry laser welding machine |
Power Supply | AC220V / 50Hz |
Pulse Width | 1.00-10.0 Hz |
Pulse Width | 0.1-10.0ms |
Spot Size | 0.1- 3.0mm |
Power | 100w |
Pulse Energy | 45J |
Power Consumption | 2Kw |
Working Temperature | 30℃ |
Cooling method | Water Cooling |
Operation method | Touch control panel |
Wavelength | 1064nm |

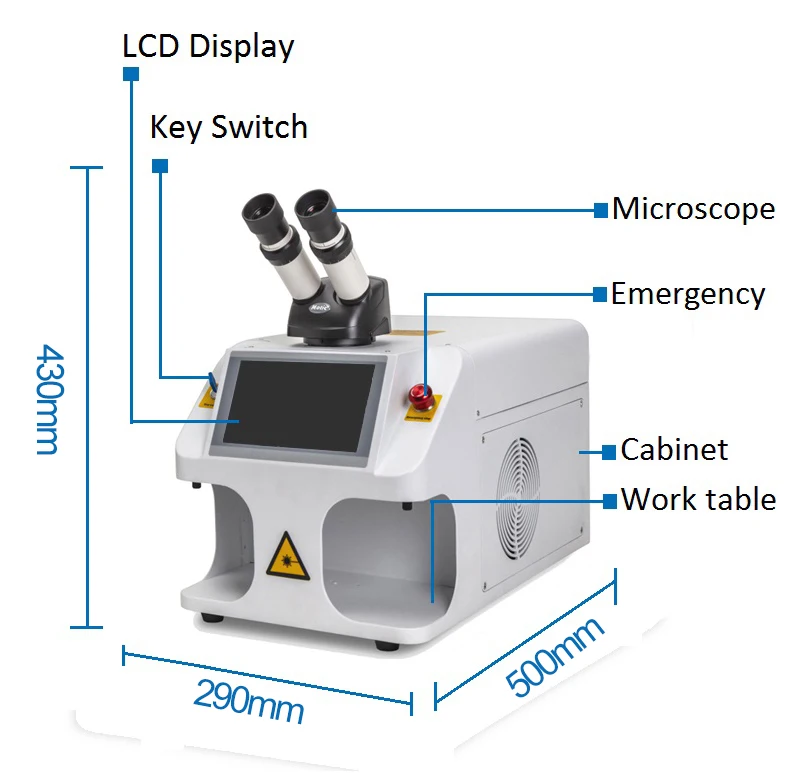

Machine Dimension | 510*295mm*395mm |
Net Weight | 28KG |
Detail Introduction
Quality Ceramic cavity
The Ceramic converging cavity is corrosion resistant and high temperature resistant, has 8-10 years service life.
Adopt Germany quality xenon lamp, xenon lamp lifetime is 80000 times, can work for 1-2 years according to your working situation.

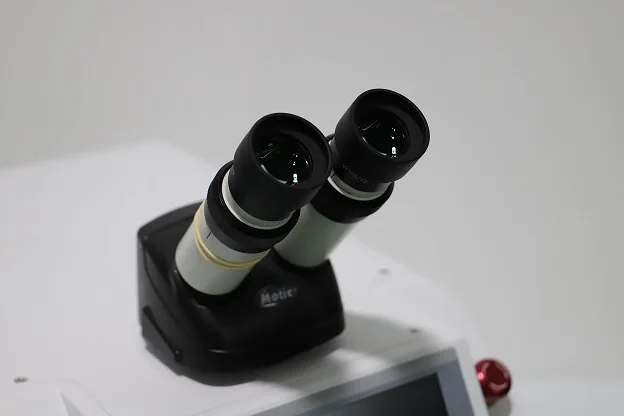

Equip with HD CCD monitor and Telescope with 10X high resolution enlargement effect, help you to observe the welding effect and weld the small product easily.
Welding Working Area
Equip with high quality protection len ,focus lens and adjustable LED light.
Protective lens need to change it every 2 months.
The welding working area size is 295*165*140mm , comfortable to use.
Machine size:510*295mm*395mm
Weight: 28KG
Small occupied area, convenient to carry
Welding Sample
Application:
Widely used in Jewelry ring soldering, Precision Watch repair, Sand Hole repair, bracelet welding,Necklace repair, glass frame welding, electric components welding etc.
Packing & Delivery
Pack in standard International wooden case with sponge filled inside for packing protection
Packing Size:620*415*600mm
Net Weight: 28KG
Gross Weight: 42KG
All products must be 100% tested to ensure their functionality, reliability, security and durability before shipment
Net Weight: 28KG
Gross Weight: 42KG
All products must be 100% tested to ensure their functionality, reliability, security and durability before shipment
Company Profie
FAQ
Q: What is the guarantee period?
Q: What is your terms of payment?
A: 50% T/T in advance, the balance be collected before shipment. Also, you can order in Alibaba and pay in credit card.
A: Generally, the laser welder warranty is one year, warranty period can be extend by discussion. We provide free broken parts within guarantee period. After warranty period, we still provide you free service, and we charge broken parts cost and shipping cost only.
Q: How to use the machine?
A: Operation video and manual book will be sent to you after we get your order. If you still confused about the machine operation, we provide video call training online also, teach you how to use the machine step by step.
Q: How can I do if machine goes wrong?
A: Please take some photos and videos to show us the machine problem, we will solve your machine problem within 24 hours.
A: 50% T/T in advance, the balance be collected before shipment. Also, you can order in Alibaba and pay in credit card.
Q: How long is your delivery time?
A: When the order is confirmed, 3 working days for the small order, 10-15 days for the bulk order.
Q: Why choose your company?
A: Yintao laser is a professional laser machine manufacturer in Shenzhen, China. We are able to provide you quality machine ,professional service and technical support quickly. we won't let you down if you choose us!
A: When the order is confirmed, 3 working days for the small order, 10-15 days for the bulk order.
Q: Why choose your company?
A: Yintao laser is a professional laser machine manufacturer in Shenzhen, China. We are able to provide you quality machine ,professional service and technical support quickly. we won't let you down if you choose us!
