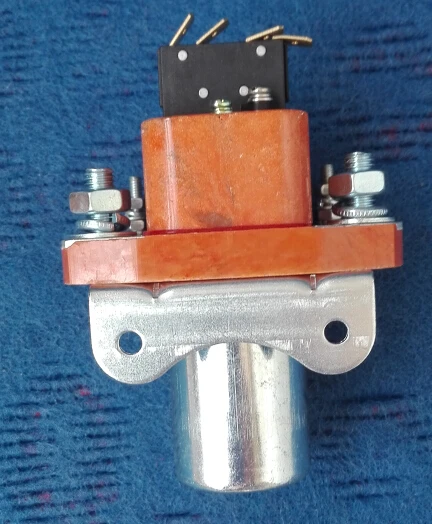

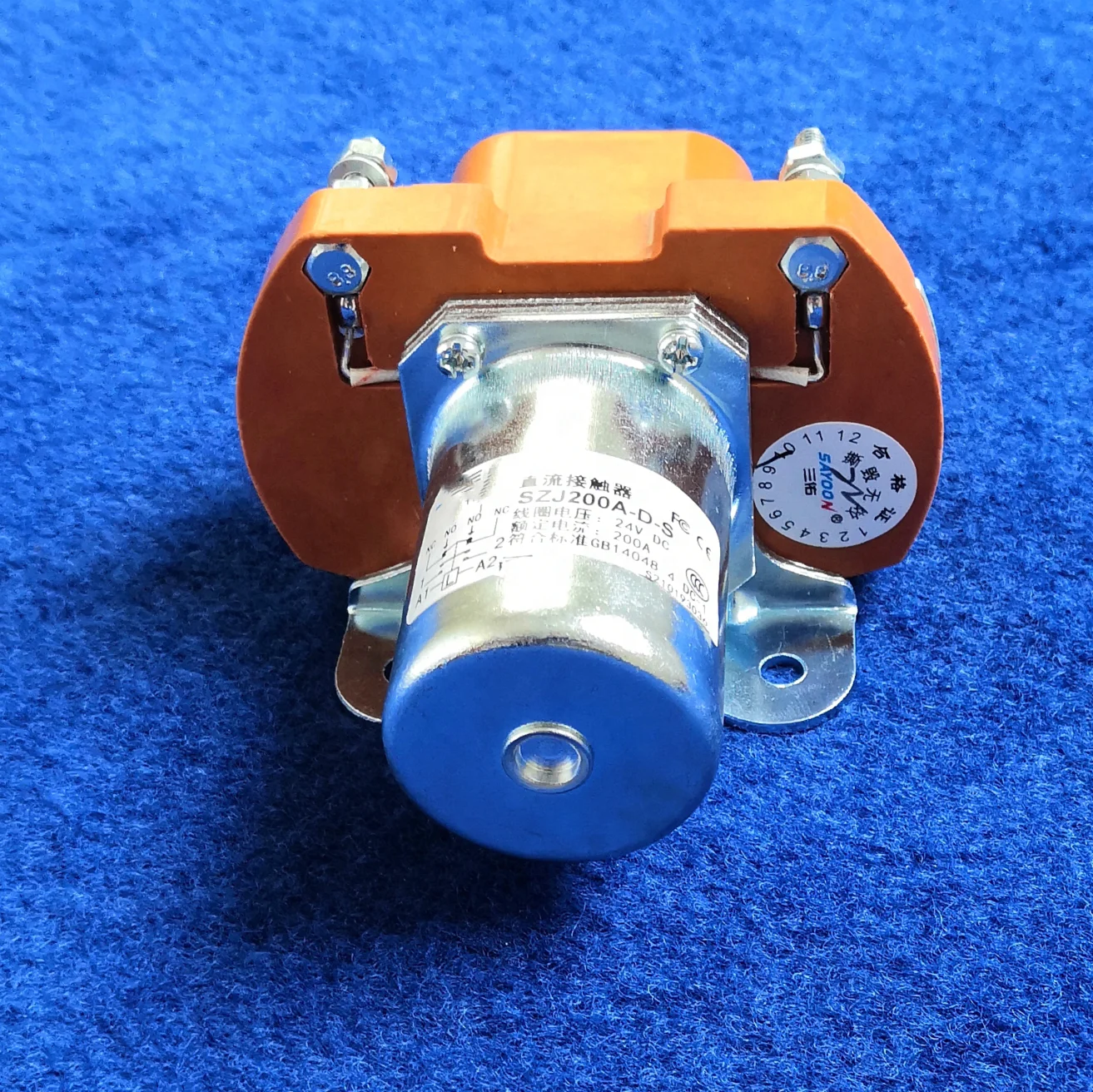

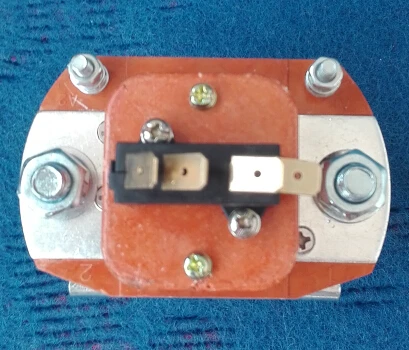

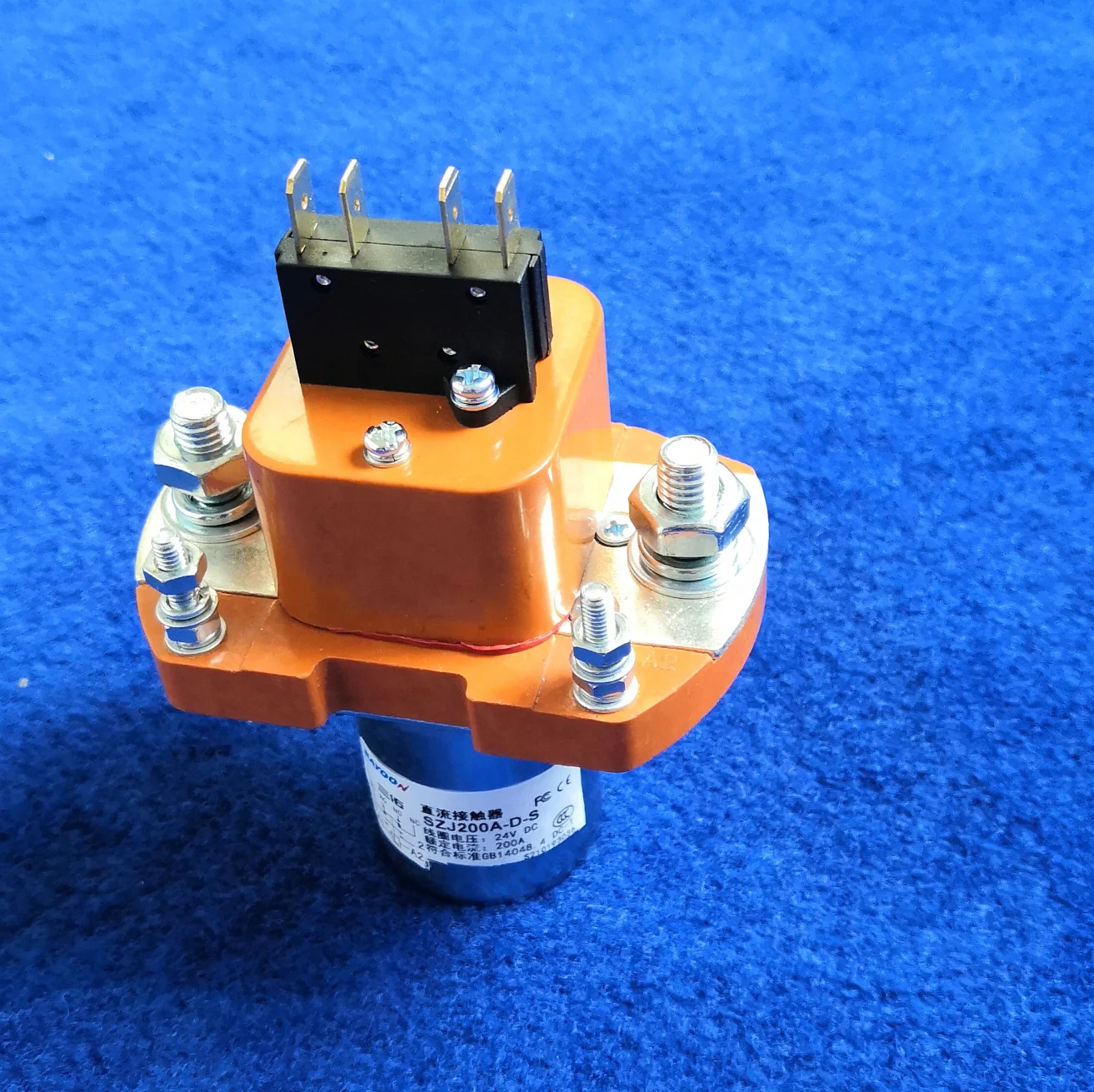

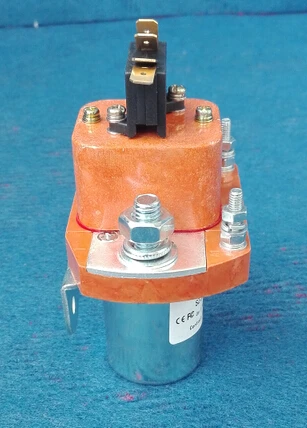

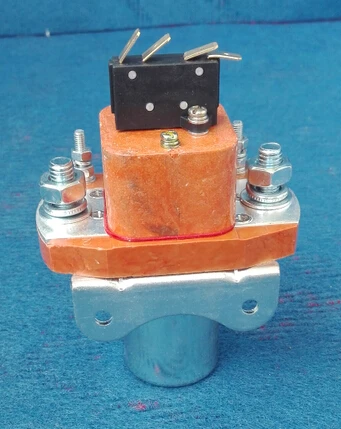

Главный контактор 24 В 200 А постоянного тока с
- Категория: Contactors >>>
- Поставщик: Qingdao,Greatway,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.16 $* | 0.73 $* |
| Aug-19-2025 | 0.87 $* | 0.81 $* |
| Jul-19-2025 | 0.48 $* | 0.48 $* |
| Jun-19-2025 | 0.87 $* | 0.65 $* |
| May-19-2025 | 0.26 $* | 0.38 $* |
| Apr-19-2025 | 0.46 $* | 0.73 $* |
| Mar-19-2025 | 0.57 $* | 0.2 $* |
| Feb-19-2025 | 0.38 $* | 0.66 $* |
| Jan-19-2025 | 0.56 $* | 0.80 $* |
Характеристики
USES:
This product have one normally open contact, for electric vehicles, telecommunication equipment, engineering machinery, car batteries, electric forklift trucks, trains, ships, electronic control systems such as uninterruptible power supply.
ECHNICAL PARAMETERS:
Product Type | SZJ200A-D |
| Rated voltage | 6V,12V,24V,36V,48V,60V,72V,84V,120V,150V |
| Contact circuit rated load current (A) | 200A |
| Typical voltage drop across contacts per 100A | No more than 80mV |
| the cooling pull-in voltage at (20±5)℃ (V) | no more than70% |
| the cooling drop-out voltage at (20±5)℃(V) | no morte than30%,no less than 5% |
| the allowed range of coil voltage | ±20% |
| Drop-out time(n/o contacts to open) | 8ms |
| Pull-in time (n/o contacts to close) | 30ms |
| Disconnect the maximum contact bounce time | 3ms |
| Insulation resistance | 20MΩ |
| Electric strength to resist | 50Hz/60Hz 1000VAC 1minute |
| Typical fault currents which can be ruptured | 1000A/5ms at 48V/DC |
| Coil power (W) | 6-15 |
| Electric life | 20000 times |
| Mechanical life | 1 million times |
| Work specification | Continuous |
| Contact form | 1 NO |
| Contact material | AgCdO(12) |
| Auxiliary contact rated load (choose) | 2A/48VDC, 5A/24VDC |
| Testing organization certification | CE,FCC |
Note:As regarding to the different using environments of customers which requires different focus of the functions,and in order to improve the comprehensive properties of our products,sayoon may adjust the coil parameters,temperature rise and so on.
