Lab Pyrolysis Reactor
Product Description
Special Customized- Just for you:
All of our reactor are specially made as per customer's request, you could advise below parameter , then we will send you accurate quotation with related drawing:
1. Working volume
2. Working Temperature
3. Working Pressure
4. Reactor Material / contacting components material
5. With the agitator or mixer or not, and the Mixing Speed
6. With heating device or not.
7. Your other requests
With above information, we will come back to you with special designing just for yourself.
All of our reactor are specially made as per customer's request, you could advise below parameter , then we will send you accurate quotation with related drawing:
1. Working volume
2. Working Temperature
3. Working Pressure
4. Reactor Material / contacting components material
5. With the agitator or mixer or not, and the Mixing Speed
6. With heating device or not.
7. Your other requests
With above information, we will come back to you with special designing just for yourself.
Instroduction for Lab Pyrolysis Reactor
Lab Pyrolysis Reactor is an ideal device for various lab scale chemical reactions with features of magnetic seal (static seal), no leakage, smooth run, low noise and easy operation. The agitator and kettle lid is well seald, this reactor can widely used for various test and reaction in laboratory, under high pressure, high vacuum and high temperature condition. Some times equip with condensers for vapor escape and distillation process.This reactor can be widely used as grease reactor.
Lab Pyrolysis Reactor is an ideal device for various lab scale chemical reactions with features of magnetic seal (static seal), no leakage, smooth run, low noise and easy operation. The agitator and kettle lid is well seald, this reactor can widely used for various test and reaction in laboratory, under high pressure, high vacuum and high temperature condition. Some times equip with condensers for vapor escape and distillation process.This reactor can be widely used as grease reactor.
Specifications and Technical Parameters of Lab Pyrolysis Reactor | ||||||||
Type | ZY-0.1~1 | ZY-1~10 | ZY-10~25 | ZY-25~50 | ||||
Volume(L) | 0.1~1 | 1~10 | 10~25 | 25~50 | ||||
Working pressure(MPa) | Negative pressure -0.1~40 | Negative pressure -0.1~40 | Negative pressure -0.1~30 | Negative pressure -0.1~30 | ||||
Working temperature(℃) | -196~500 | |||||||
Stirring speed(r/min) | 20-1500 | |||||||
Motor power(W) | 40~80 | 80~200 | 300~750 | 1100 | ||||
Heating power(KW) | 0.8~1 | 1~3 | 3~6 | 4~9 | ||||
Heating type | Electric heating, water recycling, thermal oil, steam, far infrared heating. | |||||||
Charging type | Charging from above, discharging from bottom or above. | |||||||
Shaft | Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media. | |||||||
Stirring type | Paddle type or anchor type or as per customer request | |||||||
Seal type | Magnetic seal, mechanical seal, packing seal, gasket seal. | |||||||
Motor | ZY-0.1~10 general DC motor, GSH-10~50 DC servomotor or explosion-proof motor according to the customers’ requirements. | |||||||
Main material | Contacting material inside kettle mainly use 0Cr18Ni9(304), 00Cr17Ni14Mo2(316L), 1Cr18Ni9Ti(321), also can be produced by titanium(TA2), nickel, zirconium, hastelloy, etc, or lined with PTFE, PPL, PFA and Ni (Ni6) according to different requirements of reaction media. | |||||||
Opening port of conventional kettle lid | Needle Valve on Gas Port and Liquid Port, Bottom Insert Tube for sampling or inlet use, Pipe Plug on Solid Charging Port, Platinum Resistance (PT100) on measuring and controlling Temperature Port, Pressure Gauge and Safety Device (Blasting Disc) on Security Blasting Port, and Inlet and Outlet of Cooling Coil inside the reactor with tap. | |||||||
Controller Device | Equipped with automatic or programmed PID or PLC and computer: Temperature display and control, accuracy ± 1 ℃ (or ±0.1 ℃); Mixing Speed display and control; Pressure display and control; Level display and control; Flow display and control; Valve open/close control, etc. All above data can be transferred to computer for further analysis. | |||||||
Other Accessories | We can design and manufacture various chemical reactors as per customer’s request. If user have other special requirements on kettle cover, kettle body opening, internal structure, stirring paddle, and other supporting device (such as condensate return unit, constant feeding tank, receiver, condenser, etc.), we can help customer to achieve their request, can also equip necessary instruments as per request. | |||||||
Packing&Shipping
We can offer standard exporting packing for long distance sea transportation, wooden case with steel frame, it not only can protect machi Small hydraulic interlocking brick machine ne from damage, but also can guarantee smoothly pass the exporting inspection.
Company Information
After Sales Service
We will give advices and suggestions to user according to the needs of various industries: provides various product standards, raw materials, inspect and test methods, standard and technology consultation according to user requirements; provides manufacturing according to buyer's requirements, customizing of non-standard product, such as ultra short / long series; provides company qualifications and credit proof etc.
We will provide reactor routine maintenance as well as training service for troubleshooting of common faults; provides remote or on-site reactor review, installation and operation technical guidance; for customer quality complaint, after technical support by telephone, professional customer service personnel will arrived at the scene * if any further service is required; user's technical quality consultation will be replied within 24 hours; 12 months of product warranty period is provided; provide 24 - hour technical support hotline; provide various forms of after sale service for free during the warranty, provide life time after sale service and limited supply of free wearing parts for three years.
FAQ
Q1: What kind of raw material can be used?

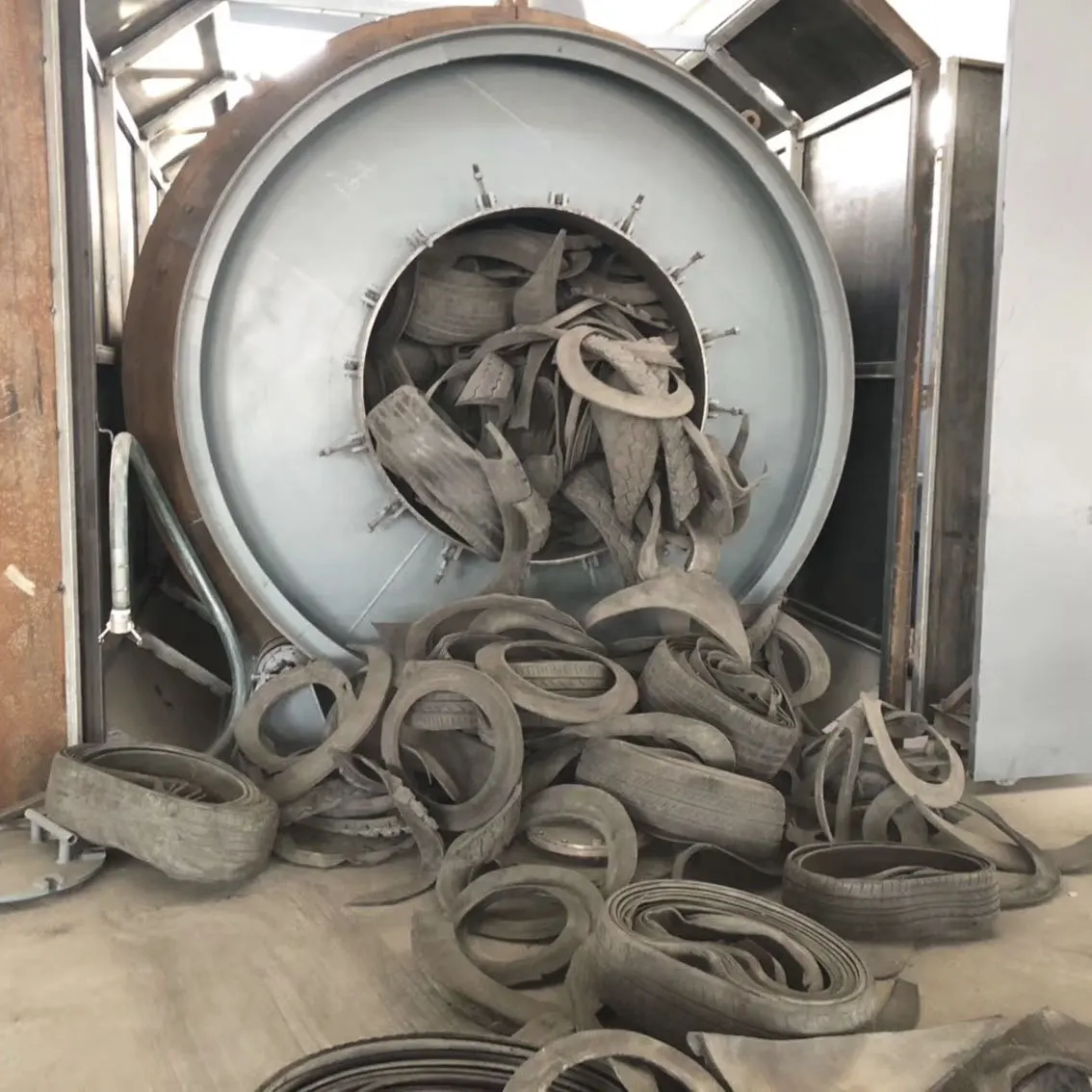

waste tyres/ rubbers/ shoe soles/ inner tube / cable husk/ bicycle tyre/ motorcycle tyre; PP,PE,PVC,PMMA plastic, paper mixture from paper mills and all kinds of waste nylon products.
Q2: What are the end products?
If your raw material is tyres, end products are fuel oil, carbon black,steel wire and waste gas; if your raw material is rubber or plastics, then end products are fuel oil, carbon black and waste gas.
Q3: What's the fuel of pyrolysis plant?
The fuel can be coal, charcoal, firewood, fuel oil, heavy oil and natural gas.

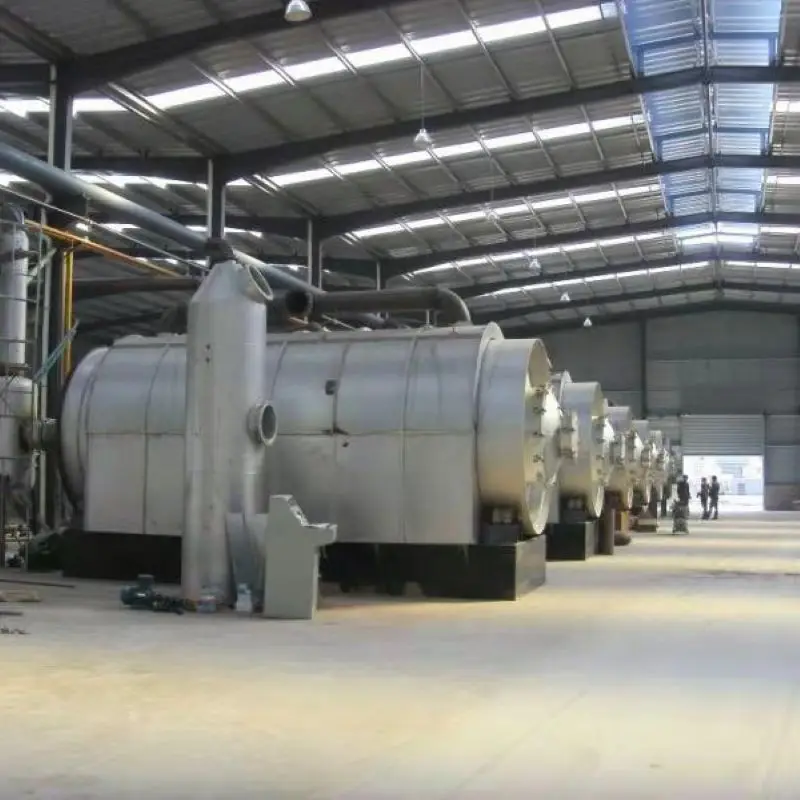

Q4: What's the covering area of one set of 5-10 ton capacity pyrolysis plant?
The equipment covers 30 square meters(length20m*width15m). Besides raw material and end products storage areas,you also need to prepare workers' resting room and simple office, so totally 600-800 square meters land will be better.
Q5: How many workers needed to operate the plant?
3-4 workers are enough for one set of pyrolysis plant. If you use auto-feeder and auto-discharging system, then 2 workers are ok.
Q6: How about the installation?
We will provide the foundation drawings to you after the deal is done and send technical engineer to guide the installation, the commissioning and workers training on your working site.

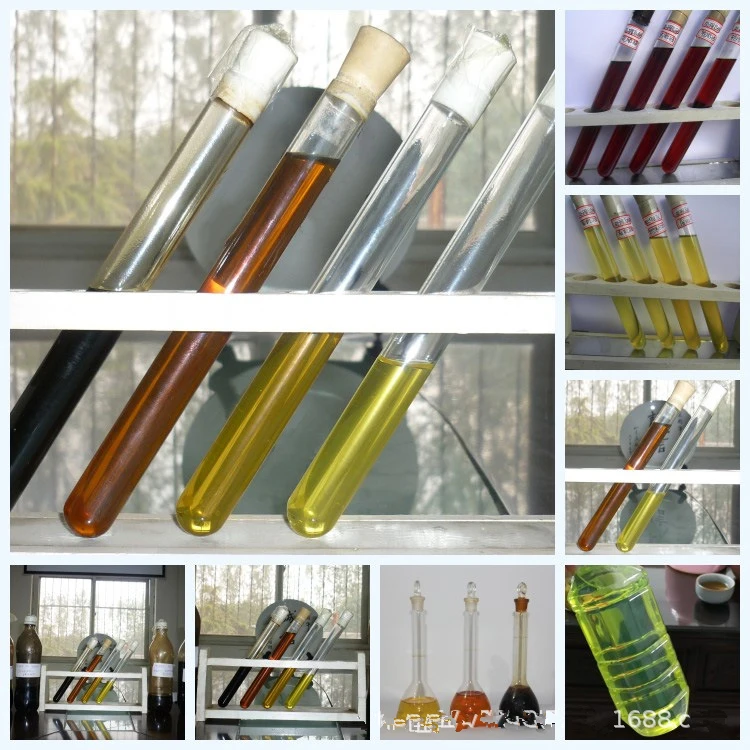

Q7: What about the usage of the oil extracted with this plant?
The oil from tyres or plastics is mixed oil. It is a good quality furnace oil, used as heating oil.It can be used for some large boilers, like iron and steel plant, bricks factory, cement factory,glass plant and etc.
