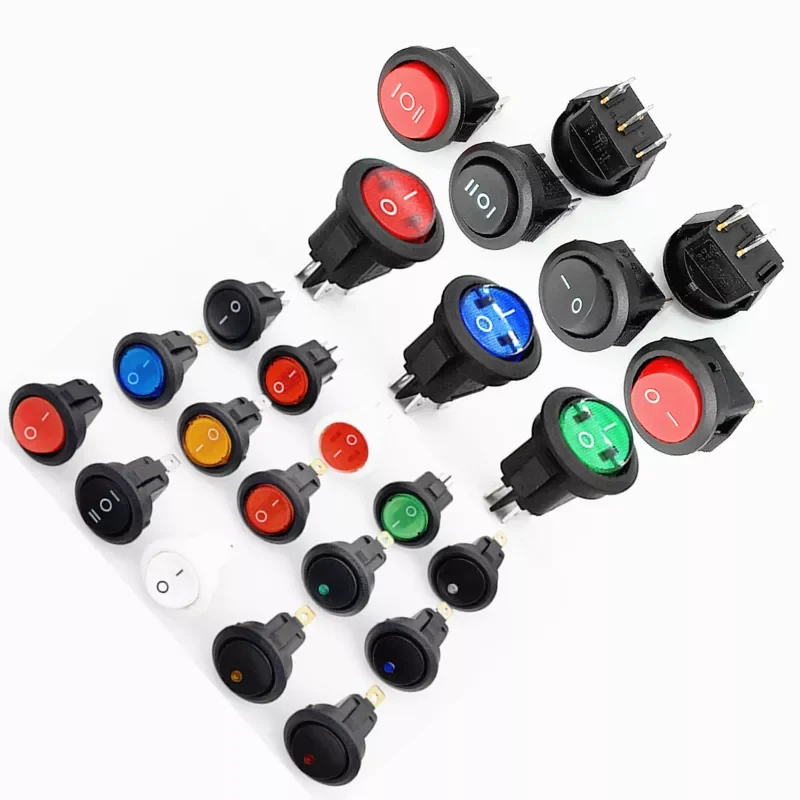

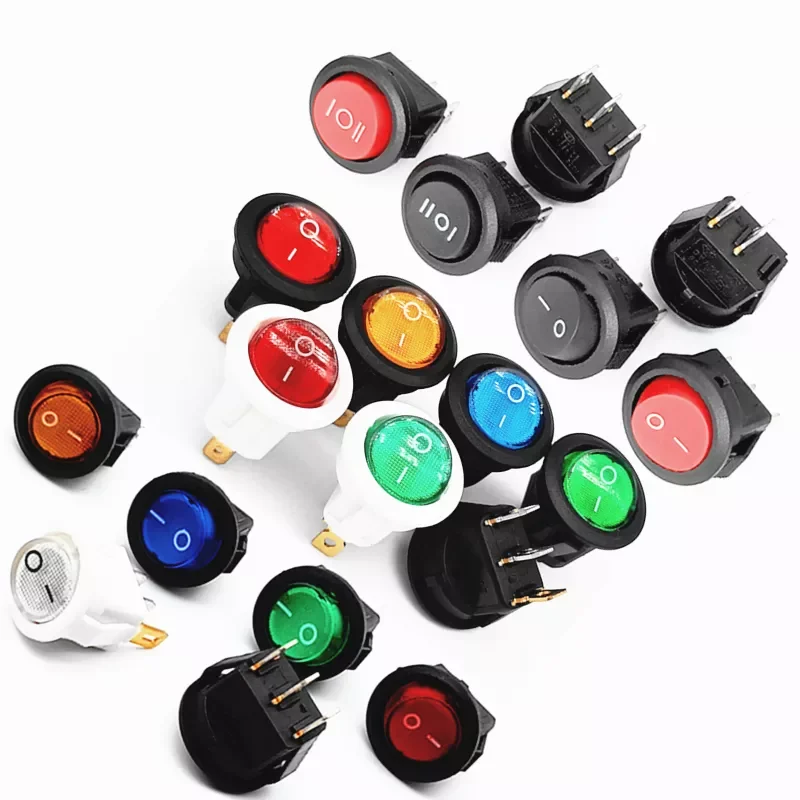

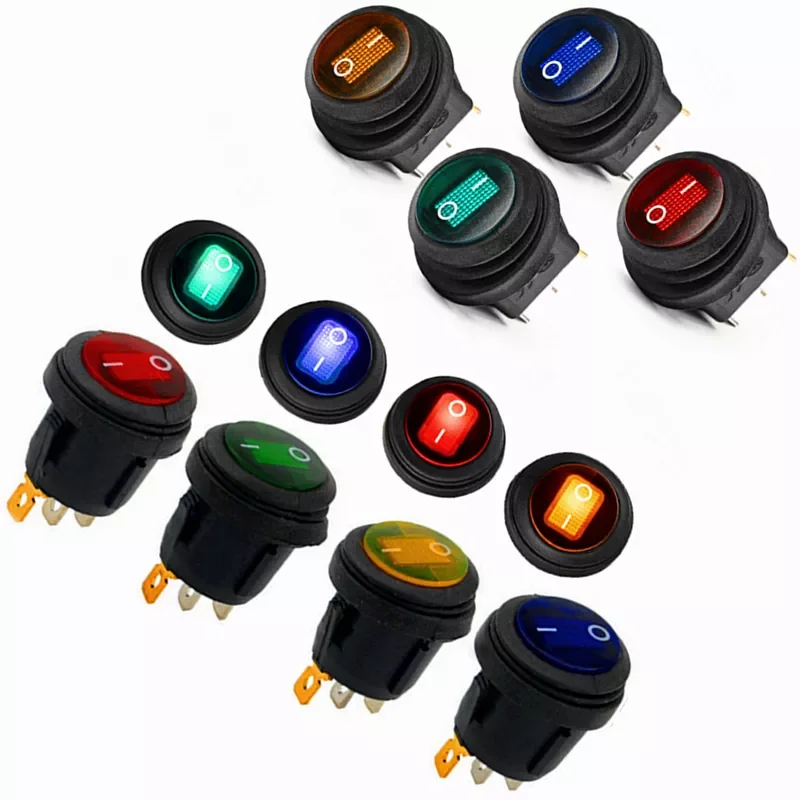

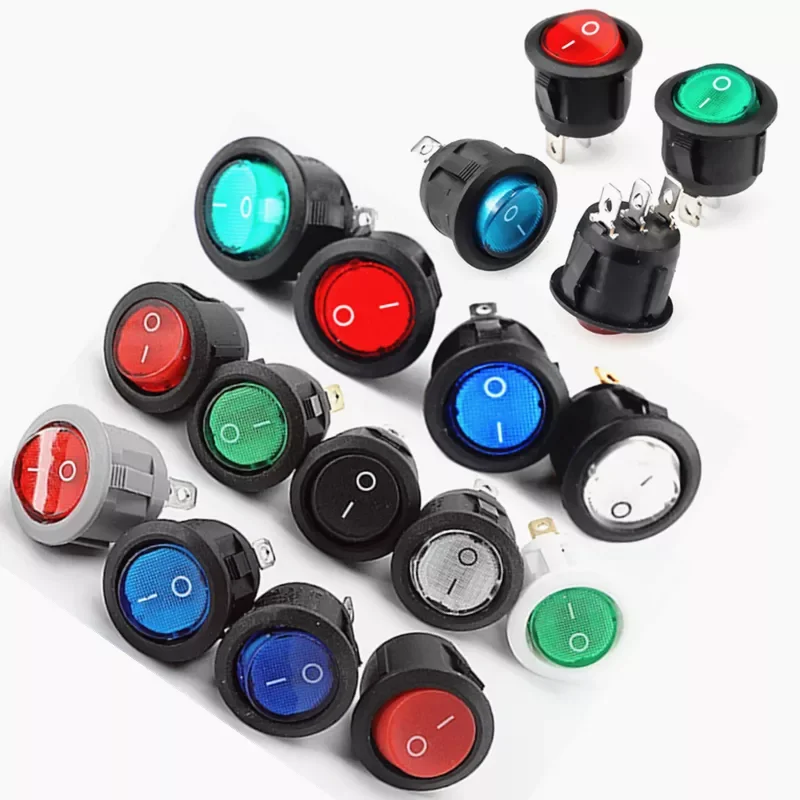

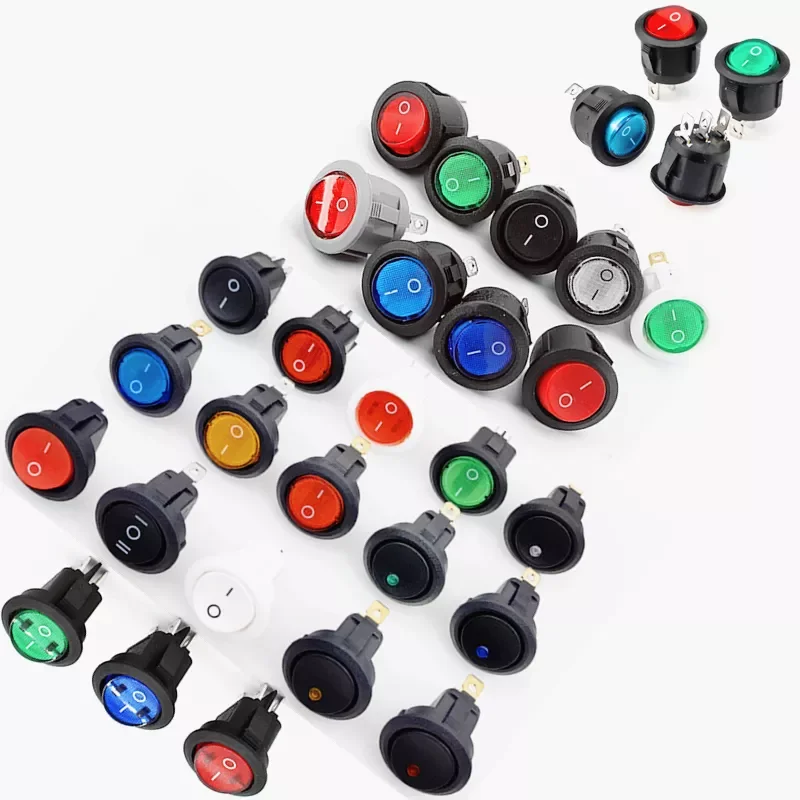

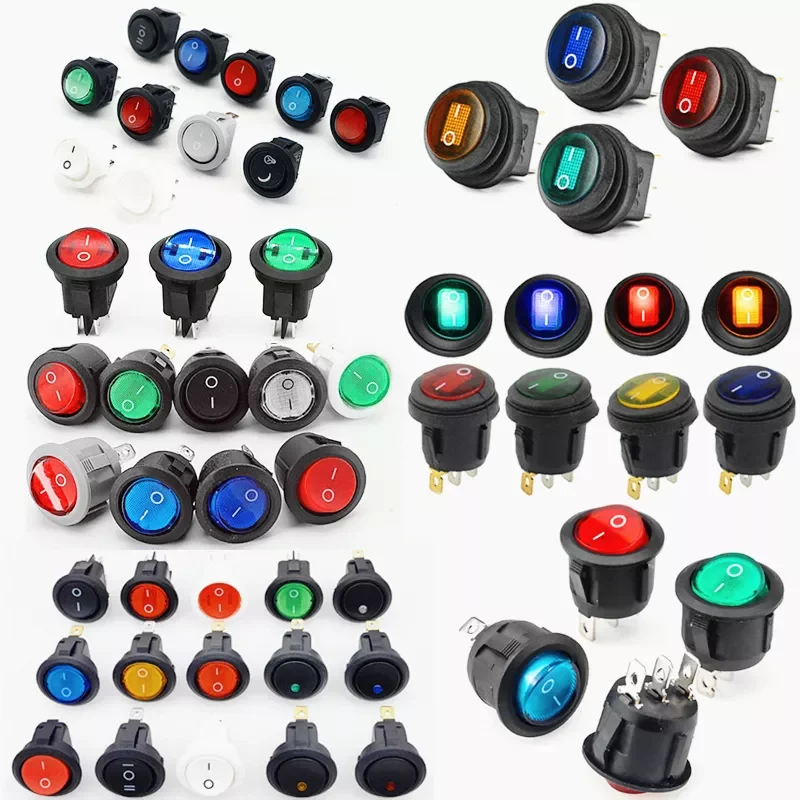

Круглый моментальный или самоблокирующийся переключатель 3A 6A 10A AC/DC 12V 24V 250V On And Off Rocker Kcd1 Dpdt Dpst Spdt Spst 2Pin 3

Product Tin Welding:PTI 175

Product Size: 15 / 16 / 20 / 22 MM

Product Config: With LED Or NO-Led

Product Material: Copper, Iron, Silver

Product Power: 3A / 6A / 10A 250V / 125V

Product Certification: CCC, CQC, CE, CB, TUV

Product Temperature: T85 / 1E4 / IP66 / IP65 / IP67 / IP64

Product Lighting: Optional 12V 24V 110V 220V (Customization)

Product color: red, yellow, blue, green, black, white, gray (customization support)

Product Model: Kcd1 / Kcd1-101 / Kcd1-102 / Kcd1-103 / Kcd1-104 /  Kcd1-105

Kcd11-101 / Kcd11-102 / Kcd11-103

Product Terminal:

15MM Pin Optional

2Pin/3Pin Round Switch Pin

(3.7X6.6 MM And 2.6X5.3 MM)

Product Function Optional:

No.101: On-Off (With Lights (NO Lights)

No.102: On-On (NO Lights)

No.103: On-Off-On (NO Lights)

22MM Pin Optional

2Pin/3Pin/4Pin/5Pin/6Pin Round Switch Pin

(4.7X7.00 MM)

Product Function Optional :

No.101: On-Off (NO Lights)

No.102: On-On (NO Lights)

No.103: On-Off-On (NO Lights)

20MM Pin Optional

2Pin/3Pin/4Pin Round Switch Pin

(4.8X8.8 MM)

Product Function Optional :

No.101: On-Off (With Lights (NO Lights)

20MM Pin Optional Customized

2Pin/3Pin Round Switch Pin

(4.8X7.0 MM And 4.8X8.8 MM And 3.3X4.5 MM)

Product Function Optional :

No.101: On-Off (With Lights (NO Lights)

No.102: On-On (NO Lights)

No.103: On-Off-On (NO Lights)

No.104: (On)-Off (NO Lights)

No.105: On-(Off) (NO Lights)

No.106: (On)-(On) (NO Lights)

No.107: (On)-Off-On (NO Lights)

No.108: (On)-Off-(On) (NO Lights)

Product Function Description:

No.101: ON-OFF (press on power and press off power, for short : self-locking switch,

usually applicable to: printer, electronic scale, etc. Main control power circuit switch,

turn on the power during use, turn off the power after use)

No.102: ON-ON (press on power-release power off,

for short: momentary switch or reset switch or Normally-close switch

No.103: ON-OFF-ON (press open-press close-press open control power supply,

referred to as: 3 Position Switch, usually applicable to: motor, blower, fan, etc. Speed regulation,

variable speed, positive turn, reverse, a product dual control

two-purpose multi-purpose power switch)

No.104: (ON) -OFF (usually power on-press off power supply, free / normal state: power on, abbreviated as: Normally-Open switch)

No.105: ON- (OFF) (usually power off press power on, free / normal state: power off,

for short: Normally-close switch)

No.106: (ON) - (ON) Press power off release power on,

for short,momentary switch or reset switch Or the Normally-Open switch

No.107: (ON) -OFF-ON single side press start power-loose hand off power / single side press open power, referred to as single reset switch or single instantaneous switch

No.108: (ON) -OFF- (ON) on both sides to press the start power supply-loose hand to turn off the power supply, referred to as the double reset switch or double instantaneous switch

(Note: Due to language translation and product market cycle and many other factors, the above data is for reference only, and contact online seller service consultation for specific matters)
