Новинка автоматическая облицовочная машина для деревообработки ПВХ деревянная доска горячего
- Категория: Wood Based Panels Machinery >>>
- Поставщик: Foshan,Boling,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 774.26 $* | 813.97 $* |
| Aug-18-2025 | 767.10 $* | 805.39 $* |
| Jul-18-2025 | 644.58 $* | 676.77 $* |
| Jun-18-2025 | 754.20 $* | 792.12 $* |
| May-18-2025 | 657.10 $* | 690.7 $* |
| Apr-18-2025 | 741.50 $* | 778.44 $* |
| Mar-18-2025 | 735.54 $* | 772.6 $* |
| Feb-18-2025 | 728.79 $* | 764.55 $* |
| Jan-18-2025 | 722.61 $* | 758.21 $* |
Характеристики
Product Overview
BL-WFS210 Automatic Edge Banding Machine
BL-WFS210 automatic edge banding machine, adopts one-piece all-aluminum pressure beam, rotating hand-crank design, easy to adjust, precise scales on both sides, inner inclined pressure wheel, stable grasping plate, no deviation, frame Type structure, solid track, good stability of the sealing plate, the motor is wrapped with pure aluminum alloy grinding tool, the lifting adopts precision guide rail slider, the upper and lower parallel, the four-edged 1.5 trimming knife, the replica trimming, the board cleaning, the second time After finishing and sealing, it is directly arc edge, large-enclosed dust collector, edge-sealing frame is sprayed and welded, no rust on both sides with 2.0 thickness plus spraying, this edge-sealing machine can seal large boards and small boards. , The continuous board feeding is stable, allowing you to earn money for the whole house with the home improvement machine...
Function list
product description
Automatic plank transport
Automatically cut edgebands
Automatic monitoring of board thickness
Automatic trimming
Automatic chamfering
Automatic cleaning of wooden boards
Automatic secondary finishing
Automatic plank polishing
Automatically cut edgebands
Automatic monitoring of board thickness
Automatic trimming
Automatic chamfering
Automatic cleaning of wooden boards
Automatic secondary finishing
Automatic plank polishing
Right façade
Left facade
Neutral surface
Features

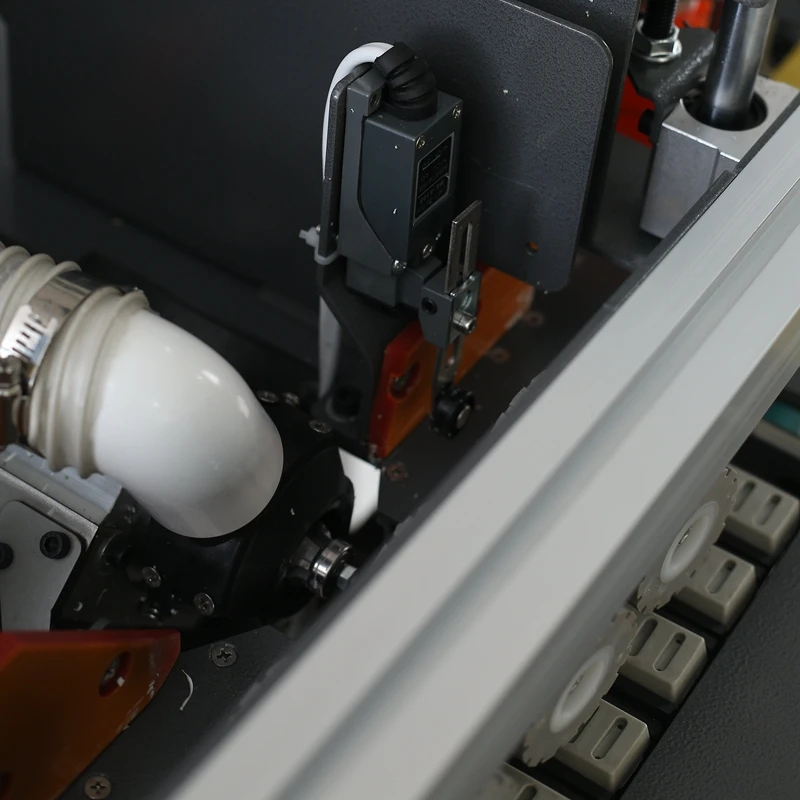

The picture above is a close-up shot of the automatic cleaning agent spray device and the trimming and vacuuming integrated device
Features

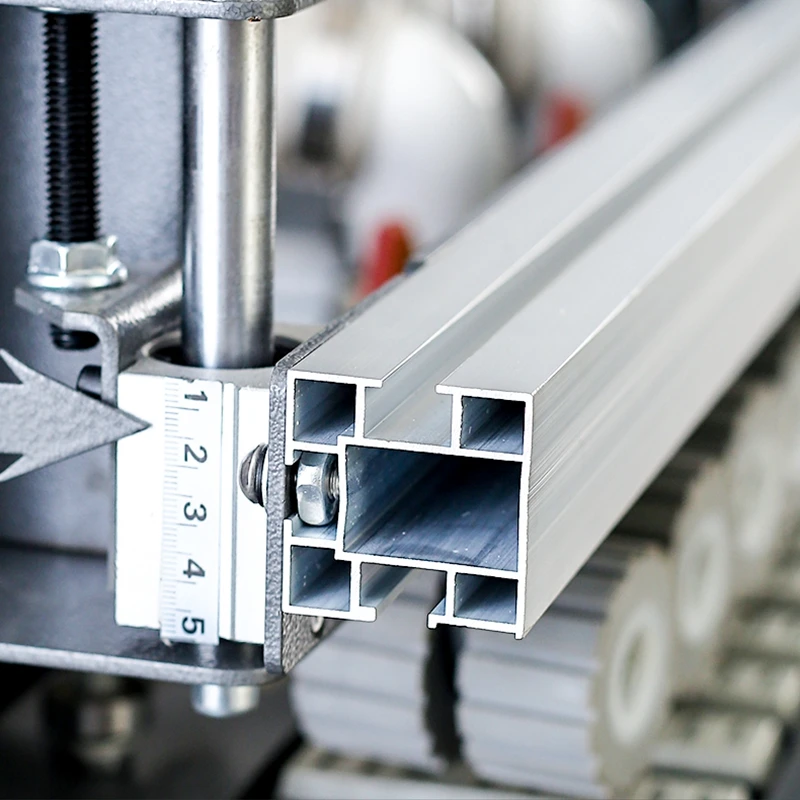

The picture above is the effect of the scaled, adjustable board height platen device
Product Paramenters
No | Item | Data |
1 | Voltage | 110V~220V |
2 | net weight | 167KG |
3 | Gross weight | 174KG |
4 | Package dimensions | 1580*610*680mm |
5 | Machine size | 2100*570*1120mm |
6 | The total power of the edge banding system | 825w |
7 | Polishing motor power | 180w |
8 | Vacuum motor power | 1.2kw |
9 | Trimming motor power | 800w*2 |
Product packaging
Compatible products
More product recommendations
Logistics and transportation
FAQ
Q1. Can I order samples from your company?
A: Yes, we welcome sample orders to test and check the quality. Mixed samples are acceptable.
Q2. What about delivery time?
A: It takes about 3-10 days for samples, and about 1-2 weeks for mass production after order confirmation (depending on the requirements
customer and quantity)
Q3. Do you support OEM or ODM?
---Yes, our main products and services are OEM&ODM, we always provide our customers with high-quality OEM&ODM services and easy-to-sell products to help them succeed in the local market.
Q4. How do you ship your goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. Usually it takes 3-5 days to arrive. Air and sea are also optional.
Q5. What payment methods do you support?
---We accept multiple payment methods such as PayPal, Visa, MasterCard, Alibaba Trade Assurance, Western Union and T/T.
Q6. How to place an order for a product?
A: First let us know your requirement or application.
Secondly, we quote according to your requirement and purchase quantity. Then confirm with you and deposit the deposit
Formal order. Fourth, we arrange production.
Q7. How to place an order?
---For RTS products, just click "Start ordering" and pay directly!
(Enter the quantity, select your country, then you can see the total price)
Please write down your name, address, zip code and contact number and our colleagues will place your order for you as soon as possible.
---For customized products, please click Contact Supplier/Send Inquiry, tell us your requirements, and we will create an order for you!
