Автоматическая изогнутая вращающаяся дверь CN Круглая Стеклянная полукруглая
- Категория: >>>
- Поставщик: Guangzhou,CN,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 35688.2 $* | 37472.11 $* |
| Aug-16-2025 | 35388.75 $* | 37157.69 $* |
| Jul-16-2025 | 29690.6 $* | 31175.94 $* |
| Jun-16-2025 | 34788.13 $* | 36527.21 $* |
| May-16-2025 | 30290.79 $* | 31805.74 $* |
| Apr-16-2025 | 34189.51 $* | 35898.50 $* |
| Mar-16-2025 | 33889.88 $* | 35583.26 $* |
| Feb-16-2025 | 33589.1 $* | 35268.57 $* |
| Jan-16-2025 | 33289.92 $* | 34953.19 $* |
Характеристики
Product Description

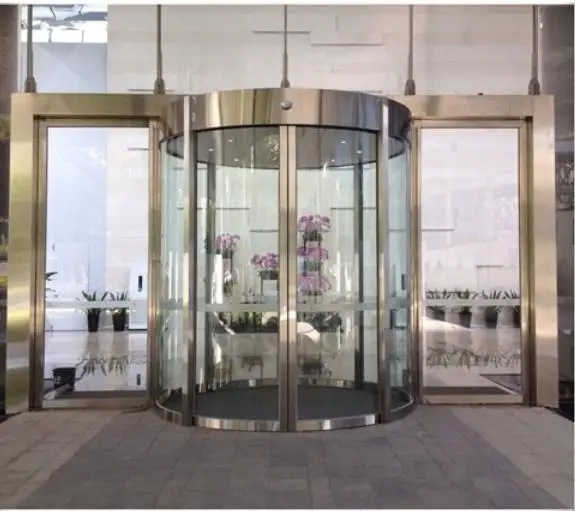

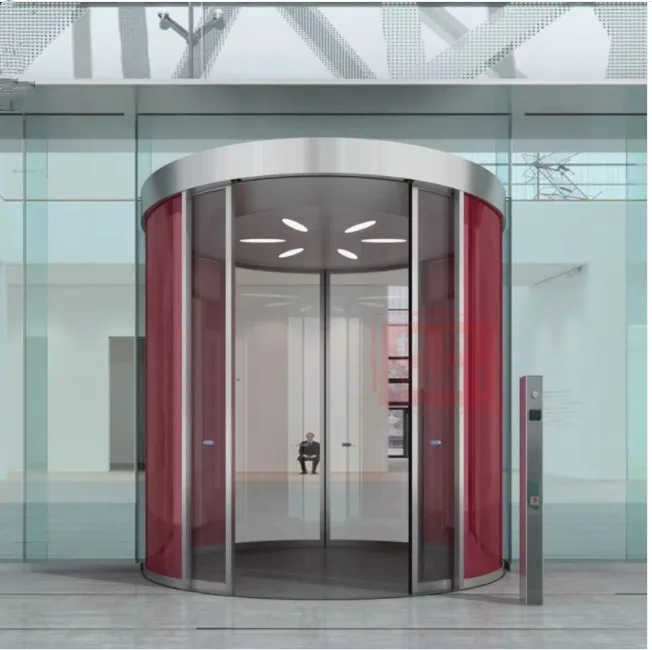

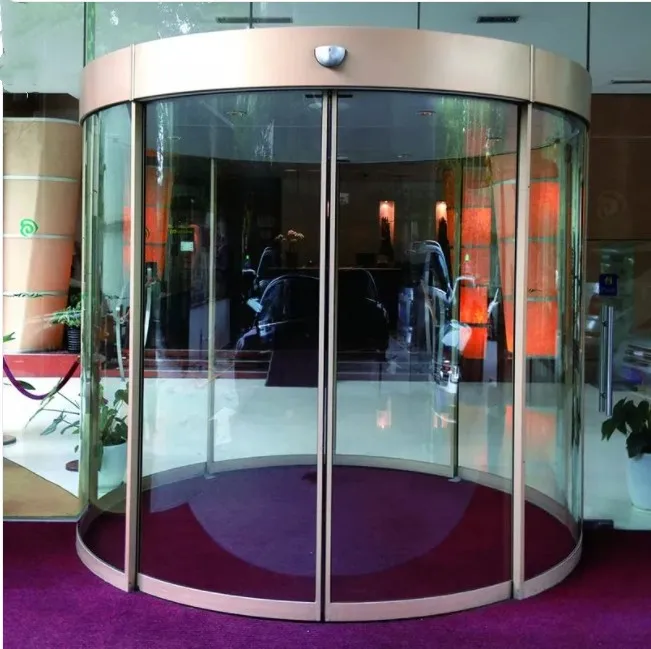

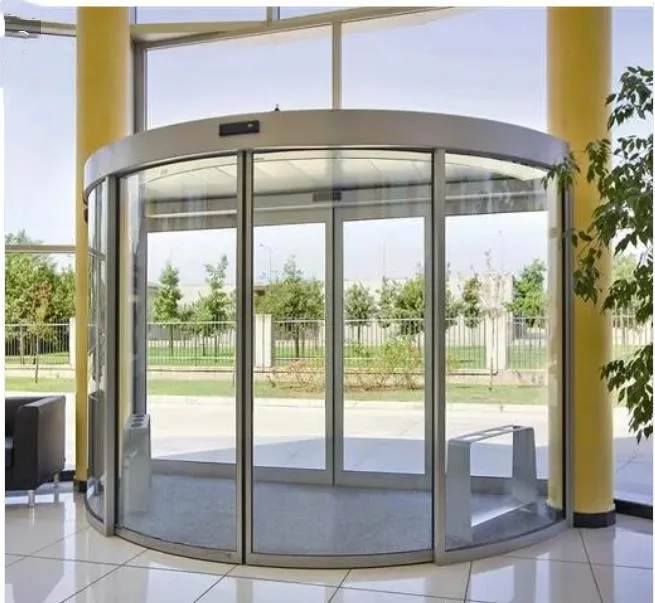

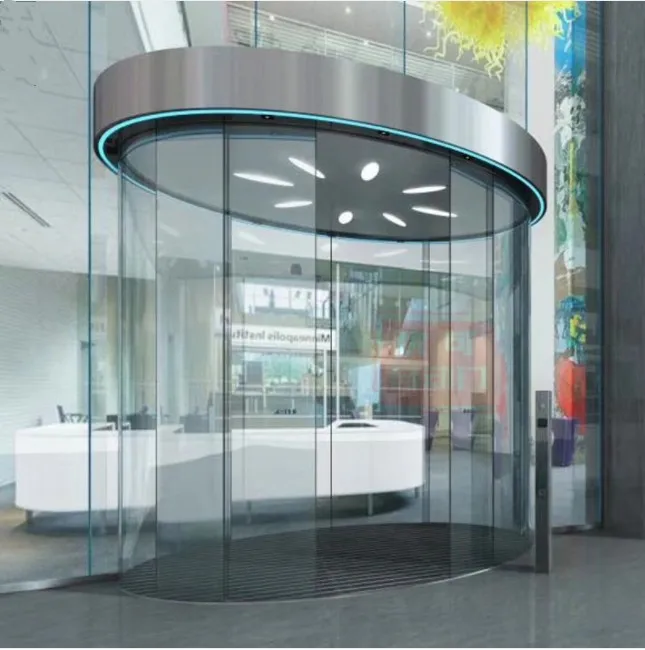

Automatic Curved Sliding Door Round glass Door circle door semicircle sliding door
Curved and semicircular doors create exceptional and elegant entrances without renouncing the features of a sliding door.
A curved door consists of a single slide or bi-part automatic door with one or two sliding leaves that move radially.
The door may be concave or convex and with different radius and degrees of curvature. The combination of two curved doors creates circular doors, ideal for entrances that are both exceptional
and functional at the same time.
The revolving door system is controlled with a CDC control system which ensures low operating and maintenance costs, highest safety and best operational performance. Give customers easier access and make the best first impression with products and services from Door Automation.
Curved and semicircular doors create exceptional and elegant entrances without renouncing the features of a sliding door.
A curved door consists of a single slide or bi-part automatic door with one or two sliding leaves that move radially.
The door may be concave or convex and with different radius and degrees of curvature. The combination of two curved doors creates circular doors, ideal for entrances that are both exceptional
and functional at the same time.
The revolving door system is controlled with a CDC control system which ensures low operating and maintenance costs, highest safety and best operational performance. Give customers easier access and make the best first impression with products and services from Door Automation.
Security systems for automatic revolving doors
Panic wings
Fire resitant glazings
Bullet resistant glazings
Security photocells
Side pneumatic bars
Foot sensors
Disabled button
Operation System:
All digital control program system, easy and convenient operator interface. System is Panasonic original system and motor is Lenze from Germany.Drive System
The control part we use is the newest imported Micro-computer digital controller, motor is original Germany imported, made sure the revolving door operate silent and steady.
Panic wings
Fire resitant glazings
Bullet resistant glazings
Security photocells
Side pneumatic bars
Foot sensors
Disabled button
Operation System:
All digital control program system, easy and convenient operator interface. System is Panasonic original system and motor is Lenze from Germany.Drive System
The control part we use is the newest imported Micro-computer digital controller, motor is original Germany imported, made sure the revolving door operate silent and steady.
Color options
Any rail color for aluminum body material
Natural eloksal for aluminum body material
Matt finished for stainless body material
Satinated finished for stainless steel body material
Mirror finished for stainless steel body material
Matt finished for brass/bronze body material
Shiny finished for brass/bronze body material
Any rail color for aluminum body material
Natural eloksal for aluminum body material
Matt finished for stainless body material
Satinated finished for stainless steel body material
Mirror finished for stainless steel body material
Matt finished for brass/bronze body material
Shiny finished for brass/bronze body material
Specification
Standard free passage widths | from 800 to almost 2000 mm | ||||||
Standard diameters | greater than 4 meters | ||||||
Finishes | stainless steel or aluminum - lacquered or anodized | ||||||
Maximum weights | up to 150 kg / sheet. | ||||||
Mains power supply | 230 V, 50/60 Hz, 13 A | ||||||
Power consumption | 100W | ||||||
Static drive power | max. 150 N | ||||||
Ambient temperature | between - 15 and + 50°C | ||||||
Wide range of safety and activation devices. | Design and special dimensions upon request. | ||||||
FeaturesDiameter availability: MIN. 2200mm / MAX 6000mm
Height: MIN. 2000mm / MAX3800mm
Material opportunity: Stainless steel, full glazing, bronze
Power supply : 220V/50Hz
Rated current : 6A
High speed adjustment range(revolving door) : 1- 4r.p.m.
Low speed adjustment range(revolving door) : 0.5-1.5 r.p.m
Rotational Noise: <42db
Torque of door leave: <2nm
Aluminum structure: 6063-T5 High Intensity Dedicated Casting Aluminum,
Aluminum thickness>=3mm
System: Panasonic(Japan)
Control Operation LCD Panel: Panasonic Digital LCD screen,display and control the operation status of the door
ID Card Reader: 1 set for each door(Install outside)
Ambient temperature: -30 - 45 degree
Height: MIN. 2000mm / MAX3800mm
Material opportunity: Stainless steel, full glazing, bronze
Power supply : 220V/50Hz
Rated current : 6A
High speed adjustment range(revolving door) : 1- 4r.p.m.
Low speed adjustment range(revolving door) : 0.5-1.5 r.p.m
Rotational Noise: <42db
Torque of door leave: <2nm
Aluminum structure: 6063-T5 High Intensity Dedicated Casting Aluminum,
Aluminum thickness>=3mm
System: Panasonic(Japan)
Control Operation LCD Panel: Panasonic Digital LCD screen,display and control the operation status of the door
ID Card Reader: 1 set for each door(Install outside)
Ambient temperature: -30 - 45 degree
Safety system
Anti-Collision Sensor In case of a person or object obstruction, the system will stop and the door will halt. This sensor is operational at all times.
Anti-Squeeze Sensor
When the from safety switch on the door comes within 700mm of the outer safety rubber (distance can be adjusted), the sensor function becomes active. If there are any people or object obstructions within the limit range at this time, the system will stop and the doors will halt.
Anti-Collision Sensor In case of a person or object obstruction, the system will stop and the door will halt. This sensor is operational at all times.
Anti-Squeeze Sensor
When the from safety switch on the door comes within 700mm of the outer safety rubber (distance can be adjusted), the sensor function becomes active. If there are any people or object obstructions within the limit range at this time, the system will stop and the doors will halt.
Power supply : 220V/50Hz
Rated current : 6A
Motor : 370W
Sliding door drive unit : 60W
Revolving door drive unit : 250W X 2=500W
Down lights : 40W
High speed adjustment range(revolving door) : 1- 4r.p.m.
Low speed adjustment range(revolving door) : 0.5-1.5 r.p.m
Rotational Noise: <42db
Rated current : 6A
Motor : 370W
Sliding door drive unit : 60W
Revolving door drive unit : 250W X 2=500W
Down lights : 40W
High speed adjustment range(revolving door) : 1- 4r.p.m.
Low speed adjustment range(revolving door) : 0.5-1.5 r.p.m
Rotational Noise: <42db
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
As manufacturing factory headquartered in guangzhou, an important port city of China's foreign trade, Guangzhou CN Electrical Equipment Co., Ltd. is a high-tech enterprise which integrating R&D, Manufacturing and Trading, one of the leading and exclusive manufacturer of Automatic Partitions and Automatic Doors and the only company in China which has a dedicated manufacturing plant of electrically operated vertical lift folding partition Walls in China.
Our factory covers an area of more than 12,000 square meters. We have our products installations throughout china and abroad. The annual manufacturing capacity to 500 sets of various automatic revolving doors and 10,000 square meters of motorized partition walls, we have produced and installed Automatic Doors and Electrical Movable Walls for all types of establishments like high end residences / conference room / banquet halls in hotels / auditorium / convention centre / meeting rooms / board rooms / training rooms etc.
All the materials used are in compliance to international standards such as ISO 9001, CE, IEC etc. With the strictly control for designed, production, inspection and services by our advanced quality management system, enable the products of Guangzhou CN Electrical Device Co., Ltd selling well in the domestic market, and keep rapid growth in the European, American, Asia and Middle East market. Successfully established strategic cooperative partnership with famous domestic and foreign enterprises like Siemens, Phillips, and BEA etc.
Our factory covers an area of more than 12,000 square meters. We have our products installations throughout china and abroad. The annual manufacturing capacity to 500 sets of various automatic revolving doors and 10,000 square meters of motorized partition walls, we have produced and installed Automatic Doors and Electrical Movable Walls for all types of establishments like high end residences / conference room / banquet halls in hotels / auditorium / convention centre / meeting rooms / board rooms / training rooms etc.
All the materials used are in compliance to international standards such as ISO 9001, CE, IEC etc. With the strictly control for designed, production, inspection and services by our advanced quality management system, enable the products of Guangzhou CN Electrical Device Co., Ltd selling well in the domestic market, and keep rapid growth in the European, American, Asia and Middle East market. Successfully established strategic cooperative partnership with famous domestic and foreign enterprises like Siemens, Phillips, and BEA etc.
FAQ
Q1: Where is your factory ?
A: Our factory located in Guangzhou,ADD:NO.1 Xiheng street, Yongxing North road, Baiyun district, Guangzhou, China. Welcome to visit our factory.
Q2: What do you produce ?
A: We have 12 years professional experience to prdoduce Automatic Door Operator / Automatic Sliding Door / Manual and Automatic Revolving Door / Automatic Curved Door / Automatic Movable Partition Walls
Q3: How's your products quality ?
A: All of our products pass 1 million time test, it operate steady and have long use time.
Q3: What is your delivery time ?
A: Automatic Door Operator 3-7 days Revolving Door and Automatic Curved Door 25-30 days
Automatic Movable Partition Walls 35-45 days
Q4: Do you have CE Certificate ?
A: Yes, we have
Q5: What is your payment terms?
A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container, or irrevocable L/C at sight.
6. Q : What is your warranty ? What do we do in case of problems?
A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation. In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days.
A: Our factory located in Guangzhou,ADD:NO.1 Xiheng street, Yongxing North road, Baiyun district, Guangzhou, China. Welcome to visit our factory.
Q2: What do you produce ?
A: We have 12 years professional experience to prdoduce Automatic Door Operator / Automatic Sliding Door / Manual and Automatic Revolving Door / Automatic Curved Door / Automatic Movable Partition Walls
Q3: How's your products quality ?
A: All of our products pass 1 million time test, it operate steady and have long use time.
Q3: What is your delivery time ?
A: Automatic Door Operator 3-7 days Revolving Door and Automatic Curved Door 25-30 days
Automatic Movable Partition Walls 35-45 days
Q4: Do you have CE Certificate ?
A: Yes, we have
Q5: What is your payment terms?
A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container, or irrevocable L/C at sight.
6. Q : What is your warranty ? What do we do in case of problems?
A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation. In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days.
