Машина для прокатки листового металла
US $10000
Машина для производства глазурованной плитки экономичная машина керамической используется
- Категория: Tile Making Machinery >>>
- Поставщик: Botou,Mingtai,Roll,Forming,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 1189699.29 $* | 1213493.62 $* |
| Jul-19-2025 | 964874.94 $* | 984171.42 $* |
| Jun-19-2025 | 1170964.51 $* | 1194383.28 $* |
| May-19-2025 | 1161596.9 $* | 1184828.65 $* |
| Apr-19-2025 | 927403.67 $* | 945951.29 $* |
| Mar-19-2025 | 1142861.7 $* | 1165718.95 $* |
| Feb-19-2025 | 1133493.2 $* | 1156163.75 $* |
| Jan-19-2025 | 1124125.0 $* | 1146608.36 $* |
Характеристики
tile making machinery
tile making machinery
1.This machine is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system.
2.The machine is stable,no noise,no shake.
3.Controlling by computer,PLC display,operation is easy,running is steady and reliable,endurable,maintenance-free.
4.Cutting machine is characterized by stable driving,easy operation.
2.The machine is stable,no noise,no shake.
3.Controlling by computer,PLC display,operation is easy,running is steady and reliable,endurable,maintenance-free.
4.Cutting machine is characterized by stable driving,easy operation.
5.Hydraulic system use the hydraulic pump,long operating life,no noise.

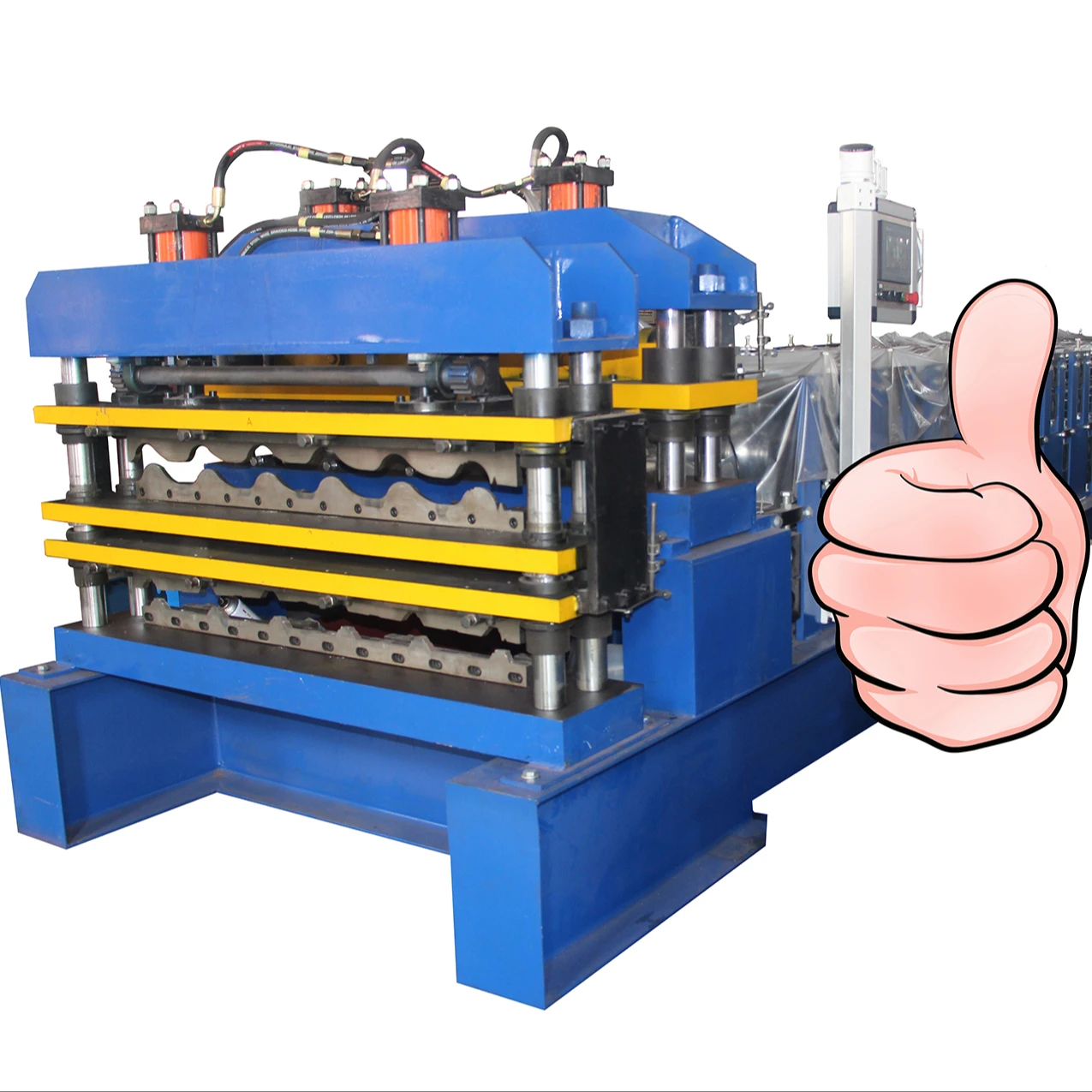

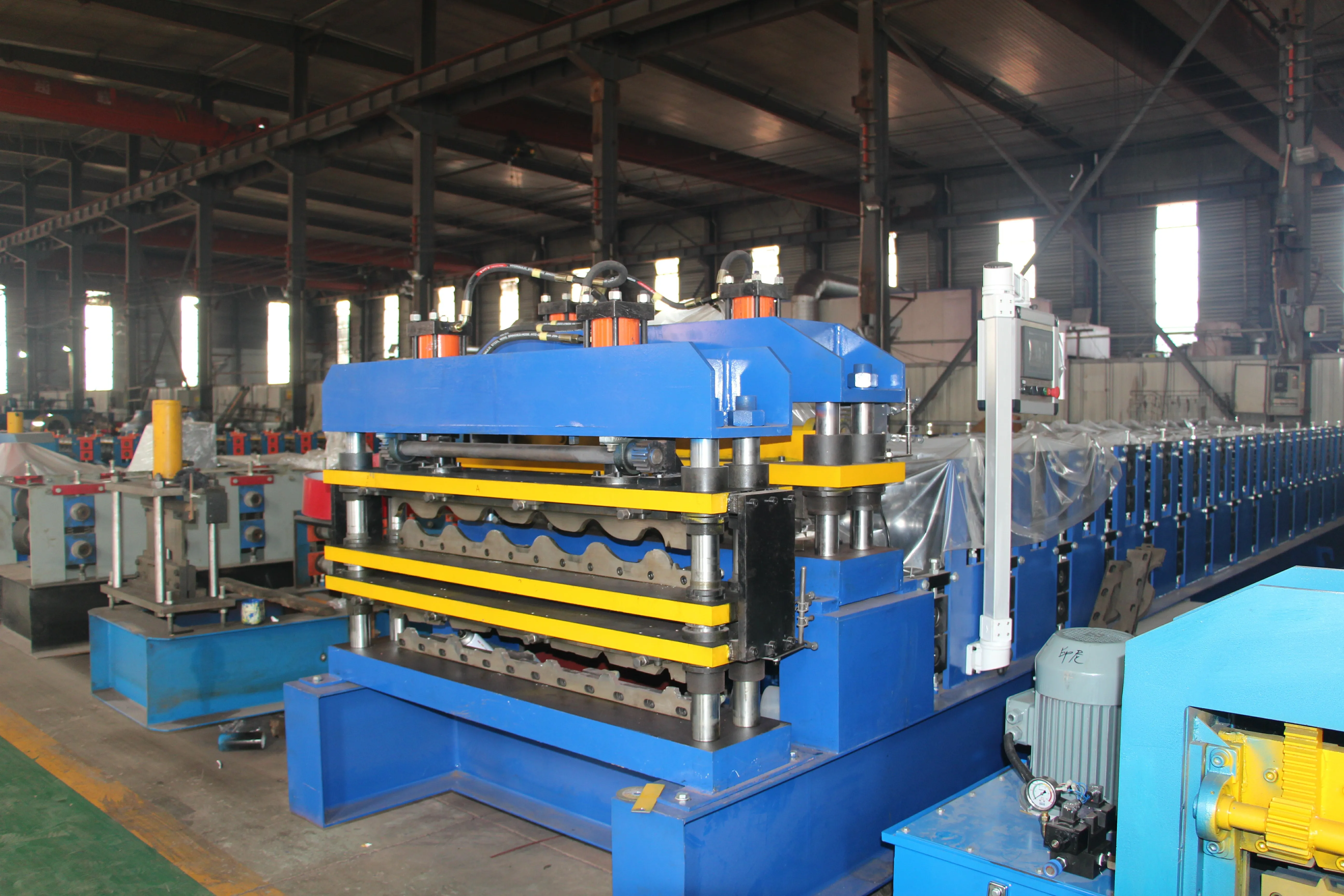

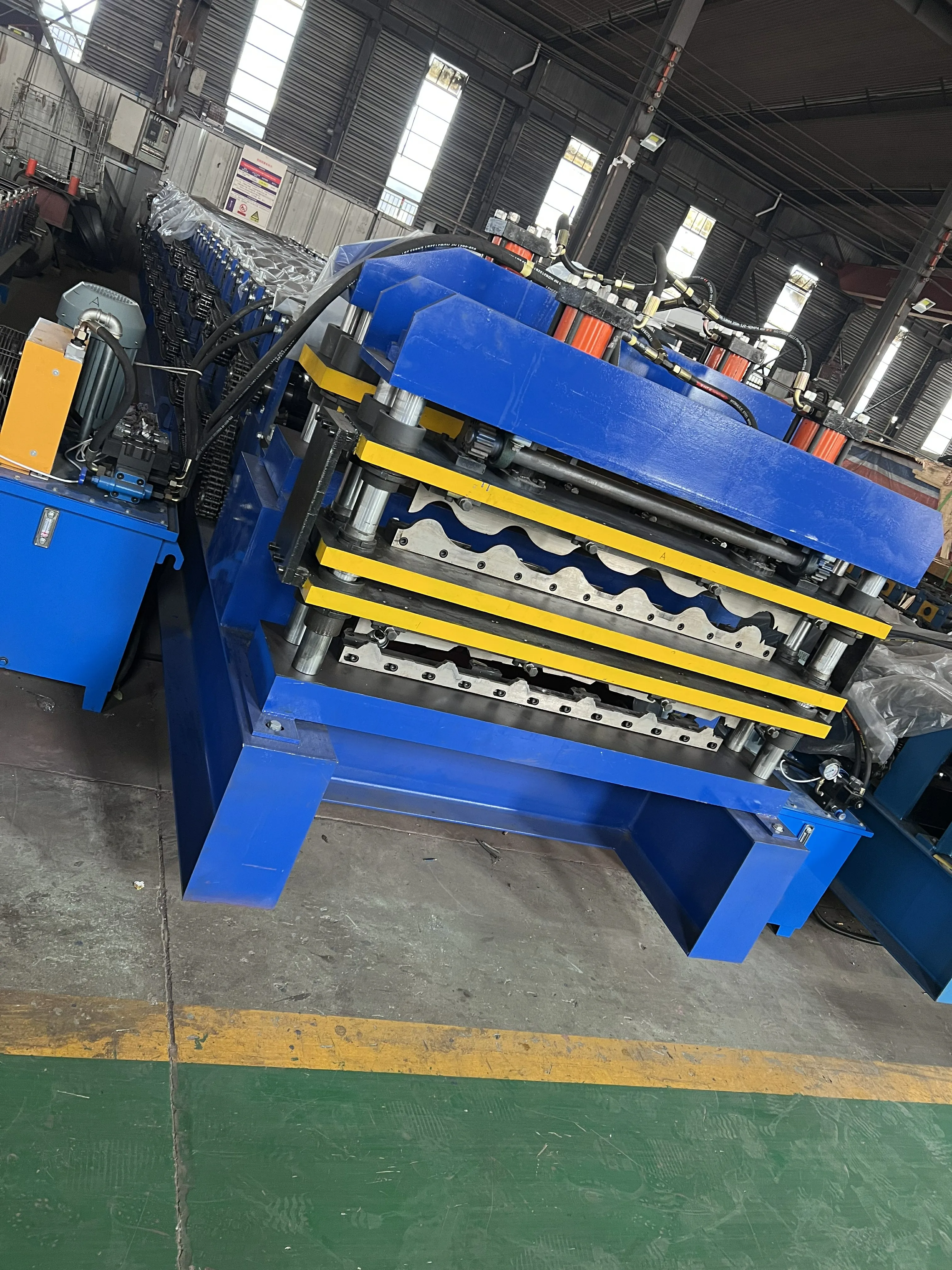

Superior Quality Colored Glazed Metal Roof Tile Roll Forming Machine | ||||
General details | Suitable Material | PPGI/PPGL/GI/GL | ||
coil width | 1000/1200/1250MM(according to your need) | |||
Materials thickness | 0.3mm-0.8mm | |||
Dimension | About 7*1.4*1.5m(L*W*H) , as per the drawing | |||
Length of the Sheet | can set the length according to your infact need. It is controlled by PLC which can ensure the accuracy of ±1mm. | |||
Cutting | Automatically stop and cutting when it comes to the set length. | |||
Components Details | Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. | ||
Main Frame | 350# steel. More stable and no shaking. | |||
Middle Plate | 16mm. We use thicker plates to ensure stability of our products. | |||
Forming Steps | 9-20 steps, according to the drawing. | |||
Shaft Material | Φ70 mm, high grade 45# steel. Treating process: tempering- finish turning, high rigidity, hard to deform. | |||
Cutting Blade Material | Cr12, hardness HRC60-62. Treating process: heat treatment- plane abrasion- wire electrode cutting. | |||
Suitable Power | 380V, 50 Hz, 3 phase（according to your need） | |||
Screen | 7 inch touch screen, easy to operate.Brand Delta or based on your need | |||
PLC | Delta Brand (Or Panasonic /Siemens ) Well-adapted to various conditions, such as moisture, electromagnetic disturbance. | |||
Frequency Converter | Sanjing It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). | |||
Length Measurement Device | Omron, made in Japan. It features with high accuracy and stability. | |||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High precesion to control the tile length and pieces.
4) Running in a high automatization and intellectualization,no pollution
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High precesion to control the tile length and pieces.
4) Running in a high automatization and intellectualization,no pollution
Feeding Parts
1.Features: Ensure smooth& precise material feed.
2.Components: steel plate platform, two pitching rollers, position stopping block.
3. The coil is guided in the correct position and passed to the roll forming equipment.
2.Components: steel plate platform, two pitching rollers, position stopping block.
3. The coil is guided in the correct position and passed to the roll forming equipment.

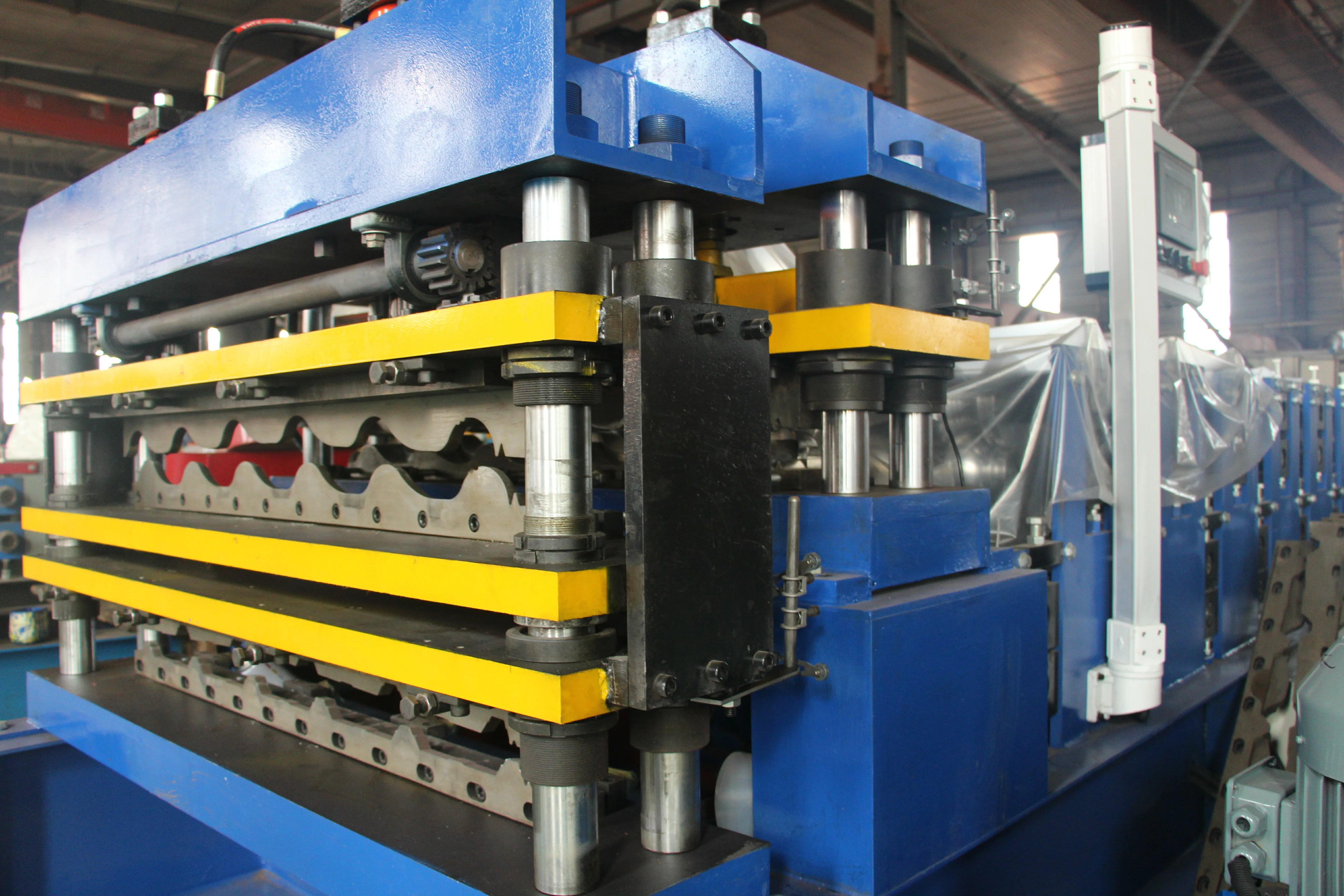

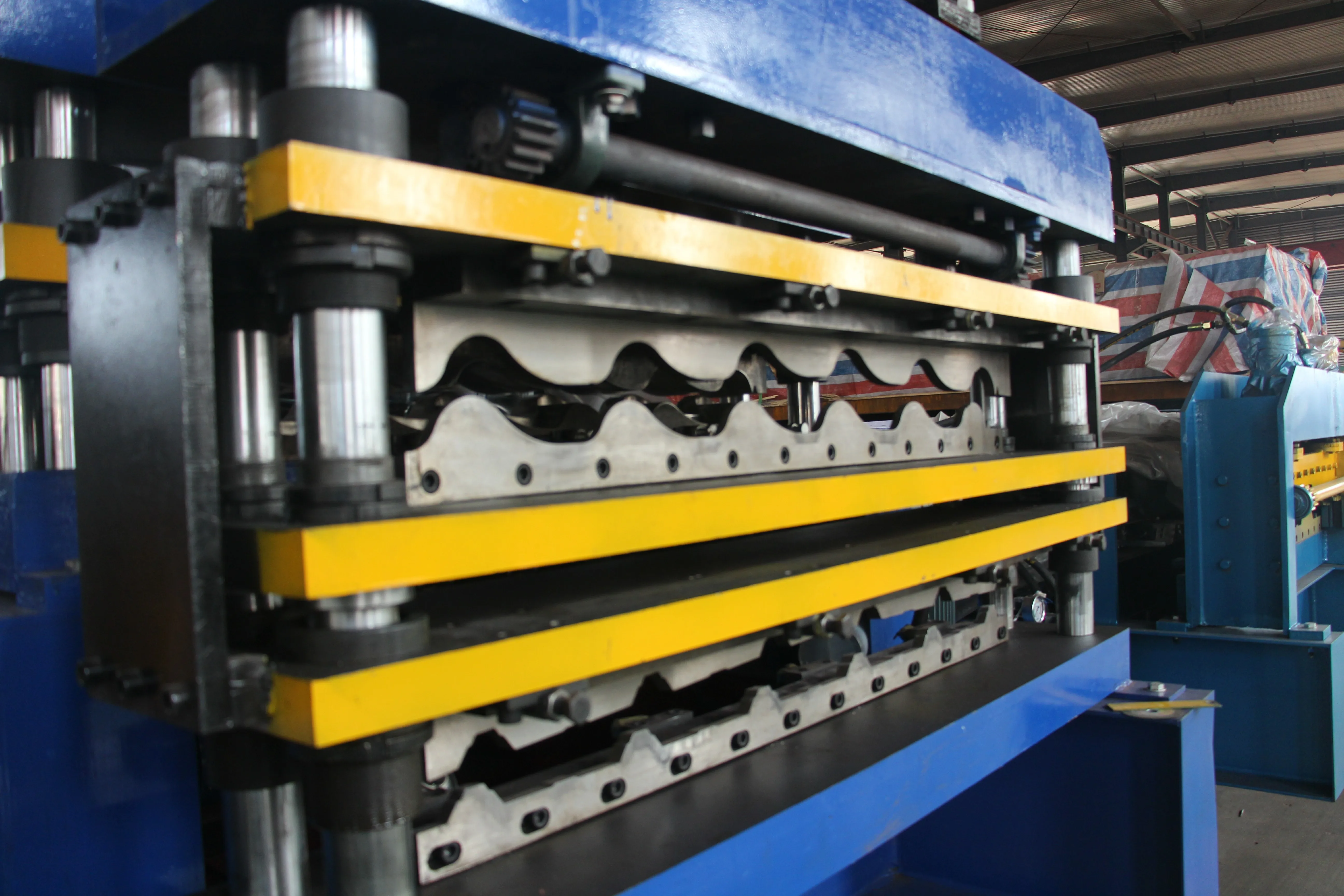

Forming Parts
1.Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and
coated with hard chrome
2.Shaft:70mm manufactured with 45# high grade steel by CNC machine tools
3. Supporting frame: steel wallboard to guide the forming station bearing basement
4.The finished products will change if using different material and thickness
5.Driving of machine:by one inch chain
coated with hard chrome
2.Shaft:70mm manufactured with 45# high grade steel by CNC machine tools
3. Supporting frame: steel wallboard to guide the forming station bearing basement
4.The finished products will change if using different material and thickness
5.Driving of machine:by one inch chain
Cutting parts
1.Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the
cutting, the main machine will automatically start.
2.Power supply: hydraulic station
3.Frame: welding steel frame
4.Stroke switch: non-contact photoelectric switch
5.Cutting before forming: cut the sheet after roll forming to required length
6.Length measuring: automatic length measuring
cutting, the main machine will automatically start.
2.Power supply: hydraulic station
3.Frame: welding steel frame
4.Stroke switch: non-contact photoelectric switch
5.Cutting before forming: cut the sheet after roll forming to required length
6.Length measuring: automatic length measuring

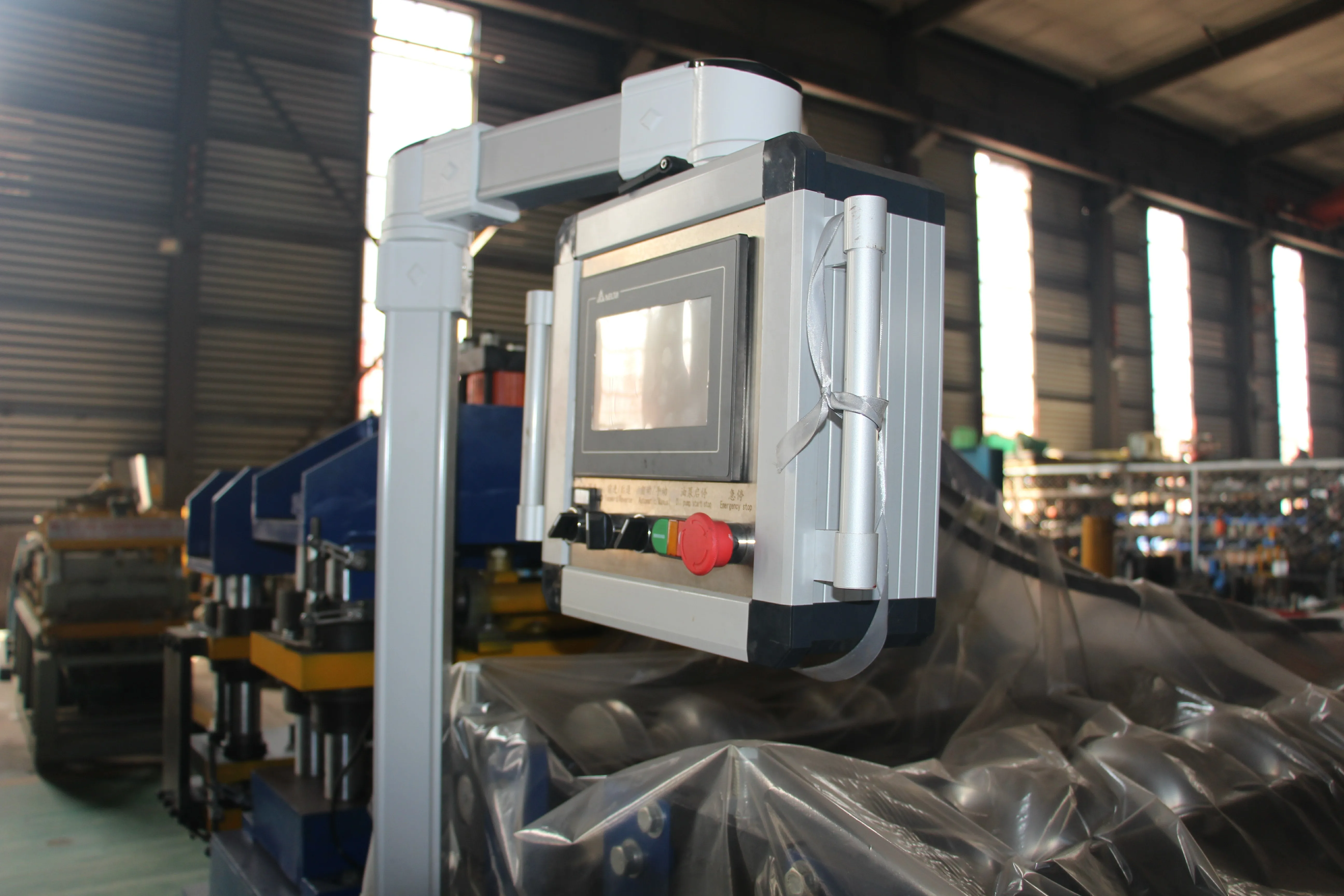

PLC controller
Brand: Panasonic Japan
Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of
on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working.
In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components.
And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.
Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of
on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working.
In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components.
And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.
Decoiler (5 tons or 10 tons)
* Manual decoiler.
* Manual decoiler with motor
* Hydraulic aotumatic decoiler (with car)
* Manual decoiler with motor
* Hydraulic aotumatic decoiler (with car)
Out-put table( 3 meter or 6 meter )
*Manual table
*Automatic table
*Automatic table
Packaging | ||
Size | 7m(L)*1.4m(W)*1.5m(D) | |
Weight | 3.5T-4.0T | |
Packaging Details | 1.Tighten to container with steel wire rope and welded machine with container by angel iron | |
2.Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic) | ||
3.PLC contral system and motor pump are packed in wooden box with water proof paper coverage | ||
