Сублимационный термопресс для печати на футболках 38*38
US $110.00-$120.00

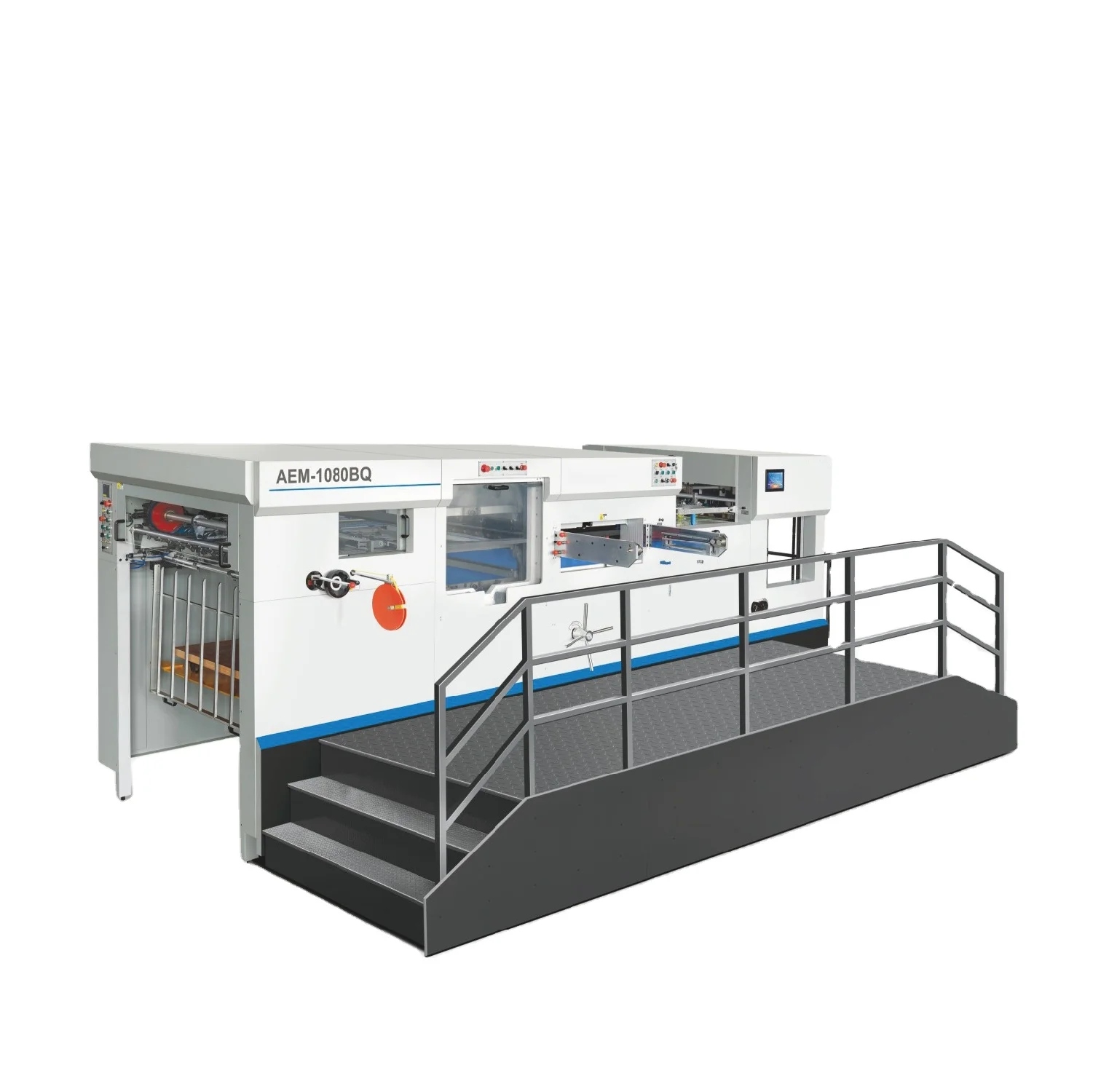

AEM-1080Q плоская кровать автоматическое штанцевание и загибочный станок с отходов
- Категория: >>>
- Поставщик: Ruian,Koten,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.21 $* | 0.84 $* |
| Aug-19-2025 | 0.23 $* | 0.93 $* |
| Jul-19-2025 | 0.99 $* | 0.96 $* |
| Jun-19-2025 | 0.51 $* | 0.17 $* |
| May-19-2025 | 0.16 $* | 0.82 $* |
| Apr-19-2025 | 0.87 $* | 0.34 $* |
| Mar-19-2025 | 0.56 $* | 0.38 $* |
| Feb-19-2025 | 0.51 $* | 0.46 $* |
| Jan-19-2025 | 0.52 $* | 0.77 $* |
Характеристики
Product Description
Features
★ Automatic pressure adjust system, pressure digital display.
★ Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
★ Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
★ Front lay, side lay, feeding device fine tuning device, paper positioning more accurate,
★ Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
★ Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.

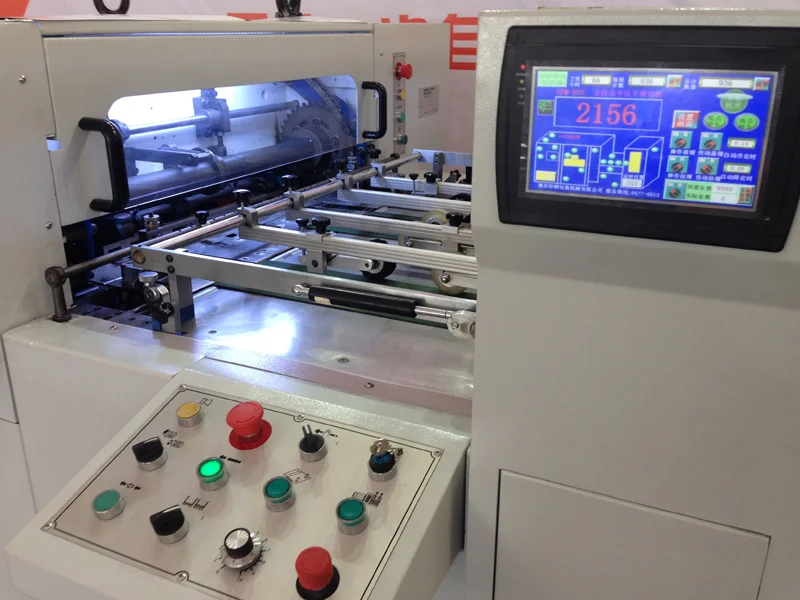

★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better
durability.
★ Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
★ Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
★ Front lay, side lay, feeding device fine tuning device, paper positioning more accurate,
★ Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
★ Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.
★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better
durability.
Die cutting plate.
Specification
item | value |
Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Printing Shops, Other, Advertising Company |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | PLC |
Condition | New |
Type | Paper Cutting Machine |
Automatic Grade | Automatic |
Place of Origin | China |
Zhejiang | |
Brand Name | Koten |
Voltage | 380V |
Dimension(L*W*H) | 6800x3780x2050mm |
Weight | 9500KG |
Warranty | 1 Year |
Key Selling Points | Automatic |
Main technical parameters
Model | 800Q | 1080Q | ||||||
Max paper size: | 800 x 620 mm | 1080x780mm | ||||||
Min paper size: | 340 x280 mm | 450x400mm | ||||||
Max cutting size: | 770 x 600 mm | 1075x770mm | ||||||
Die frame inner size: | 820 x 628 mm | 1100x800mm | ||||||
Cutting plate size: | 826 x 628 mm | 1100x800mm | ||||||
Min gripper edge size: | 7 mm | 7mm | ||||||
Cutting precision: | ≤±0.1 mm | ≤±0.15mm | ||||||
Max cutting pressure: | 200 T | 300T | ||||||
Max cutting speed: | 7000 S/H | 7000 S/H | ||||||
Pre-stacking height: | 1150 mm | 1150 mm | ||||||
Delivery stack height: | 1000 mm | 1100 mm | ||||||
Application: | ||||||||
White board: | 0.1～2 mm | 0.12～2 mm | ||||||
Corrugated paper: | ＜4 mm | ＜4 mm | ||||||
Main motor power: | 7.5 KW | 11KW | ||||||
Total power: | 12.75 KW | 17.8KW | ||||||
Dimension : 【L(+ pre-stacking)x W(+ platform)x H】 | ||||||||
5150(+1360) x 2000(+1300) x 1690 mm | 6800x3780x2050mm | |||||||
weight: | 9.5 T | 14T | ||||||
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2015,sell to Eastern Europe(30.00%),South America(20.00%),Southeast Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Central America(5.00%),Western Europe(5.00%),North America(5.00%),Africa(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Book Binding Machine,Die Cutting Machine,Paper Cutting Machines,Flute Laminating Machine,Folder Gluer
4. why should you buy from us not from other suppliers?
The main parts of Koten Brand Machines are processed by automatic CNC machine with high precision.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2015,sell to Eastern Europe(30.00%),South America(20.00%),Southeast Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Central America(5.00%),Western Europe(5.00%),North America(5.00%),Africa(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Book Binding Machine,Die Cutting Machine,Paper Cutting Machines,Flute Laminating Machine,Folder Gluer
4. why should you buy from us not from other suppliers?
The main parts of Koten Brand Machines are processed by automatic CNC machine with high precision.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
