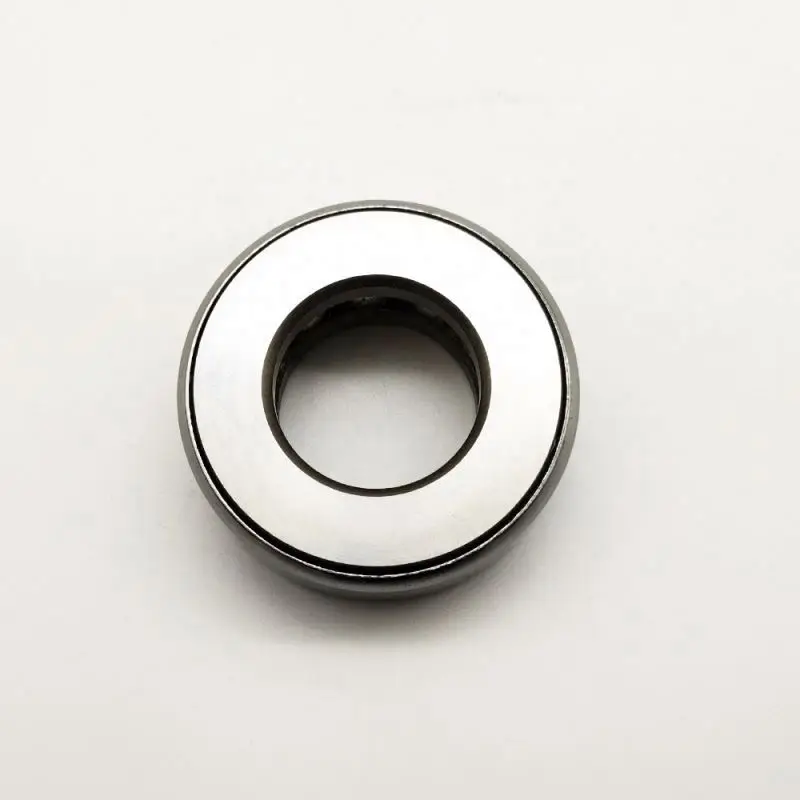

D 33 bearing Axial deep groove ball bearing Thrust ball bearing D33
Product Description
Drawings:
Part of the bearing specification:
| Bearing No. | dw(inch) | dg (inch) | D(inch) | H(inch) | |
| D1 | E1 | 0.5 | 0.5312 | 1.2187 | 0.5625 |
| D2 | E2 | 0.5625 | 0.5937 | 1.2187 | 0.5625 |
| D3 | E3 | 0.625 | 0.6562 | 1.3437 | 0.5625 |
| D4 | E4 | 0.6875 | 0.7187 | 1.3437 | 0.5625 |
| D5 | E5 | 0.7509 | 0.7812 | 1.4687 | 0.5625 |
| D6 | E6 | 0.8125 | 0.8437 | 1.4687 | 0.5625 |
| D7 | E7 | 0.875 | 0.9062 | 1.8437 | 0.625 |
| D8 | E8 | 0.9375 | 0.9687 | 1.8437 | 0.625 |
| D9 | E9 | 1 | 1.0312 | 1.9687 | 0.625 |
| D10 | E10 | 1.0625 | 1.0937 | 1.9687 | 0.625 |
| D11 | E11 | 1.125 | 1.1562 | 2.0937 | 0.625 |
| D12 | E12 | 1.1875 | 1.2187 | 2.0937 | 0.625 |
| D13 | E13 | 1.25 | 1.2812 | 2.3437 | 0.625 |
| D14 | E14 | 1.3125 | 1.3437 | 2.3437 | 0.625 |
| D15 | E15 | 1.375 | 1.4062 | 2.4687 | 0.625 |
| D16 | E16 | 1.4375 | 1.4687 | 2.4687 | 0.625 |
| D17 | E17 | 1.5 | 1.5312 | 2.5937 | 0.625 |
| D18 | E18 | 1.5625 | 1.5937 | 2.5937 | 0.625 |
| D19 | E19 | 1.625 | 1.6562 | 2.9687 | 0.8125 |
| D20 | E20 | 1.6875 | 1.7187 | 2.9687 | 0.8125 |
| D21 | E21 | 1.75 | 1.7812 | 3.0937 | 0.8125 |
| D22 | E22 | 1.8125 | 1.8437 | 3.0937 | 0.8125 |
| D23 | E23 | 1.875 | 1.9062 | 3.2187 | 0.8125 |
| D24 | E24 | 1.9375 | 1.9687 | 3.2187 | 0.8125 |
| D25 | E25 | 2 | 2.0312 | 3.3437 | 0.8125 |
| D26 | E26 | 2.0625 | 2.0937 | 3.3437 | 0.8125 |
| D27 | E27 | 2.125 | 2.1562 | 3.5937 | 0.8125 |
| D28 | E28 | 2.1875 | 2.2187 | 3.5937 | 0.8125 |
| D29 | E29 | 2.25 | 2.2812 | 3.7187 | 0.8125 |
| D30 | E30 | 2.3125 | 2.3437 | 3.7187 | 0.8125 |
| D31 | E31 | 2.375 | 2.4062 | 3.8437 | 0.8125 |
| D32 | E32 | 2.4375 | 2.4687 | 3.8437 | 0.8125 |
| D33 | E33 | 2.5 | 2.5312 | 3.9687 | 0.8125 |
| D34 | 2.5625 | 2.5937 | 3.9687 | 0.8125 | |
| D35 | 2.625 | 2.6562 | 4.3437 | 1 | |
| D36 | 2.6875 | 2.7187 | 4.3437 | 1 | |
| D37 | E37 | 2.75 | 2.7812 | 4.4687 | 1 |
| D38 | 2.8125 | 2.8437 | 4.4687 | 1 | |
| D39 | E40 | 2.9375 | 2.9687 | 4.5937 | 1 |
| D39 1⁄2 | E41 | 3 | 3.0625 | 4.5937 | 1 |
| D40 | 3 | 3.0312 | 4.7187 | 1 | |
| D41 | E43 | 3.25 | 3.2812 | 4.9687 | 1 |
| D42 | E45 | 3.5 | 3.5312 | 5.2187 | 1 |
Thrust roller bearings are separable bearings, can only withstand axial load and a slight impact, to limit the shaft (or shell) of the axial displacement in one direction, it can be used as single-axis to the position. But its carrying capacity is far greater than the thrust ball bearings.
Thrust roller bearings are mainly used for heavy-duty machine tools, power marine gear boxes, oil rig, electrical and other machinery in the vertical.
Specifications:
1.high precision ball bearing
2.ISO standard bearing
3.High quality & competitive price
4.Many famous brand is available
5.Low noise &long life
6. Chrome Steel ,stainless steel
Product show:
Information:
| Product | D 33 bearing Axial deep groove ball bearing Thrust ball bearing D33 |
| Precision Rating | ABEC1,ABEC3,ABEC5 |
| Clearance | C0,C2,C3,C4,C5 is available |
| Sealed Cap | Open |
| Paypal | Acceptable |
| OEM | Accept |
| Vibration Level code | V1,V2.V3 |
| Material | Gcr15 |
| Seals Type | ZZ/ZRS.RZ/RS. Open |
| Number of row | single row |
| Bore Size(d) | -- MM |
| Outside Diameter | -- MM |
| Thickness | -- MM |
| Regular export packing | Plastic drum+White box+ carton |
| industrial packaging or as your requirement. | |
| MOQ | 1 pcs |
| Delivery Time | 3-7 days after receiving your payment |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Port of shippment by sea | Shanghai,guangzhou,qingdao |
| Place of Origin | Anhui, China |
| Samples | Available |
